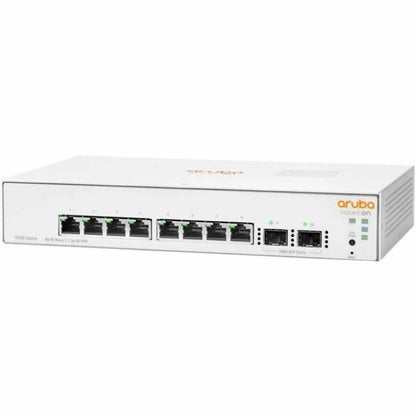

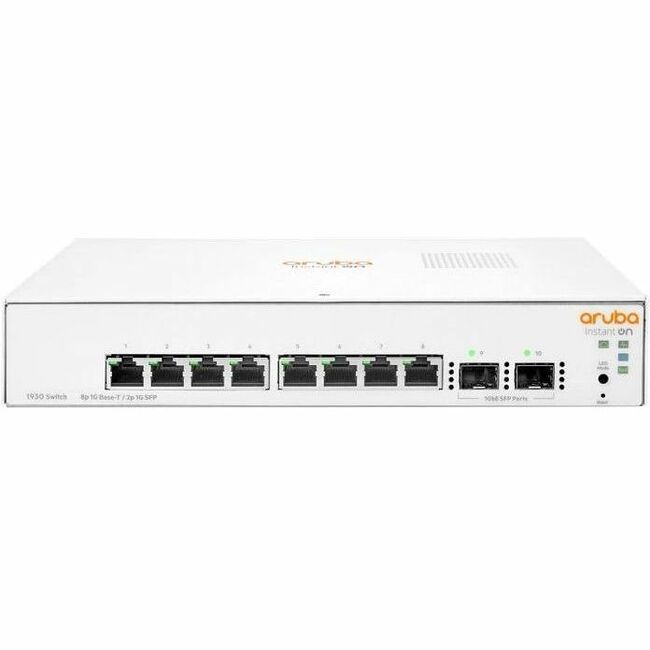

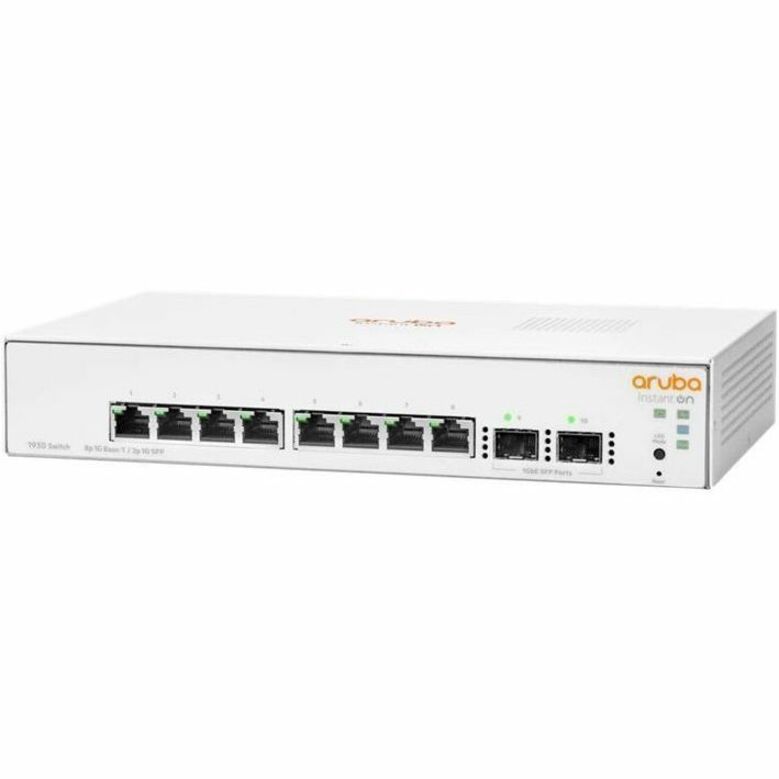

HPE Instant On 1930 8G 2SFP Switch - JL680A#ABA
Key Features
- Guard your network from unwanted or unauthorized access with switch features such as IEEE 802.1X and VLANs
- High performance yet affordable Gigabit switches built for small businesses and SMBs, with simple-to-use cloud management at no added cost.
- Limited Lifetime Support provides 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.
- Shares common app and cloud-based administration with Instant On Wi-Fi Access Points, for Wi-Fi optimized networking.

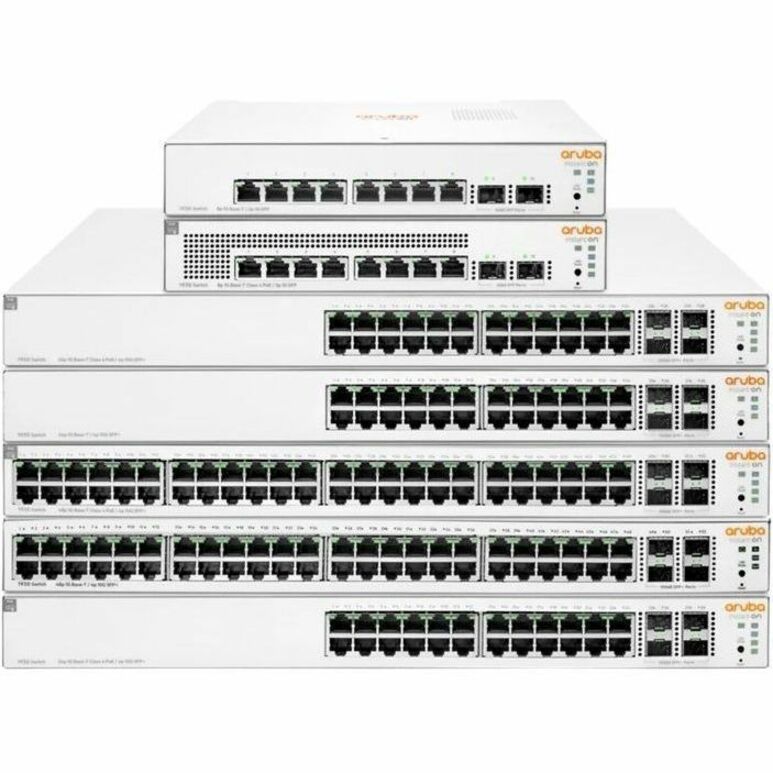

- The series offers a complete portfolio of switch model choices. Choose from seven models -- 10-port, 28-port, 52-port models without and with Class 4 PoE+ Power over Ethernet.
- This model: 8 x 10/100/1000 RJ45 ports plus two (2) dedicated 1G SFP slots for fiber uplinks or additional ports. (SFP transceivers separately sold)
- Use a mobile app to easily setup, monitor and manage your network
Product Overview
Aruba Instant On 1930 switches are advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high performance networking that is easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports 10 active ports -- eight 10/100/1000 copper Ethernet RJ45 ports and two 1-Gigabit SFP-style uplink slots.Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: JL680A#ABA
- Brand Name: HPE
- Product Name: Instant On 1930 8G 2SFP Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 10
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 2.0
- Expansion Slot Type: SFP (mini-GBIC)
- Shared SFP Slot: No
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 3
Management & Protocols
- Manageable: Yes
Physical Characteristics
- Form Factor: Desktop
- Height: 1.7"
- Width: 10"
- Depth: 6.3"
Warranty
- Limited Warranty: Lifetime
