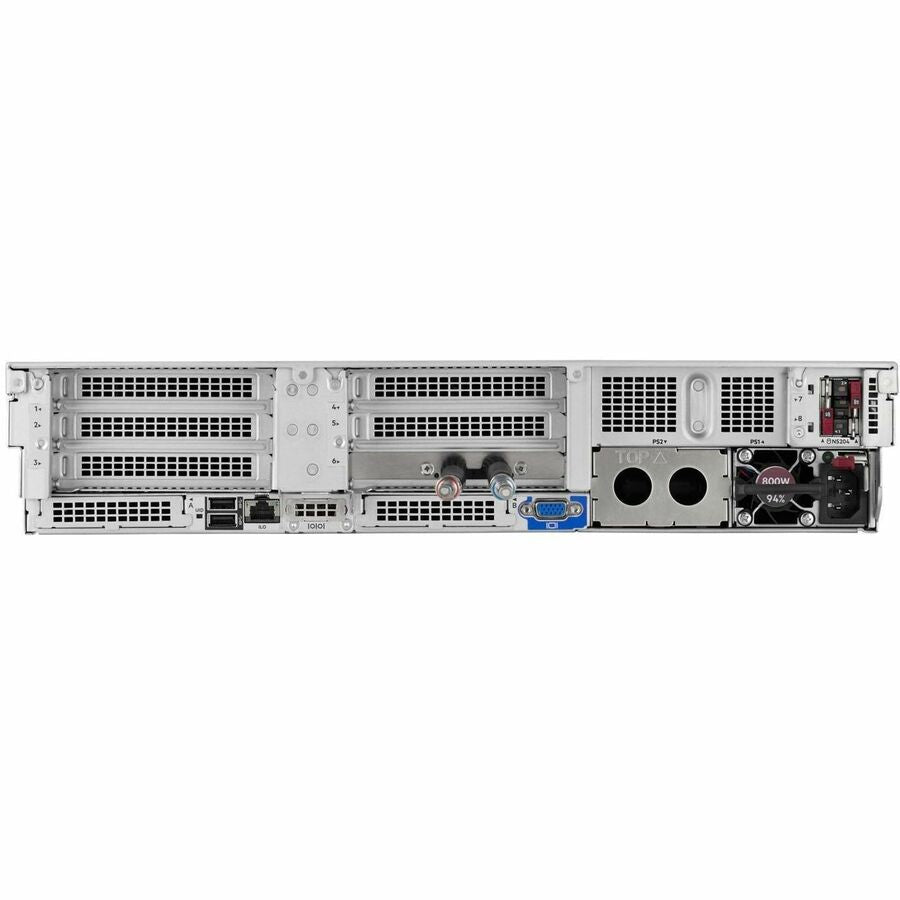

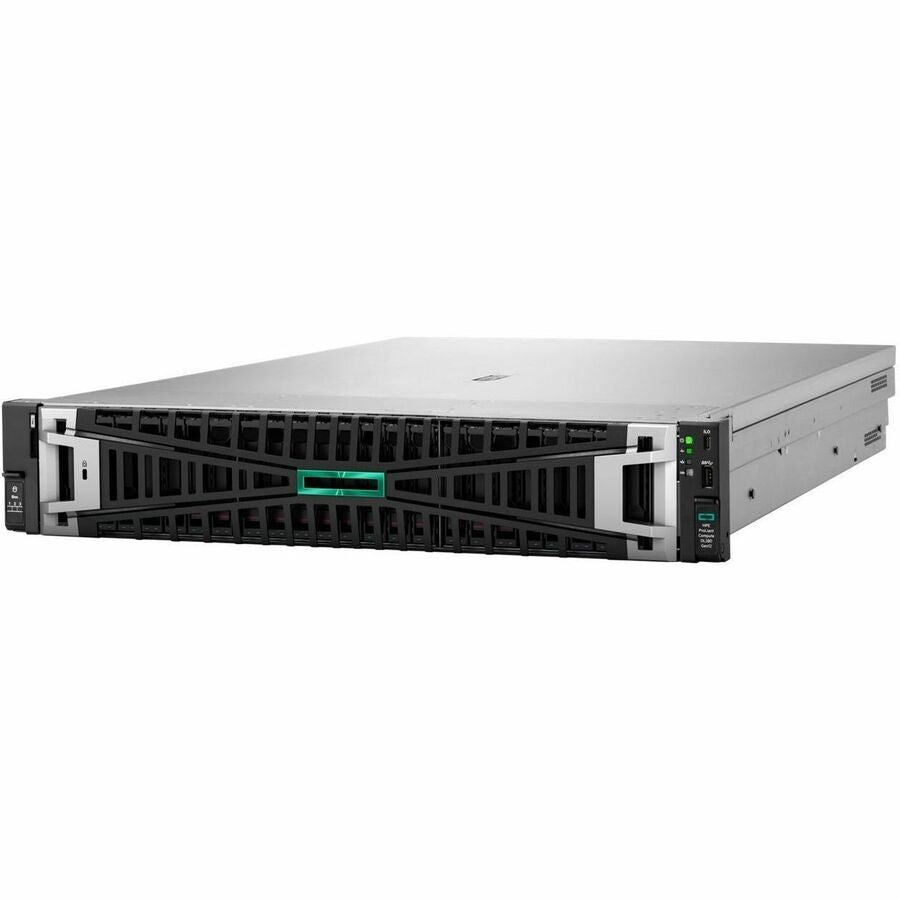

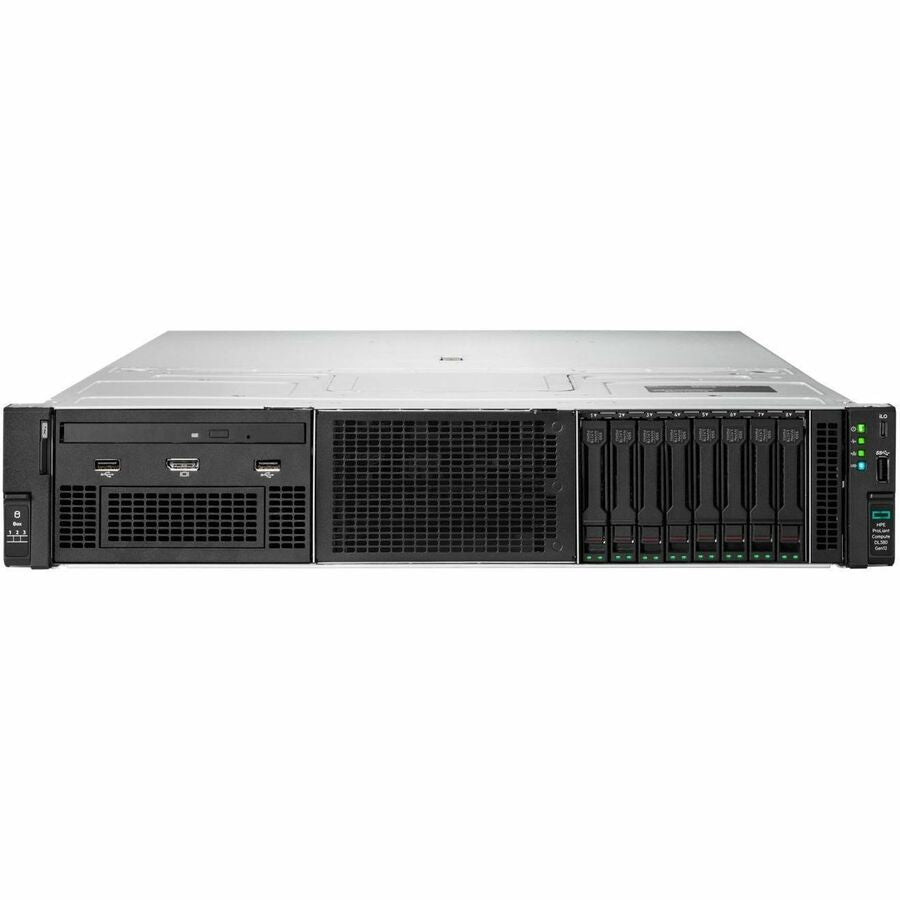

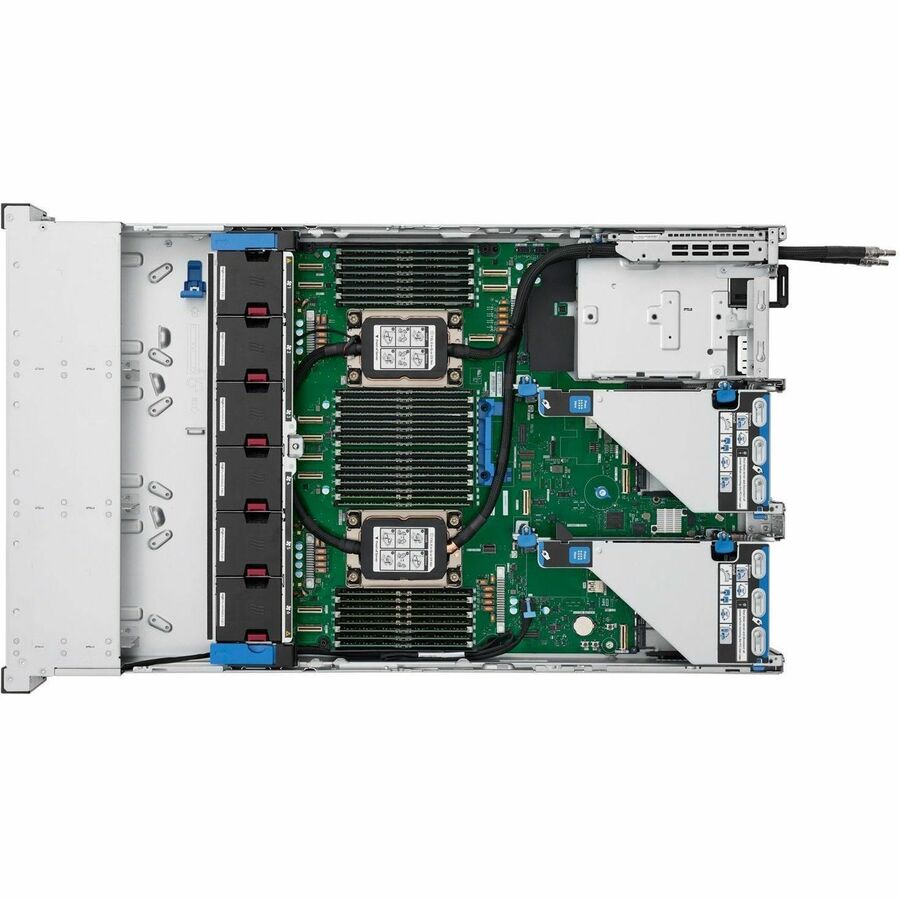

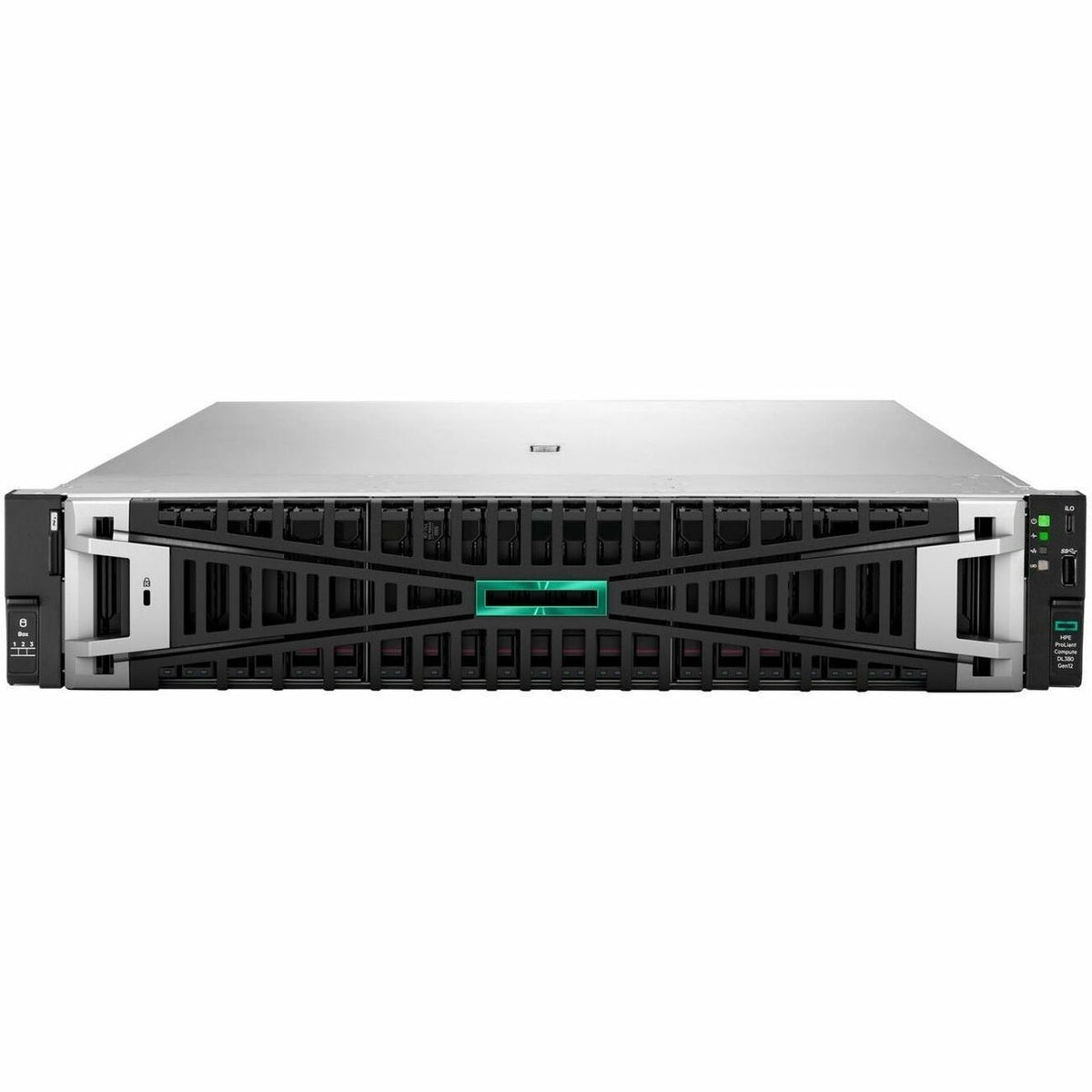

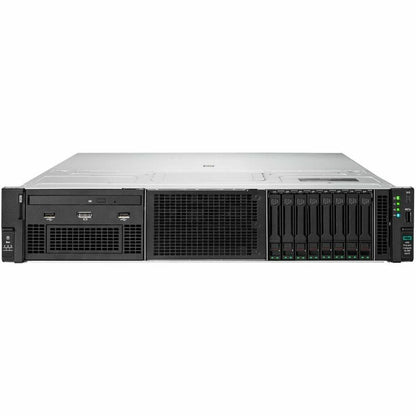

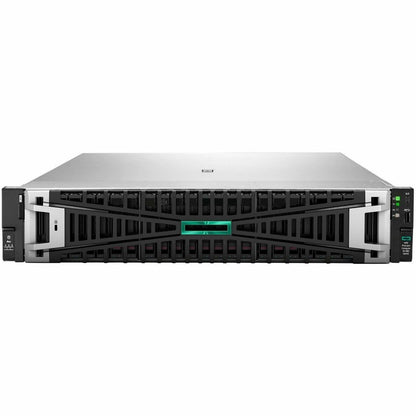

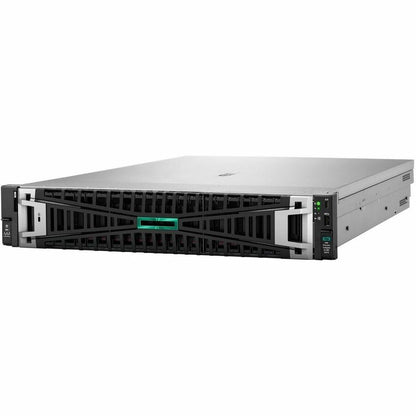

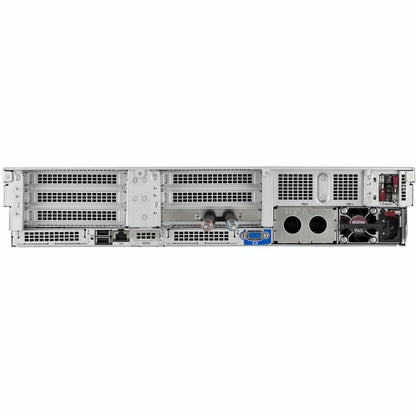

HPE ProLiant Compute DL380 Gen12 2U Rack Server - 1 x Intel Xeon 6 6530P 2.30 GHz - 64 GB RAM - Serial ATA/600, 12Gb/s SAS, NVMe Controller - P90005-005
Key Features
- 1000 W power supply unit (PSU) fulfills system power needs, ensuring smooth operation under heavy workloads
- 2 processors supported for optimal performance and maximum reliability in mission-critical server environments
- 3 USB ports feature a refined design and safer connectivity, ensuring reliable, secure, and easy device connections every time
- 4 Network (RJ-45) Ports simplify integration and enable powered devices in areas without dedicated electrical circuits
- Gigabit Ethernet offers up to 10x faster speeds than standard Ethernet, providing high-performance uplinks for critical workloads
- Rack form factor simplifies usage and setup, offering a user-friendly design for convenient server integration
- RAID ensures data reliability, fault tolerance, and improved performance for critical workloads in enterprise environments
- The DDR5 SDRAM memory technology ensures smooth data transfer between components, delivering consistent and reliable performance
- With 64 GB memory, you can multitask between applications seamless
Product Overview
Overview
Are you looking for a two-socket scalable server that powers data analytics and supports hybrid cloud workloads?
The HPE ProLiant Compute DL380 Gen12 is a scalable 2U 2P server that delivers exceptional compute performance, memory density with scalability and highspeed data transfer rate to run your most demanding applications. Powered by Intel® Xeon® 6 processors with up to 144 cores and up to 8 TB of memory as well as 36 EDSFF E3.S drives, the HPE ProLiant Compute DL380 Gen12 is an ideal hybrid cloud platform for enterprise applications and workloads.
The HPE ProLiant Compute DL380 Gen12 is engineered for your future, with next-level security, optimized performance and efficiencies, and automated, AIdriven productivity.
Features | Next-Level Security
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Compute Gen12 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements built into our DNA.
With the silicon root of trust from HPE and a zero-trust security framework to help ensure firmware integrity, this server continuously detects if it is compromised and is prevented from booting if malicious code is found. Additionally, this server is safeguarded with default IDevID certificates.
HPE ProLiant Compute servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.
The HPE ProLiant Compute DL380 Gen12, powered by Intel® Xeon® 6 processors, adds hardware- and softwareassisted security features, including Intel® Software Guard Extensions (SGX) for application isolation and Trusted Domain Extensions (TDX) for VM isolation.
HPE iLO 7 supports quantum-resistant (PQC) algorithms and signs HPE ProLiant Compute Gen12 firmware with algorithms approved by CNSA 2.0, which enhances resilience against potential future attacks by quantum computers.
Optimized Performance for Your Workloads
An excellent choice for compute and data storage demanding workloads requiring maximum core count, GPU capabilities, and network and I/O bandwidth.
Powered by Intel® Xeon® 6 processors with next-generation technology including 16 DIMM channels per processor that supports up to 144 cores and up to 8 TB of DDR5 memory at speeds up to 6400 MT/s.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 6x 16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.
HPE iLO 7 provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Choice of two cooling options - air-cooling or direct liquid cooling (DLC) for performance and energy efficiency to support sustainability initiatives.
General Information
- Manufacturer: Hewlett Packard Enterprise
- Manufacturer Part Number: P90005-005
- Brand Name: HPE
- Product Line: ProLiant Compute
- Product Series: DL380 Gen12
- Product Name: ProLiant Compute DL380 Gen12 Server
- Product Type: Server
Technical Information
- AI-powered: Yes
Processor
- Number of Processors Supported: 2
- Number of Processors Installed: 1
- Processor Manufacturer: Intel
- Processor Type: Xeon 6
- Processor Model: 6530P
- Processor Core: Dotriaconta-core (32 Core)
- Processor Speed: 2.30 GHz
- Cache: 144 MB
Chipset
- Chipset Manufacturer: Intel
Memory
- Standard Memory: 64 GB
- Maximum Memory Supported: 8 TB
- Memory Technology: DDR5 SDRAM
- Total Number of Memory Slots: 32
- Number of Occupied Memory Slots: 2
- Error Checking: ECC
- Signal Processing: Registered (Buffered)
Controllers
- Controller Type:
- Serial ATA/600
- 12Gb/s SAS
- NVMe
- Controller Model: MR408i-o Gen11
- RAID Supported: Yes
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
I/O Expansions
- Number of Total Expansion Bays: 8
- Number of Internal 2.5" Bays: 8
- Number of SFF Bays: 8
- Hot Swappable Bays: Yes
- Total Number of Expansion Slots: 8
- PCI Express Details: Up to 8 PCIe Gen5, and 2 OCP 3.0 (front or rear)
- Riser Card: Default primary riser slots 1, 2 & 3 (x8 x16 x8 bus width)
Display & Graphics
- Graphics Memory Capacity: 16 MB
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Total Number of USB Ports: 3
- Number of USB 3.0 Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 4
- VGA: Yes
- Remote Management: Yes
- Remote Management Controller: HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported: 2
- Number of Power Supplies Installed: 2
- Maximum Power Supply Wattage: 1000 W
- Redundant Power Supply: Yes
- Hot Swappable Power Supply: Yes
Miscellaneous
- Package Contents:
- ProLiant Compute DL380 Gen12 Server
- Easy Install Rail 3 Kit
- Security Features:
- Secure Boot and Secure Start enable for enhanced security
- Embedded UEFI Shell
- Operating system specific functionality
- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
- Support for > 2.2 TB (using GPT) boot drives
- PXE boot support for IPv6 networks
- USB 3.0 Stack
- Workload Profiles for simple performance optimization
- TPM (Trusted Platform Module)
- 1x HPE Bezel Lock Kit
- 1x HPE ProLiant DL3XX Gen11 Intrusion Cable Kit
- 1x HPE Gen11 2U Bezel Kit
- Energy Star: Yes
- Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
- Form Factor: Rack
- Rack Height: 2U
- Height: 3.4"
- Width: 17.6"
- Depth: 28.6"
- Weight (Approximate): 72.75 lb
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response.
