Complete 4K Surveillance Kit with 12 AI-Powered Turret Cameras, 16-Channel PoE NVR, 4TB Pre-Installed Storage, and Full NDAA Compliance
The InVid Tech PRTKIT-8MP16CHTX12-4T is a complete 4K security camera system that ships with twelve 8MP AI turret cameras, a 16-channel PoE NVR with 4TB of pre-installed storage, and 100-foot Ethernet cables for every camera. Each camera captures 3840 x 2160 resolution through a 2.8mm wide-angle lens with a 114-degree horizontal field of view, and built-in AI classifies humans and vehicles for smarter motion alerts that filter out animals, shadows, and other false triggers. The 16-port PoE NVR powers and connects all cameras through single cable runs, records to the included 4TB hard drive, and supports H.265+ compression to maximize recording time across two SATA bays that expand to 14TB each.
Every component in this kit meets NDAA compliance standards, making it eligible for federal buildings, military installations, and critical infrastructure sites where procurement regulations require it. The NVR supports cameras up to 12MP resolution and delivers 160 Mbps of network throughput, so the system scales from the included 12 cameras to a full 16-camera deployment without replacing any hardware. Remote access through iOS and Android apps supports up to 32 simultaneous users, and cloud storage integration provides off-site backup options for facilities that require redundant recording.
Where the PRTKIT-8MP16CHTX12-4T Fits
- Commercial buildings, office parks, and retail locations where a single purchase covers cameras, NVR, storage, and cabling for 12 coverage points, the 4K resolution captures identification-level detail at entrances and loading docks, and PoE eliminates separate power runs to each camera position
- Government facilities, military installations, and critical infrastructure where NDAA compliance is mandatory for procurement approval, the complete kit simplifies purchasing documentation, and the 16-channel NVR allows four additional cameras to be added as coverage needs expand without replacing the recorder
- Warehouses, parking structures, and large properties where the 30-meter IR range provides clear night vision across open areas, the 114-degree field of view minimizes the number of cameras needed per zone, and AI-driven human and vehicle detection reduces false alarms from environmental movement and animals
What the PRTKIT-8MP16CHTX12-4T Delivers

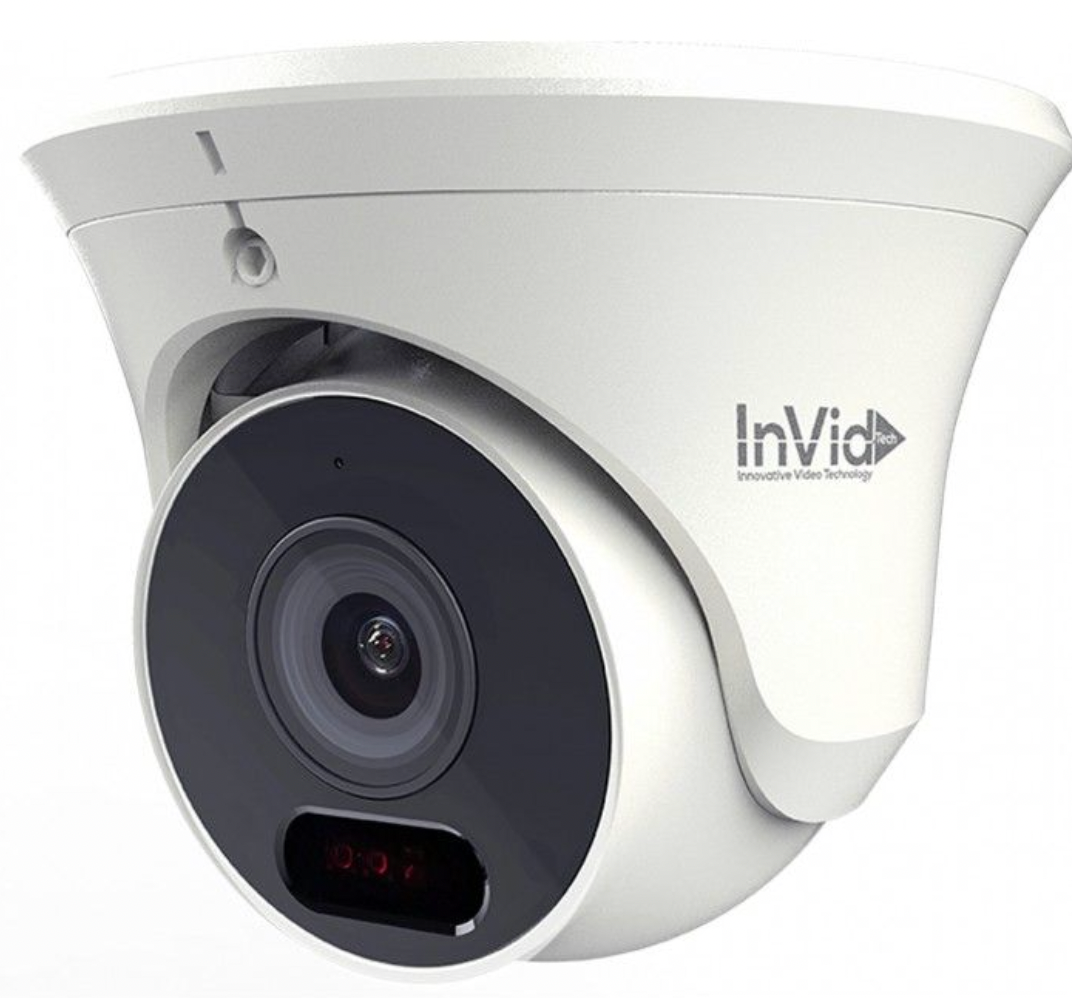

- 12x 8MP AI Turret Cameras at 3840 x 2160: Each camera uses a 1/2.7-inch progressive scan CMOS sensor with a 2.8mm F1.6 lens for a 114-degree horizontal field of view. Built-in AI detects and classifies humans and vehicles with perimeter protection for line crossing and intrusion zones. 30-meter IR night vision with smart IR intensity adjustment and deterrent white light on detection events.
- 16-Channel PoE NVR with 4TB Storage: 16 independent 10/100 Mbps PoE ports power cameras through single cable runs. 4TB pre-installed hard drive with two SATA bays supporting up to 14TB each for future expansion. H.265+ compression maximizes recording duration. HDMI and VGA outputs at up to 4K resolution for live monitoring.
- AI Analytics and Smart Playback: Human and vehicle classification on every camera eliminates false alerts from animals, shadows, and environmental triggers. Line crossing, intrusion detection, face detection, and perimeter protection are built into camera firmware. Smart playback filters recorded footage by event type to accelerate incident review.
- NDAA Compliant with Remote Access: All components meet NDAA compliance standards for government and critical infrastructure procurement. Remote viewing through iOS and Android apps supports up to 32 simultaneous users. Cloud storage and cloud upgrade supported. ONVIF Profile S compatible for third-party VMS integration.
- IP67 Weatherproof Cameras with Built-In Mic: Each camera carries an IP67 rating for outdoor installation in temperatures from -30 to 60 degrees Celsius. Built-in microphone records audio alongside video for incident context. MicroSD slot supports up to 128GB for edge recording with network failover.
