IOGEAR GCS1716 16-Port USB PS/2 Combo KVM Switch - GCS1716

IOGEAR GCS1716 16-Port USB PS/2 Combo KVM Switch - GCS1716

Key Features

• Auto Scan Mode to monitor connected computers
• Broadcast Mode to send commands to all connected computers
• Cascade up to 2 levels - control up to 256 computers from a single console

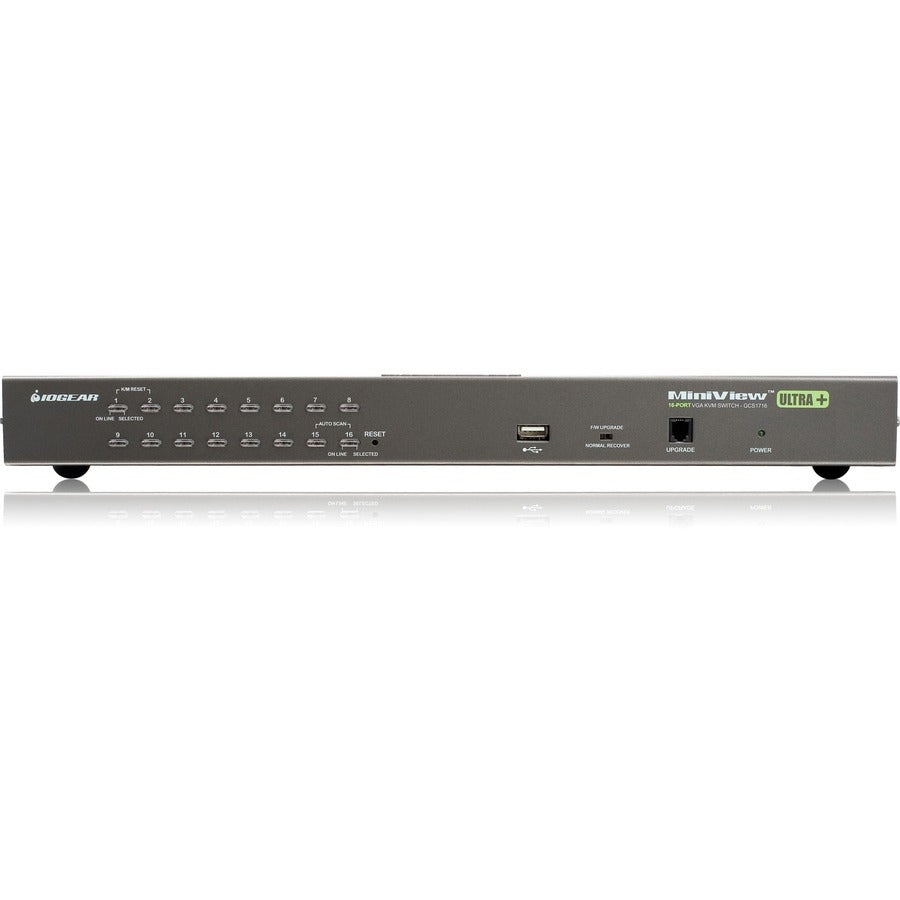

• Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and HotKeys
• Front USB Port - for system upgrades and shared peripherals. Fully compliant with USB 1.1
• Maximum video resolution: up to 2048 x 1536
• Multi platform OS support - Windows®, Mac, Sun Solaris™ , Linux®
• Rack mountable in a 19" (1U) system rack
• Security - 2 level password protection for OSD
• Supports both USB and PS/2, VGA computers

Product Overview

The GCS1716 KVM is a combo switch allowing access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack. The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
