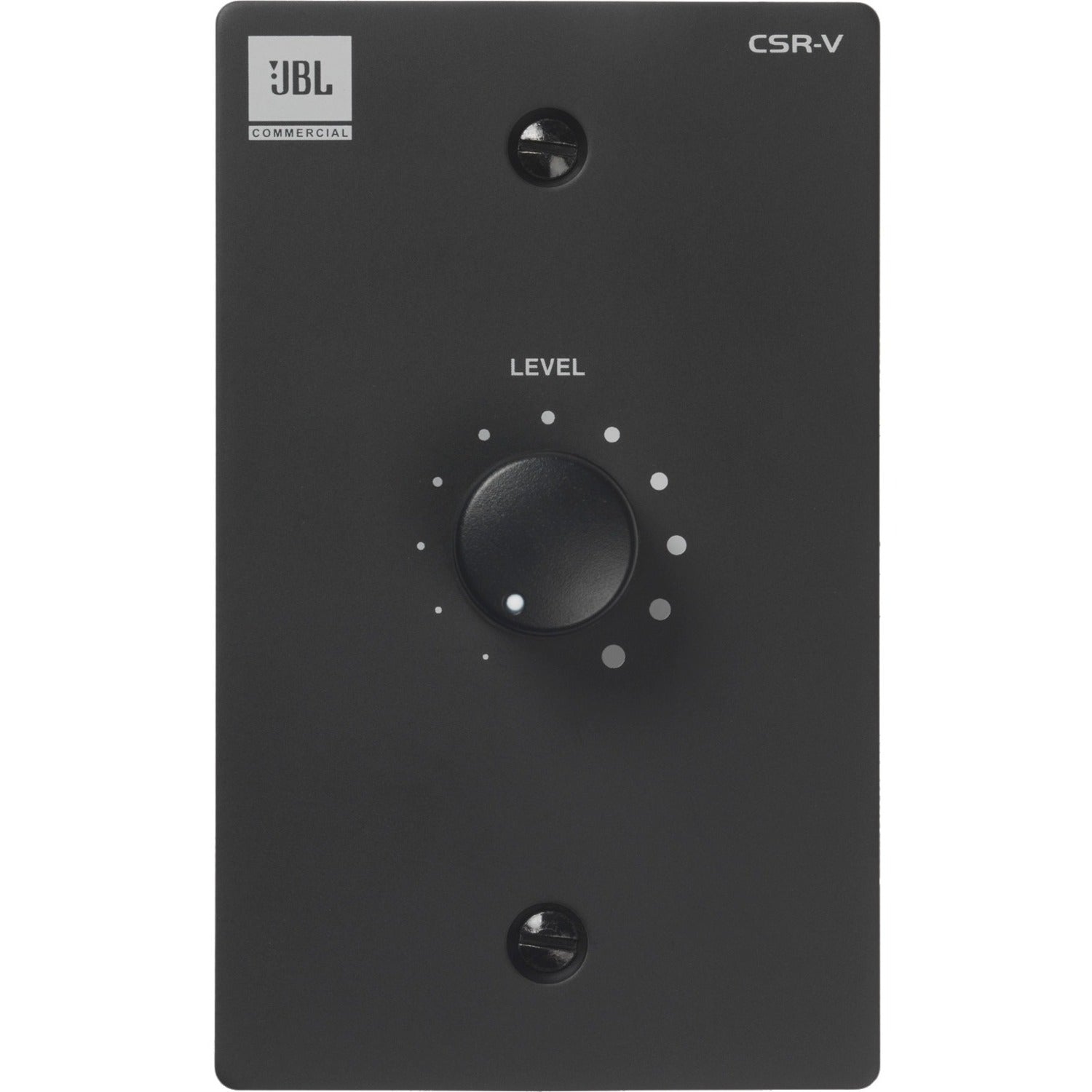

JBL Commercial CSR-V Audio Control Device - JBLCSRVBLKV
Product Overview
The JBL Commercial® CSR series remote controls, including CSR-V, CSR-2SV, and CSR-3SV, can use analog DC voltage to provide logic control ranging from source selection and volume. Wired with Cat 5 cable with universally accepted RJ-45 connectors up to 1000 feet (305 m) length, the CSR series remote controls allow you to remotely select the source and/or control the volume on the CSM mixer. Using CSR-V remote control with your CSM mixer, you can remotely control the volume of the source selected by the mixer. Using CSR-2SV or CSR-3SV remote control with your CSM-21 or CSM-32 zone mixer, you can remotely control the source on the mixer and the volume of the source.
General Information
- Manufacturer: Harman International Industries, Inc
- Manufacturer Part Number: JBLCSRVBLKV
- Brand Name: JBL Commercial
- Product Series: CSR
- Product Model: CSR-V
- Product Name: CSR-V Audio Control Device
- Product Type: Audio Control Device
Technical Information
- Connectivity Technology: Wired
Physical Characteristics
- Product Color: Black
- Form Factor:
- Wall Mountable
- Gang Box Mount
- Height: 4.5"
- Width: 2.8"
- Depth: 0.7"
