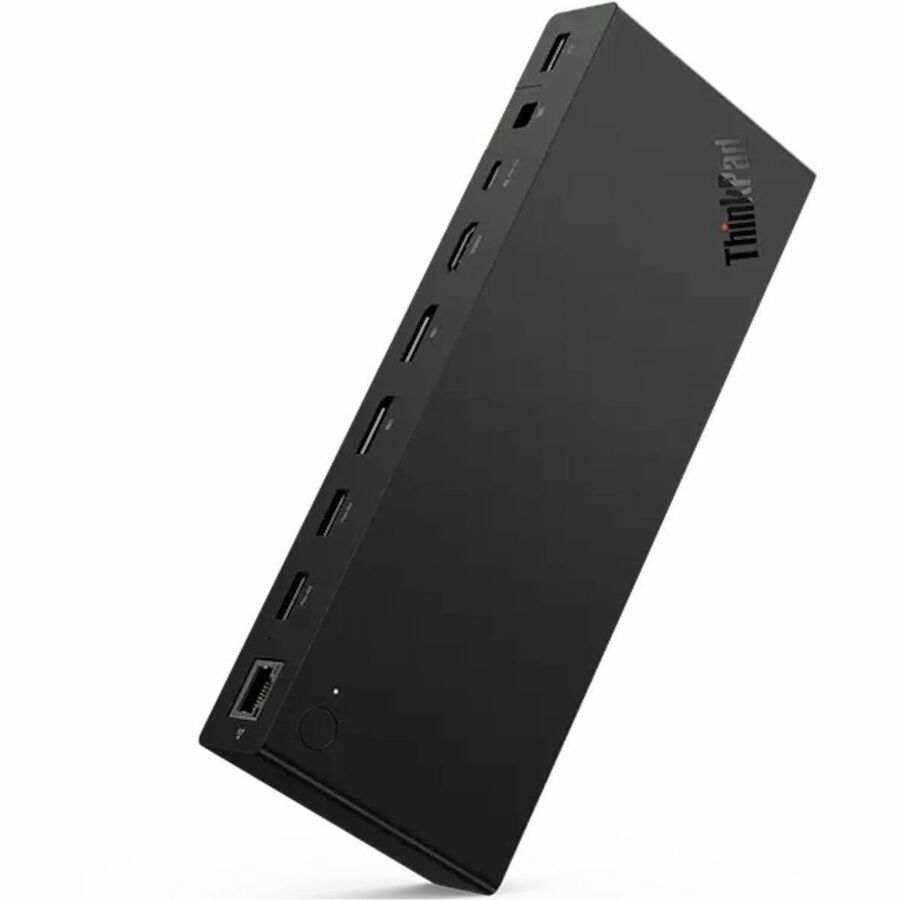

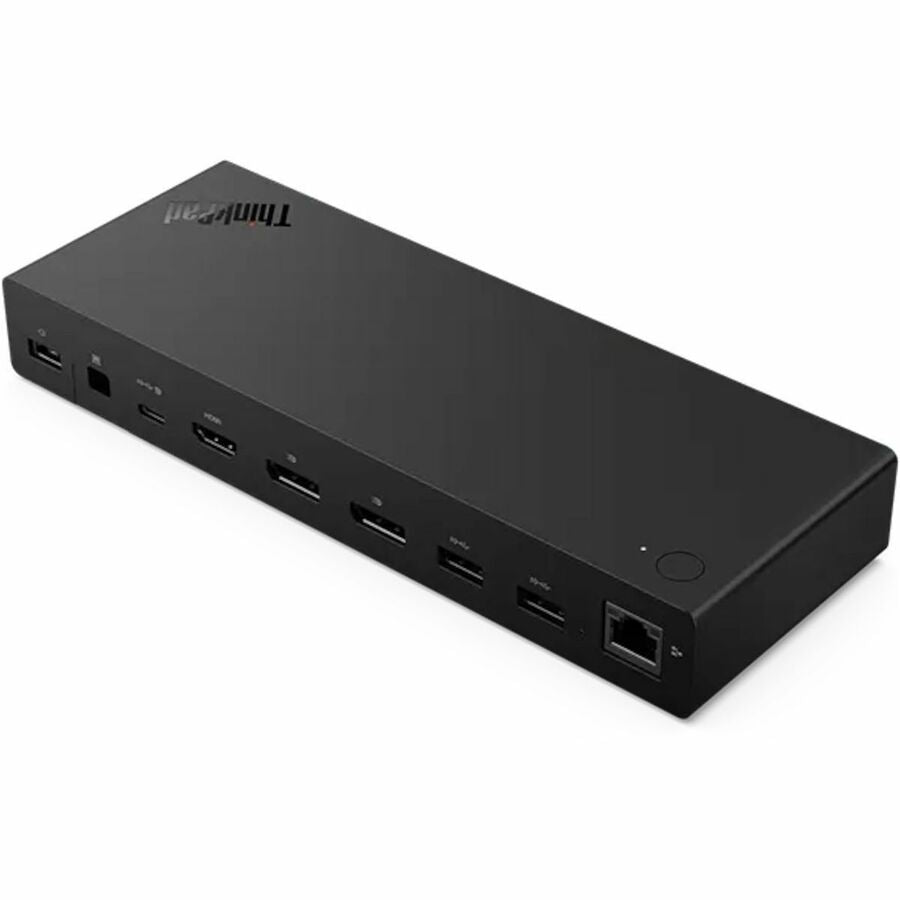

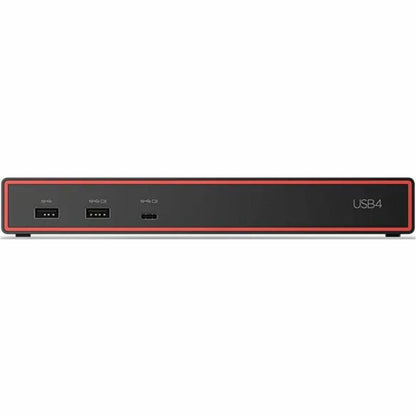

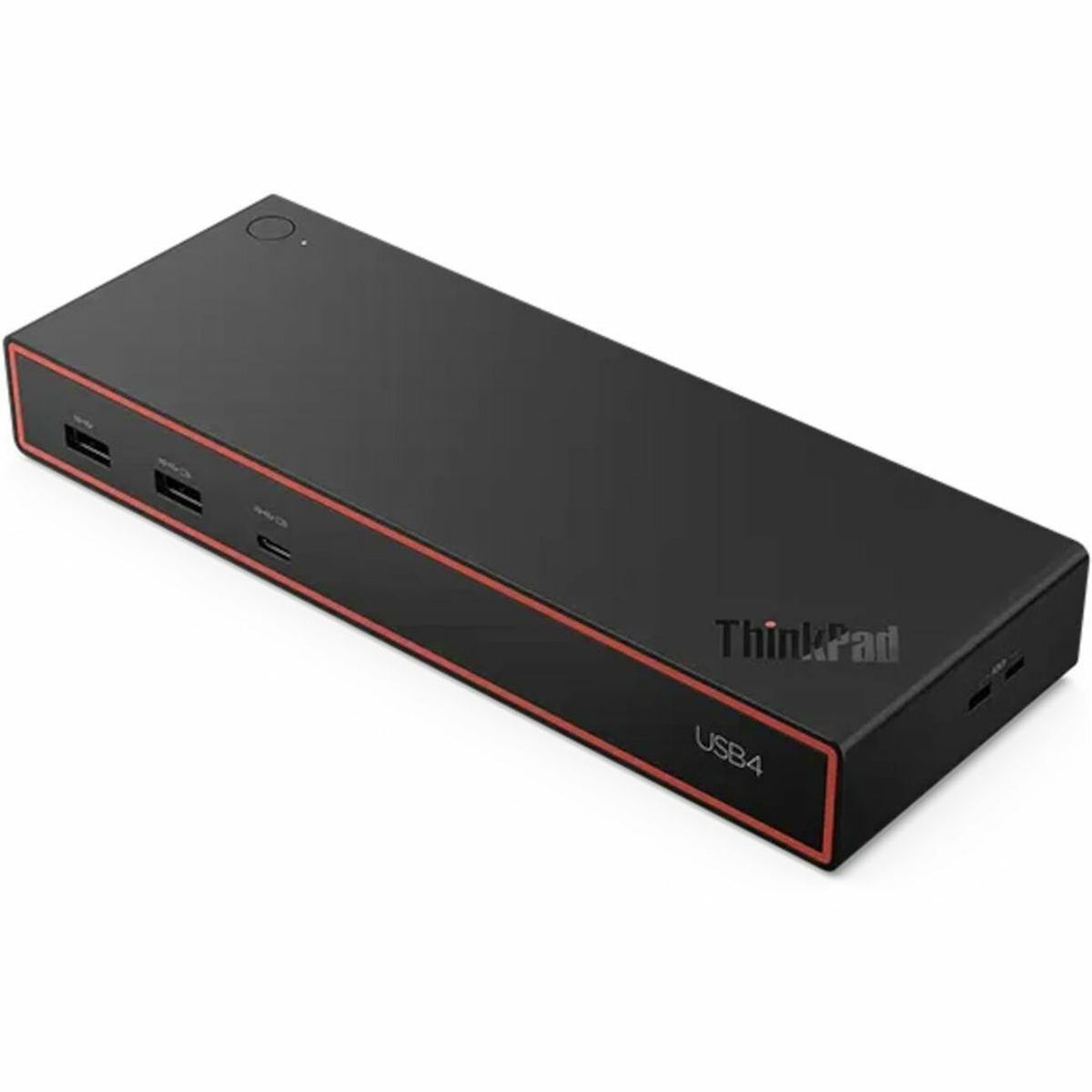

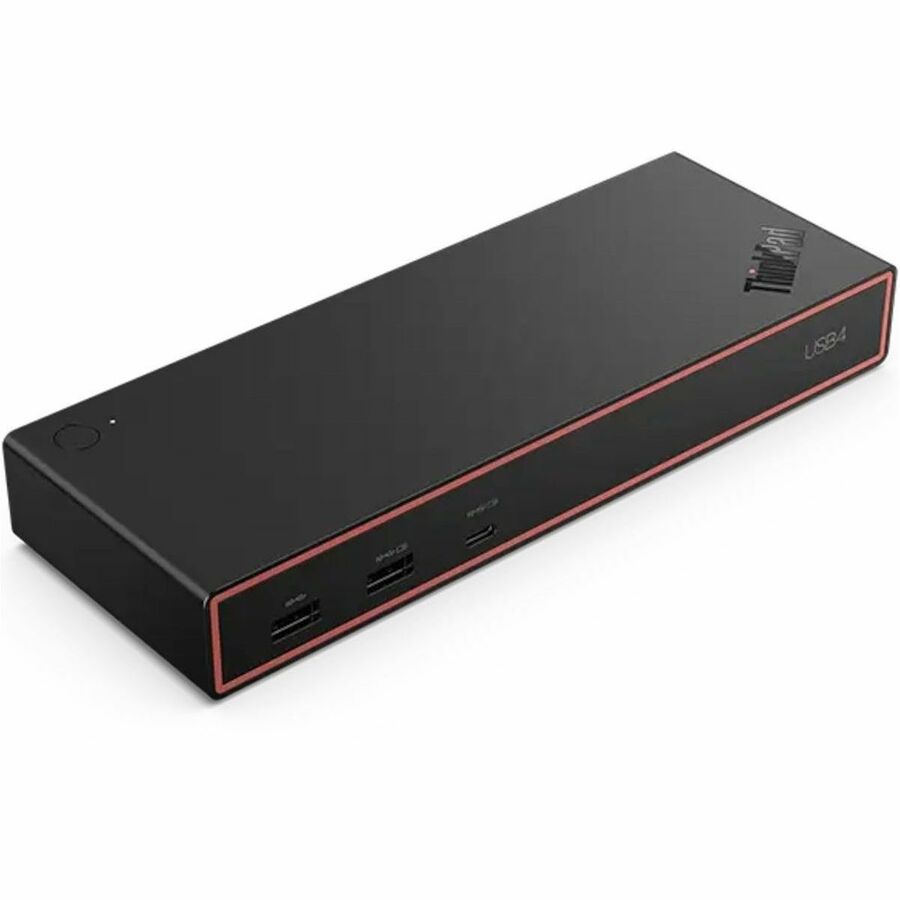

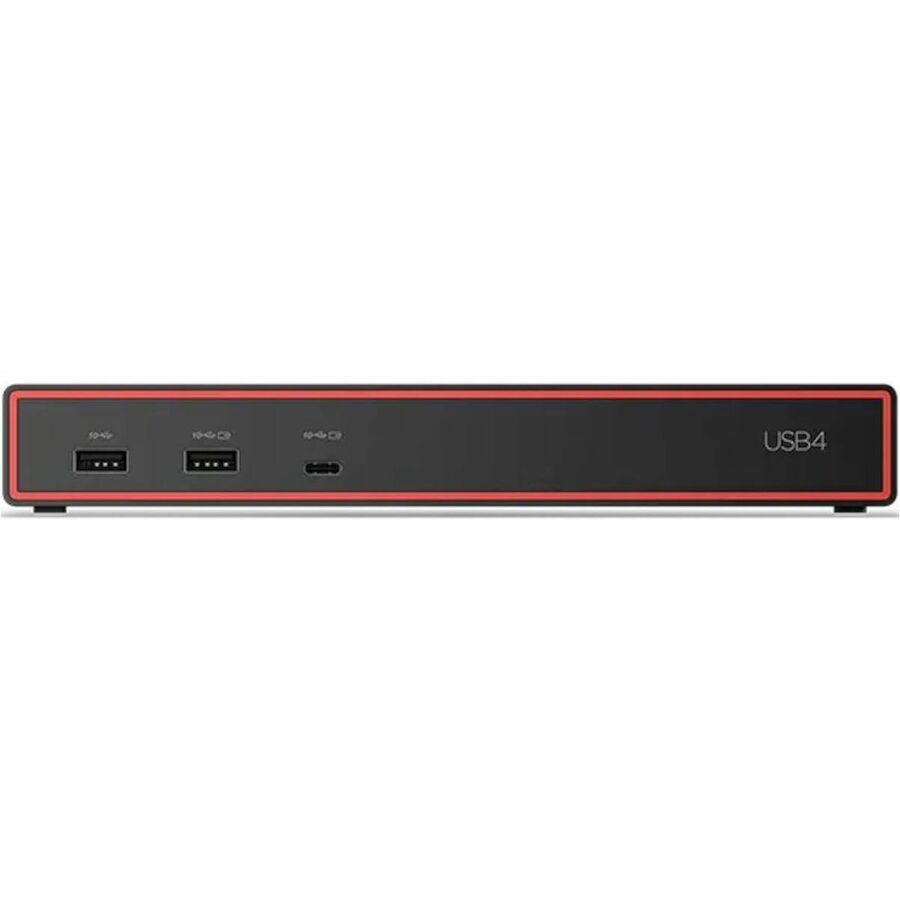

Lenovo ThinkPad USB4 Dock 5000 (with 135W Adapter) - 40BF0135US
Key Features
- 1 x 8K@60Hz or 4 x 4K@60Hz display support
- 1Gb Ethernet, support WOL, PXE Boot, MAC address pass thru on ThinkPad Notebooks
- Data speed up to 40Gbps to system
- The ThinkPad® USB4 Dock 5000 supports 100W PD 3.1 charge power
- Universal Dock Compatibility a cross different Operating System
Product Overview
Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting edge USB4 Technology. The dock can connect to your laptop with 40Gbps bandwidth USB4 upstream connectivity, that allows you to extend your monitor setup with more pixels and higher refresh rates. The 135W power adapter can boost the charge power up to 100W to you laptop.
General Information
- Manufacturer: Lenovo Group Limited
- Manufacturer Part Number: 40BF0135US
- Brand Name: Lenovo
- Product Line: ThinkPad
- Product Model: 5000
- Product Name: ThinkPad 5000 Docking Station
- Packaged Quantity: 1 Box
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 4
- Supported Resolutions:
- 7680 x 4320
- 3840 x 2160
- Screen Mode Supported:
- 8K @ 60Hz
- 4K @ 144Hz
- 4K @ 60Hz
- Management Features:
- Wake-on-LAN
- PXE Boot
- MAC Address Pass-through
- Device Supported:
- Notebook
- Monitor
- Mobile Workstation
Network & Communication
- Ethernet Technology: Gigabit Ethernet

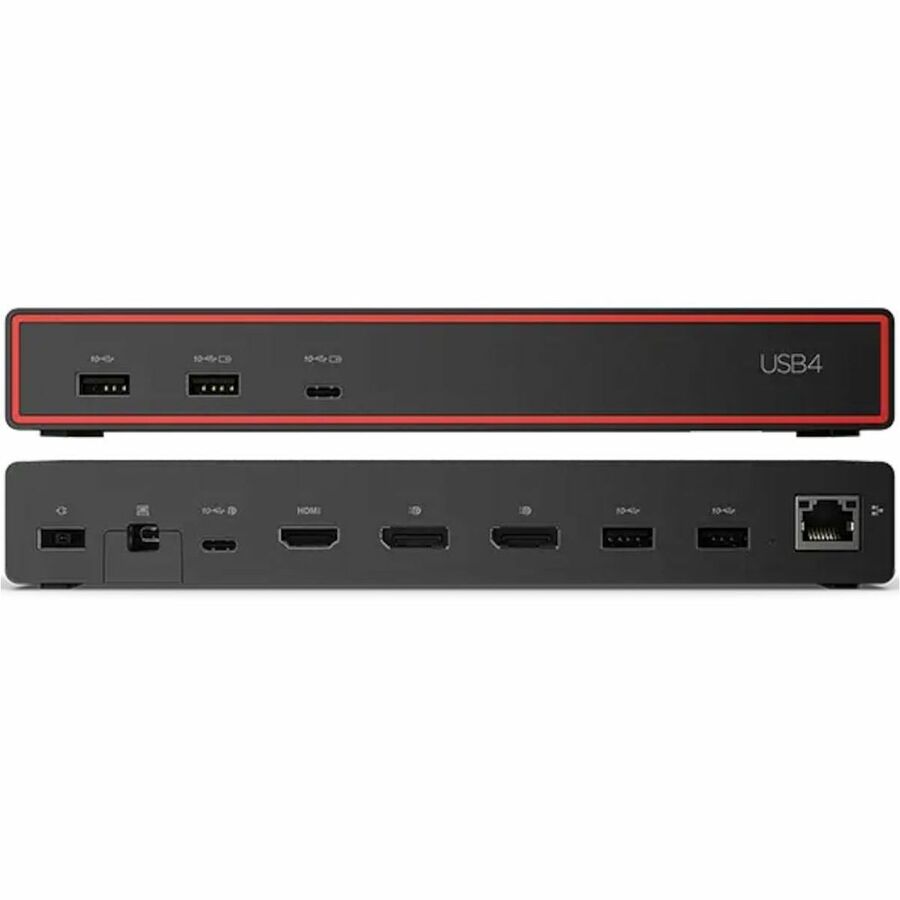

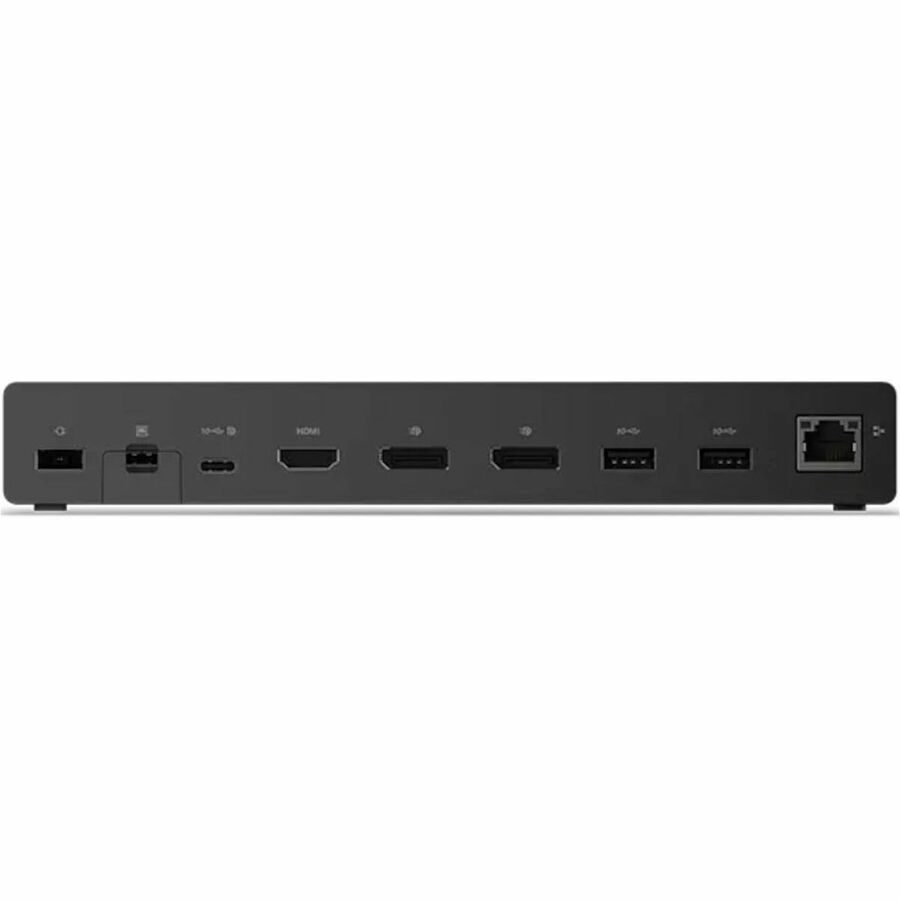

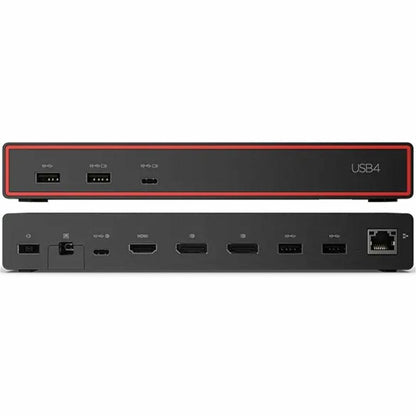

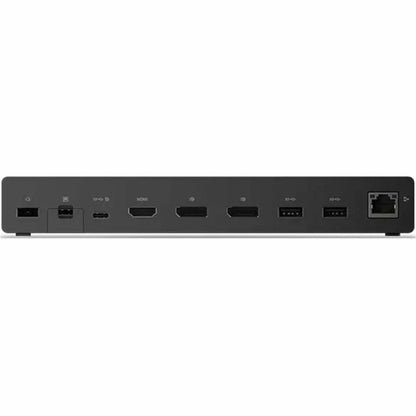

Interfaces/Ports
- Host Interface: USB4
- Total Number of USB Ports: 6
- Number of USB 3.2 Gen 2 Type-A Ports: 4
- Number of USB 3.2 Gen 2 Type-C Ports: 2
- Number of USB Type-C Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (always-on charging, 7.5W), 1 x USB-C 3.2 Gen 2 (Full-Function, 7.5W)
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 2
- DisplayPort: Yes
- DisplayPort Version: 1.4
- Number of HDMI Ports: 1
- HDMI: Yes
- USB Power Delivery: 100W
- USB4: Yes
- Total Number of Ports: 11
Software
- Operating System Supported:
- Windows 11
- macOS Sonoma
- macOS Sequoia 15
Power Description
- Maximum Power Supply Wattage: 135 W
Physical Characteristics
- Product Color: Eclipse Black
- Height: 1.24"
- Depth: 3.15"
- Weight (Approximate): 1.04 lb
Miscellaneous
- Package Contents:
- ThinkPad 5000 Docking Station
- 1 x 135W Power Adapter
- 1 x Power Cord
- 1 x Setup Poster
- 1 x Warranty Poster
- Kensington Security Slot: Yes
- Compatibility:
Lenovo Products:
- ThinkBook 14 G8 IAL
- ThinkBook 14 G8 IRL
- ThinkBook 16 G8 IAL
- ThinkBook 16 G8 IRL
- ThinkPad E14 Gen 8 (AMD)
- ThinkPad E16 Gen 4 (AMD)
- ThinkPad L13 2-in-1 Gen 5 (Intel)
- ThinkPad L13 2-in-1 Gen 6 (AMD)
- ThinkPad L13 2-in-1 Gen 6 (Intel)
- ThinkPad L13 Gen 5 (Intel)
- ThinkPad L13 Gen 6 (AMD)
- ThinkPad L13 Gen 6 (Intel)
- ThinkPad L14 Gen 5 (AMD)
- ThinkPad L14 Gen 5 (Intel)
- ThinkPad L14 Gen 6 (AMD)
- ThinkPad L14 Gen 6 (Intel)
- ThinkPad L14 Gen 7 (AMD)
- ThinkPad L14 Gen 7 (Intel)
- ThinkPad L16 Gen 1 (AMD)
- ThinkPad L16 Gen 1 (Intel)
- ThinkPad L16 Gen 2 (AMD)
https://psref.lenovo.com/l/accessory/40BF0135US?tab=Compatibility
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Customer Replaceable Unit
