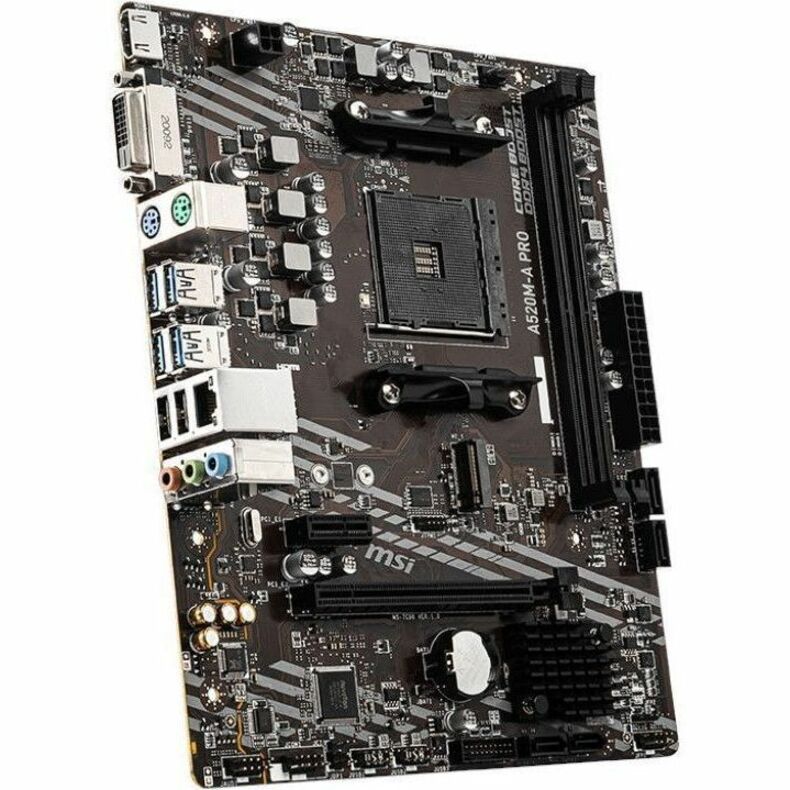

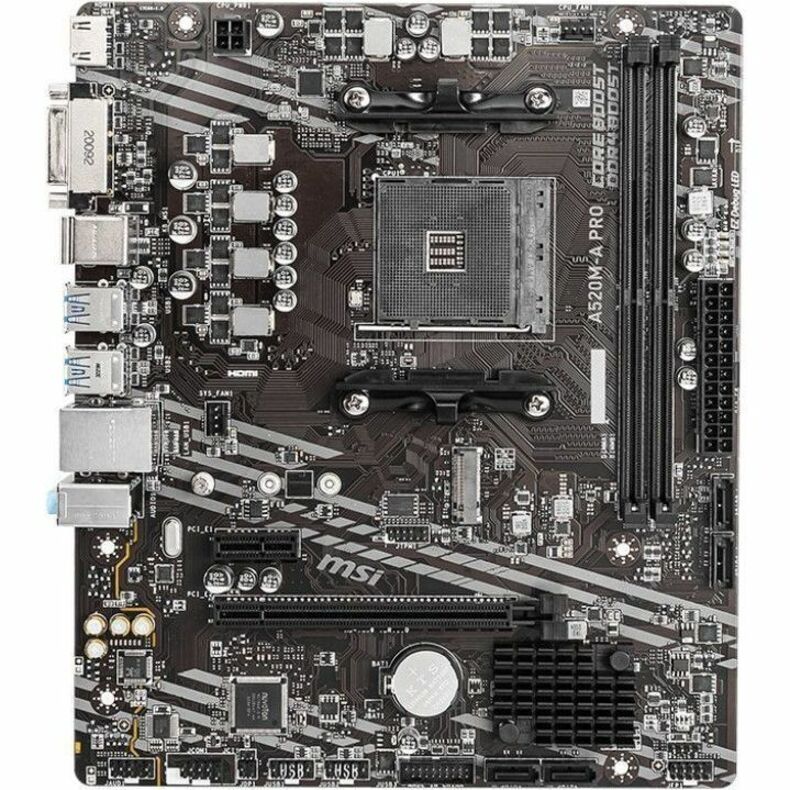

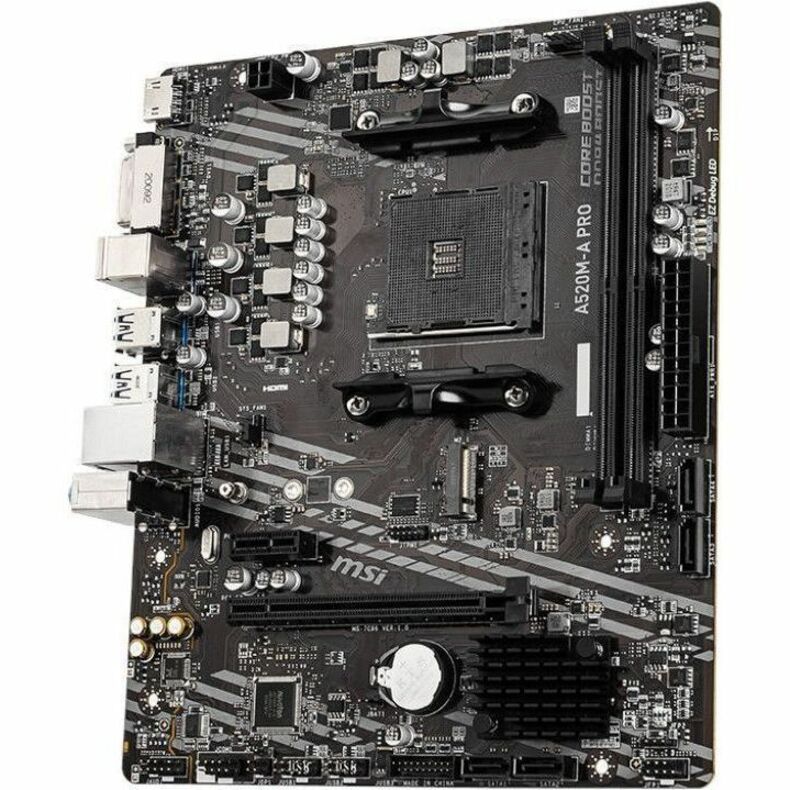

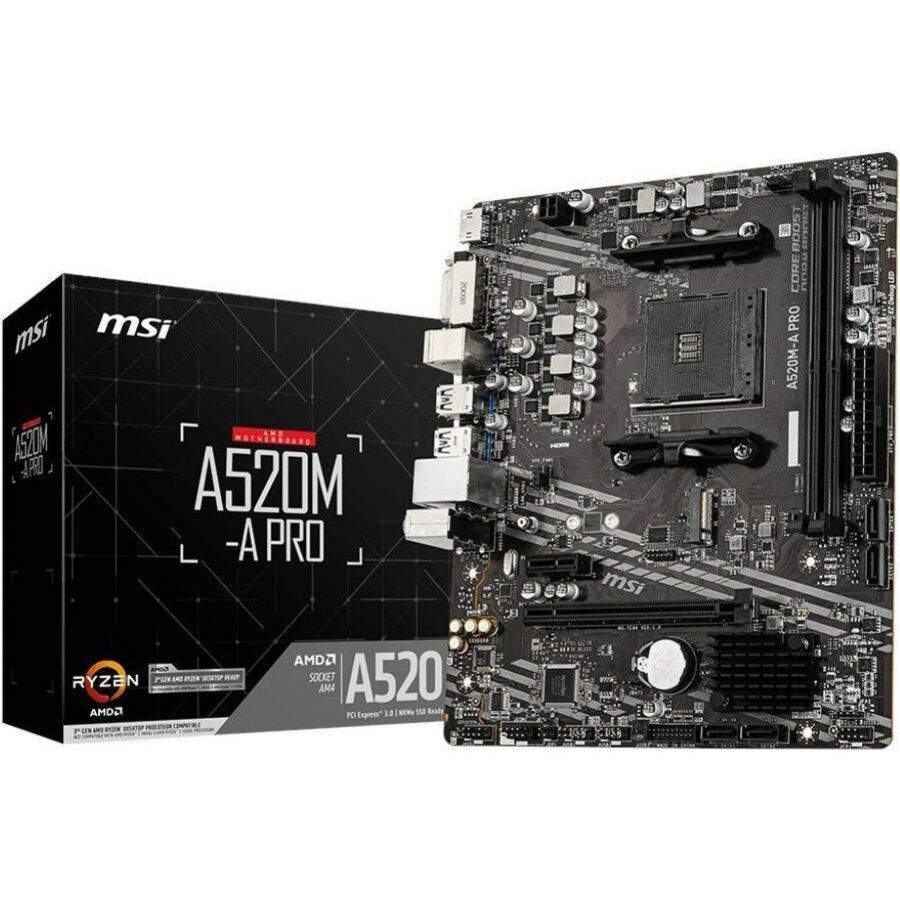

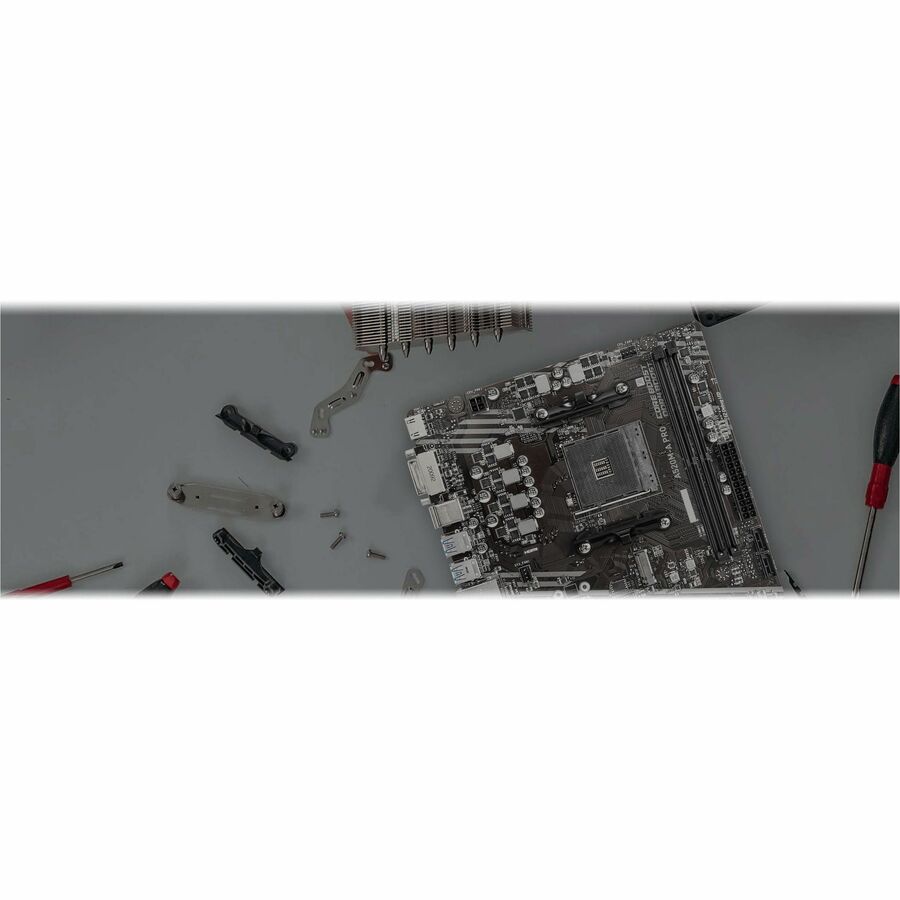

MSI A520M-A PRO Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Micro ATX - A520MAPRO
Key Features

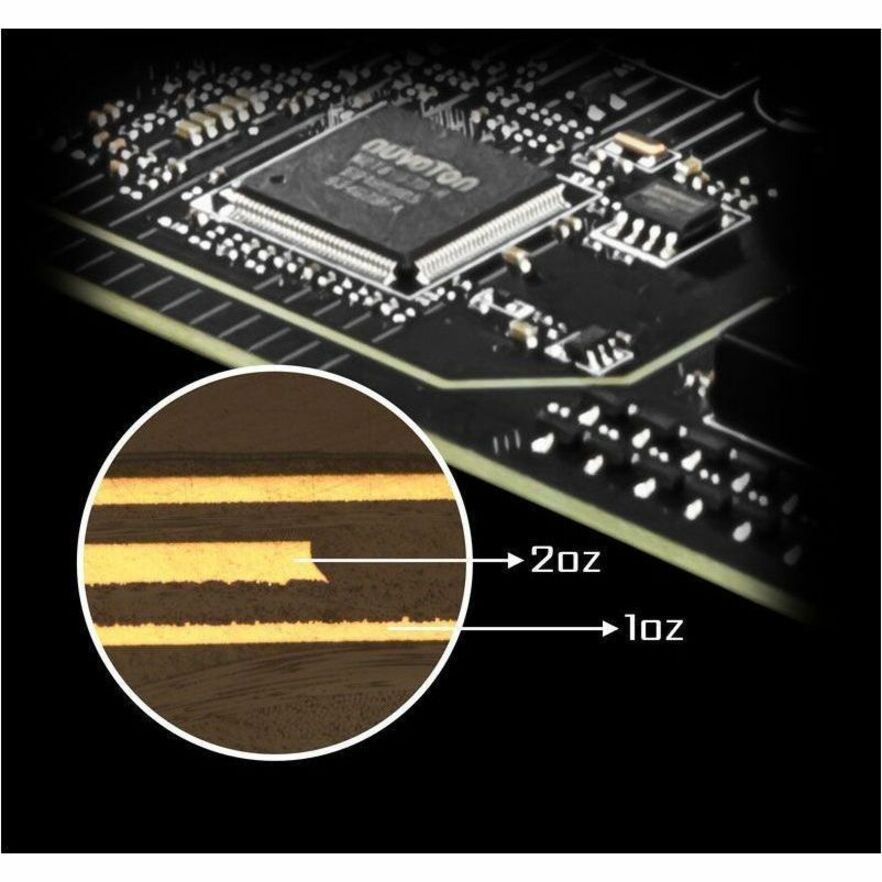

- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4600(OC) MHz
Product Overview
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: A520MAPRO
- Brand Name: MSI
- Product Series: PRO
- Product Model: A520M-A PRO
- Product Name: A520M-A PRO Desktop Motherboard
- Product Type: Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: A520
- Total Processor Supported: 1
- Processor Socket: Socket AM4
- Processor Supported:
- Ryzen 3
- Ryzen 5
- Ryzen 7
- Ryzen 9
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 64 GB
- Memory Speed Supported:
- 1866 MHz
- 2133 MHz
- 2400 MHz
- 2667 MHz
- 2800 MHz
- 2933 MHz
- 3000 MHz
- 3066 MHz
- 3200 MHz
- 3466 MHz
- 3600 MHz
- 3733 MHz
- 3866 MHz
- 4000 MHz
- 4133 MHz
- 4266 MHz
- 4400 MHz
- 4600 MHz
- Memory Technology: DDR4 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Total Number of Expansion Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 1

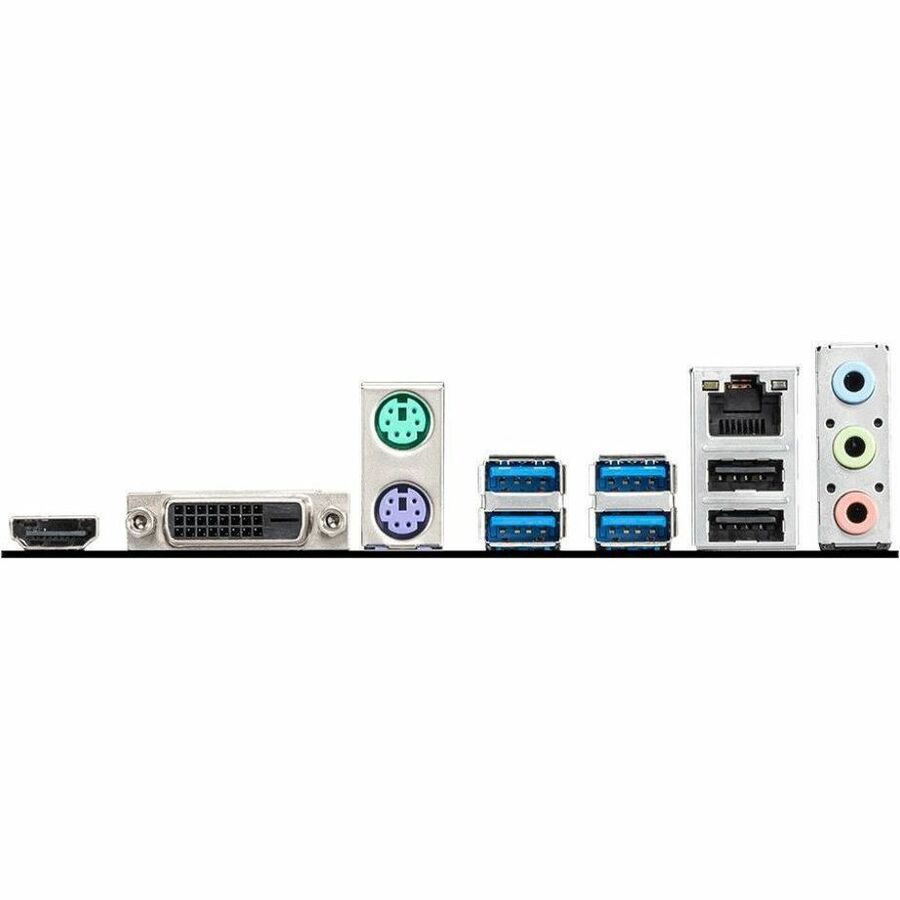

Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 2
- Number of USB 3.2 Ports: 4
- HDMI: Yes
- DVI: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 1
- Total Number of Onboard USB Ports: 6
- Number of Onboard USB 2.0 Ports: 4
- Number of Onboard USB 3.2 Ports: 2
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.3"
- Depth: 7.9"
Miscellaneous
- Package Contents:
- A520M-A PRO Desktop Motherboard
- Quick Installation Guide
- MSI Case Badge
- 2 x SATA Cables
- Product Registration Card
- Driver DVD
- I/O Shielding
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
