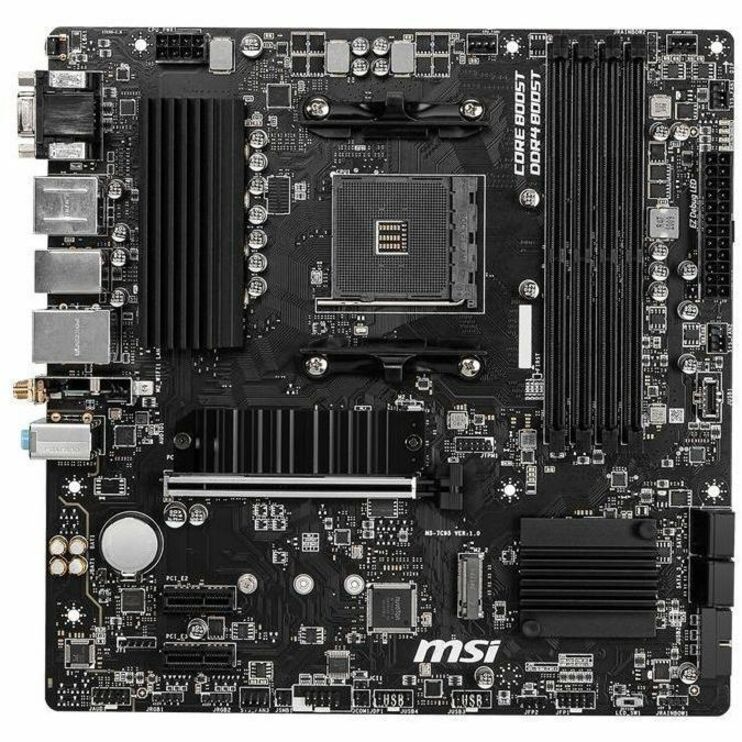

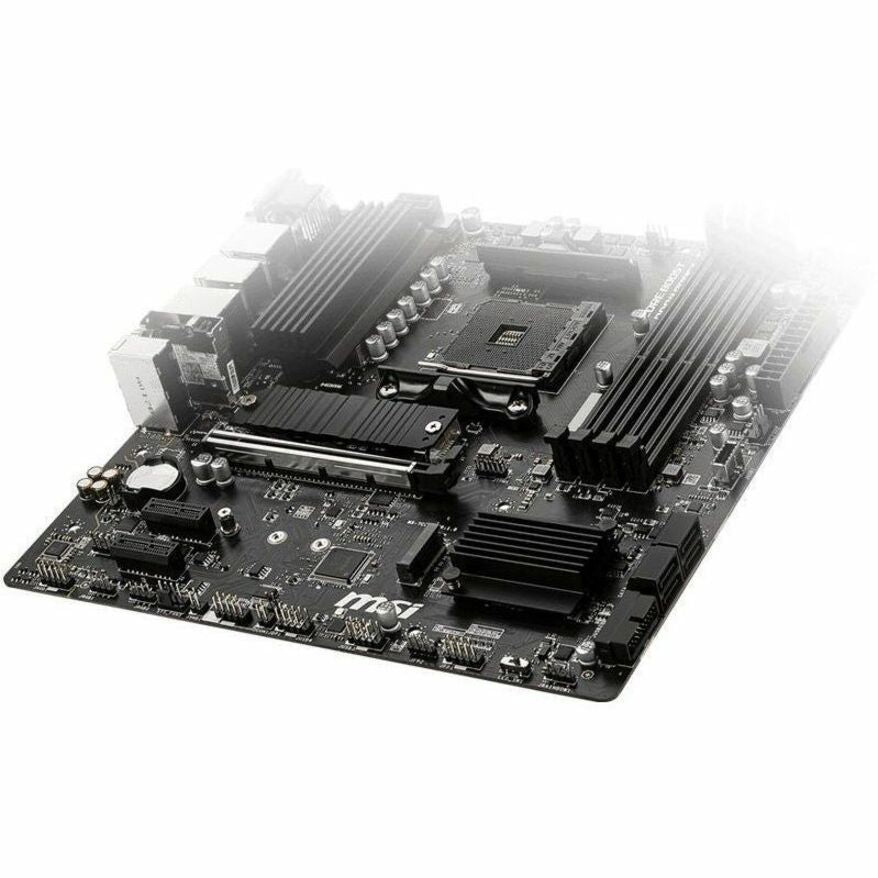

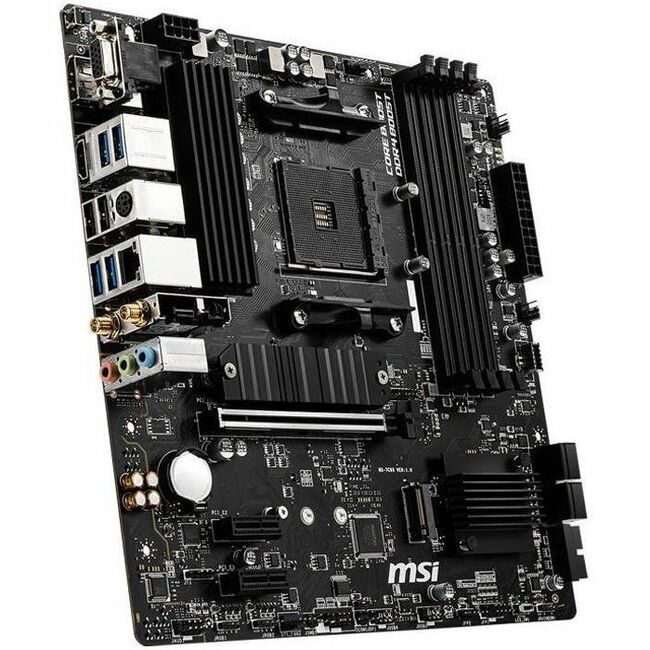

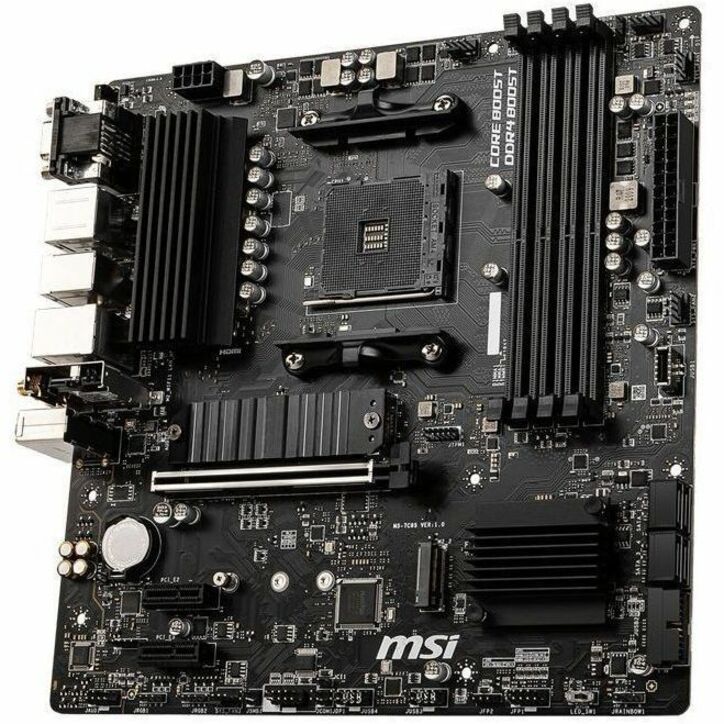

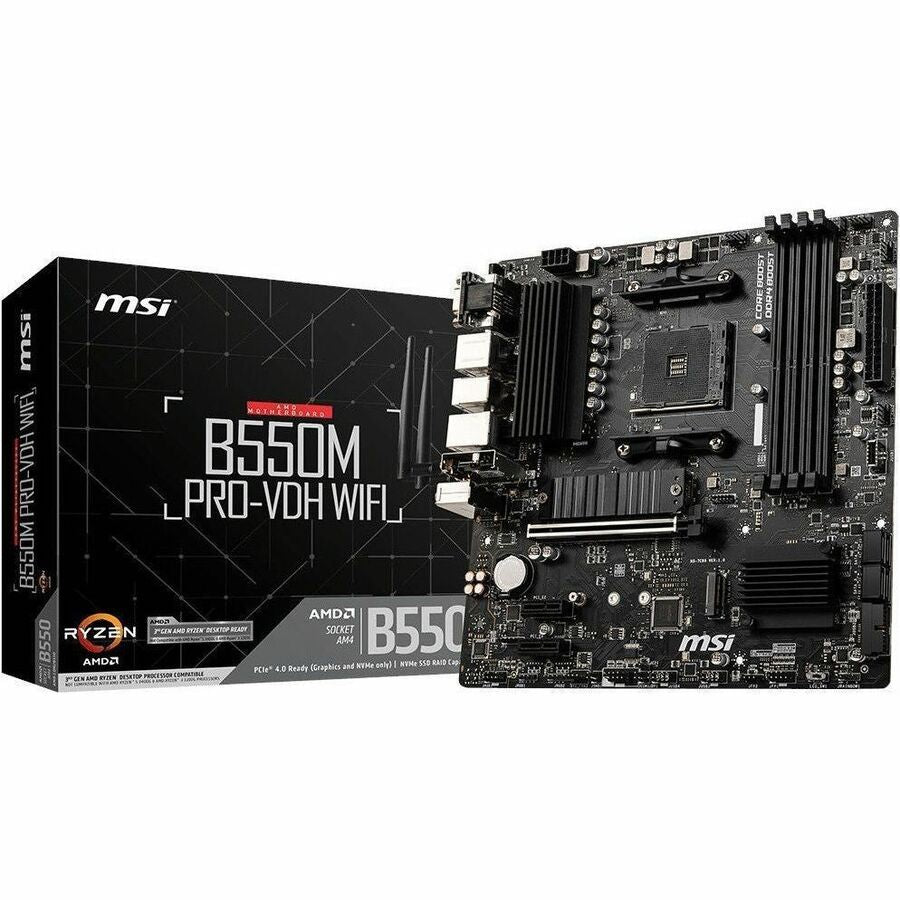

MSI B550M PRO-VDH WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Micro ATX - B550MPVDHWIFI
Key Features
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4400(OC) MHz
Product Overview
MSI B550M PRO-VDH Wifi helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: B550MPVDHWIFI
- Brand Name: MSI
- Product Series: PRO
- Product Model: B550M PRO-VDH WIFI
- Product Name: B550M PRO-VDH WIFI Desktop Motherboard
- Product Type: Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B550
- Total Processor Supported: 1
- Processor Socket: Socket AM4
- Processor Supported:
- Ryzen 3
- Ryzen 5
- Ryzen 7
- Ryzen 9
- Ryzen 7 PRO
- Ryzen 5 Pro
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported:
- 1866 MHz
- 2133 MHz
- 2400 MHz
- 2667 MHz
- 2800 MHz
- 2933 MHz
- 3000 MHz
- 3066 MHz
- 3200 MHz
- 3466 MHz
- 3600 MHz
- 3733 MHz
- 3866 MHz
- 4000 MHz
- 4133 MHz
- 4266 MHz
- 4400 MHz
- Memory Technology: DDR4 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 10
- 1
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 4.2
- Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11ac
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 2
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

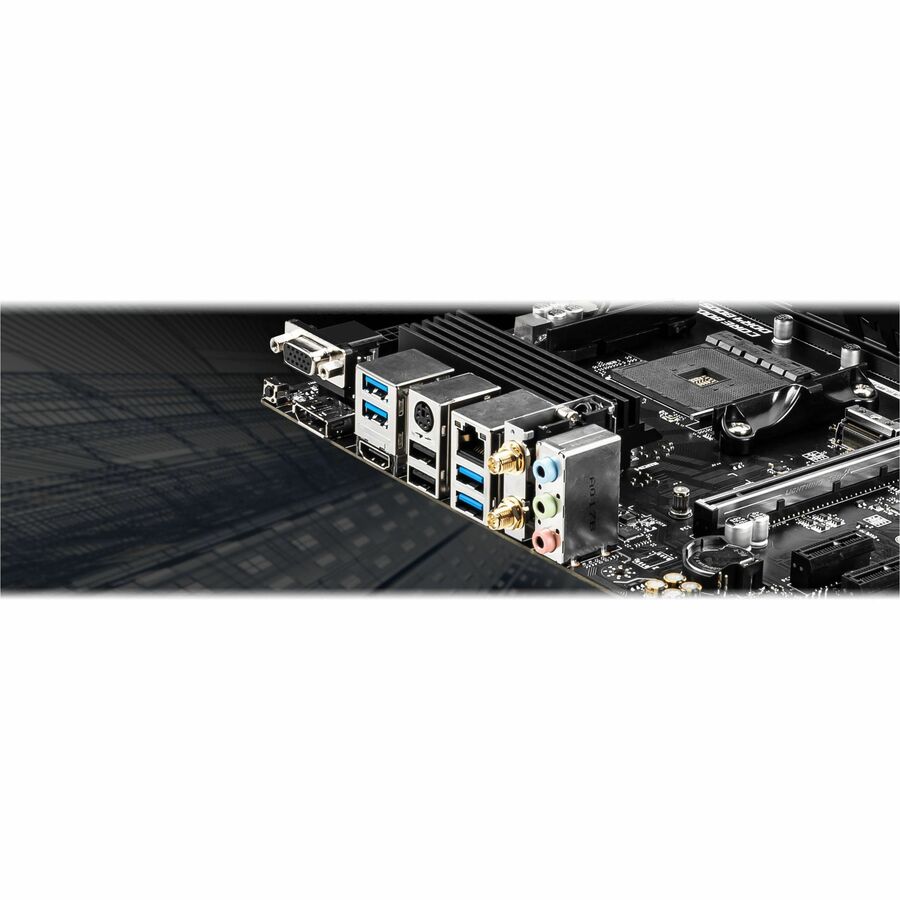

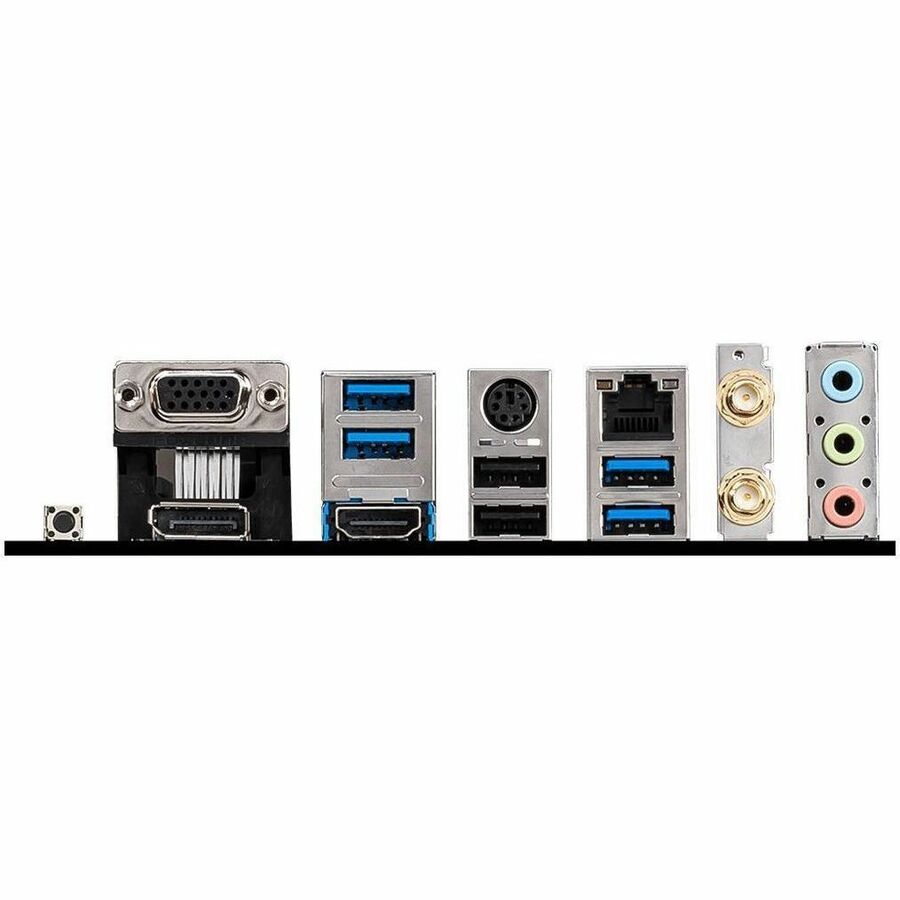

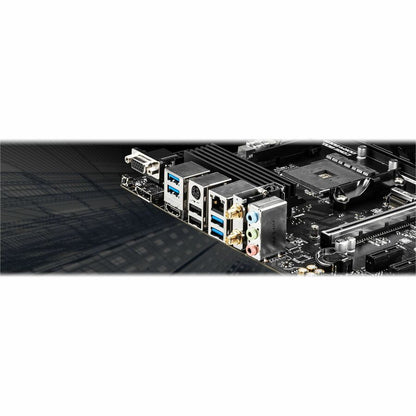

Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 2
- Number of USB 3.2 Ports: 4
- VGA: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
- Number of Onboard USB 3.2 Ports: 3
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 9.6"
Miscellaneous
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
