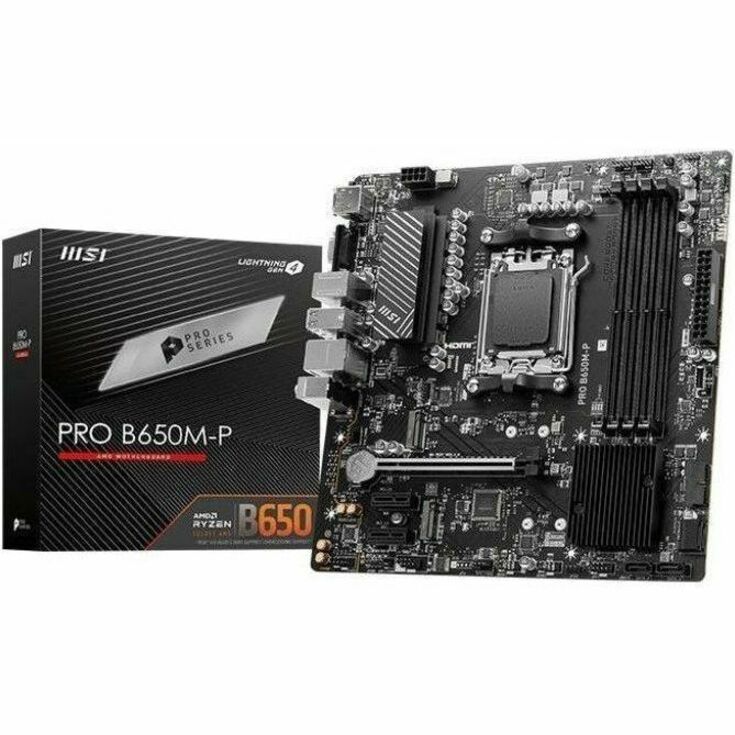

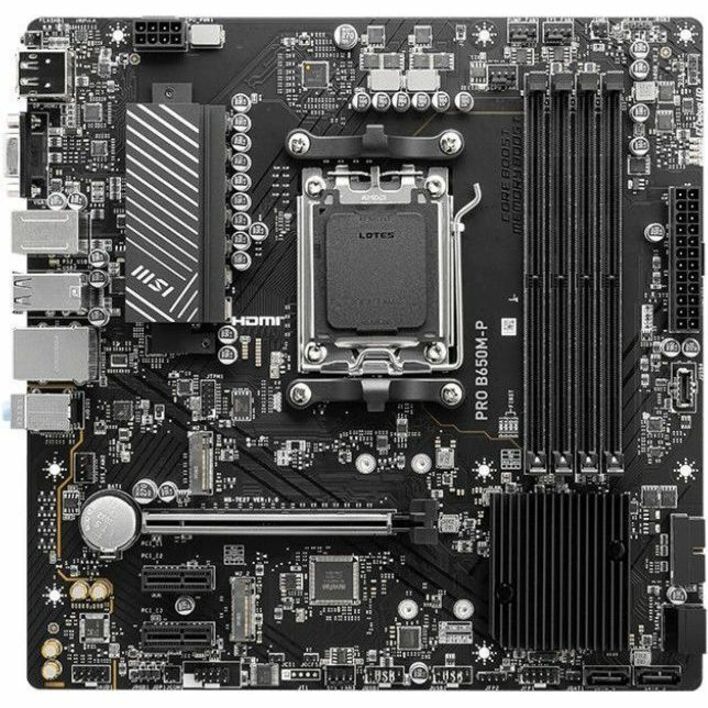

MSI B650M-P Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX - B650M-P
Key Features
- 2.5G Network Solution Featuring premium 2.5G LAN to deliver better network
- Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
- EZ Debug LED Easiest way to troubleshoot.
- Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Memory Boost Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Product Overview
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

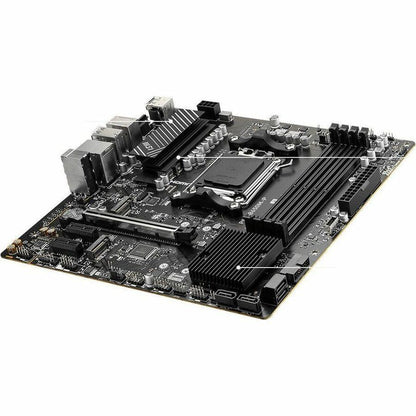

Heavy Plated VRM Heatsink
- The VRM heatsink covers the MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
- High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
- The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: B650MP
- Brand Name: MSI
- Product Series: PRO
- Product Model: B650M-P
- Product Name: Pro B650M-P Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B650
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported: Ryzen 7
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 192 GB
- Memory Speed Supported:
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 10
- 1
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 2
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

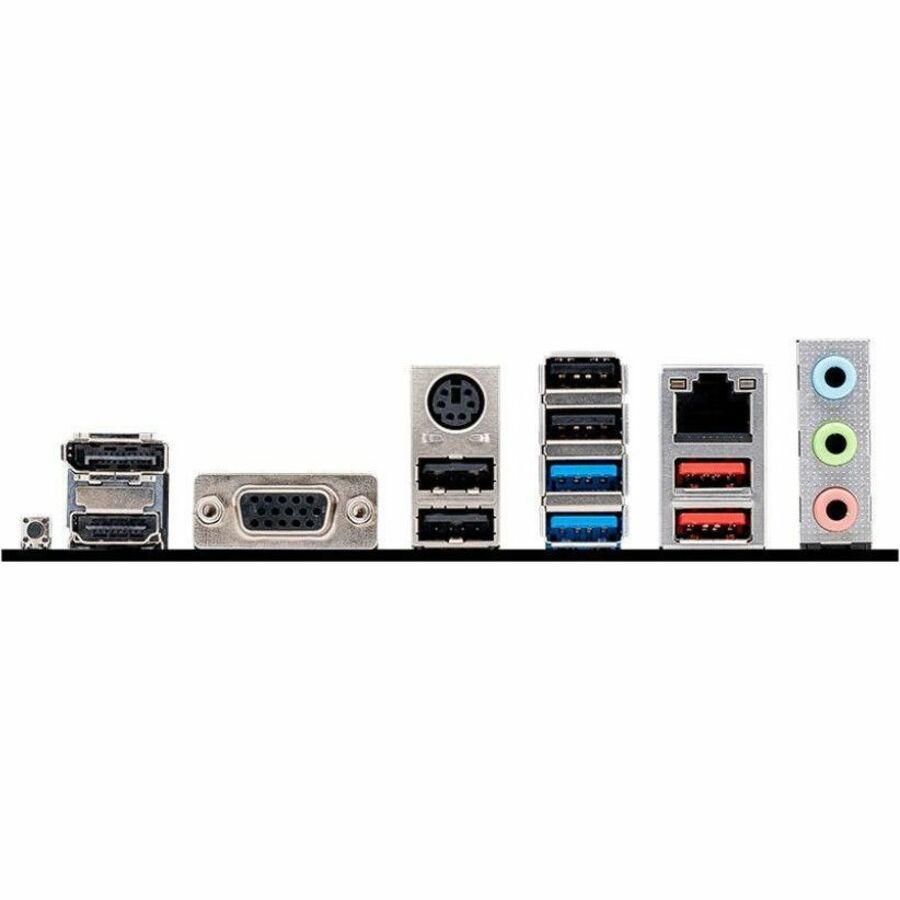

Interfaces/Ports
- Total Number of USB Ports: 8
- Number of USB 2.0 Ports: 4
- Number of USB 3.2 Gen 1 Type-A Ports: 2
- Number of USB 3.2 Gen 2 Type-A Ports: 2
- VGA: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.6"
- Depth: 9.6"
