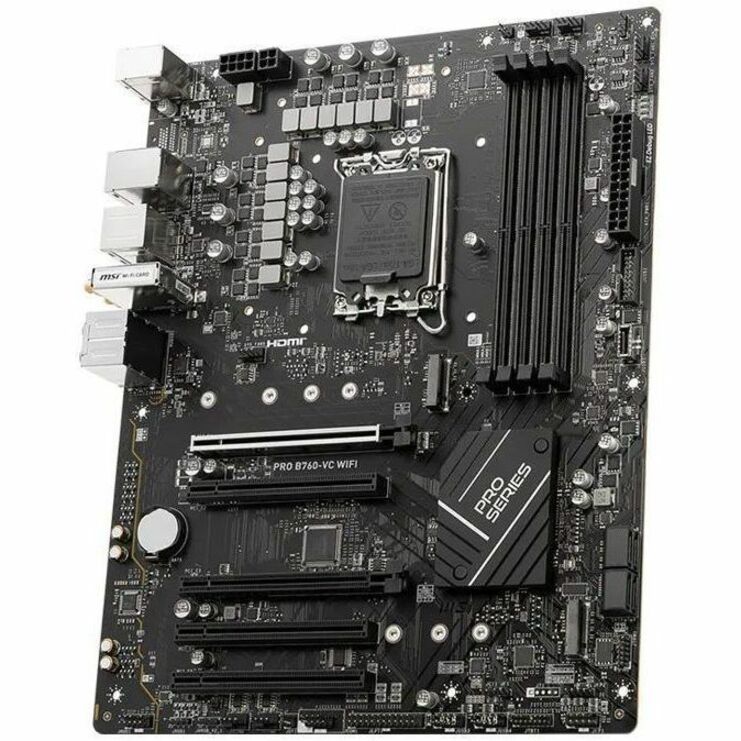

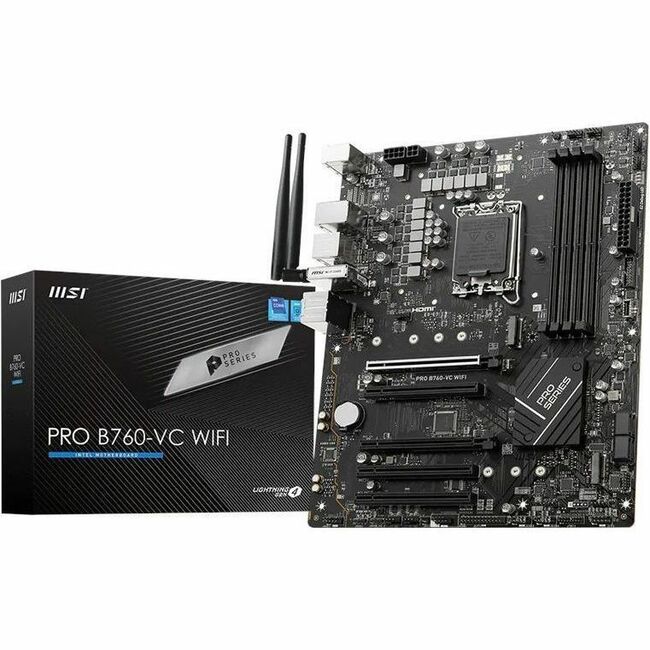

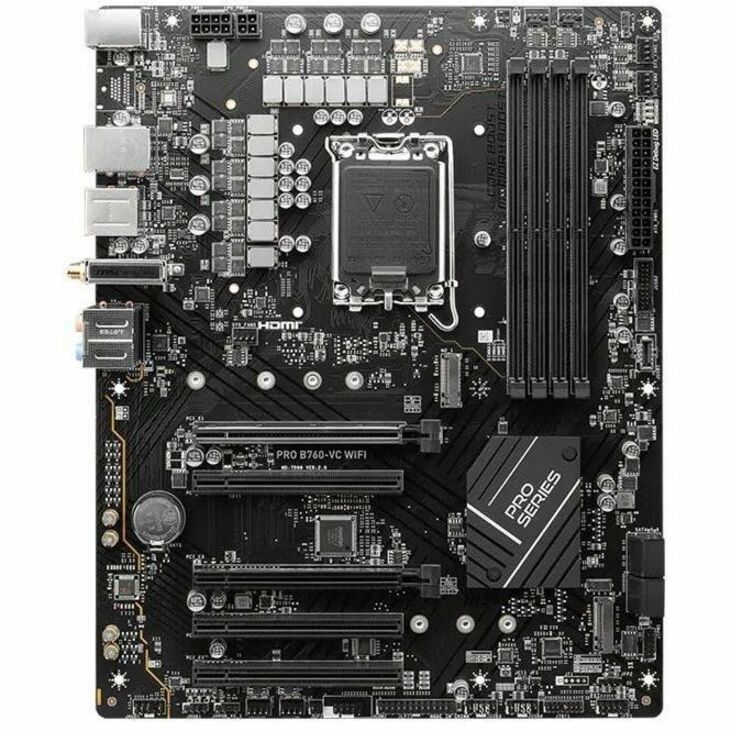

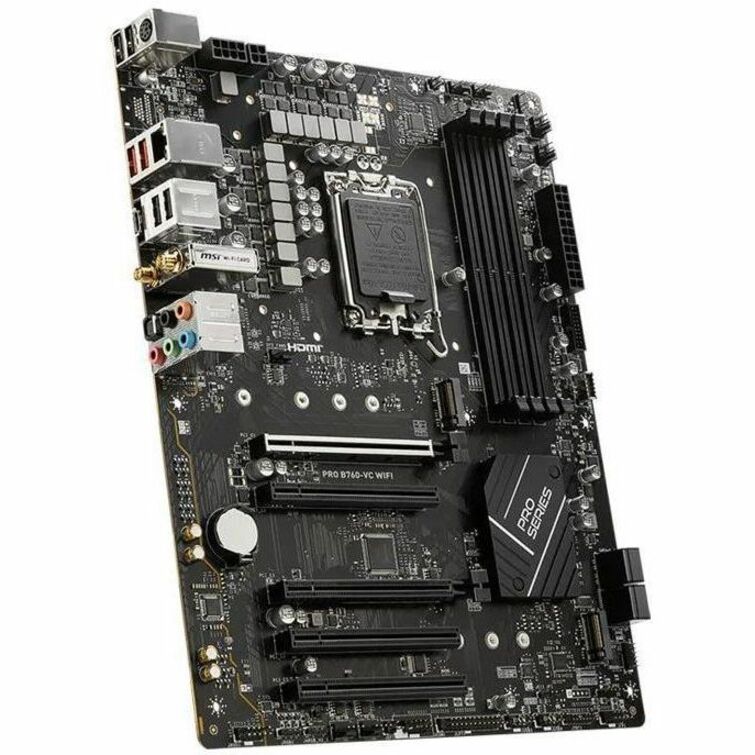

MSI B760-VC WIFI GEN5 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX - PROB760VCWIFIGEN5
Key Features
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2
- Support Intel®Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium®Gold and Celeron®Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
General Information
- Manufacturer: MSI
- Manufacturer Part Number: PROB760VCWIFIGEN5
- Brand Name: MSI
- Product Series: PRO
- Product Model: B760-VC WIFI GEN5
- Product Name: PRO B760-VC WIFI GEN5 BULK Gaming Desktop Motherboard
- Package Type: Bulk
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: B760
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1700
- Processor Generation Supported:
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported:
- Pentium Gold
- Celeron
- Core
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 7000 MHz
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.3
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
- Total Number of Expansion Slots: 5
- Total Number of PCI Express Slots: 5
- Number of PCI Express x16 Slots: 5
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0
- PCI Express 3.0

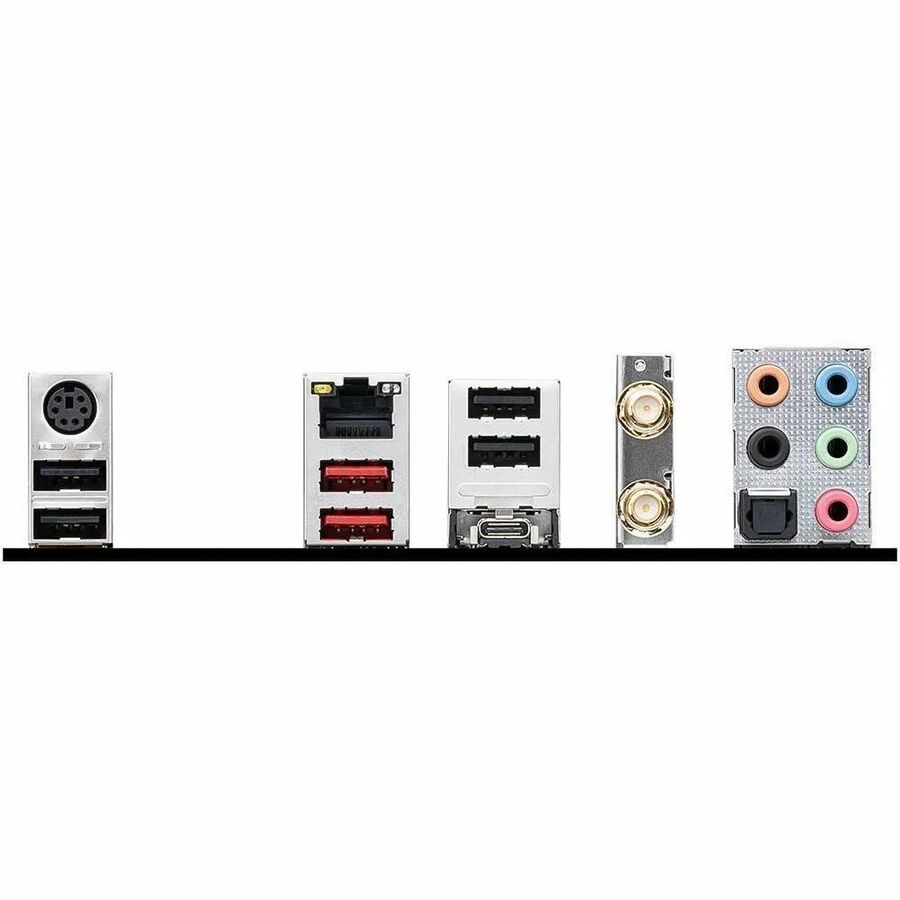

Interfaces/Ports
- Total Number of USB Ports: 7
- Number of USB 2.0 Ports: 4
- S/PDIF: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 7
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
MSI motherboards purchased by end users will have a warranty period of 3 years (36 months) that covers damage due to regular usage but not physical damage caused to the motherboard. The warranty period will begin on the date of purchase the end user made from an authorized retailer if an invoice is provided as a proof of purchase. If the end user is unable to provide the invoice, then the warranty period will begin based off that product's manufactured date.
