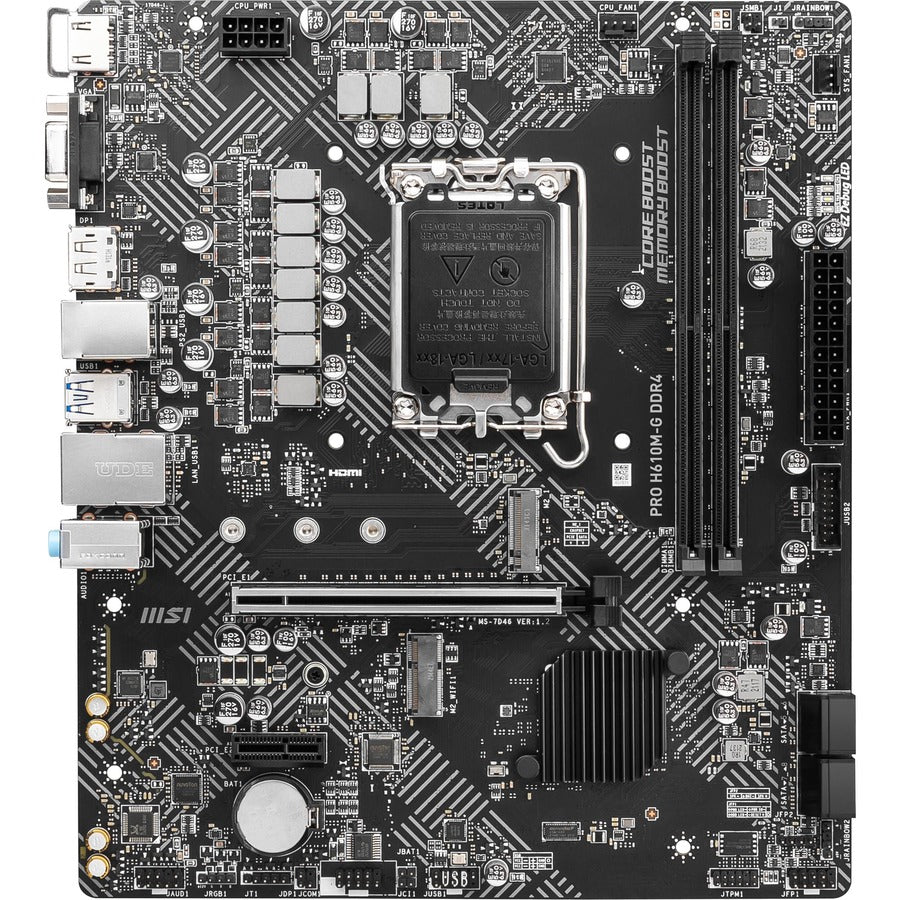

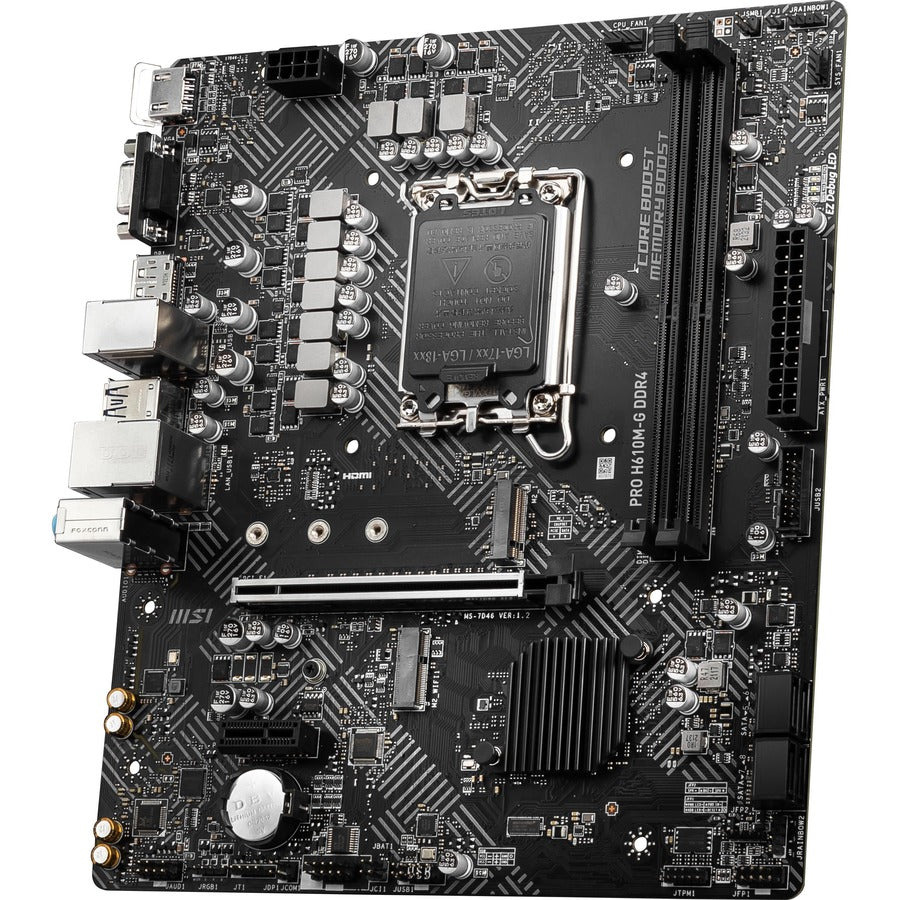

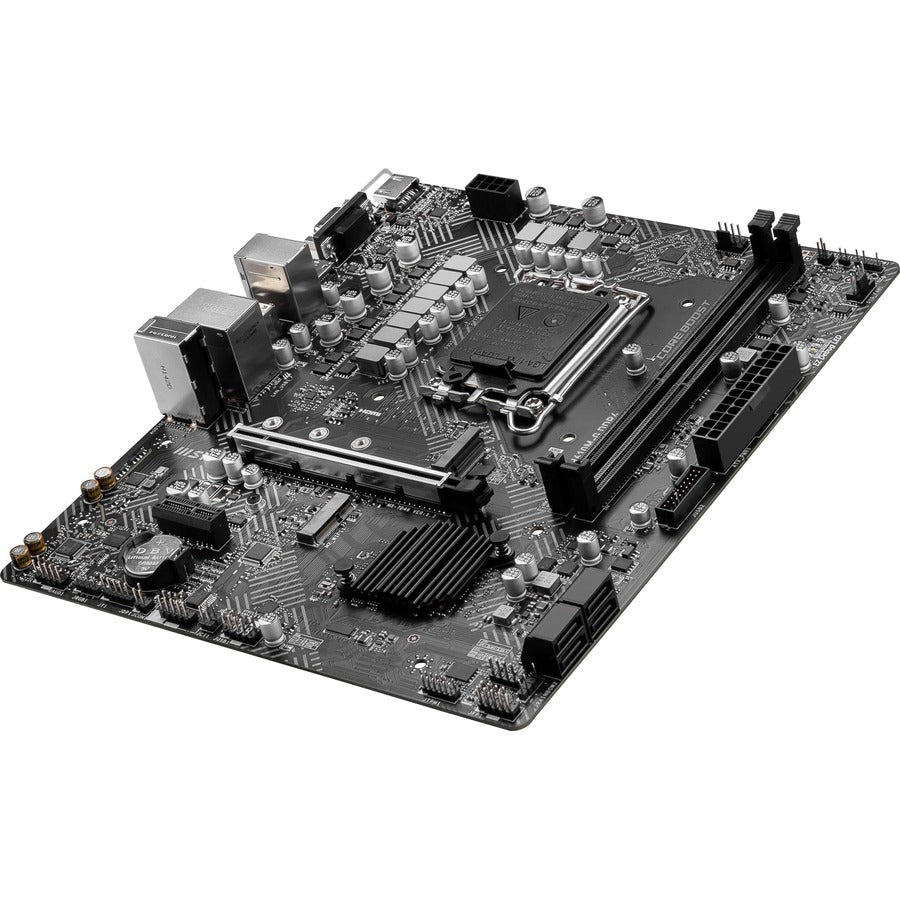

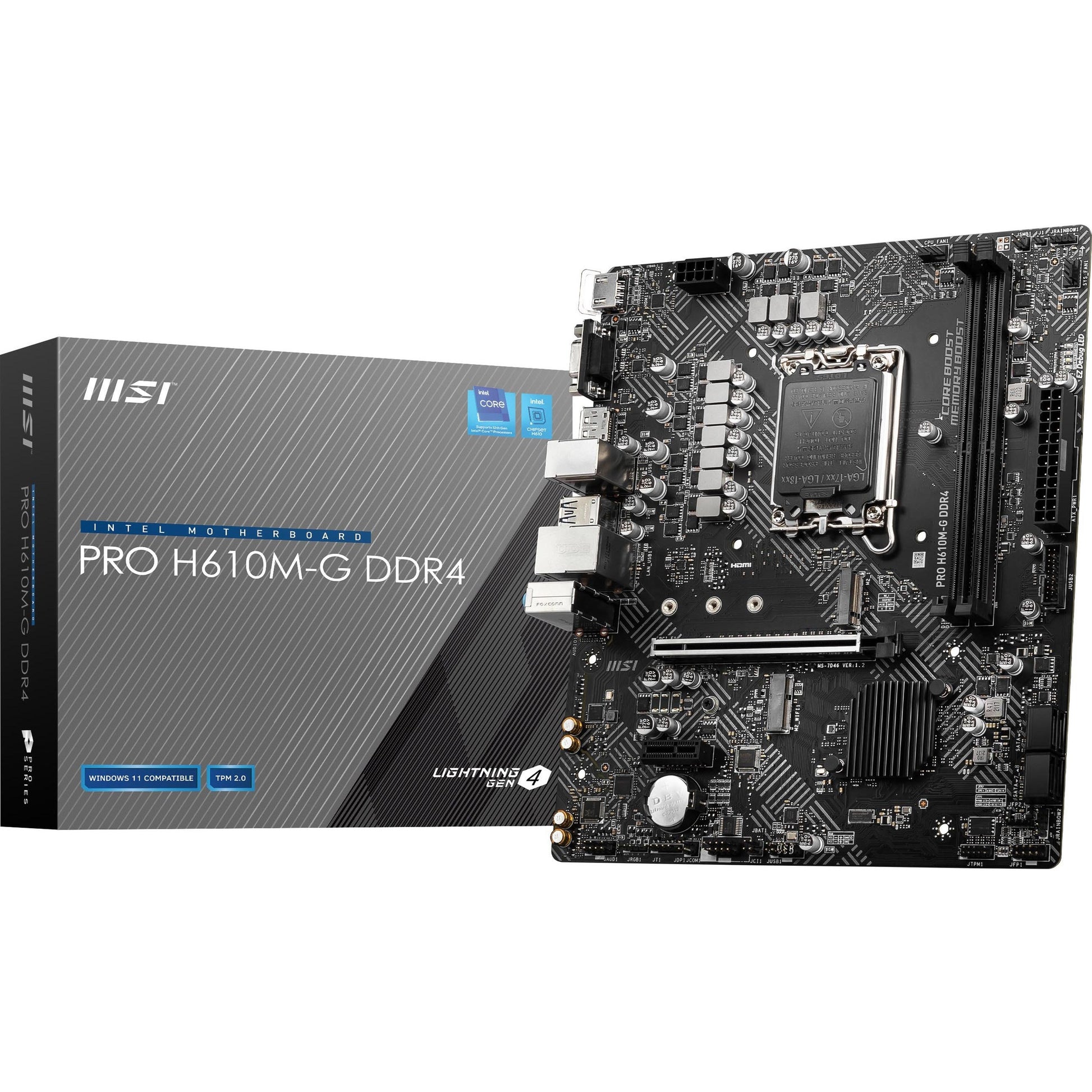

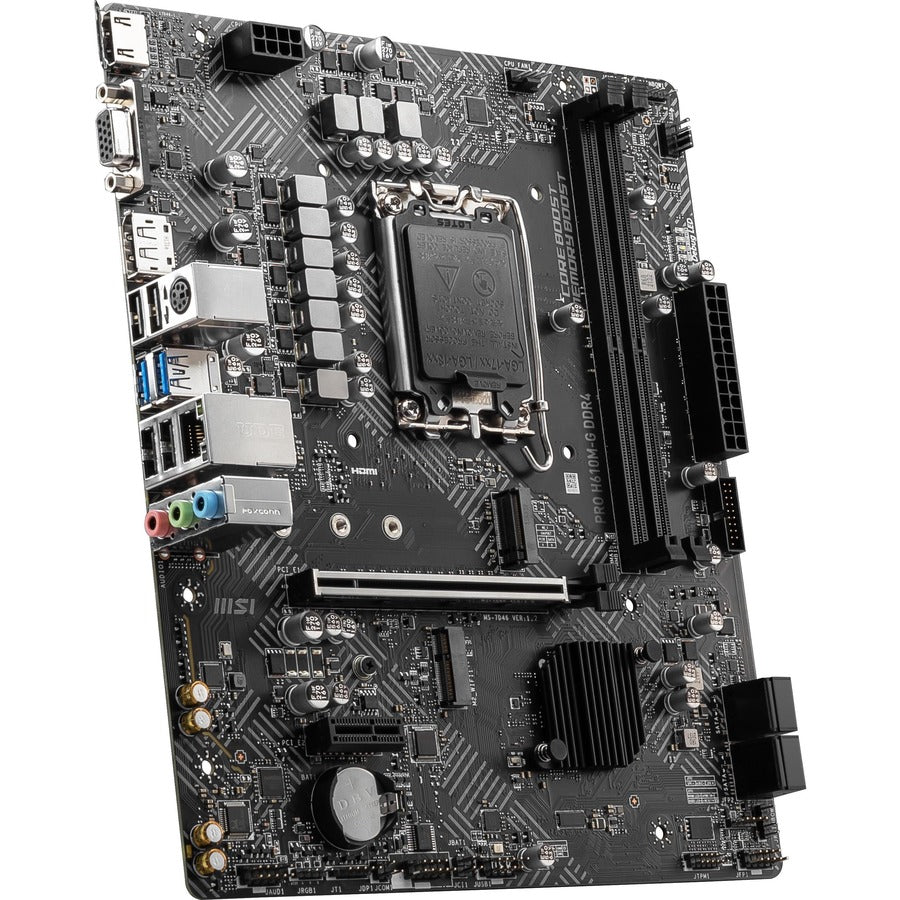

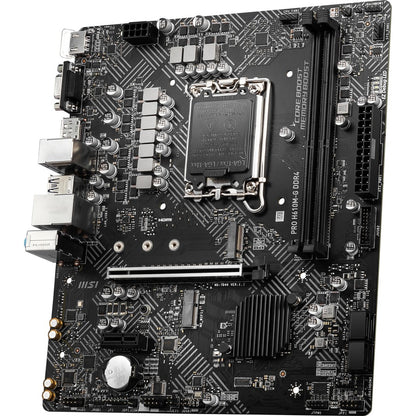

MSI H610M-G DDR4 Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX - PROH610MGD4
Key Features
- Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience.
- Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
- EZ Debug LED Easiest way to troubleshoot.
- Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Lightning Gen4 Solution The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
- Memory Boost Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- PCI-E Steel Armor Protecting VGA cards against bending and EMI.
Product Overview
PRO SERIES
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: PROH610MGD4
- Brand Name: MSI
- Product Series: PRO
- Product Model: H610M-G DDR4
- Product Name: PRO H610M-G DDR4 Desktop Motherboard
- Product Type: Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: H610
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1700
- Processor Generation Supported: 12th Gen
- Processor Supported:
- Pentium Gold
- Celeron
- Core i5
- Core i9
- Core i3
- Core i7
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 64 GB
- Memory Speed Supported:
- 2133 MHz
- 2666 MHz
- 2933 MHz
- 3200 MHz
- Memory Technology: DDR4 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Total Number of Expansion Slots: 2
- Total Number of PCI Express Slots: 2
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0

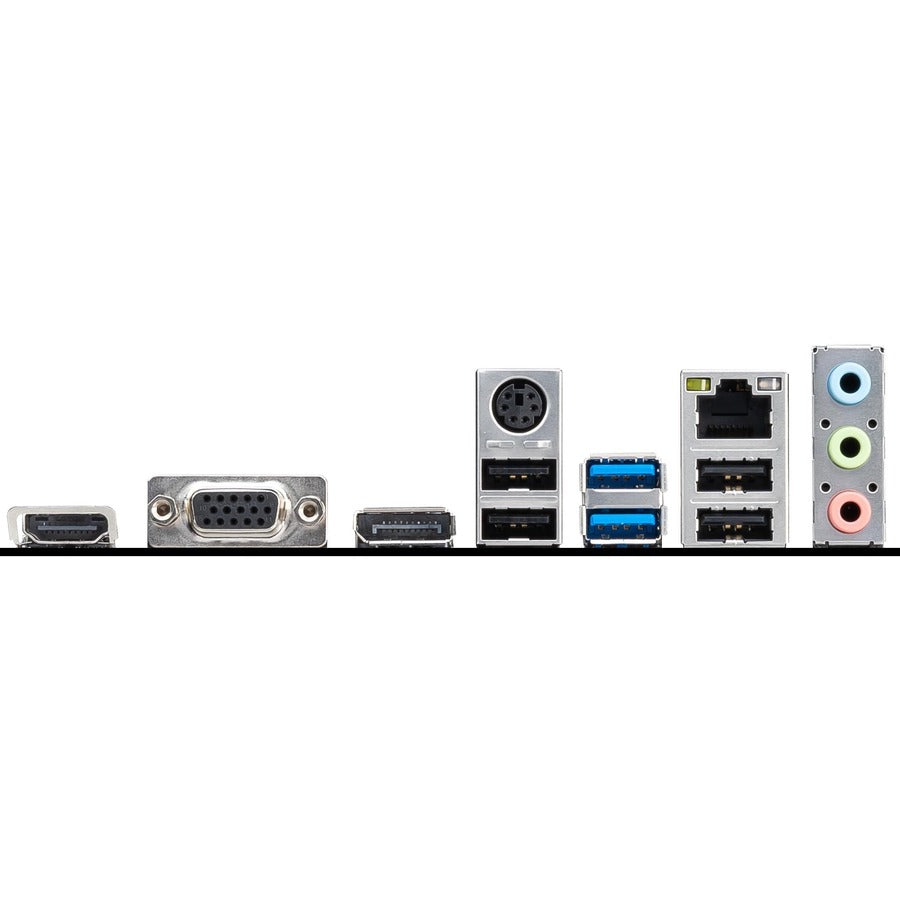

Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 2
- VGA: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 1
- Total Number of Onboard USB Ports: 6
- Number of Onboard USB 2.0 Ports: 2
- Number of Onboard USB 3.2 Ports: 4
Physical Characteristics
- Form Factor: Micro ATX
- Width: 9.3"
- Depth: 8"
Miscellaneous
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
