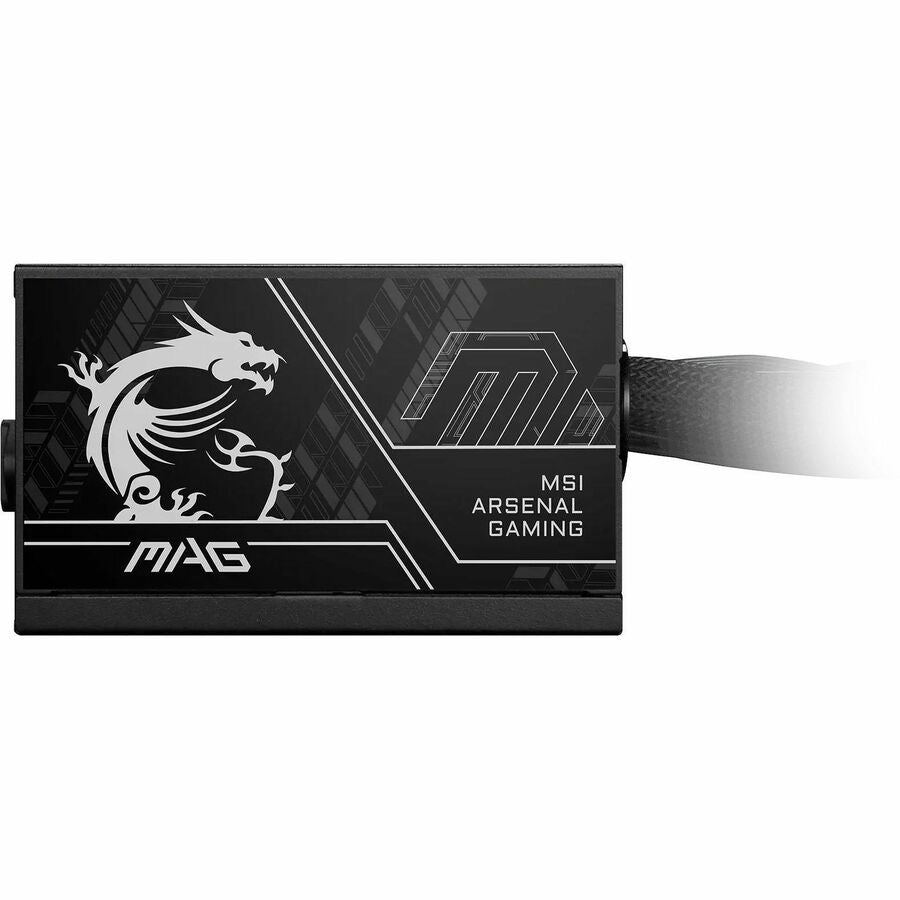

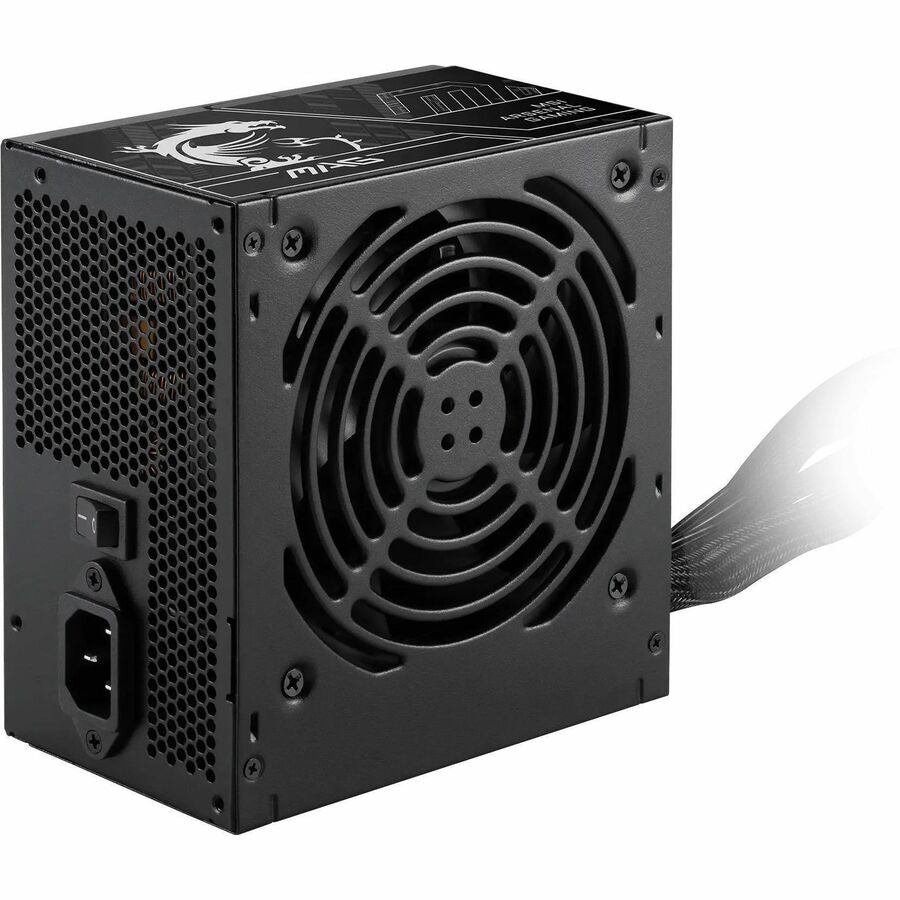

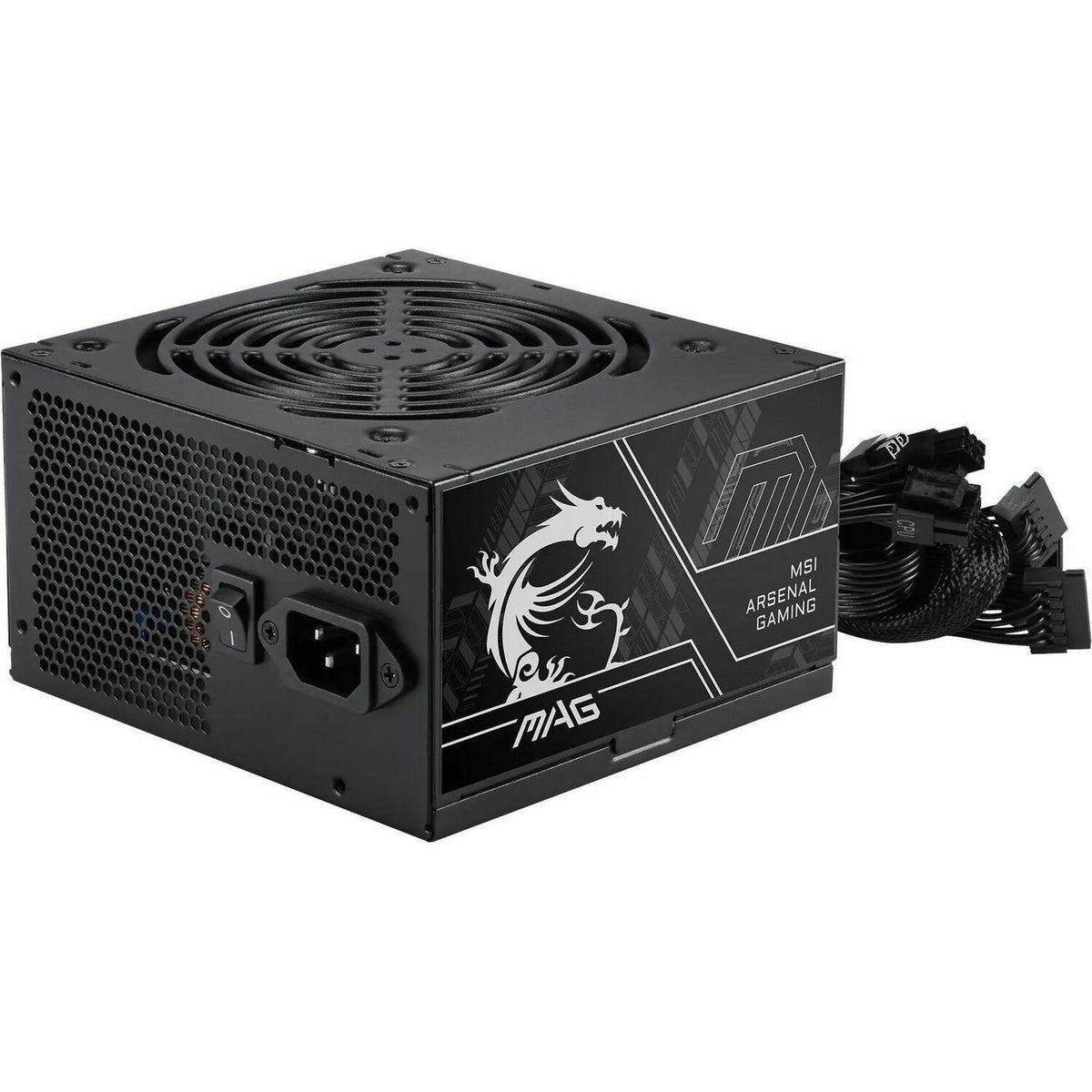

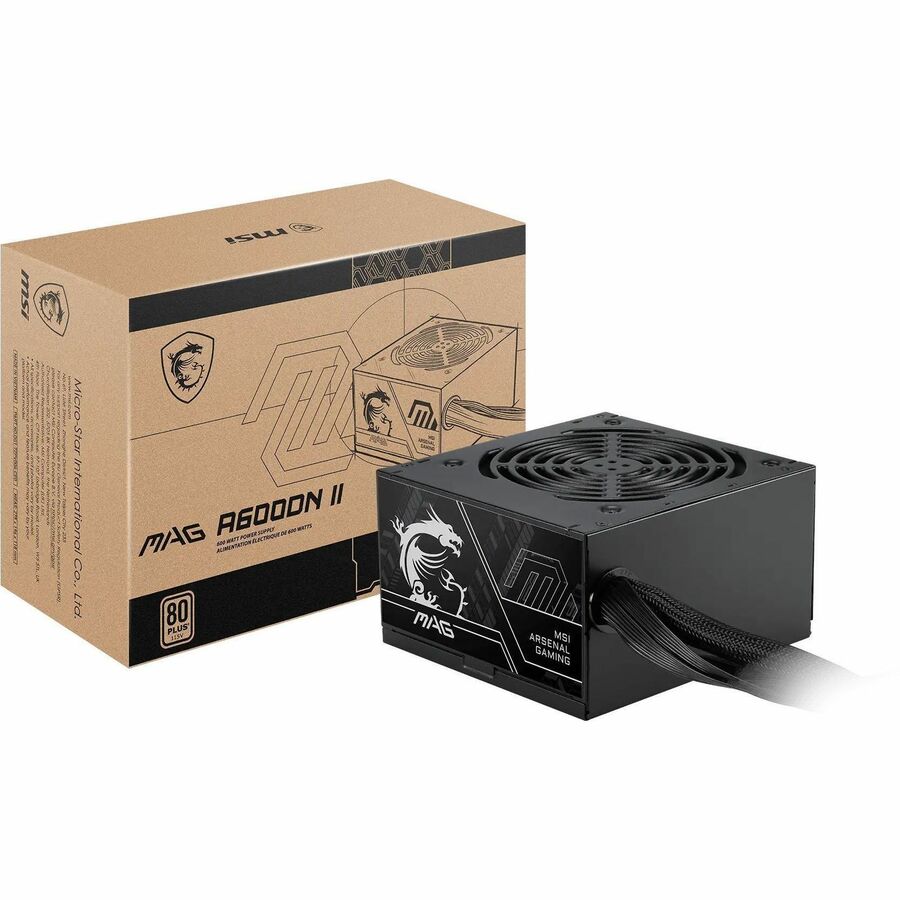

MSI MAG 600W Power Supply - MAGA600DNII
Key Features
- 120mm Fan
- 600 wattage
- Active PFC Design
- Copper Alloy Terminal
- Flat Cable Equipment
- Industrial level protection with OVP, OTP, SCP, OPP, UVP
Product Overview
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
80 PLUS STANDARD
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS certification promises lower energy consumption and 80% efficiency.
ACTIVE PFC DESIGN
The active PFC improves the efficiency of power output and provides a more stable environment for other PC components to operate in.
120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
FLAT CABLE EQUIPMENT
The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.
Protection Design
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
- OVP
- OTP
- SCP
- OVP
- UVP
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGA600DNII
- Brand Name: MSI
- Product Series: MAG
- Product Name: MAG 600W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX
- Efficiency: 80%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Sleeve Bearing
- Fan Diameter: 120 mm
- Protection Type:
- Over Current
- Over Voltage
- Over Power
- Short Circuit
- Over Temperature
- Under Voltage
- Modular: No
- Features:
- Low Noise
- Heat Dissipation
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 15 A
- 3.3 V DC @ 15 A
- -12 V DC @ 0.3 A
- 5 V SB @ 2.5 A
- 12 V DC @ 46 A
- Output Current:
- 15 A
- 46 A
- 300 mA
- 2.50 A
- Output Power: 600 W
Interfaces/Ports
- Number of SATA Power Connectors: 6
- PCI Express Connector: Yes
- Number of (6+2 pin) PCI Express Power Connectors: 2
- Number of (4+4 pin) CPU Power Connectors: 1
Physical Characteristics
- Form Factor: ATX
- Height: 3.4"
- Width: 5.9"
- Depth: 5.5"
Miscellaneous
- Energy Efficiency Certification: 80 Plus Standard
