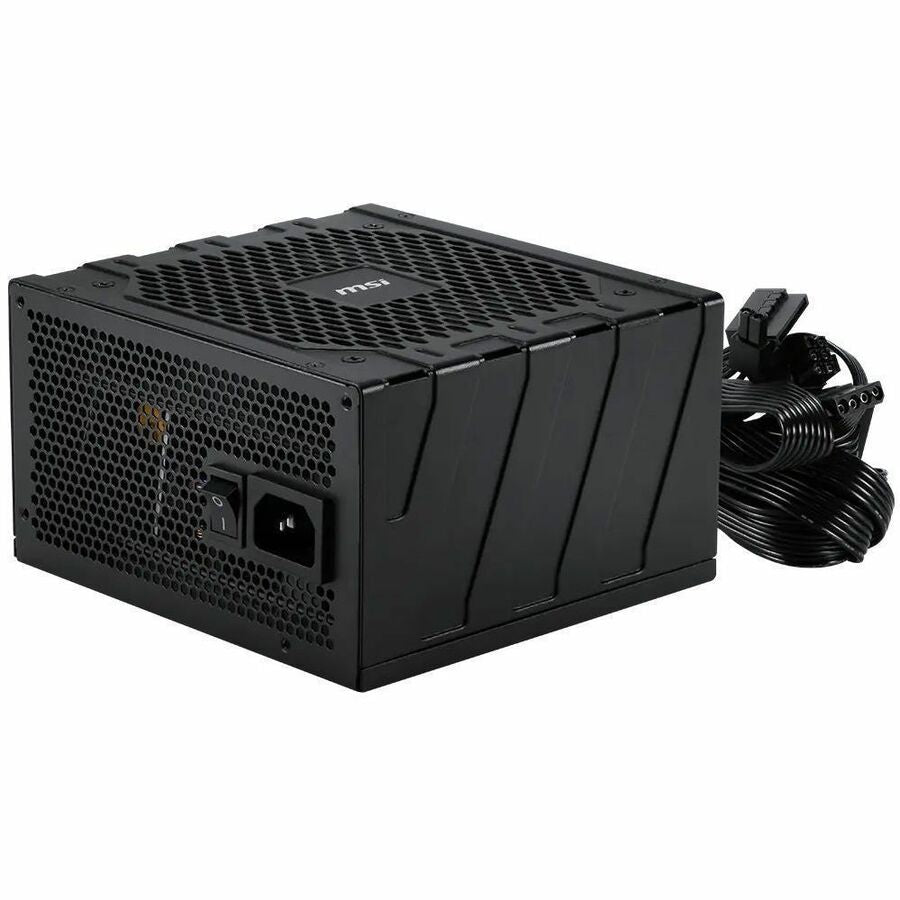

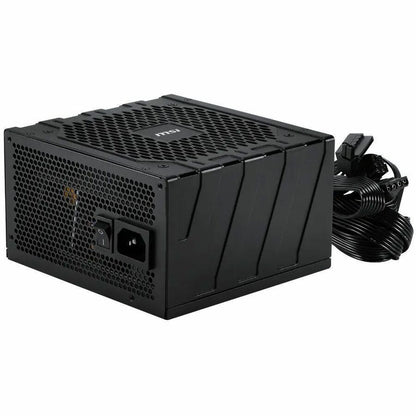

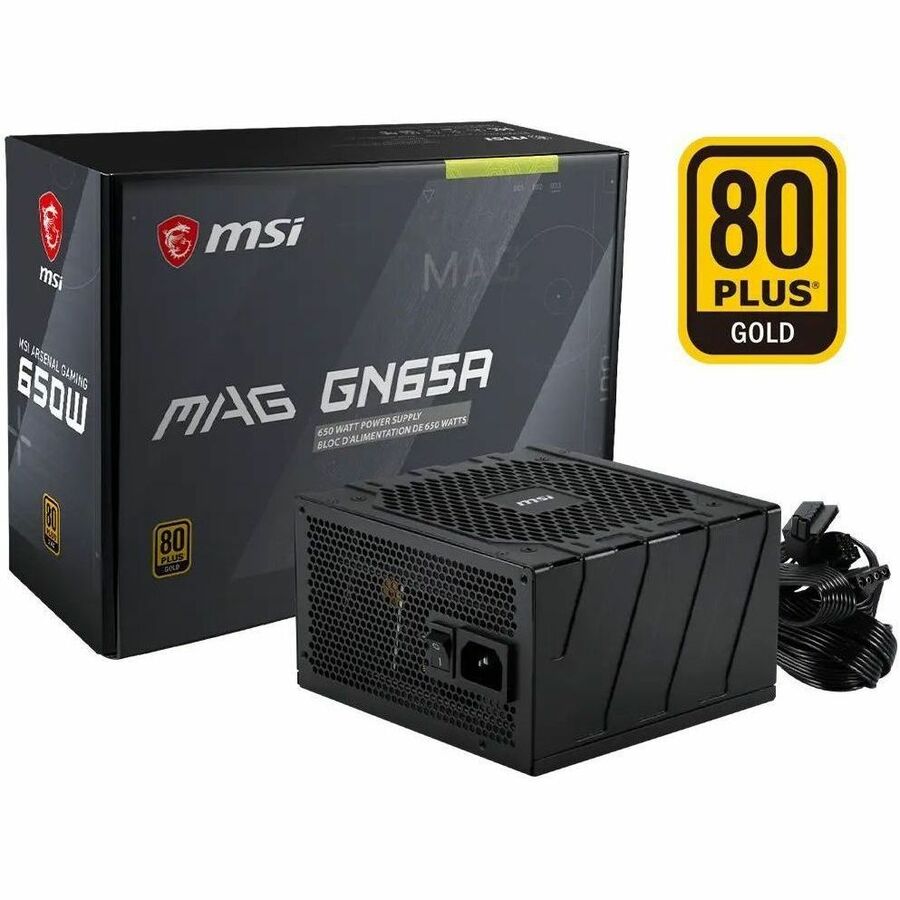

MSI MAG 650W Power Supply - MAGGN65A
Key Features
- 120mm Fan
- 80 PLUS Gold
- Active PFC Design
- ATX 3.1 Ready
- DC to DC power Design
- Half bridge LLC resonant Design
- Industrial level protection with OVP, OCP, SCP, OPP, UVP
- Taiwanese branded-capacitors
Product Overview

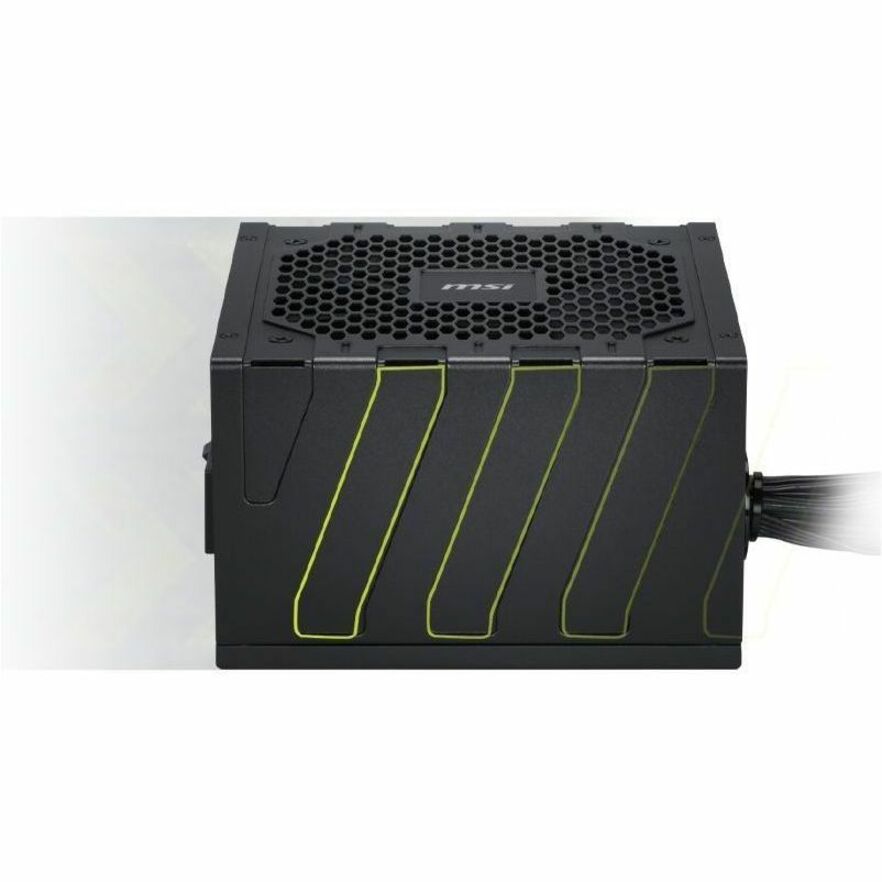

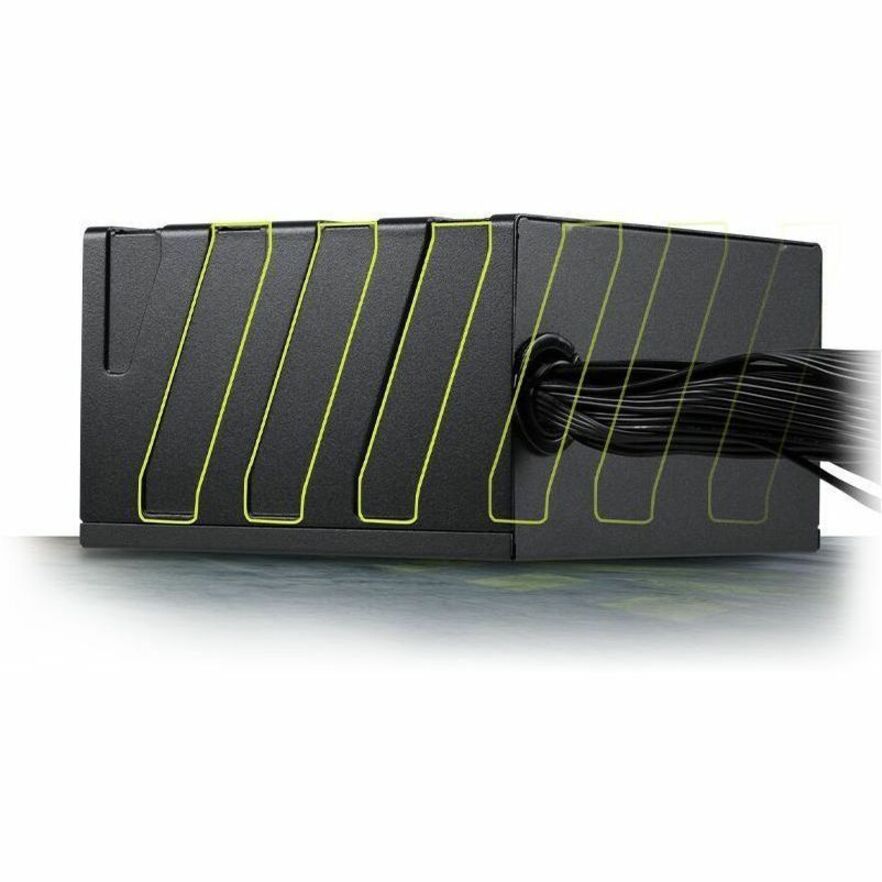

MSI MAG Series is built for stability and durability, designed specifically for gaming. The entire lineup features a solid structural design with a rugged, metallic-inspired look and superior cooling performance, delivering exceptional stability for core gaming hardware.
80 Plus Gold Certified
Offer 91.5% maximum efficiency at 50% load.
Intel ATX 3.1 specs
- 2X Total Power Excursion
- 3X Gpu Power Excursion
Active PFC
Active PFC uses electronic circuits in efficiently distributing power to devices connected to the power supply.
PCI-Express Power Connectors
Provide dedicated +12V for high end dual graphic cards.
Flat Modular Cable
Using premium materials, the black Flat Cable design not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.
Advanced DC to DC Converter
Unparalleled DC to DC converters for +3.3V & +5V outputs to reach high effciency.
Half bridge LLC Design
Improve the efficiency and enhance the overall performance of PSU.

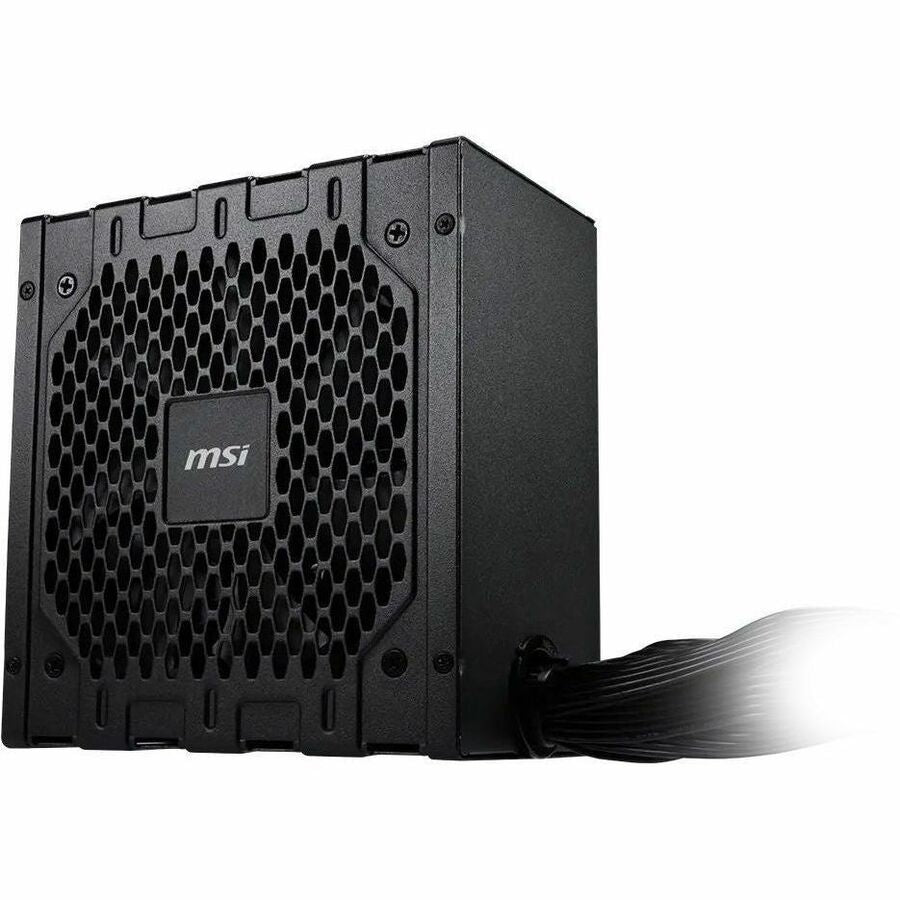

Fixed cable 12 CM Fan
Built with fixed cable design for stable power delivery. Sleeve -silent 120mm silent fan keeps operation quiet while maintaining effective airflow.
Taiwanese branded-capacitors
Enhance your system durability and stability even under extreme conditions. Teapo 105°C.

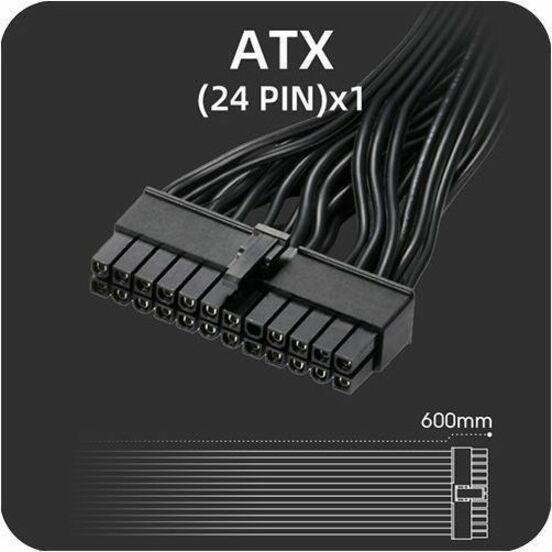

Connectors

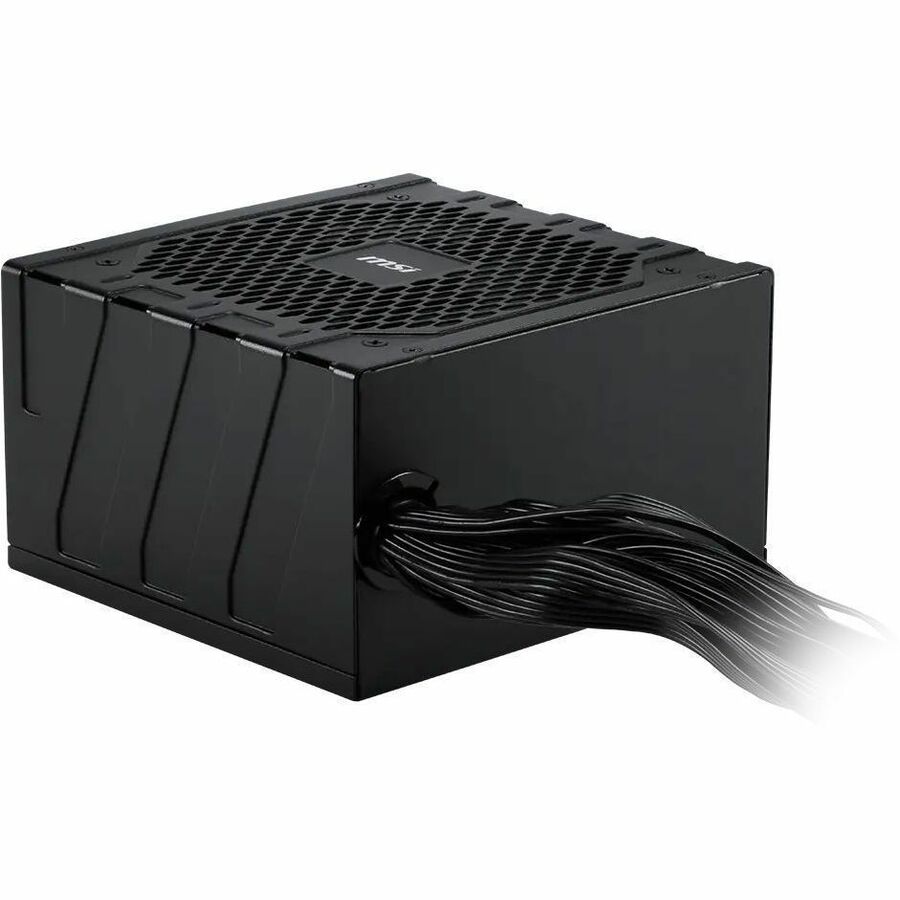

This non-modular power supply equipped with black flat cables, making cable management.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGGN65A
- Brand Name: MSI
- Product Series: MAG
- Product Name: MAG 650W Power Supply
- Package Type: Retail
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Hydraulic Bearing
- Fan Diameter: 120 mm
- Protection Type:
- Over Current
- Over Voltage
- Over Power
- Short Circuit
- Under Voltage
- Over Temperature
- Modular: No
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- 5 V SB
- -12 V DC
- Output Voltage Detail:
- 5 V DC @ 20 A
- 3.3 V DC @ 20 A
- 12 V DC @ 54.2 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
- Output Current:
- 20 A
- 54.20 A
- 300 mA
- 3 A
- Output Power: 650 W
Interfaces/Ports
- Number of SATA Power Connectors: 4
- PCI Express Connector: Yes

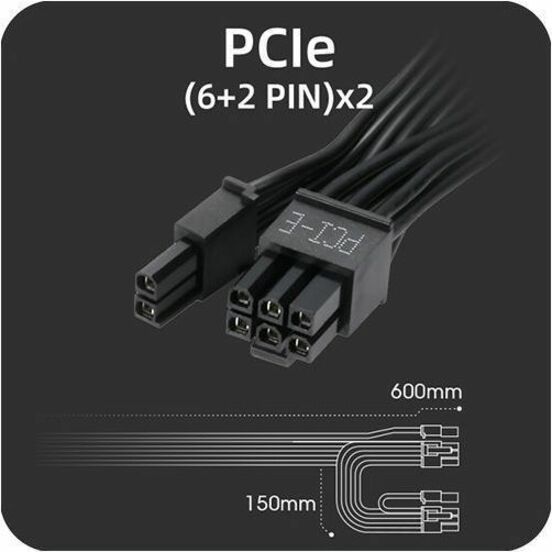

- Number of (6+2 pin) PCI Express Power Connectors: 2

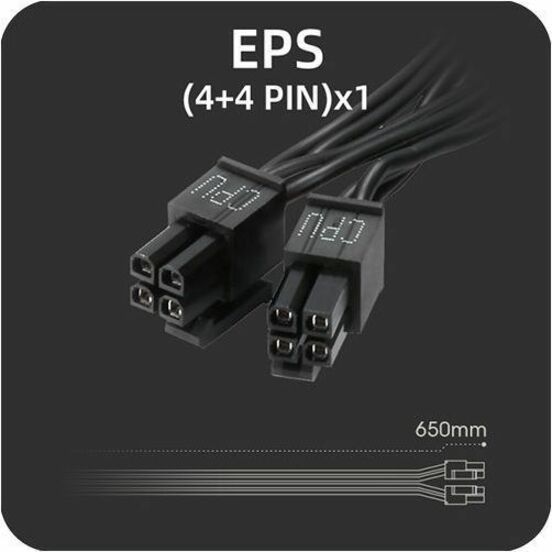

- Number of (4+4 pin) CPU Power Connectors: 1
Physical Characteristics
- Form Factor: Internal
- Height: 3.4"
- Width: 5.9"
- Depth: 5.5"
Miscellaneous
- Energy Efficiency Certification: 80 Plus Gold
Warranty
- Limited Warranty: 3 Year
