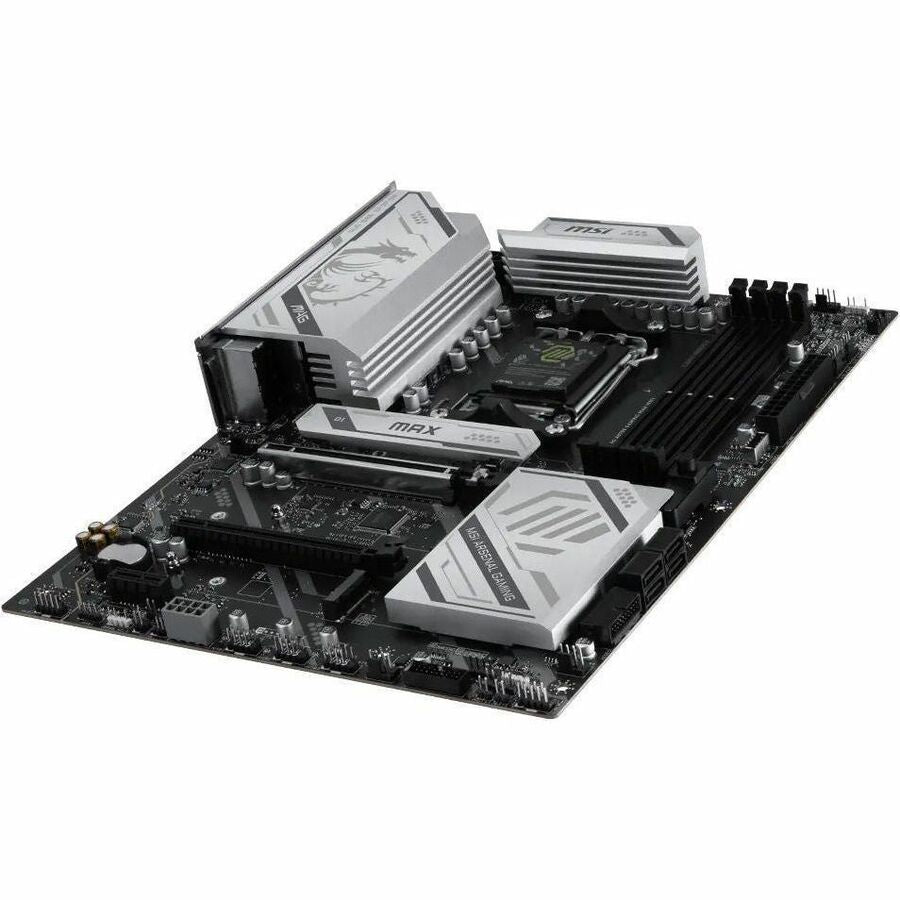

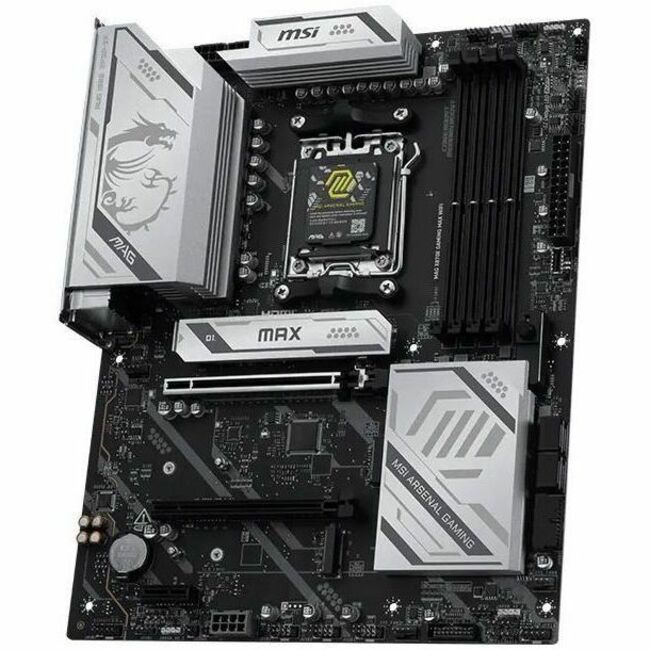

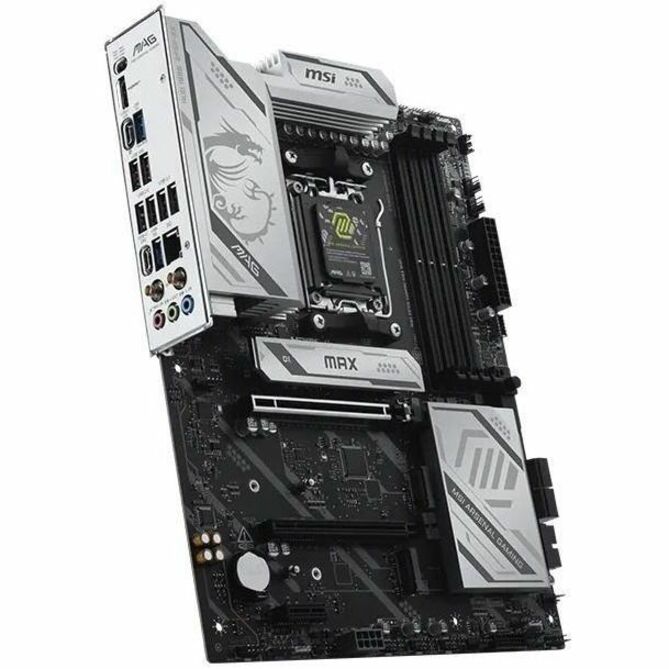

MSI MAG X870E GAMING MAX WIFI - MAGX870EGAMINGMAX - ATX Gaming Motherboard - AM5 - X870E Chipset - MAGX870EGAMINGMAX
Key Features

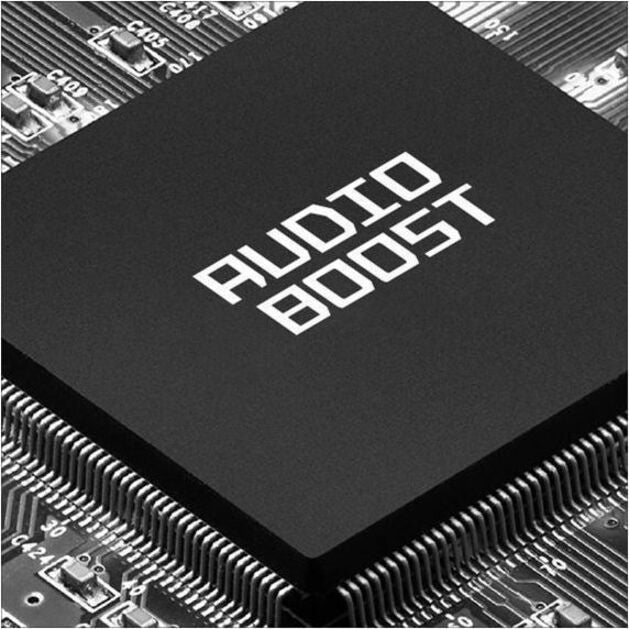

- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 up to 8200+ MT/s (OC)

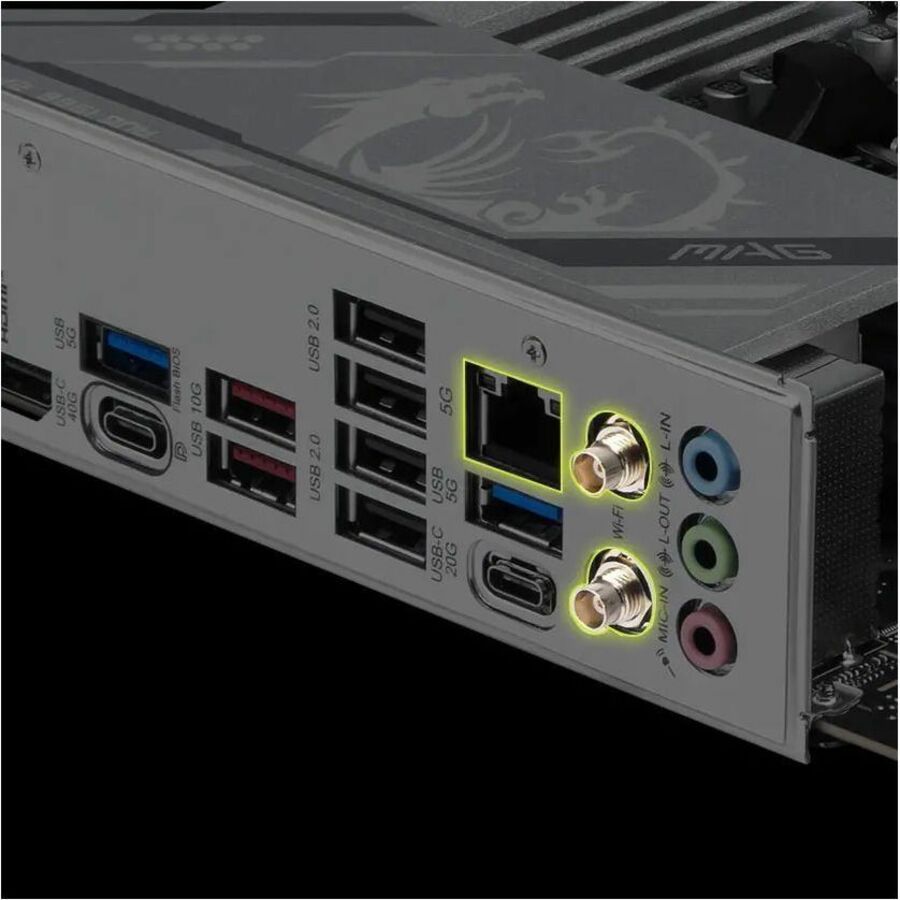

- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

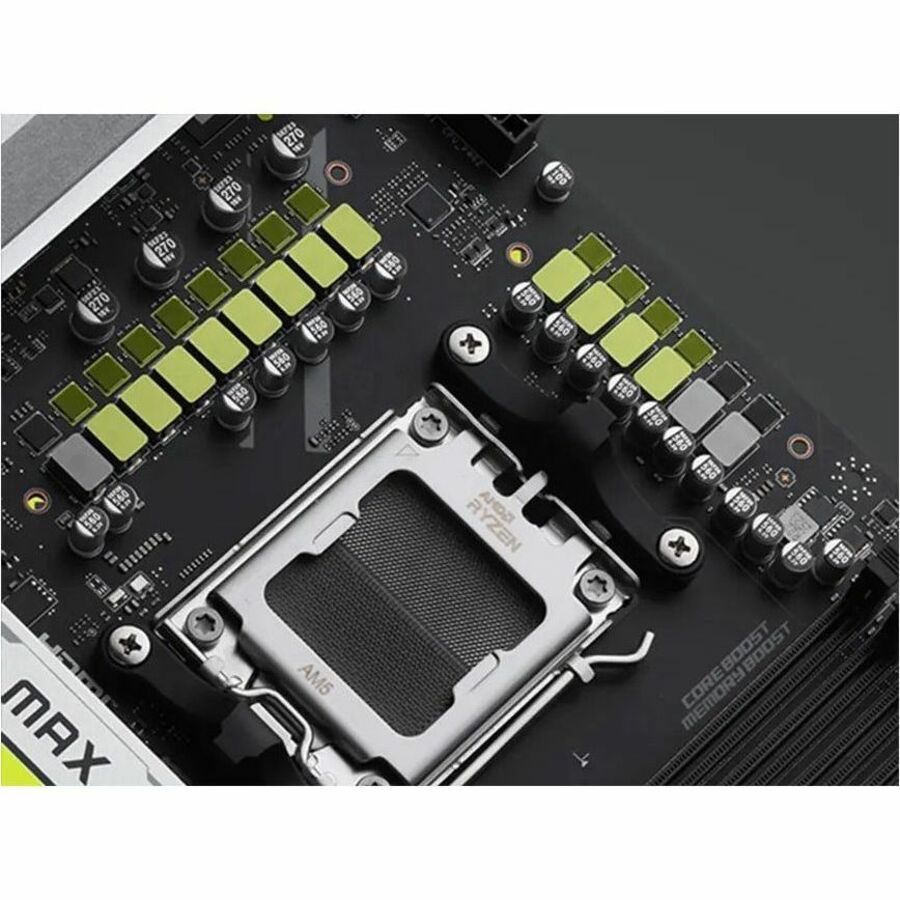

- Ultra Performance: 12+2+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Product Overview
MAG X870E GAMING MAX WIFI
MAG X870E GAMING MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with latest Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MAG MSI ARSENAL GAMING
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

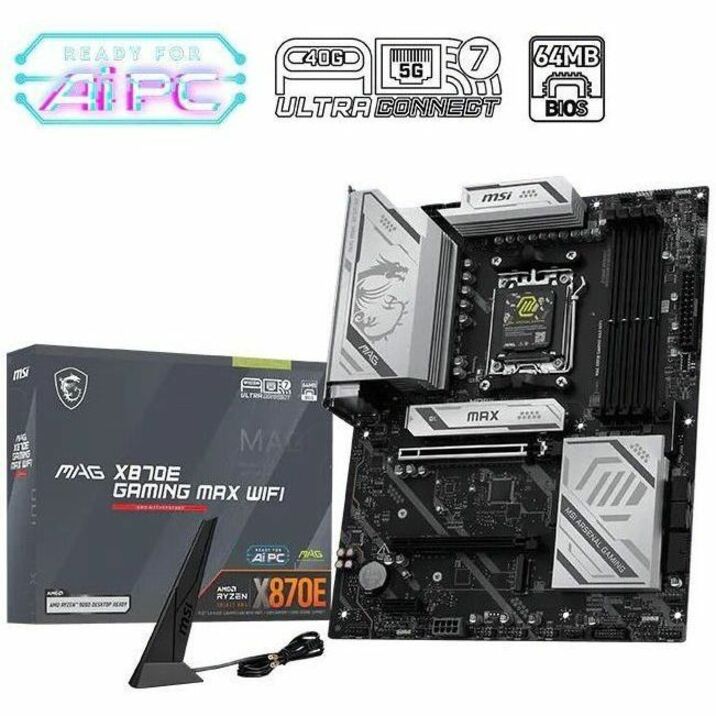

READY FOR Ai PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Al Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr Al Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
Al Boost
is an MSI exclusive feature. It overclocks NPU to improve higher Al performance.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGX870EGAMINGMAX
- Brand Name: MSI
- Product Line: MAG
- Product Model: X870E GAMING MAX WIFI
- Product Name: MAG X870E GAMING MAX WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870E
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- CUDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 8200 MHz
- 6400 MHz
- 5600 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
- 10
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 1
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0
- PCI Express 3.0

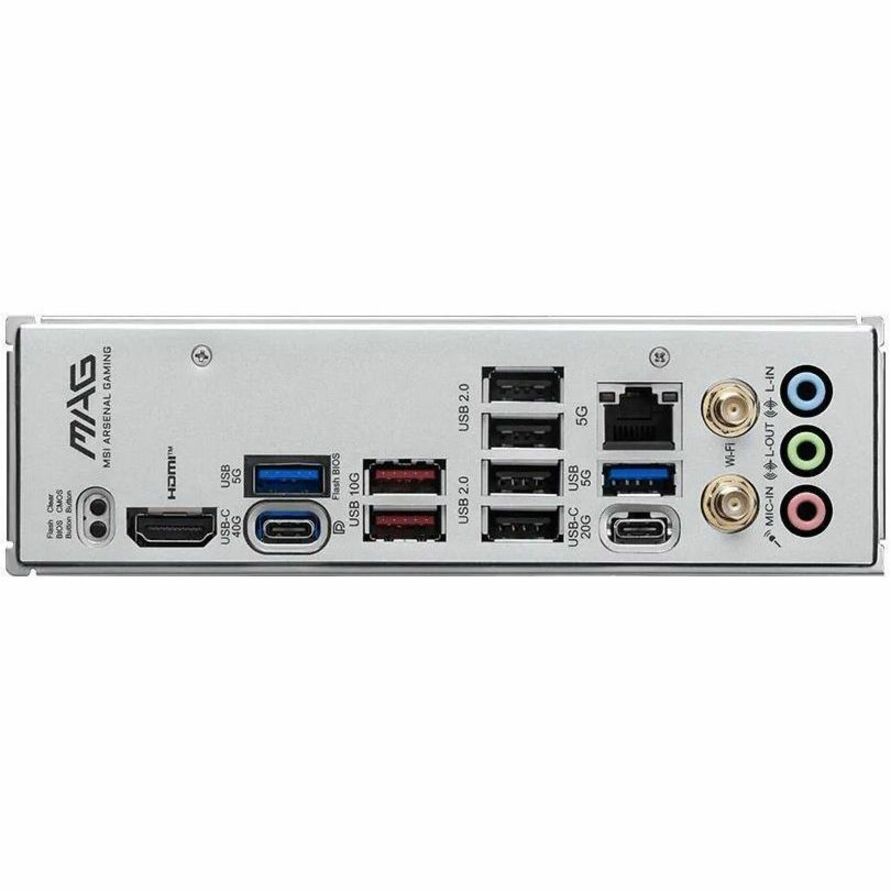

Interfaces/Ports
- Total Number of USB Ports: 10
- Number of USB 2.0 Ports: 4
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 11
- Number of Onboard USB 2.0 Ports: 6
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- MAG X870E GAMING MAX WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- 2 x SATA Cable
- EZ M.2 Clips II
- EZ M.2 Clip II Remover
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- EZ Front Panel Cable
- Compatibility:
- Processor (CPU): Socket AM5 supports AMD Ryzen 9000, 8000, and 7000 series desktop processors.
- Memory (RAM): 4x DDR5 DIMM slots supporting Dual Channel memory up to 8400+ MT/s (OC).
- Graphics (GPU): PCIe 5.0 x16 slot, providing full compatibility with next-gen GPUs.
- Storage: 4x M.2 slots (including Lightning Gen 5 x4) and 4x SATA 6G ports.
- Networking & I/O: Wi-Fi 7 (Bluetooth 5.4), 5G LAN, and Dual USB4 40Gbps Type-C ports.
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
MSI motherboards purchased by end users will have a warranty period of 3 years (36 months) that covers damage due to regular usage but not physical damage caused to the motherboard. The warranty period will begin on the date of purchase the end user made from an authorized retailer if an invoice is provided as a proof of purchase. If the end user is unable to provide the invoice, then the warranty period will begin based off that product's manufactured date.
