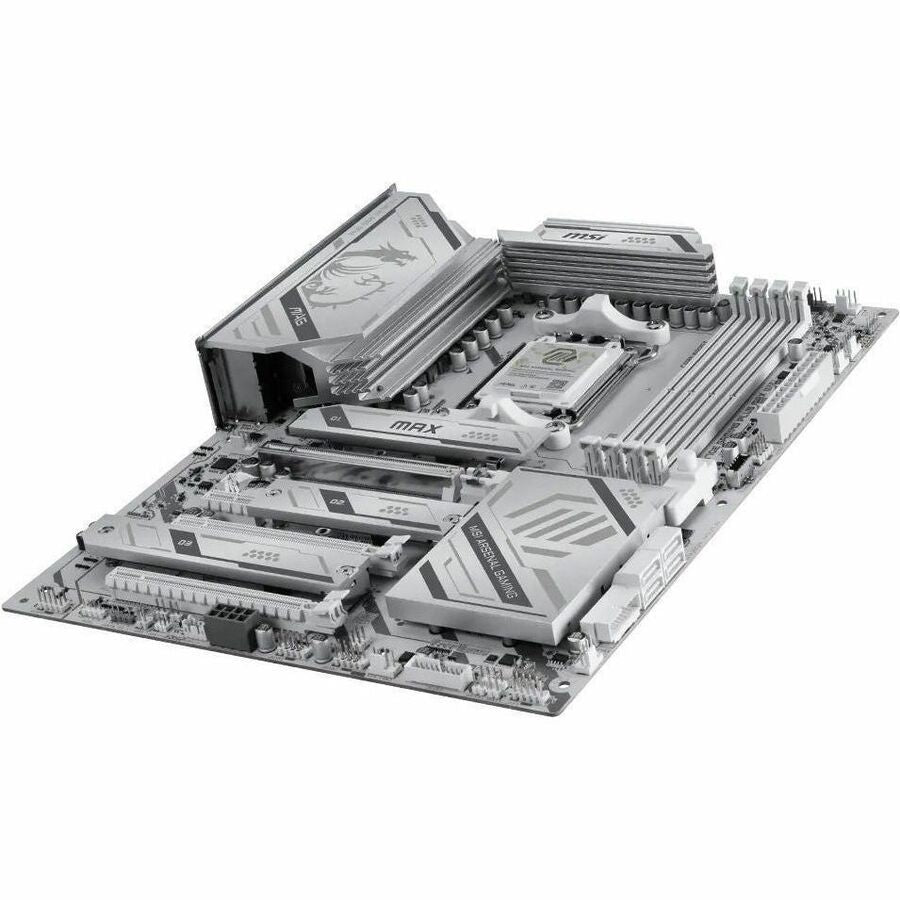

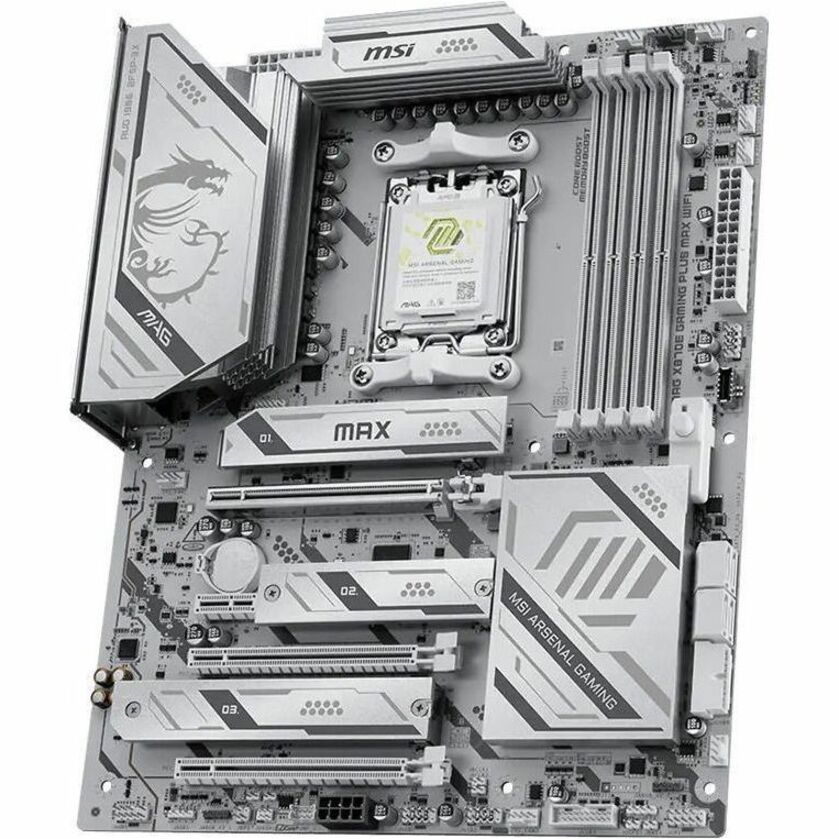

MSI MAG X870E GAMING PLUS MAX WIFI - MAGX870EGPMW - ATX Gaming Motherboard - AM5 - X870E Chipset - MAGX870EGPMW
Key Features
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)

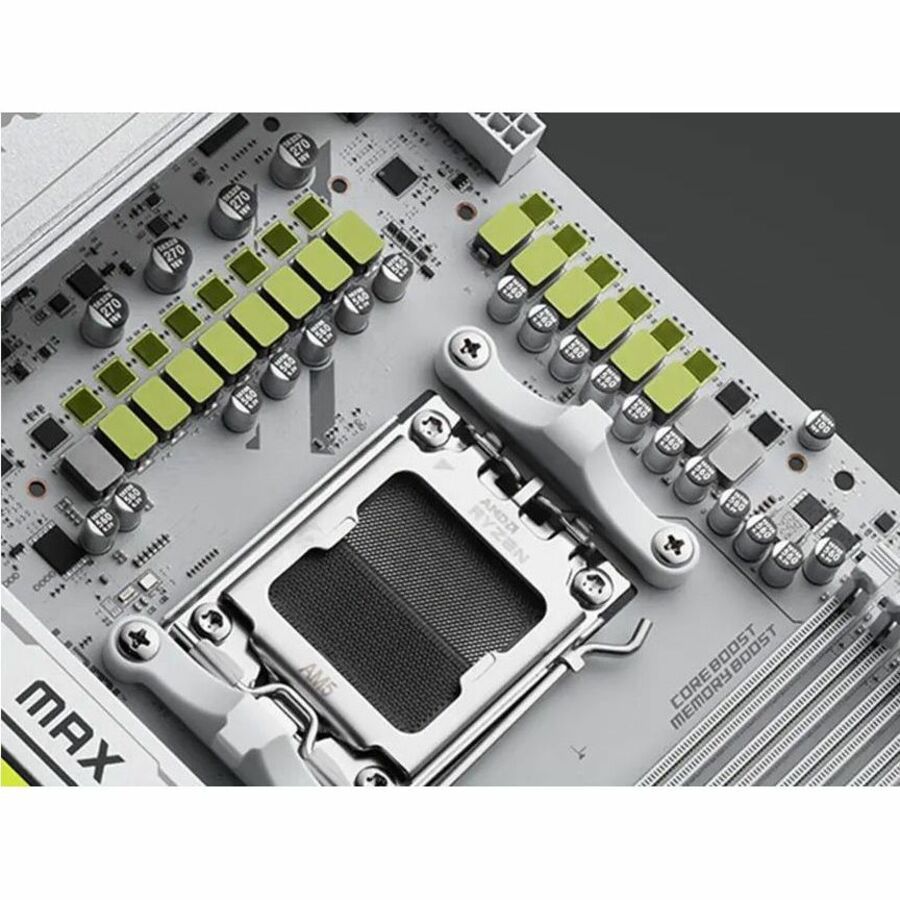

- Ultra Performance: 14+2+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Product Overview
MAG X870E GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with full-speed Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGX870EGPMW
- Brand Name: MSI
- Product Line: MAG
- Product Model: X870E GAMING PLUS MAX WIFI
- Product Name: MAG X870E GAMING PLUS MAX WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870E
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- CUDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 8200 MHz
- 6400 MHz
- 6000 MHz
- 5600 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 10
- 5
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes

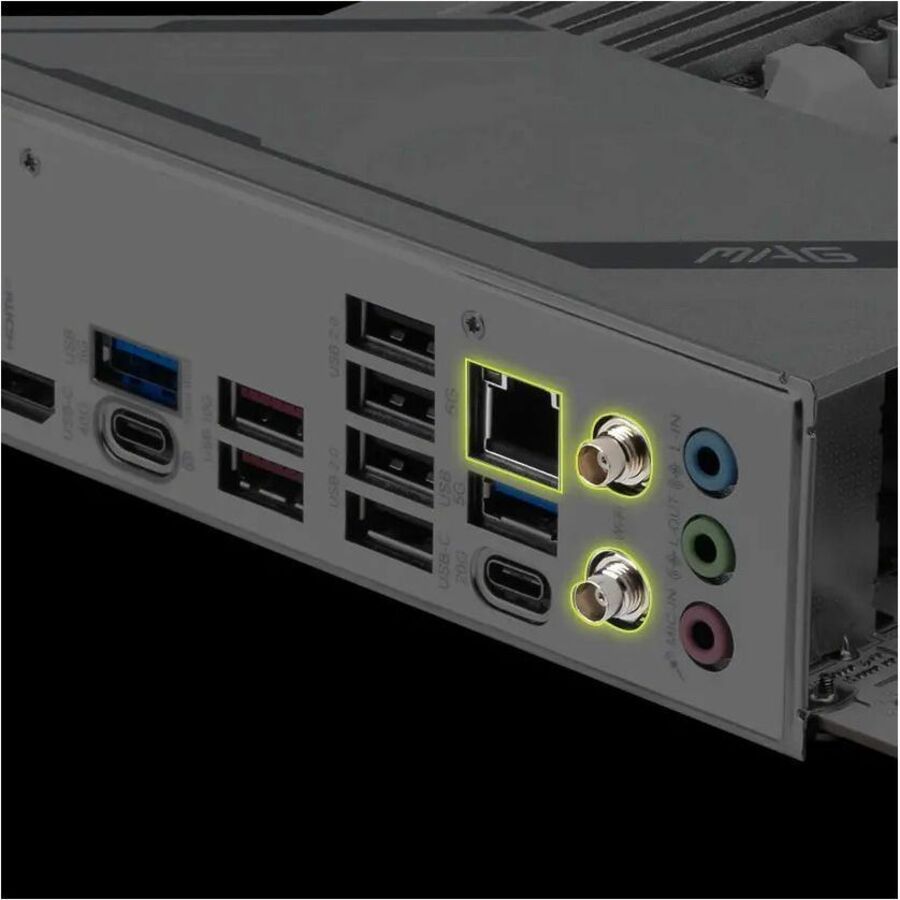

- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of Expansion Slots: 4
- Total Number of PCI Express Slots: 4
- Number of PCI Express x1 Slots: 2
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0
- PCI Express 3.0
Interfaces/Ports
- Total Number of USB Ports: 10
- Number of USB 2.0 Ports: 4
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 11
- Number of Onboard USB 2.0 Ports: 6
Physical Characteristics
- Form Factor: ATX
- Height: 13.5"
- Width: 2.8"
- Depth: 12"
- Weight (Approximate): 4.87 lb
Miscellaneous

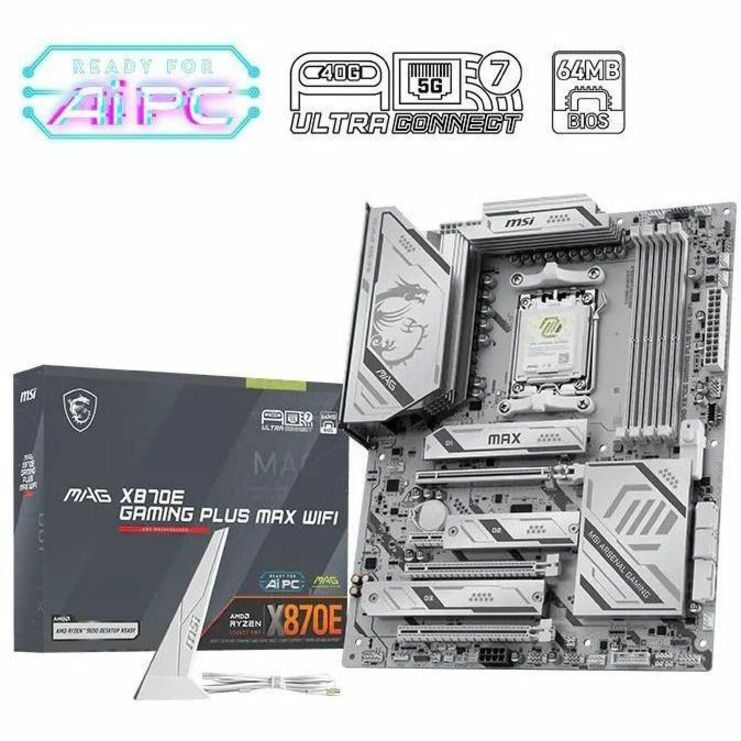

- Package Contents:
- MAG X870E GAMING PLUS MAX WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- 2 x SATA Cables
- EZ M.2 Clip II Remover
- EZ M.2 Clip II
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- EZ Front Panel Cable
Warranty
- Limited Warranty: 3 Year
