MSI MPG X870I EDGE TI EVO WIFI - MPGX870IEDGETI - Mini-ITX Gaming Motherboard - AM5 - X870 Chipset - MPGX870IEDGETI
Key Features
- Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 10000+ MT/s (OC)
- Ultra Performance: 8+2+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
Product Overview

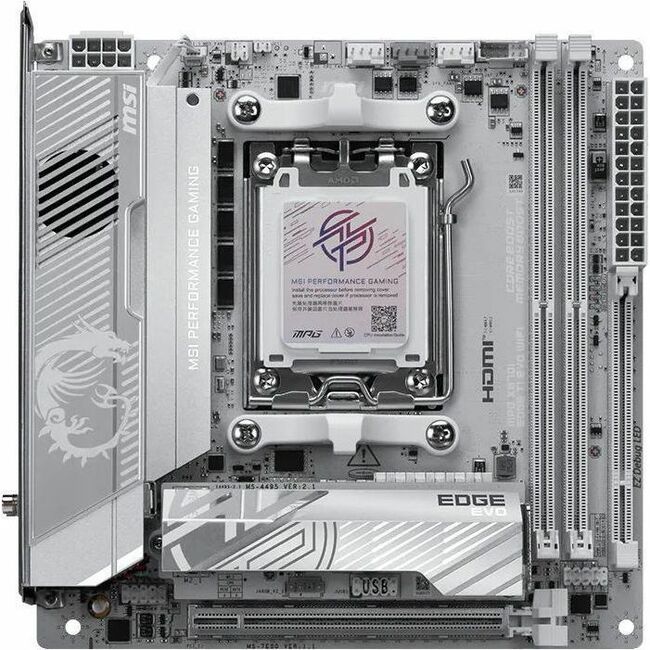

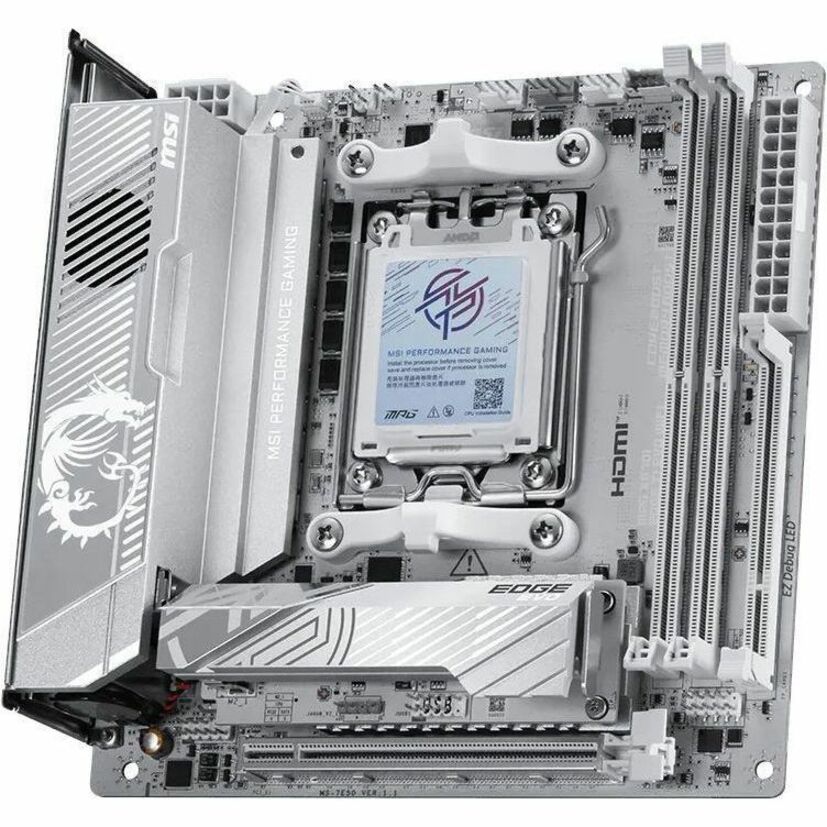

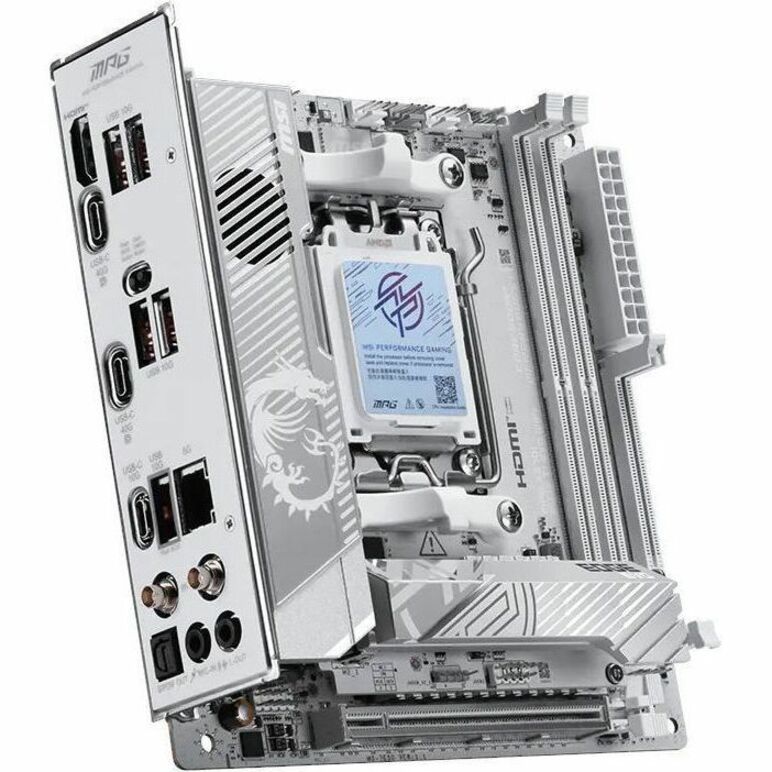

MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.General Information
- Manufacturer: MSI
- Manufacturer Part Number: MPGX870IEDGETI
- Brand Name: MSI
- Product Line: MPG
- Product Model: X870I EDGE TI EVO WIFI
- Product Name: MPG X870I EDGE TI EVO WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: X870
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Number of Memory Slots: 2
- Memory Form Factor:
- DIMM
- UDIMM
- CUDIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported:
- 10000 MHz
- 8400 MHz
- 8000 MHz
- 5600 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
- 5
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- 2.5Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of Expansion Slots: 1
- Total Number of PCI Express Slots: 1
- Number of PCI Express x16 Slots: 1
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 5.0

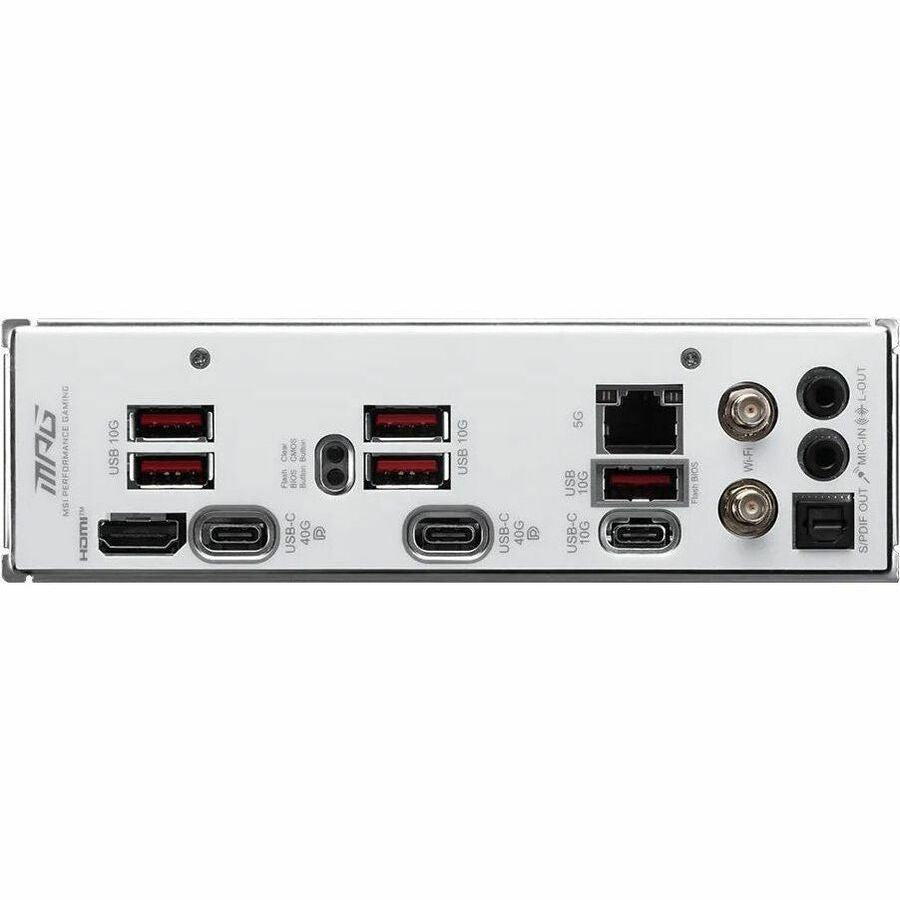

Interfaces/Ports
- Total Number of USB Ports: 8
- S/PDIF: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 2
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 5
- Number of Onboard USB 2.0 Ports: 2
Physical Characteristics
- Form Factor: Mini ITX
- Height: 11"
- Width: 2.5"
- Depth: 10.8"
- Weight (Approximate): 3.06 lb
Miscellaneous

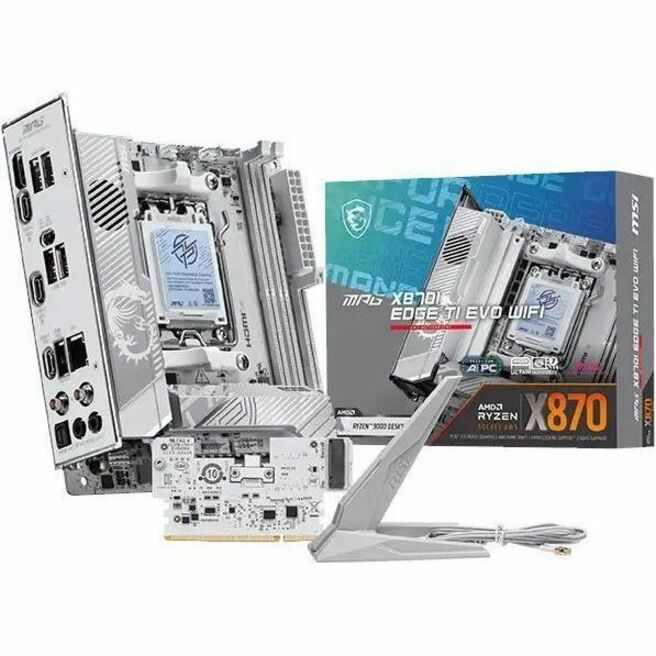

- Package Contents:
- MPG X870I EDGE TI EVO WIFI Gaming Desktop Motherboard
- European Union Regulatory Notice
- Quick Installation Guide
- Cable Sticker
- EZ Wi-Fi Antenna
- 5-in-1 XPANDER Card
- 5-in-1 ???NDER USB 5Gbps Cable
- 2 x SATA Cables
- 1 to 3 EZ Conn-Cable (V2)
- EZ Front panel cable
Warranty
- Limited Warranty: 3 Year
