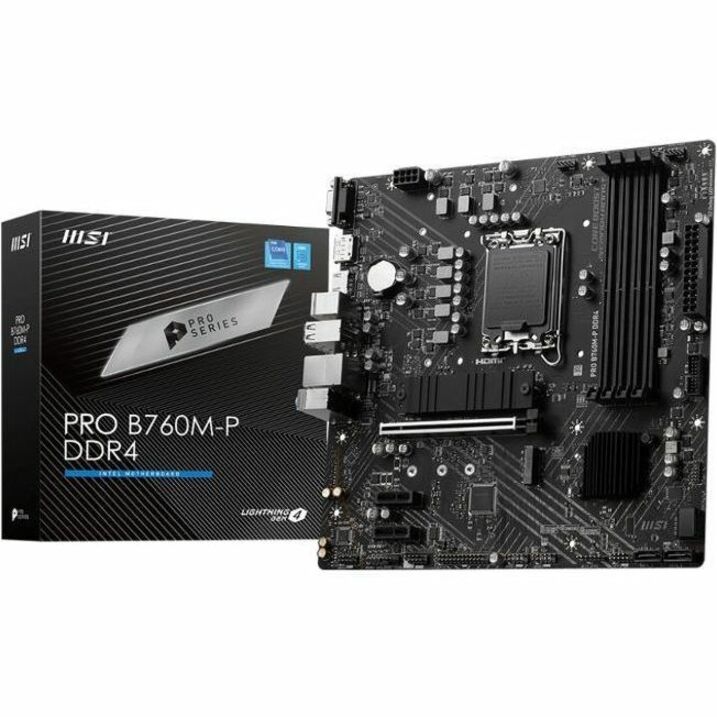

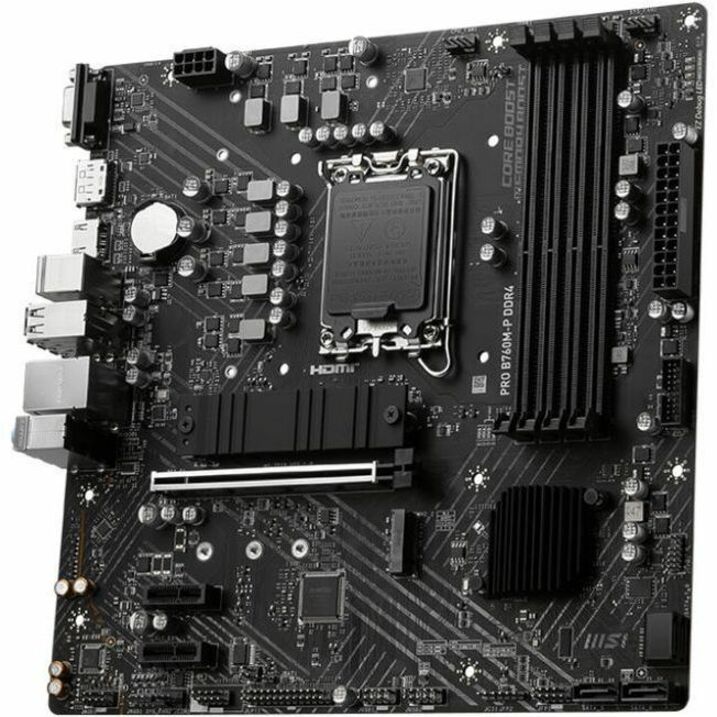

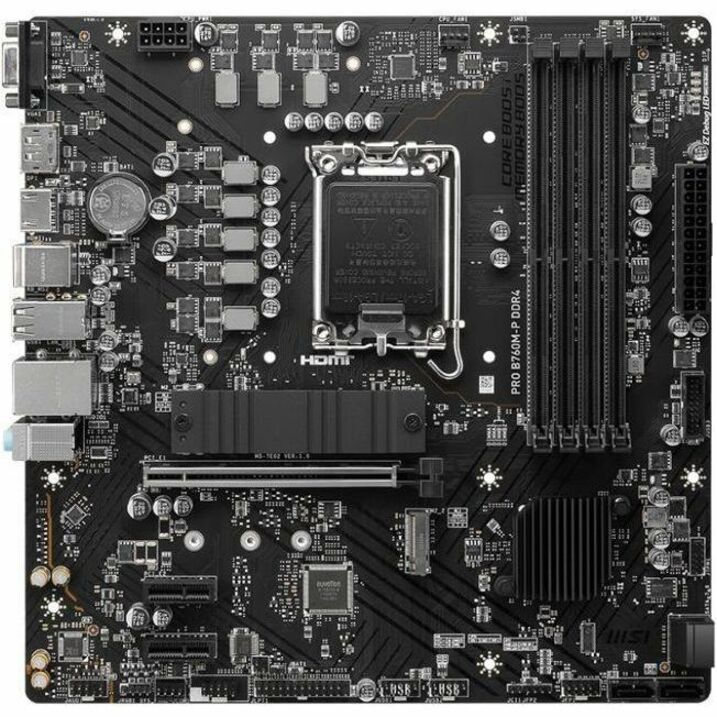

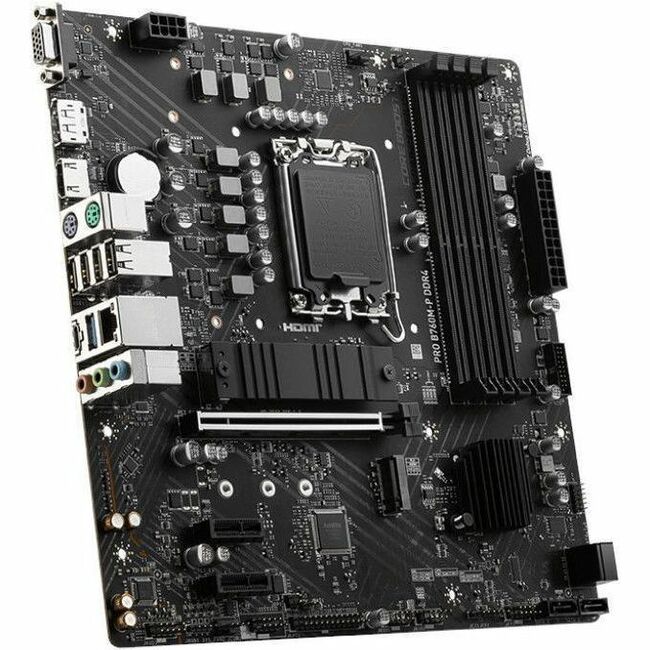

MSI Pro PRO B760M-P DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Mini ATX - B760MPD4
Key Features
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
- Supports 12th/13th Gen Intel®Core™, Pentium®Gold and Celeron®processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Product Overview
PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: B760MPD4
- Brand Name: MSI
- Product Line: Pro
- Product Model: PRO B760M-P DDR4
- Product Name: PRO B760M-P DDR4 Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: Intel
- Chipset Model: B760
- Total Processor Supported: 1
- Processor Socket: Socket LGA-1700
- Processor Generation Supported:
- 13th Gen
- 12th Gen
- Processor Supported:
- Core
- Celeron
- Pentium Gold
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 128 GB
- Memory Speed Supported:
- 4800 MHz
- 4600 MHz
- 4400 MHz
- 4266 MHz
- 4200 MHz
- 4000 MHz
- 3800 MHz
- 3733 MHz
- 3600 MHz
- 3466 MHz
- 3400 MHz
- 3333 MHz
- 3200 MHz
- 2933 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- Memory Technology: DDR4 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 10
- 1
- 5
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Gigabit Ethernet: Yes
I/O Expansions
- Total Number of Expansion Slots: 3
- Total Number of PCI Express Slots: 3
- Number of PCI Express x1 Slots: 2
- Number of PCI Express x16 Slots: 1
- PCI Express Standard: PCI Express 4.0

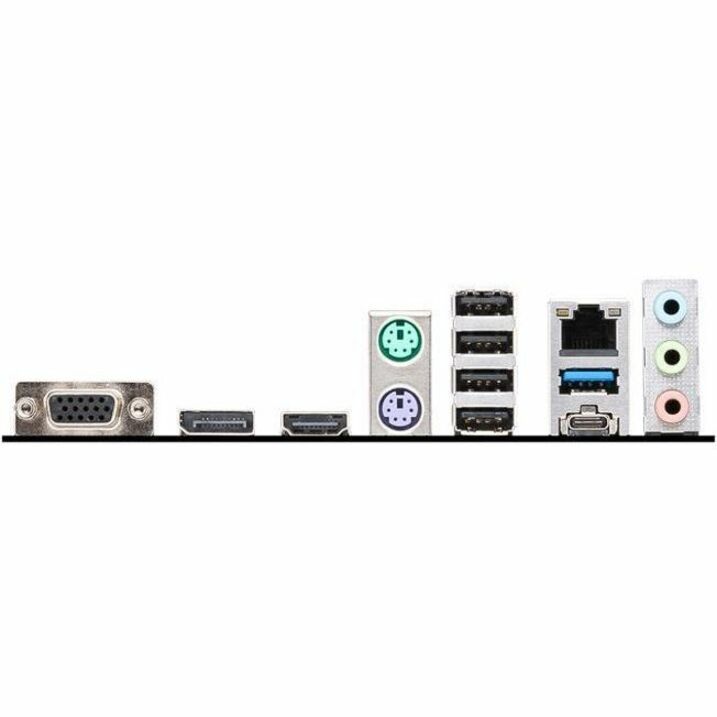

Interfaces/Ports
- Total Number of USB Ports: 6
- Number of USB 2.0 Ports: 4
- Number of USB 3.2 Gen 1 Type-A Ports: 1
- Number of USB 3.2 Gen 2 Type-C Ports: 1
- VGA: Yes
- HDMI: Yes
- DisplayPort: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 2
- Total Number of Onboard USB Ports: 6
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: Mini ATX
- Width: 9.6"
- Depth: 9.6"
Miscellaneous
- Package Contents:
- PRO B760M-P DDR4 Gaming Desktop Motherboard
- European Union Regulatory Notice
- Quick Installation Guide
- 2 x m.2 screw/standoff sets
- sata cable
- i/o shield
