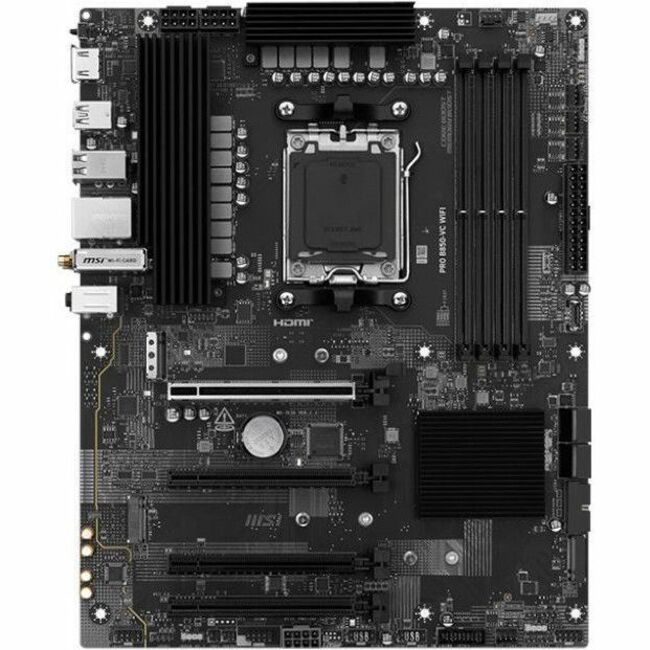

MSI Pro PRO B850-VC WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Micro ATX - PROB850VCWIFI
Key Features
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- EZ DIY: EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
General Information
- Manufacturer: MSI
- Manufacturer Part Number: PROB850VCWIFI
- Brand Name: MSI
- Product Line: Pro
- Product Model: PRO B850-VC WIFI
- Product Name: PRO B850-VC WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B850
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- UDIMM
- DIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 8200 MHz
- 5600 MHz
- 6400 MHz
- 6000 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of PCI Express Slots: 4
- Number of PCI Express x16 Slots: 4
- PCI Express Standard:
- PCI Express 4.0
- PCI Express 3.0
- PCI Express 5.0

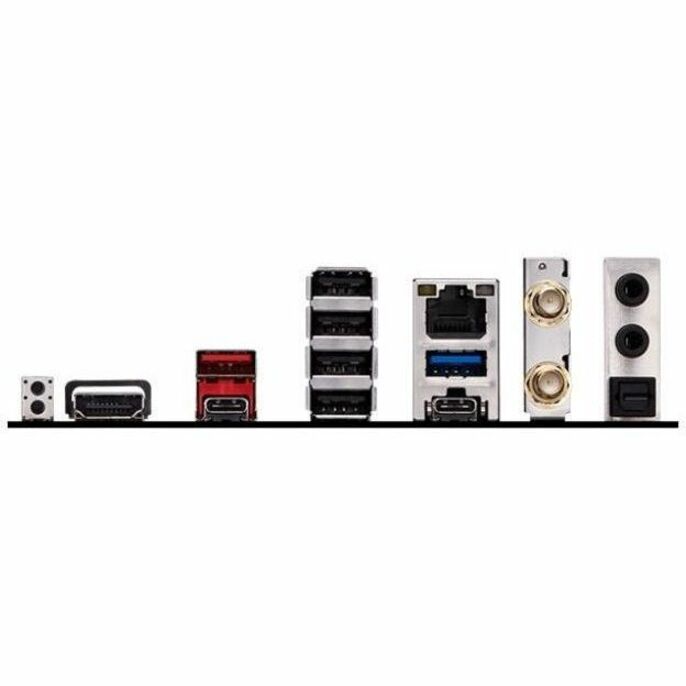

Interfaces/Ports
- Total Number of USB Ports: 8
- Number of USB 2.0 Ports: 4
- S/PDIF: Yes
- VGA: Yes
- HDMI: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 9
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: Micro ATX
- Width: 12"
- Depth: 9.6"
Miscellaneous
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
