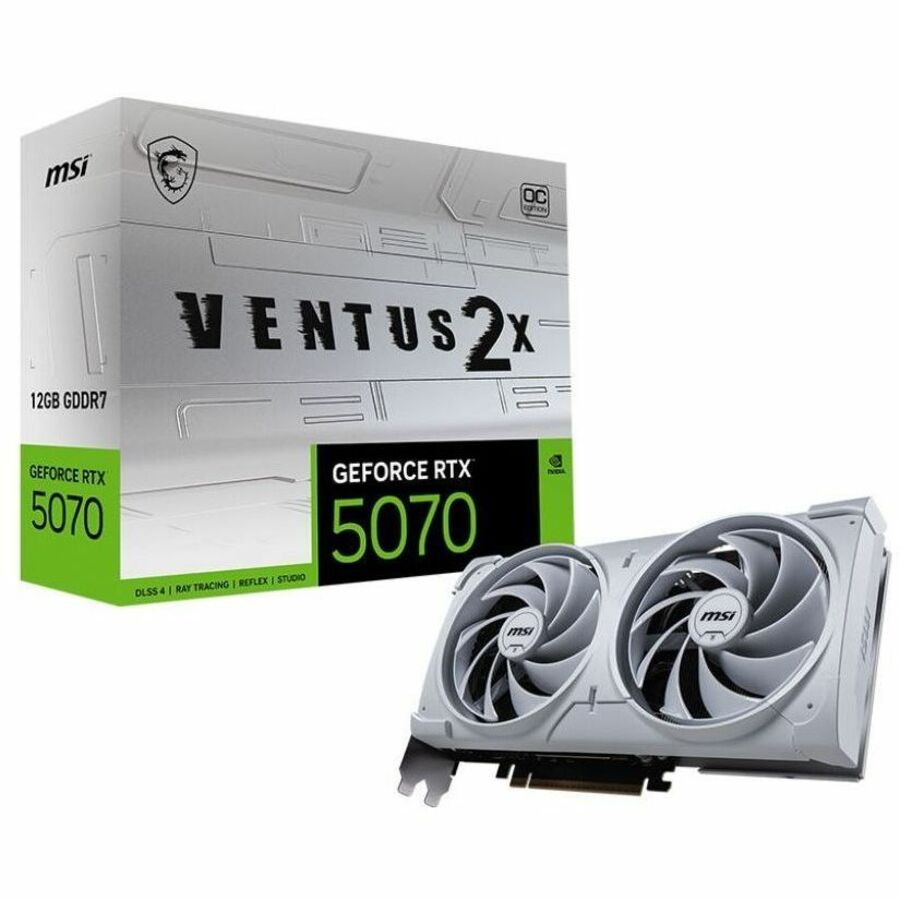

MSI RTX 5070 12G VENTUS 2X OC WHITE - G5070-12V2CW
Key Features
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
- Core Pipes: Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- DrMOS: DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

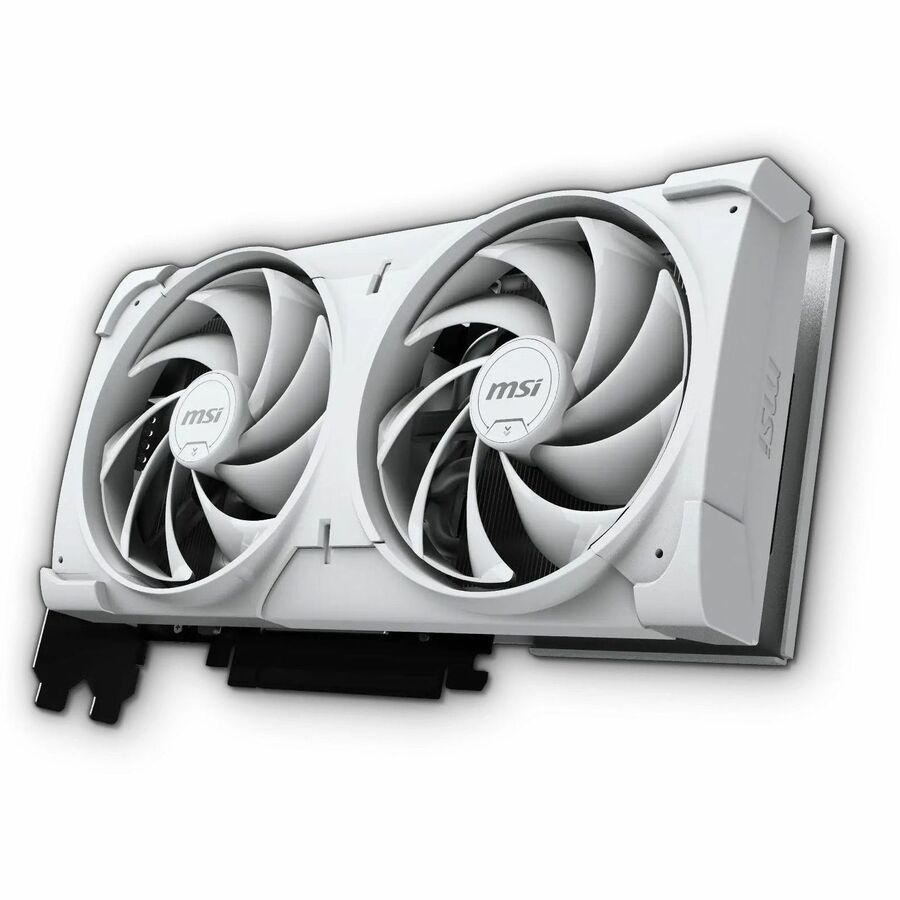

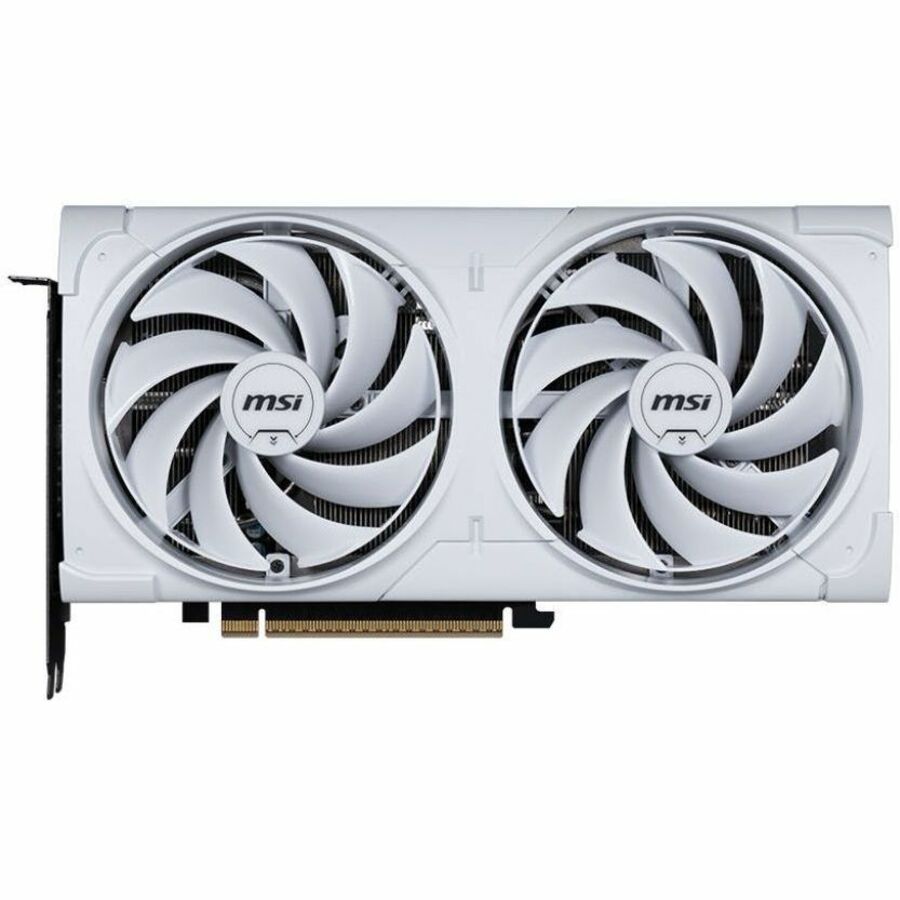

- Dual Fan: Two fans and a huge heatsink ensure a cool and quiet experience for you.
- Fuse: Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

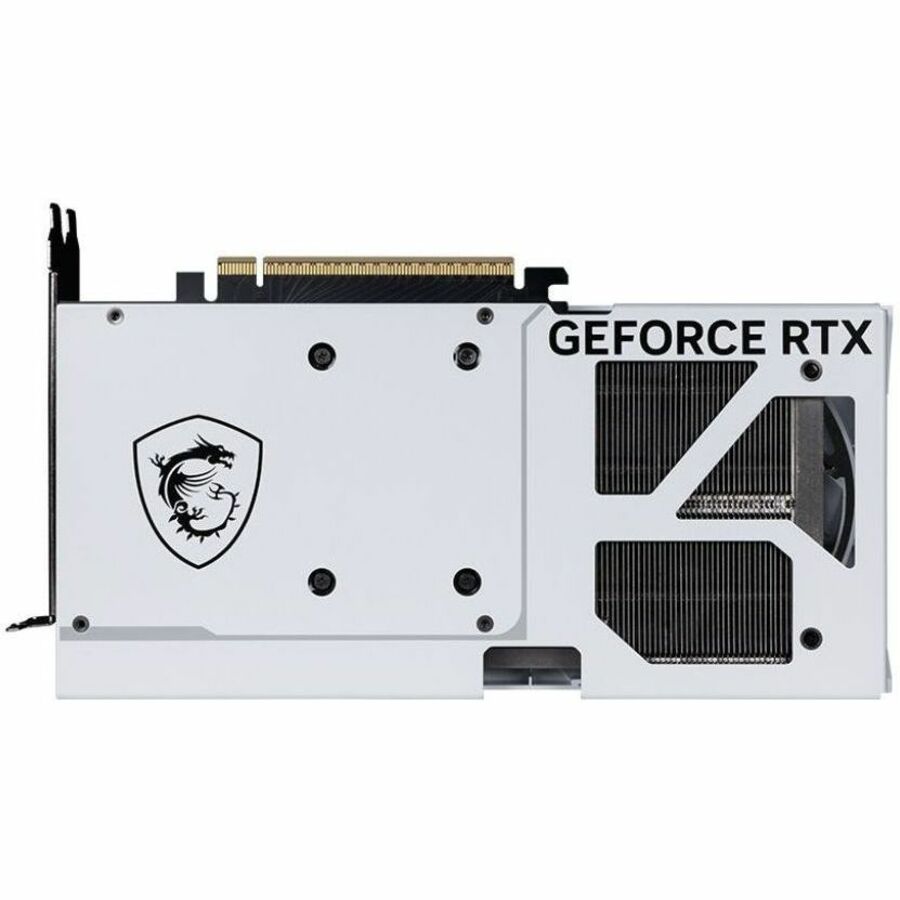

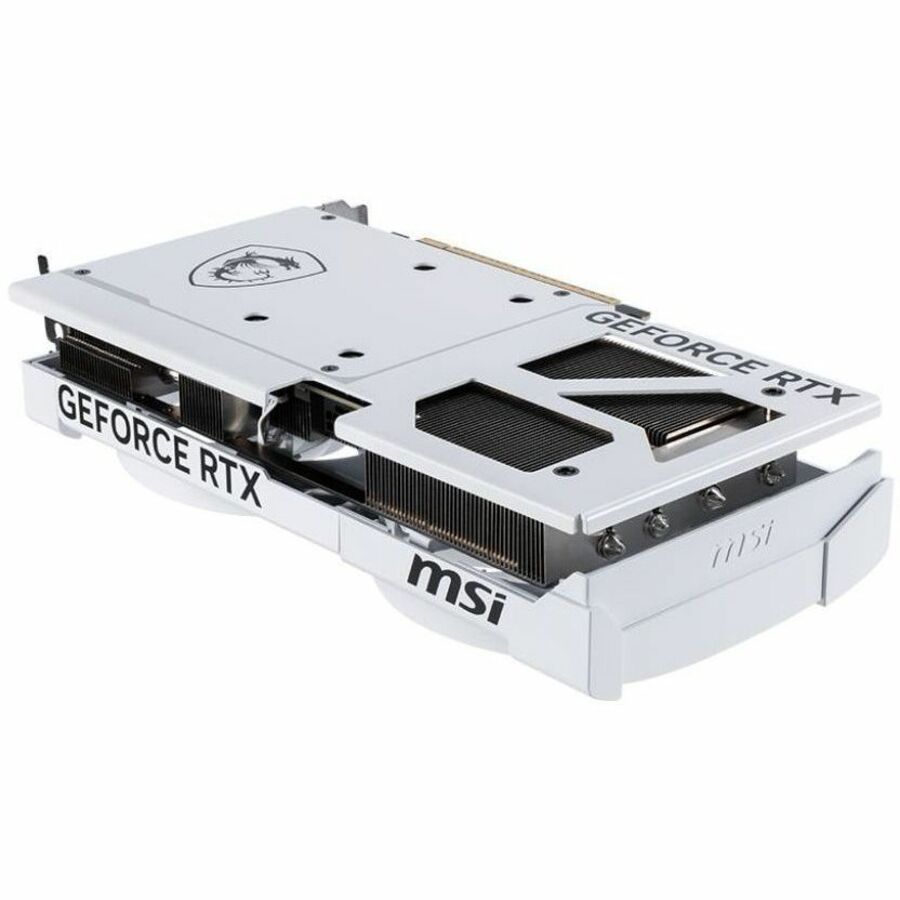

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.

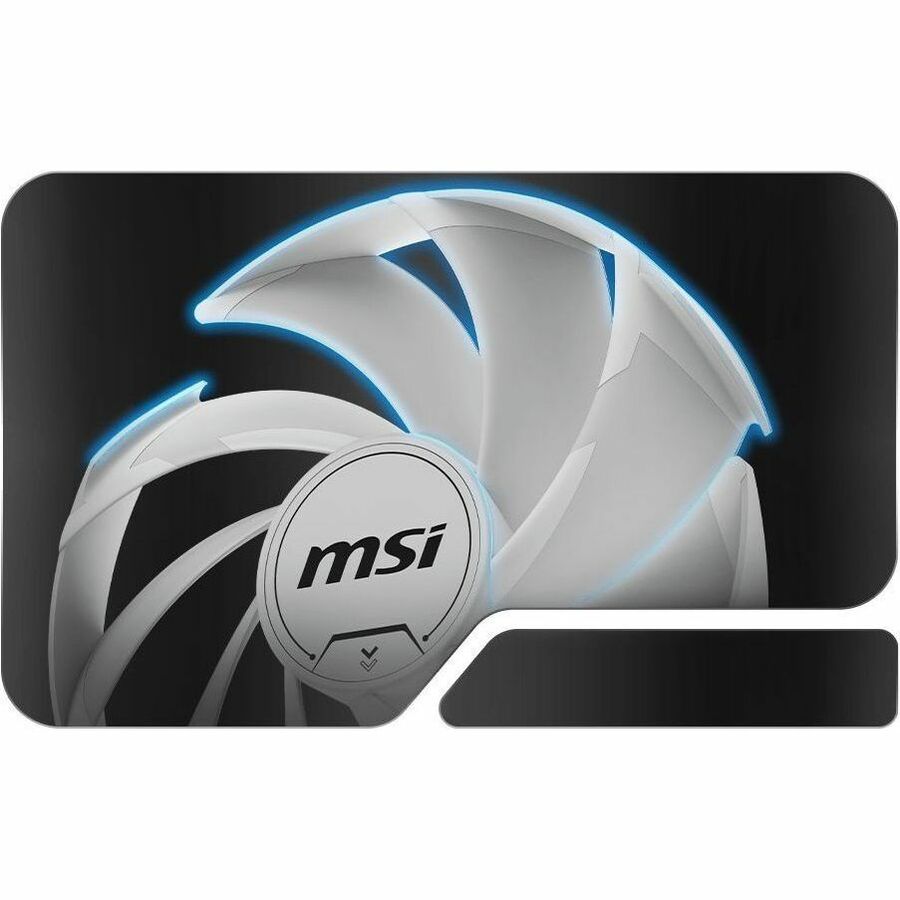

- TORX FAN 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.
Product Overview
TAKE THE ESSENTIALS

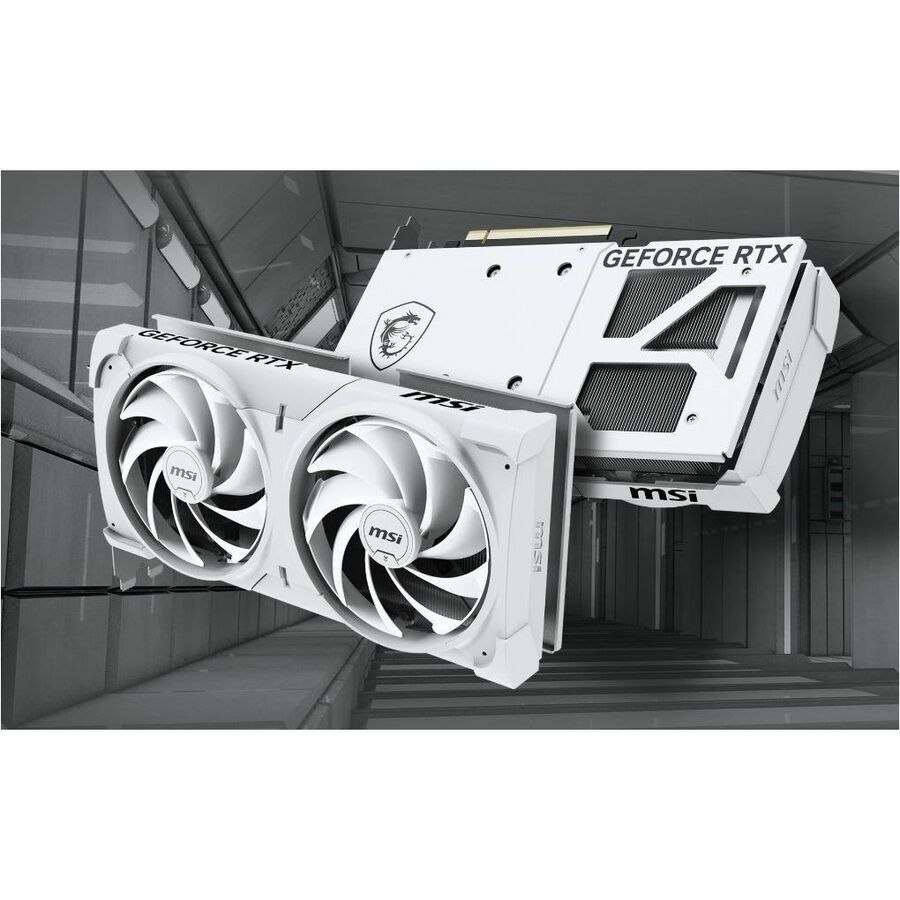

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

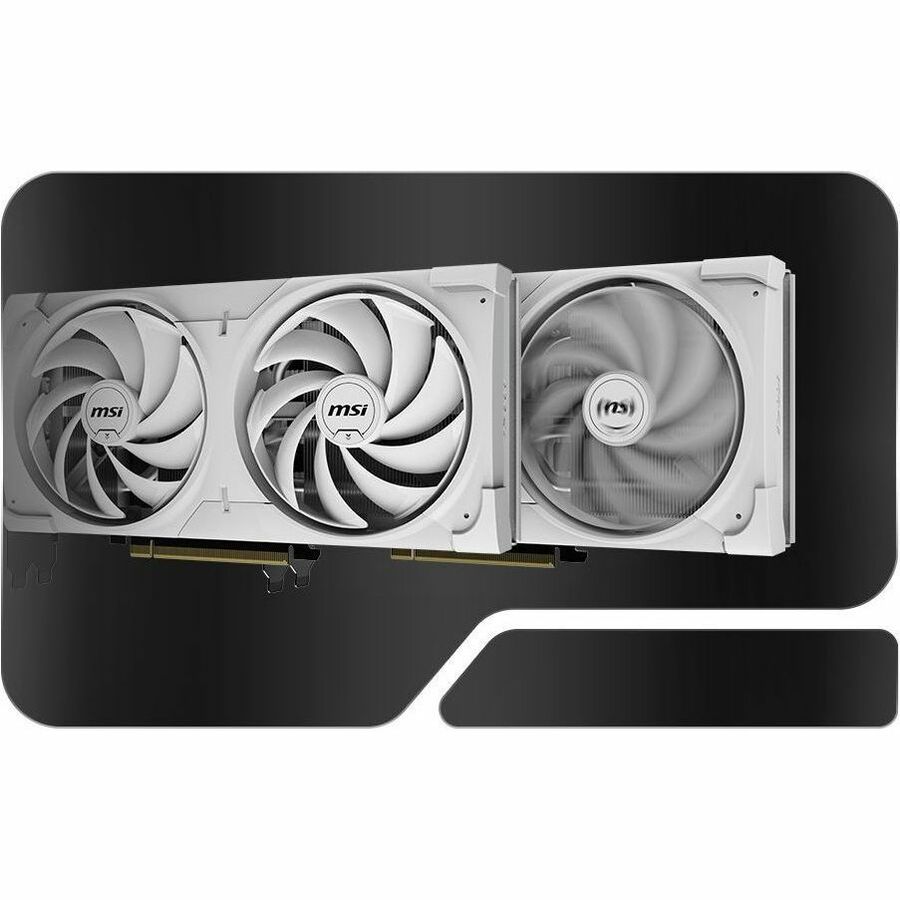

DUAL-FAN THERMAL DESIGN
Two fans on a large heatsink ensure great cooling performance with a quieter experience.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: G5070-12V2CW
- Brand Name: MSI
- Product Line: VENTUS 2X
- Product Model: G5070-12V2CW
- Product Name: GeForce RTX 5070 12G VENTUS 2X OC WHITE Graphic Card
- Product Type: Graphic Card
Technical Information
- API Supported:
- DirectX 12 Ultimate
- OpenGL 4.6
- Number of Monitors Supported: 4
- Maximum Digital Display Resolution: 7680 x 4320
- CUDA Cores: 6144
- Features: Dual-fan Cooler
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: NVIDIA
- Chipset Line: GeForce
- Chipset Series: RTX
- Chipset Model: RTX 5070
- GPU Boost Clock: 2.54 GHz
Memory
- Standard Memory: 12 GB
- Memory Technology: GDDR7
- Bus Width: 192 bit

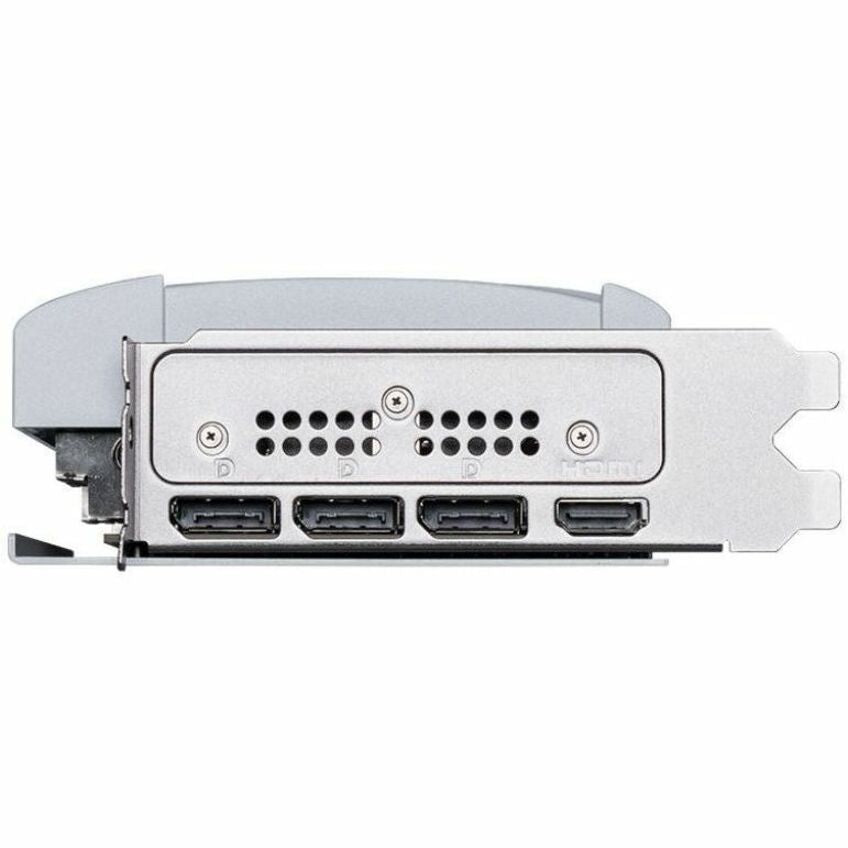

Interfaces/Ports
- Host Interface: PCI Express 5.0
- DisplayPort: Yes
- Number of DisplayPort Outputs: 3
- HDMI: Yes
- Number of HDMI Outputs: 1
Power Description
- Power Supply Wattage: 650 W

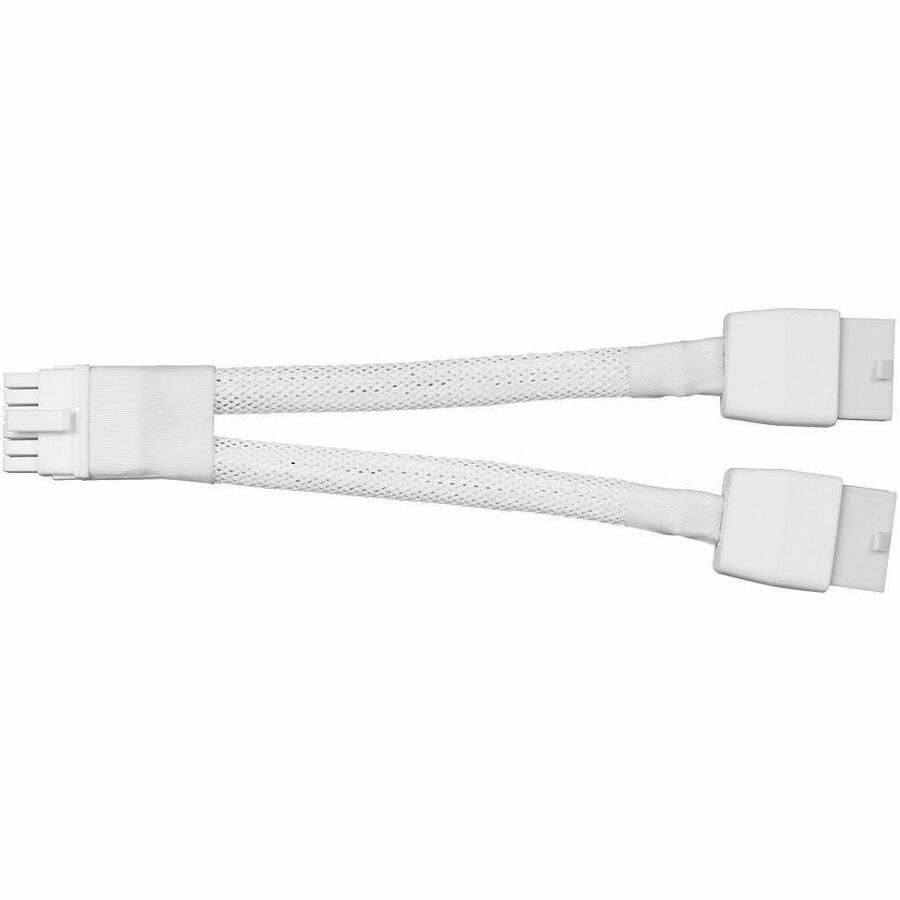

- Power Connector: 1x 16-pin
Physical Characteristics
- Form Factor: Plug-in Card
- Cooler Type: Fan Cooler
- Height: 2"
- Width: 5"
- Length: 9.3"
- Weight (Approximate): 1.71 lb
Miscellaneous
- Platform Supported: PC
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
No Extended Warranty available
