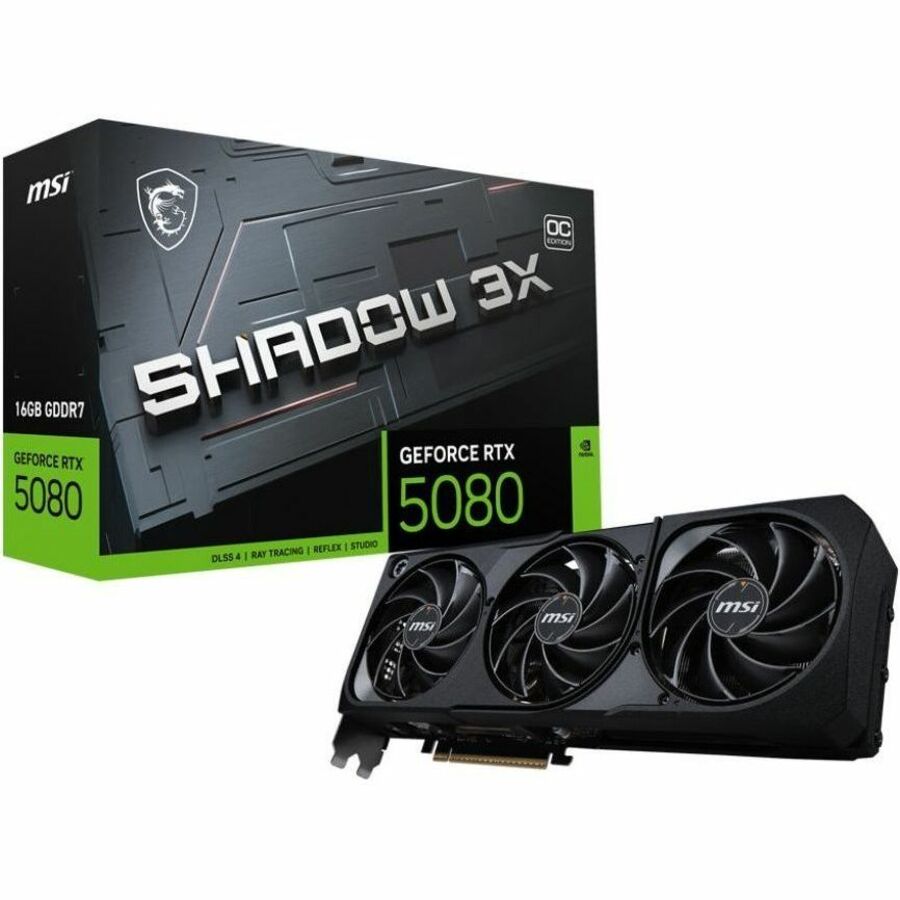

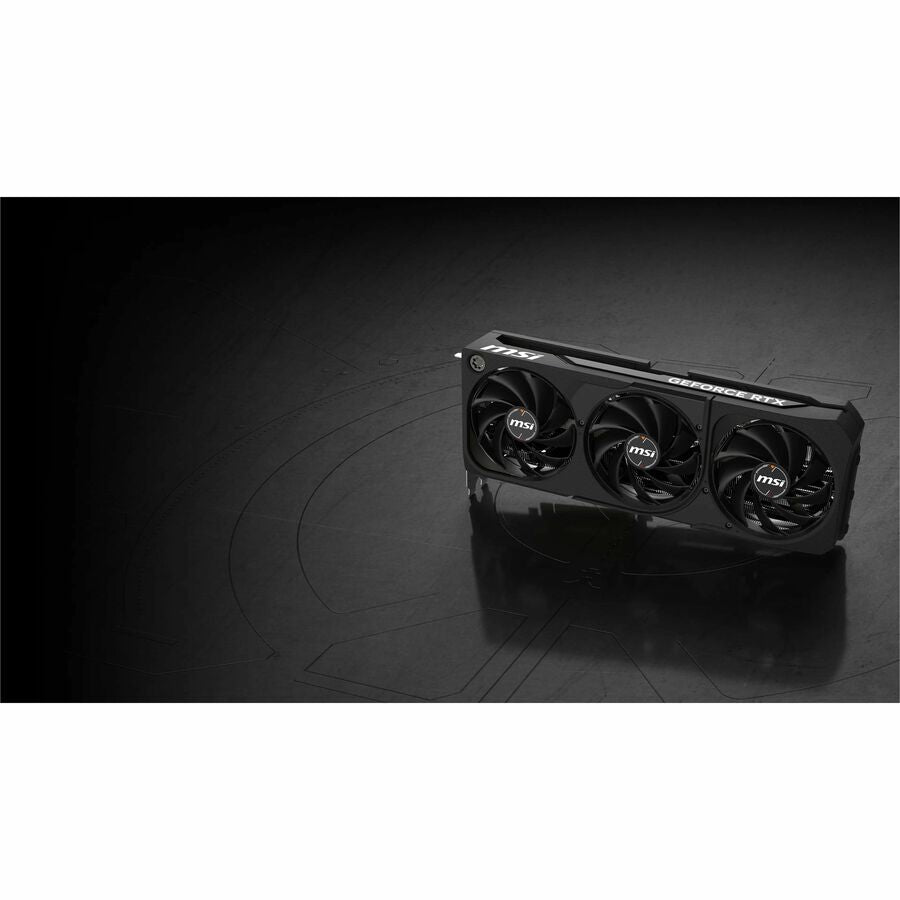

MSI RTX 5080 16G SHADOW 3X OC - G5080-16S3C
Key Features
- Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
- Afterburner:
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Core Pipes:
- DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
- DrMOS:
- Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Fuse:
- Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
- MSI Center:
- Nickel-plated Copper Baseplate:
- Reinforcing Backplate:
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- The fans completely stop when temperatures are relatively low, eliminating all noise.

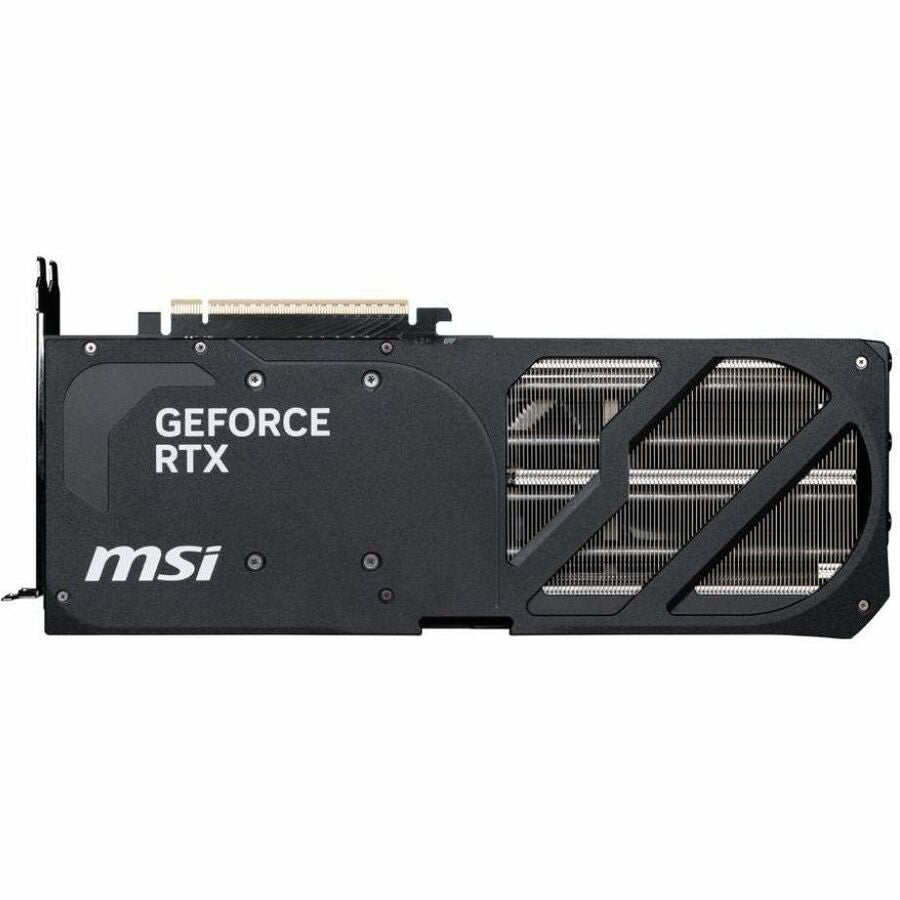

- The reinforcing backplate features a flow-through design that provides additional ventilation.
- Three f
Product Overview
TAKE THE ESSENTIALS
MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

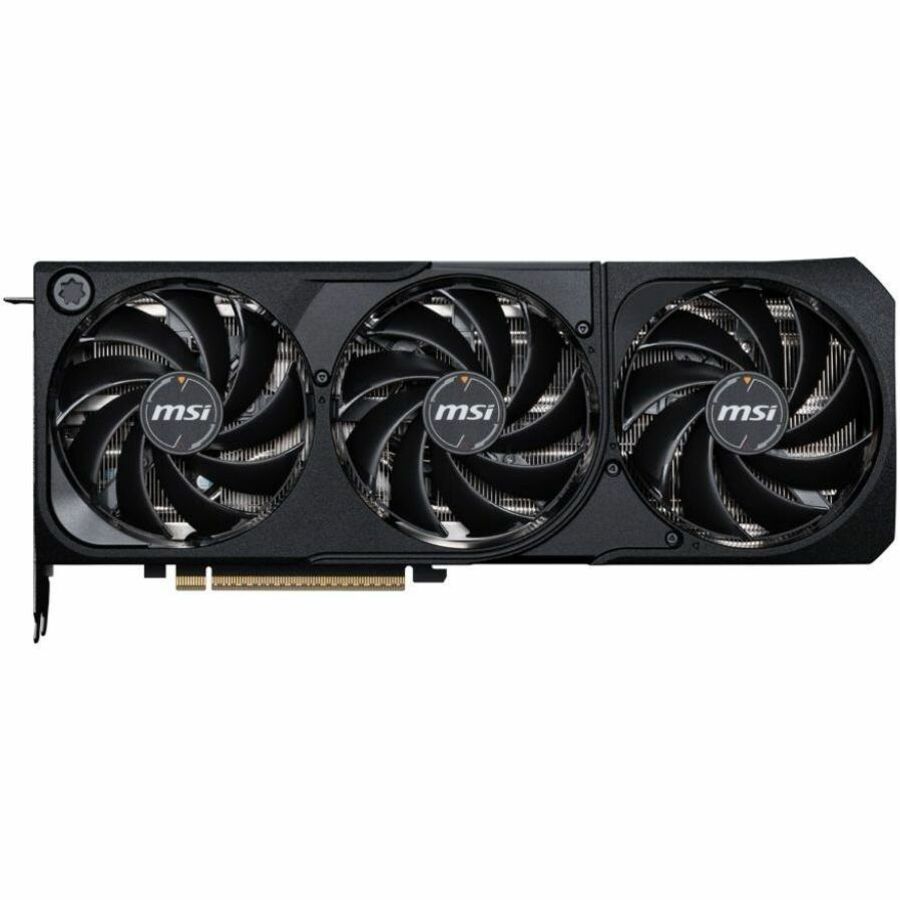

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: G5080-16S3C
- Brand Name: MSI
- Product Line: Shadow 3X
- Product Model: G5080-16S3C
- Product Name: GeForce RTX 5080 16G SHADOW 3X OC Graphic Card
- Product Type: Graphic Card
Technical Information
- API Supported:
- DirectX 12 Ultimate
- OpenGL 4.6
- Number of Monitors Supported: 4
- Maximum Digital Display Resolution: 7680 x 4320
- CUDA Cores: 10752
- Features: Triple-fan Cooler
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: NVIDIA
- Chipset Line: GeForce
- Chipset Series: RTX
- Chipset Model: RTX 5080
- GPU Boost Clock: 2.66 GHz
Memory
- Standard Memory: 16 GB
- Memory Technology: GDDR7
- Bus Width: 256 bit

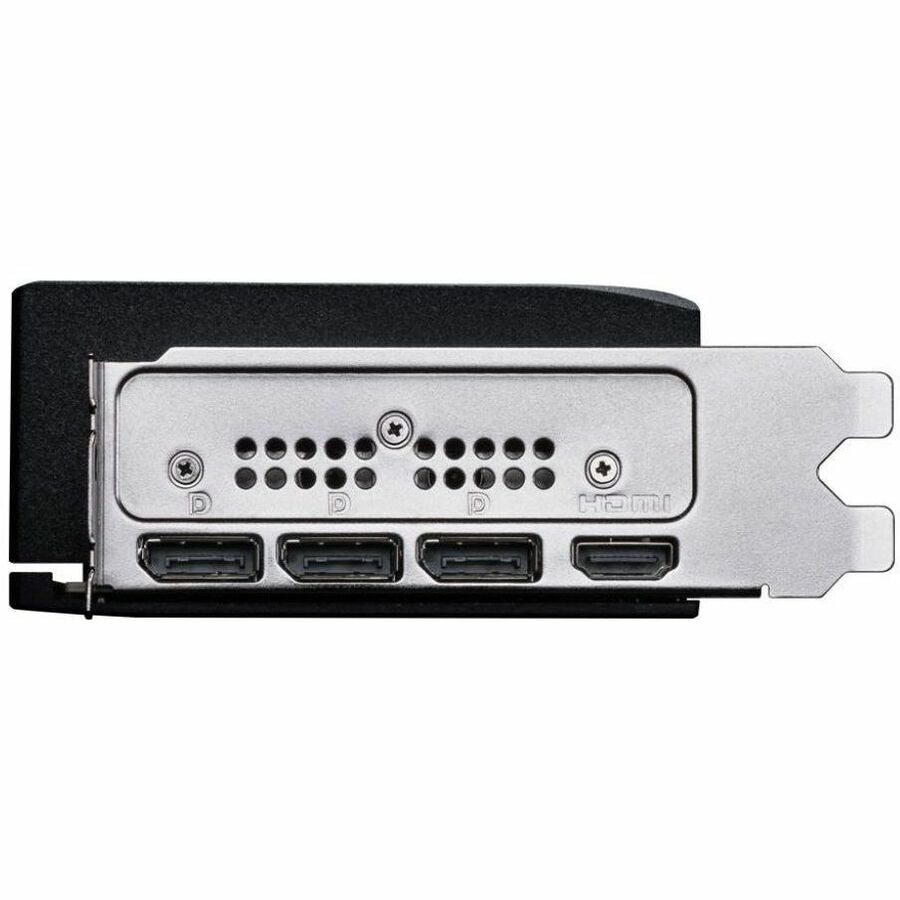

Interfaces/Ports
- Host Interface: PCI Express 5.0
- DisplayPort: Yes
- Number of DisplayPort Outputs: 3
- HDMI: Yes
- Number of HDMI Outputs: 1
Power Description
- Power Supply Wattage: 850 W
- Power Connector: 1x 16-pin
Physical Characteristics
- Slot Space Required: Triple
- Form Factor: Plug-in Card
- Cooler Type: Fan Cooler
- Height: 1.9"
- Width: 4.8"
- Length: 11.9"
- Weight (Approximate): 2.31 lb
Miscellaneous
- Platform Supported: PC
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
No Extended Warranty available
