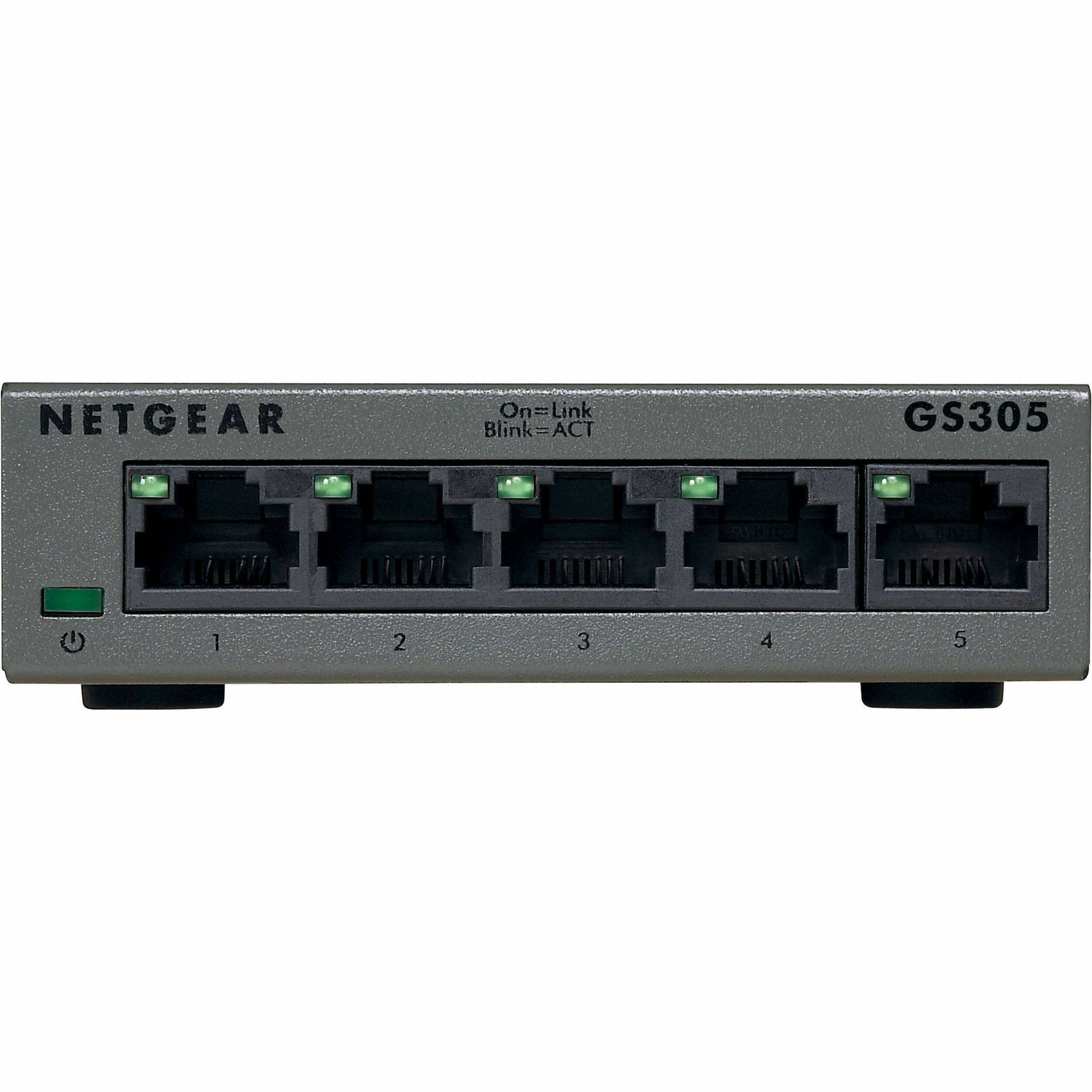

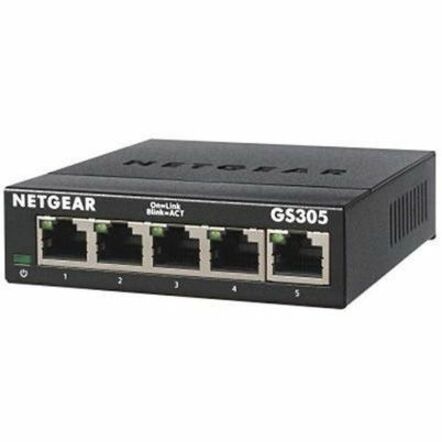

Netgear Business GS305 Ethernet Switch - GS305-300PAS
Key Features

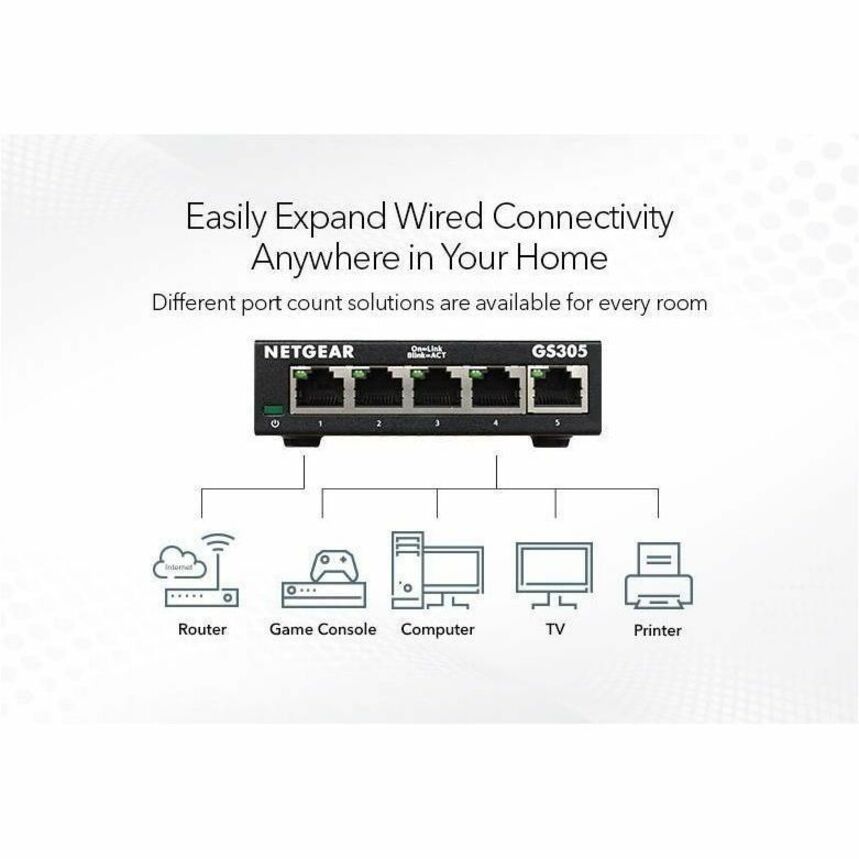

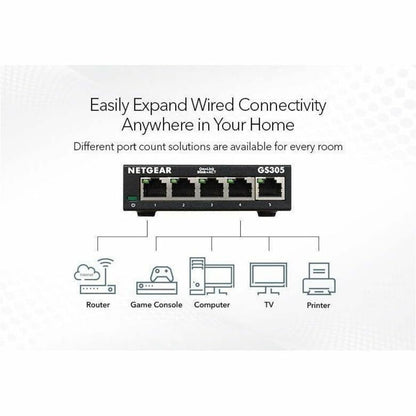

- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Effectively reduces downtime with improved network performance
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Product Overview
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc.

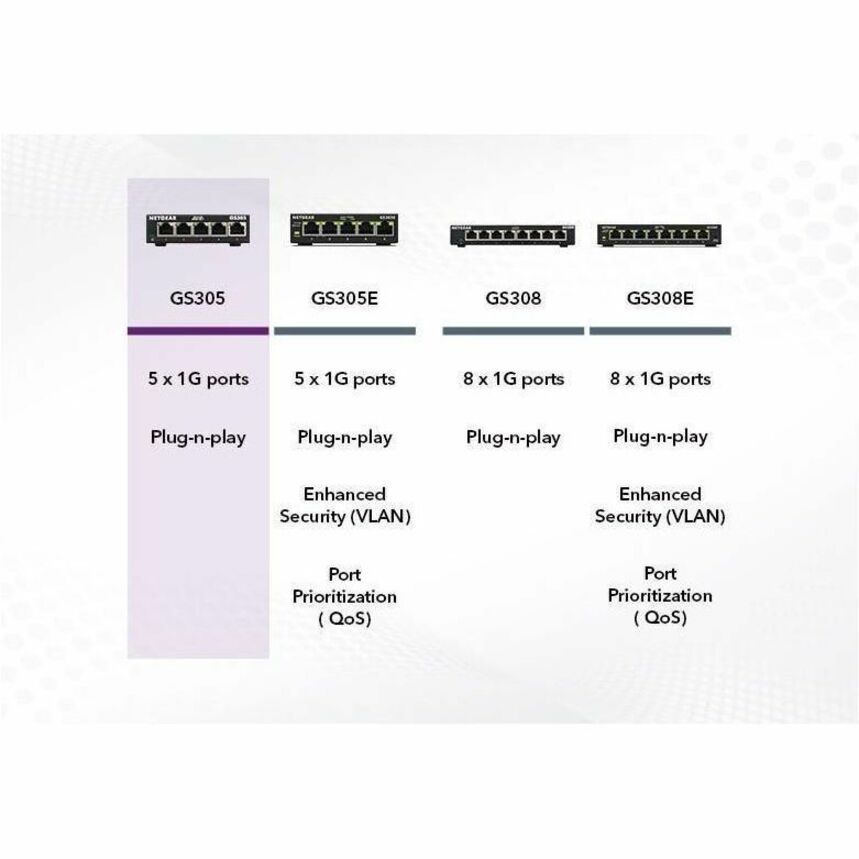

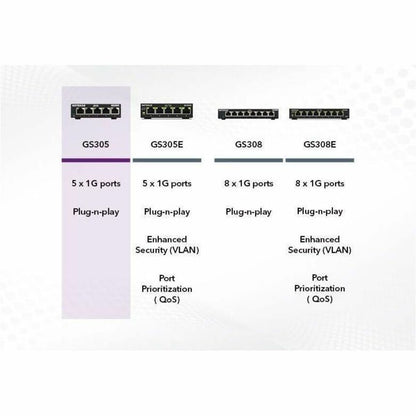

Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

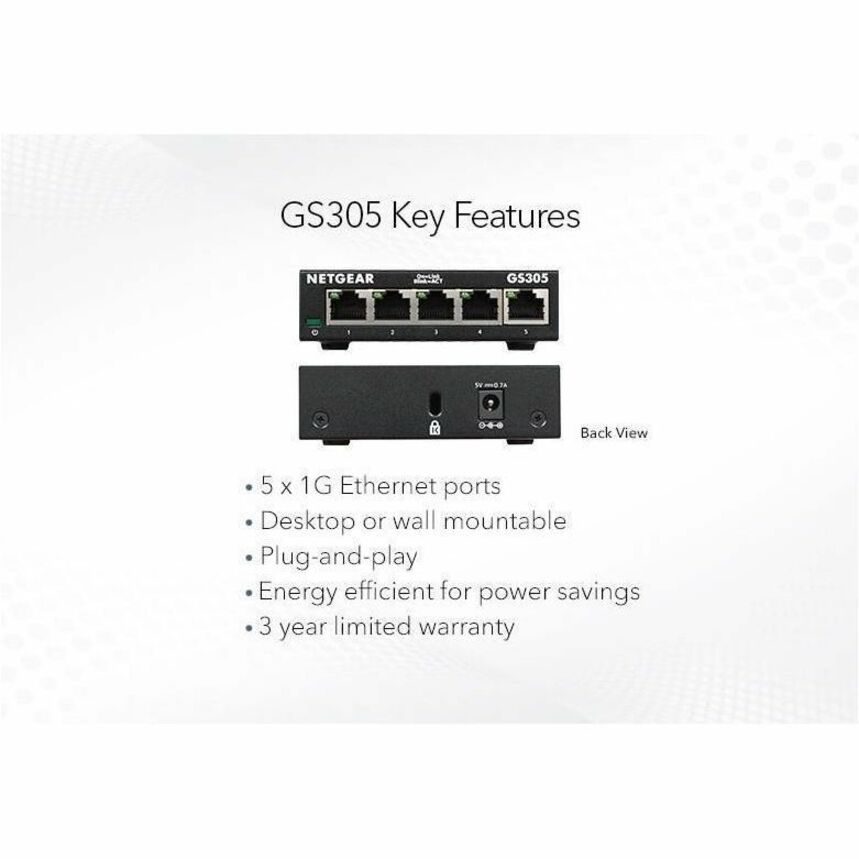

Highlights
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Desktop or wall-mountable (5, 8, 16-port models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rack- mountable (rack-mount kit included)
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards- based devices in the existing network
- Power up to 4 PoE-capable devices (GS305P/GS305PP and GS308P only)
- 802.3af Power Over Ethernet (PoE) for IP cameras, VoIP/Internet-based phones, wireless access points (GS308P only)
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS305-300PAS
- Brand Name: Netgear
- Product Line: Business
- Product Series: 300
- Product Model: GS305
- Product Name: Business GS305 Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Features:
- Fanless
- Energy Efficient
- Auto Denial of Service (DoS) Prevention
- LED Indicator
- Plug and Play
Interfaces/Ports
- Total Number of Network Ports: 5
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
Media & Performance
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Maximum Data Transfer Rate: 128 MB/s
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3ab
- IEEE 802.3u
- IEEE 802.3i
- IEEE 802.3x
- IEEE 802.1p
- IEEE 802.3
- IEEE 802.3az
Management & Protocols
- Manageable: No

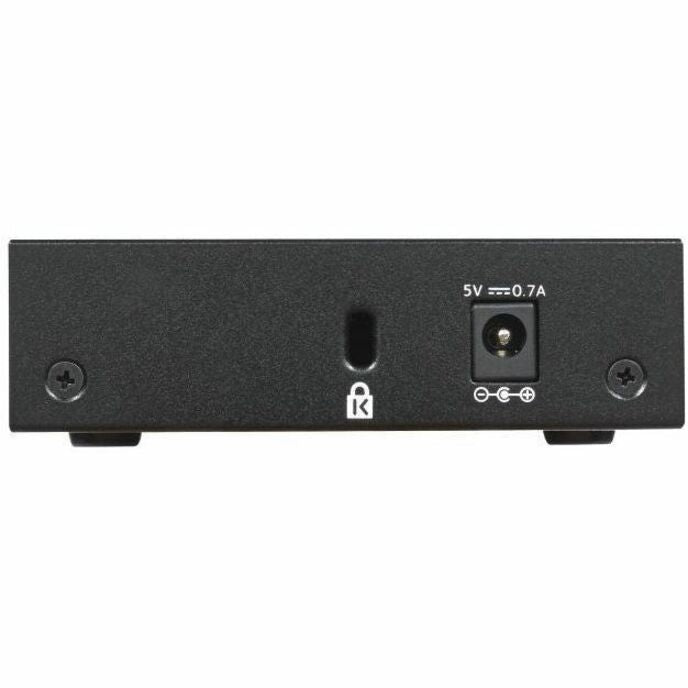

Power Description
- Power Source: DC
- Power Consumption: 2.15 W
Physical Characteristics
- Product Material: Metal
- Form Factor:
- Desktop
- Wall Mountable
- Enclosure
- Height: 1.1"
- Width: 4"
- Depth: 3.7"
- Weight (Approximate): 8.82 oz
Miscellaneous
- Package Contents:
- Business GS305 Ethernet Switch
- Power Cord
- Rubber Footpads
- Installation Guide
