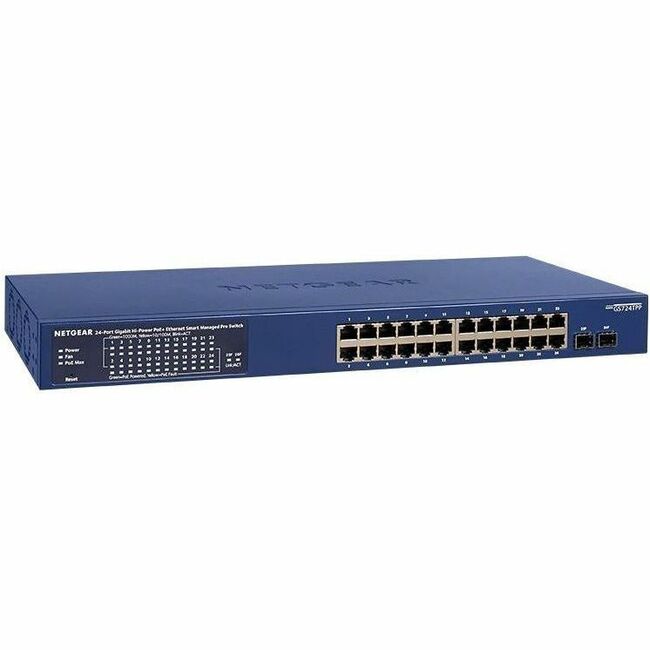

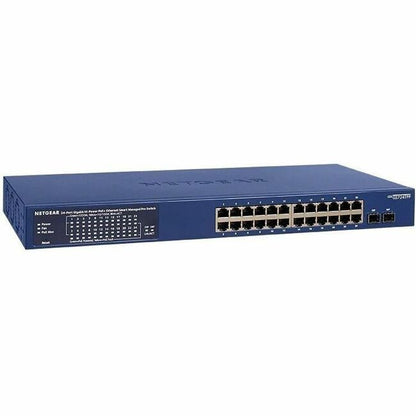

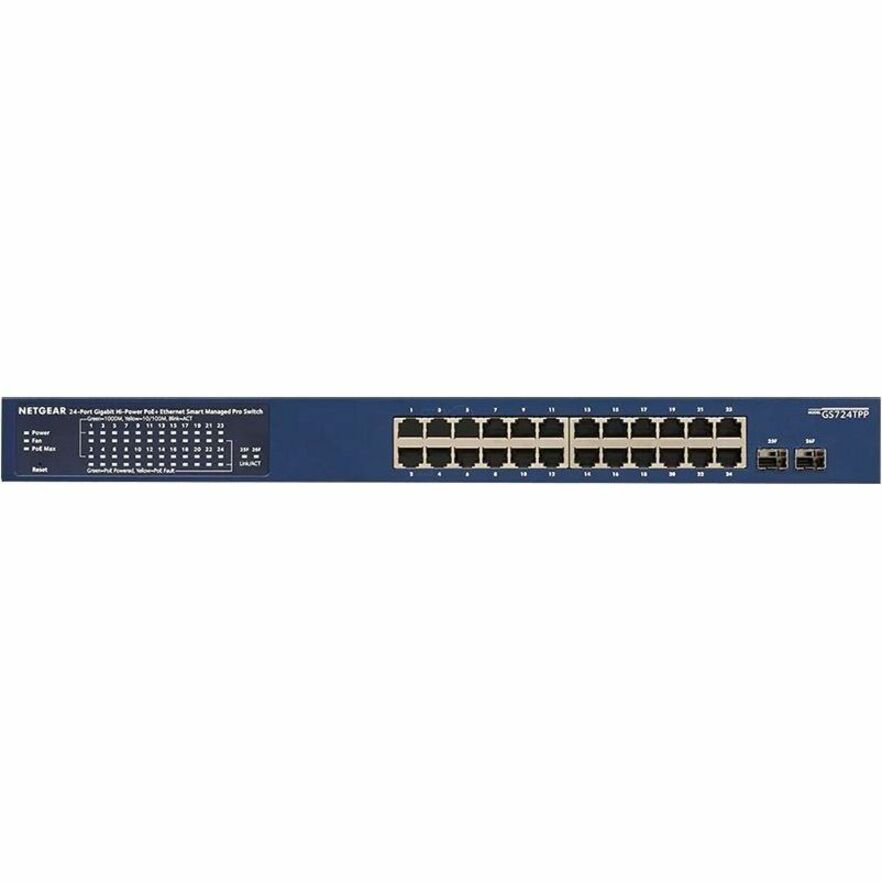

Netgear Business GS724TPP Ethernet Switch - GS724TPP-300NAS
Key Features
- 1000BASE-T Copper Ethernet PoE+ connections
- 1000BASE-X Fiber SFP ports
- Desktop and rack mount (kit available)
- Energy Efficient Ethernet (IEEE 802.3az)
- Fully-integrated Cloud-manageable Devices
- Kensington Lock Slot
- Low Acoustics
Product Overview
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business's needs, whether in the hospitality, catering, education or retail domains.
The GS724TP and GS724TPP 24-Port Gigabit Switch with PoE+ and 2 SFP Ports join the NETGEAR Standalone Smart Switches family, adding full 24 port PoE+ support for deployment of modern high- power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a costeffective switch, with a reasonable PoE power budget of 190W (GS724TP) or 380W (GS724TPP).
NETGEAR Smart Switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TP and GS724TPP support quiet rack mounting operation with a maximum of 26.1 dBA (GS724TP) and 33.6 dBA (GS724TPP) even at full power and 25°C (77°F) ambient.
To empower the PoE applications, NETGEAR Insight Remote/Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS724TPP300NAS
- Brand Name: Netgear
- Product Line: Business
- Product Model: GS724TPP
- Product Name: Business GS724TPP Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Data Link Protocols:
- HTTP
- HTTPs
- Features:
- VLAN Segmentation
- Auto Denial of Service (DoS) Prevention
- DHCP Snooping
- Access Control List
- Built-in Fan
- Energy Efficient
- Remote Monitoring (RMON)
- Zero-Touch Provisioning (ZTP)
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 4
- Networking Standards:
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3
- IEEE 802.11ac
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 380 W
- Power Source: Power Supply
- Number of Power Supplies Supported: 1
- Number of Power Supplies Installed: 1
- Power Consumption: 396.95 W
Physical Characteristics
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1.7"
- Width: 17.3"
- Depth: 10.1"
- Weight (Approximate): 8.16 lb
Miscellaneous
- Package Contents:
- Business GS724TPP Ethernet Switch
- Power Cord
- Mounting Kit
- Rubber Footpads for Tabletop Installation
- Installation Guide
Warranty
- Limited Warranty: Lifetime
