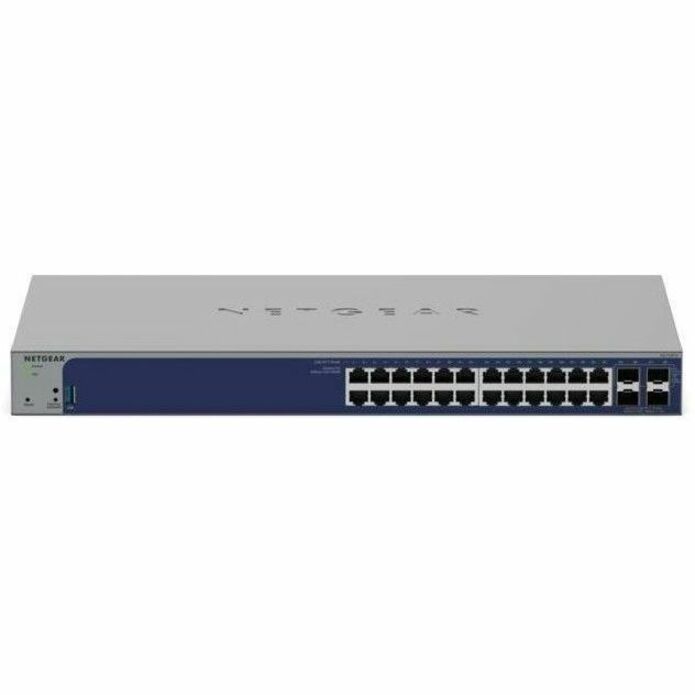

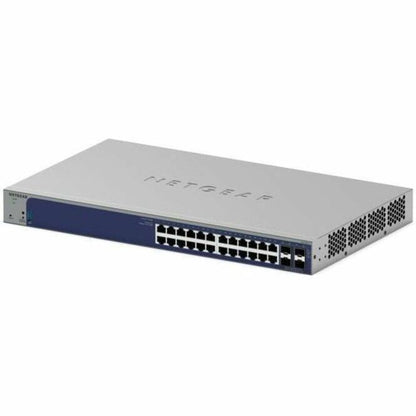

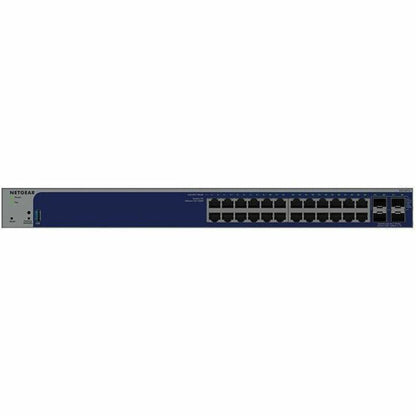

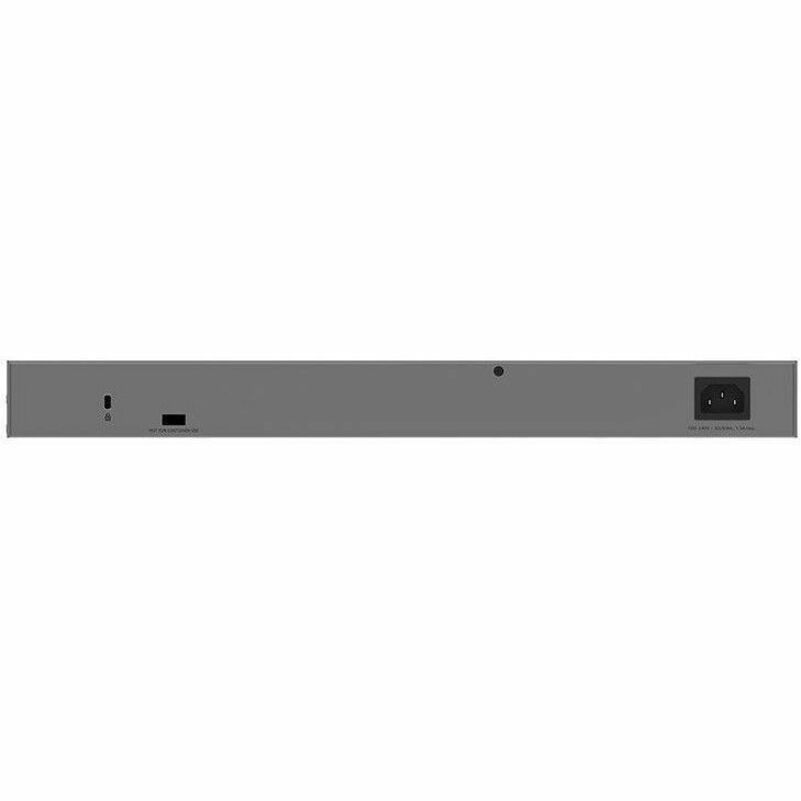

Netgear Business GS728TXv3 Ethernet Switch - GS728TX-300NAS
Key Features
- Can work as layer 3 routing for scalable network design
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Desktop form factor for your convenience and simplicity of usage
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Managed switch provides a reliable foundation for your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Twisted Pair media support ensures maximum convenience and great usability
Product Overview
Powerful 24-port and 48-port Gigabit switches with 4 dedicated 10G SFP+ uplinks and Remote/Cloud Management option - Select your new network engine!
As a leading provider of network equipment for businesses, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains.
The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation.
Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24- port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA. |
Highlights
The NETGEAR Gigabit Ethernet Switches with 4 SFP+ Ports with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS728TX-300NAS
- Brand Name: Netgear
- Product Line: Business
- Product Model: GS728TXv3
- Product Name: Business GS728TXv3 Ethernet Switch
- Product Type: Ethernet Switch
Technical Information
- Features:
- DHCP Snooping
- Remote/Cloud Management
- Energy Efficient
- Loop Protection
- Zero-Touch Provisioning (ZTP)
- Dynamic ARP Inspection
- VLAN Segmentation
- Access Control List
- Remote Monitoring (RMON)
- Broadcast Storm Control
- DHCP Relay
Interfaces/Ports
- Total Number of Network Ports: 24
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 24 x 10/100/ 1000BASE-T Gigabit Ethernet RJ-45 Network Port
- 4 x 1000/10GBASE-X Gigabit Ethernet SFP+ Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
- Total Number of Expansion Slots: 4
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 3
- Networking Standards:
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.11ac
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
Management & Protocols
- Manageable: Yes
- Switch Management Type: Smart Managed
Power Description
- PoE (RJ-45) Port: No
- Power Source: Power Supply
- Number of Power Supplies Installed: 1
- Power Consumption: 26 W
Physical Characteristics
- Form Factor:
- Desktop
- Rack-mountable
- Table Top
- Height: 1.7"
- Width: 17.3"
- Depth: 10.1"
- Weight (Approximate): 6.79 lb
Miscellaneous
- Package Contents:
- Business GS728TXv3 Ethernet Switch
- AC Power cord with C13 connector
- Brackets and screws for rack mounting
- Rubber footpads for tabletop installation
- Rubber protection caps, which are already installed in the SFP sockets Installation guide
Warranty
- Limited Warranty: Lifetime
