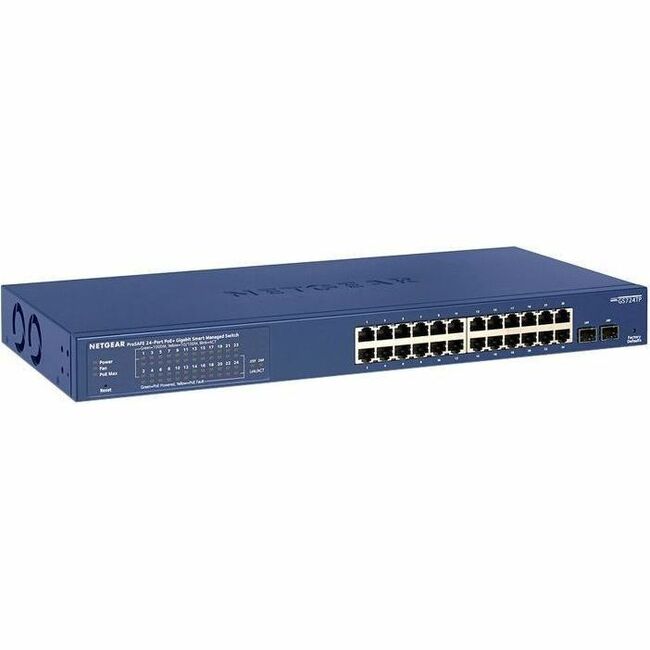

Netgear Smart GS724TP Ethernet Switch - GS724TP-300NAS
Key Features
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Effectively reduces downtime with improved network performance
- Features 24 networking ports to meet the requirements of the most demanding workgroups
- Managed switch provides a reliable foundation for your network
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
Product Overview
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing great choice of PoE port counts and power budgets that can adapt to the business's needs, whether in the hospitality, catering, education or retail domains.The GS724TPv2 and GS724TPP 24-Port Gigabit Switch with PoE+ and 2 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a costeffective switch, with a reasonable PoE power budget of 190W (GS724TPv2) or 380W (GS724TPP).
NETGEAR Smart Managed Pro Switches offer powerful Layer 2 features, great PoE functionality, and enhanced performance and usability. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value: they are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS724TPv2 and GS724TPP support quiet rack mounting operation with a maximum of 32.4 dBA (GS724TPv2) and 35.0 dBA (GS724TPP) even at full power and 25°C (77°F) ambient.
To empower the PoE applications, NETGEAR Insight Remote/Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
General Information
- Manufacturer: Netgear, Inc
- Manufacturer Part Number: GS724TP-300NAS
- Brand Name: Netgear
- Product Line: Smart
- Product Model: GS724TP
- Product Name: Smart GS724TP Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP (mini-GBIC)
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 4
- Networking Standards:
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.3
- IEEE 802.11ac
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
Management & Protocols
- Manageable: Yes
- Switch Management Type: Smart Managed
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 190 W
- Power Source: Power Supply
- Power Consumption: 228.53 W
Physical Characteristics
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1.7"
- Width: 17.3"
- Depth: 8"
- Weight (Approximate): 6.94 lb
Miscellaneous
- Package Contents:
- Smart GS724TP Ethernet Switch
- Power Cord
- Mounting Kit
- Rubber Footpads for Tabletop Installation
- Installation Guide
- Environmentally Friendly: Yes
- Energy Efficiency Compliance: Energy-related Products Directive (ErP)
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: Lifetime
