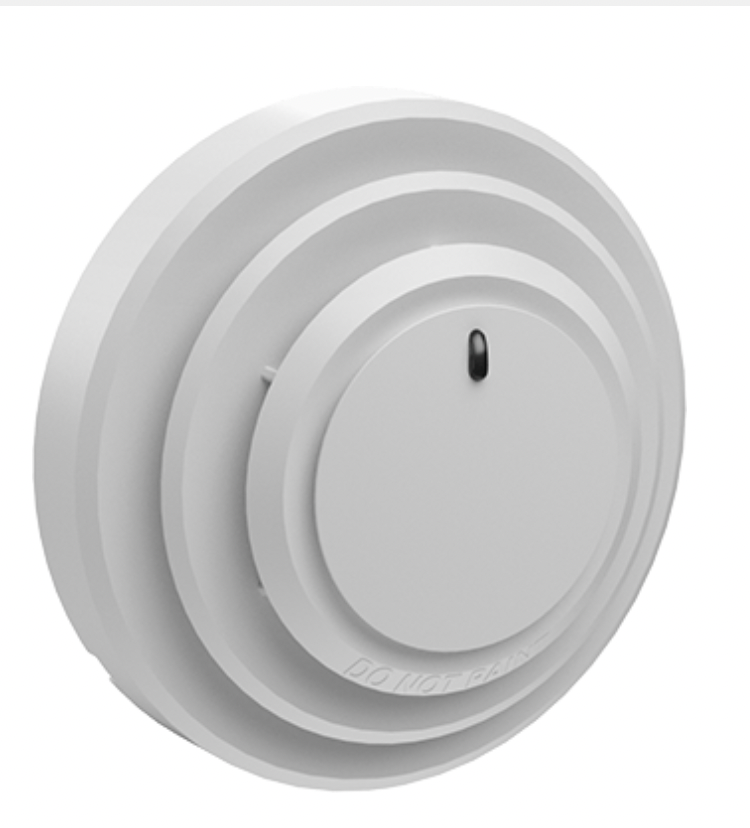

Potter PAD300-PD Analog Addressable Photoelectric Smoke Detector

Potter PAD300-PD Analog Addressable Photoelectric Smoke Detector

SKU: PAD300-PD

Regular price $74.99 USD
Regular price $99.99 USD Sale price $74.99 USD
Sale Sold out

 631 in stock

View full details

Potter PAD300-PD Analog Addressable Photoelectric Smoke Detector

The PAD300-PD from Potter is a UL-listed, low-profile analog addressable photoelectric smoke detector designed for reliable fire detection using the PAD protocol. With a sensitivity range of 1.1 to 3.5% per foot, this detector ensures accurate performance in a wide range of applications. Built with durable off-white plastic to blend with most ceiling finishes, the PAD300-PD is compatible with any PAD300 series base and easily installs via twist-lock mounting.

The detector supports advanced features such as drift compensation, dirty detector warning, DIP switch address configuration, and a magnetic test switch. It also includes a built-in LED alarm indicator and communicates sensitivity directly to the control panel for real-time diagnostics and monitoring. The robust digital communication between the detector and control panel allows for total polling speed under five seconds, ensuring fast and accurate system responses.

Key Features:
- Low profile design, less than 2 inches with base
- Wide sensitivity range: 1.1 to 3.5% per foot
- UL listed smoke calibration and sensitivity
- Drift compensation and dirty detector alert
- LED alarm indicator for visual notification
- Simple DIP switch addressing – no special tools needed
- Compatible with PAD300 series bases
- Optional locking tab for tamper resistance
- UUKL Listed for Smoke Control
- UL268 7th Edition Compliant

Ideal For:
Facilities requiring addressable smoke detection with real-time communication, quick installation, and reliable performance under UL and UUKL standards.

Why You Should Use This:
The PAD300-PD offers dependable fire detection with modern features like drift compensation and magnetic testing while minimizing installation time through simple DIP switch addressing.

Key Highlights:
- Compatible with all PAD300 series bases
- Less than 5-second polling speed
- Simple twist-lock installation
- DIP switch address setup—no programming tool needed

Frequently Asked Questions

Q: Is the PAD300-PD compatible with older Potter control panels?
A: The PAD300-PD is compatible only with fire alarm control panels that use the PAD protocol. Be sure to confirm compatibility with your specific panel model.

Q: How is the address set on the detector?
A: The address is easily set using the built-in DIP switches located on the rear of the detector—no special programming tool is required.

Q: Does the detector come with a base?
A: The base is not included and must be purchased separately. The PAD300-PD is compatible with any PAD300 series base.

Operating Voltage: 24 VDC

Detector Current Draw: 300 µA

Alarm Indicator: 1 LED

Alarm Set-point Range: 1.1 to 3.5%/ft (3.6 to 11%/m)

Installation Temperature Range: 32 to 120° F (0 to 49° C)

Operating Relative Humidity Range: 0% to 93% (Non-condensing)

Start-up Time: Max. 1 sec.

Maximum Number of Addresses Per Loop: 127

Maximum Number of Lighted Indicators in Alarm Per Loop: 30

Color: Eggshell White

Weight (without base): 91g (3.2 oz)

Dimensions (without base): Height: 1.42 in (36 mm), Diameter: 3.93 in (100 mm)
