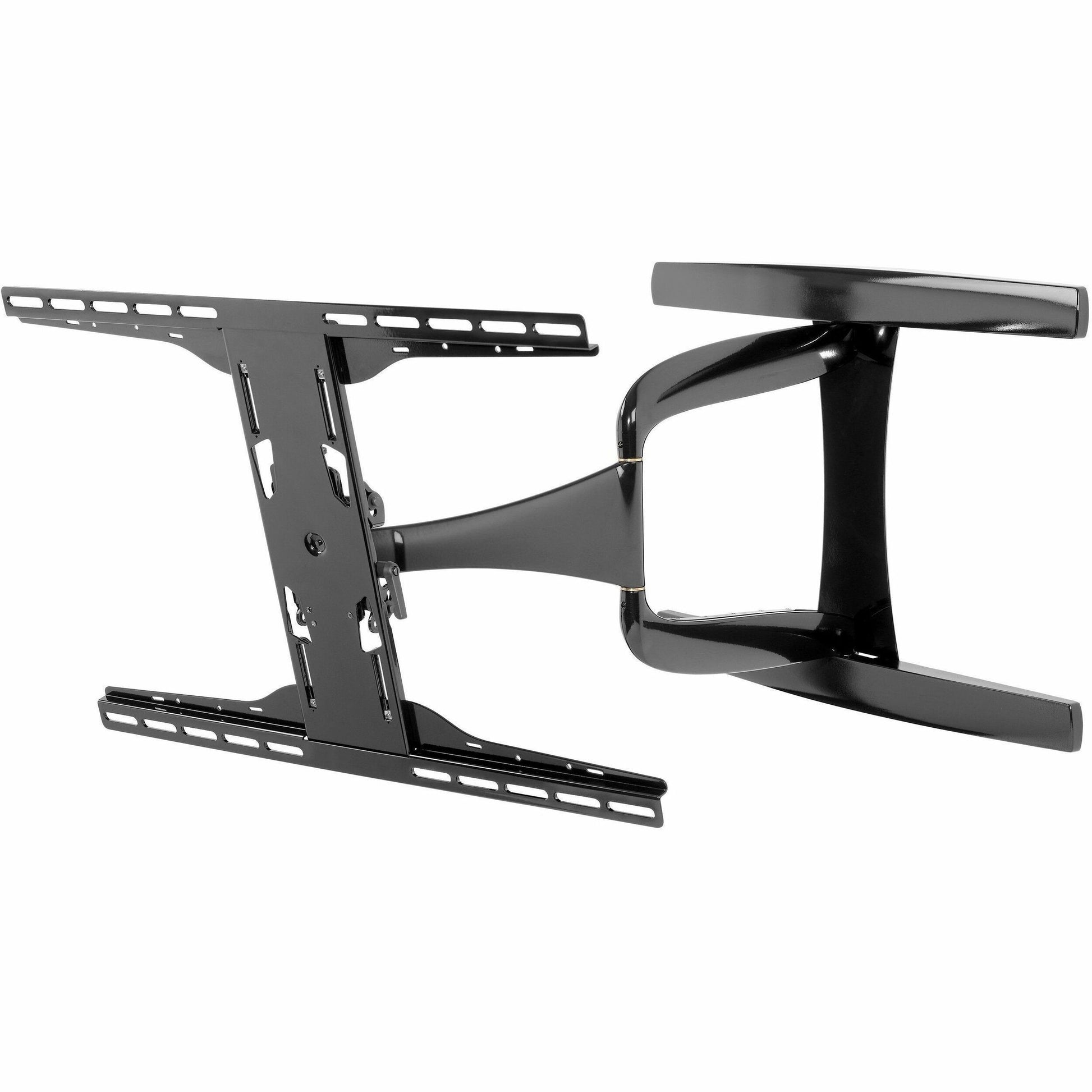

Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount for 37" to 65" Ultra-Thin Displays - SUA761PU
Key Features
- Added ±5° of roll for post-installation display leveling without the use of tools
- Arm retracts to 1.85" (47mm) and extends up to 24.85" (631mm) from wall

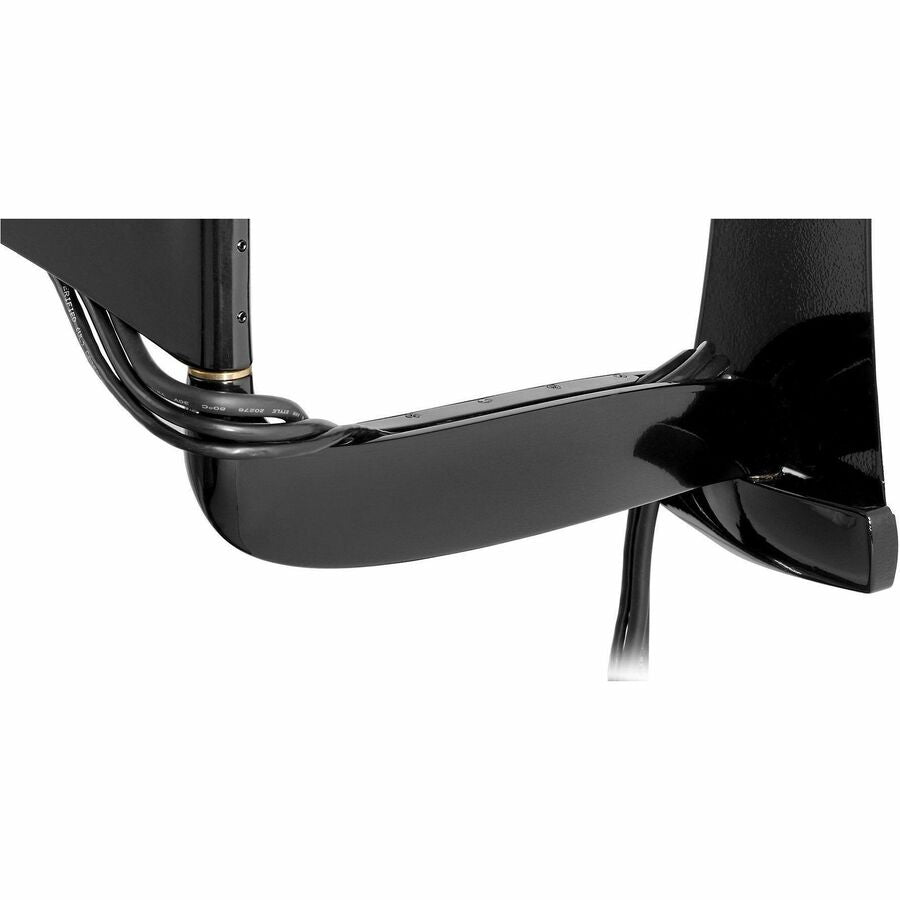

- Internal cable management provides clean, professional installation finish
- Landscape or portrait mounting options increases display versatility

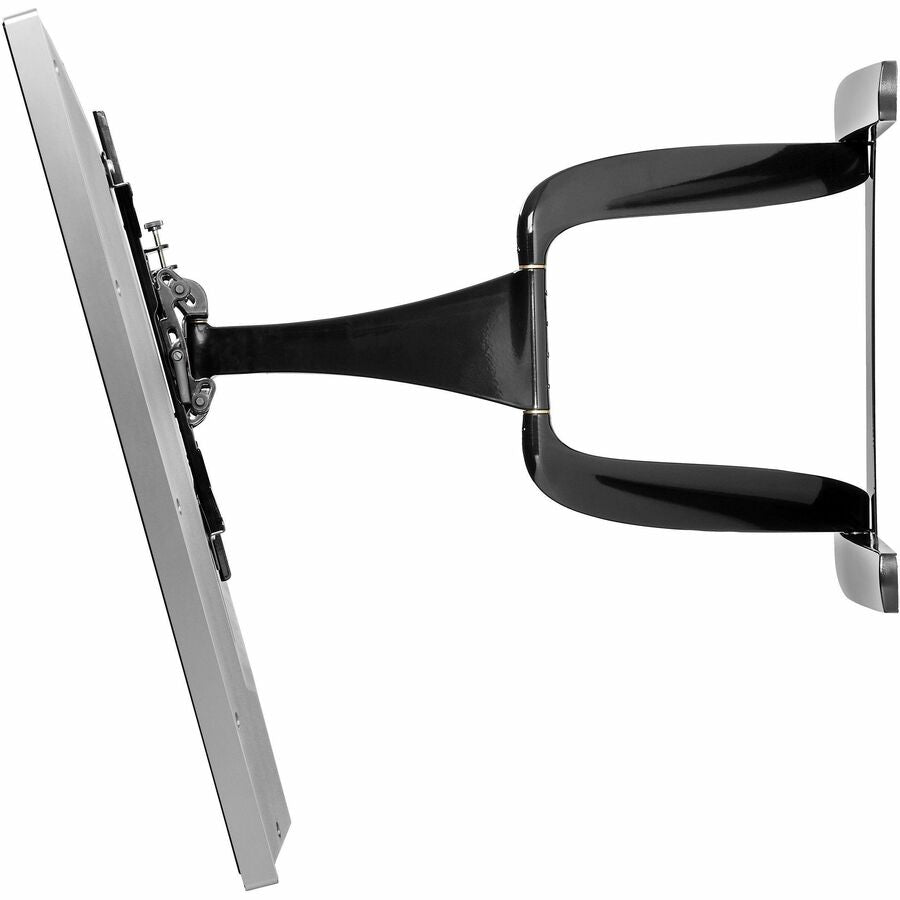

- One-Touch™ tilt mechanism allows adjustment of +15/-5° without the use of tools
- The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display
- Universal mount fits displays with mounting patterns 200 x 100 to 600 x 400mm
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Up to ±90° of side-to-side swivel
Product Overview
One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA761PU is built to hold medium to larger displays firmly in any position - landscape or portrait - while still offering an ultra-low profile. An innovative I-shaped adaptor plate makes it easy to access the back of the display, keeping hardware hidden, and features internal cable management, providing a clean, professional look that transitions smoothly from the wall to the display. With a gloss black finish, the SUA761PU matches any décor.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: SUA761PU
- Brand Name: DesignerSeries™
- Product Series: SUA761PU
- Product Model: SUA761PU
- Product Name: Universal Ultra Slim Articulating Wall Mount for 37" to 65" Ultra-Thin Displays
- Packaged Quantity: 1 Unit
- Product Type: Mounting Arm
Product Information
- Device Supported: Display
- Maximum Load Capacity: 80 lb
- Minimum Screen Size Supported: 37"
- Maximum Screen Size Supported: 65"
- Height Adjustable: Yes
- Features:
- Flexible
- 90° Swivel
- Leveling System
- Roll Adjustment
- Retractable
- +/- 5° Roll
- Minimum Adjustable Depth: 1.85"
- Maximum Adjustable Depth: 24.85"
- Mount Profile: Ultra Low Profile
- Orientation: Landscape/Portrait
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 15°
- Minimum Swivel Angle: -90°
- Maximum Swivel Angle: 90°
- Mount Function:
- Swivel
- Articulating
- Cable Management
- Tilt
- Wall Mount
- Mount Surface: Wall
- Durability: Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Gloss Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 100
- 600 x 400
- 200 x 200
- 300 x 200
- 300 x 300
- 400 x 200
- 400 x 300
- 400 x 400
- Form Factor: Wall Mountable
- Height: 16.94"
- Width: 24.37"
- Depth: 24.85"
- Weight (Approximate): 16.90 lb
Miscellaneous
- Package Contents:
- Universal Ultra Slim Articulating Wall Mount for 37" to 65" Ultra-Thin Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage: Wall
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Articulating
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
