Sharp EP-C131 Digital Signage Display - EPC131
Key Features
- Always-On - Display is viewable at all times creating vibrant images even without power.

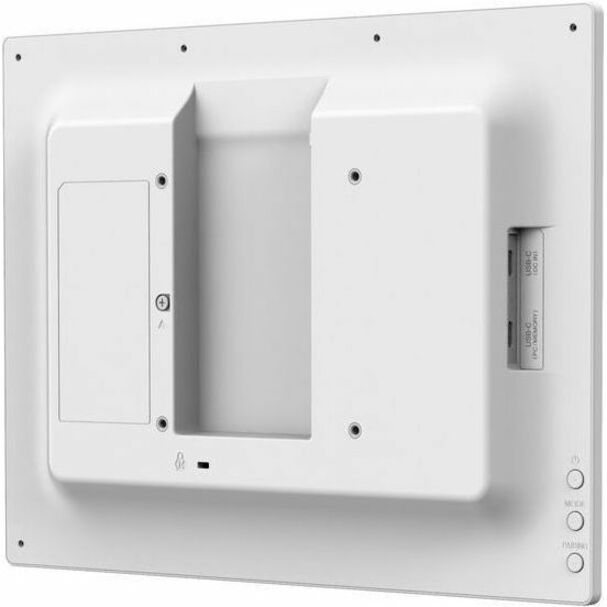

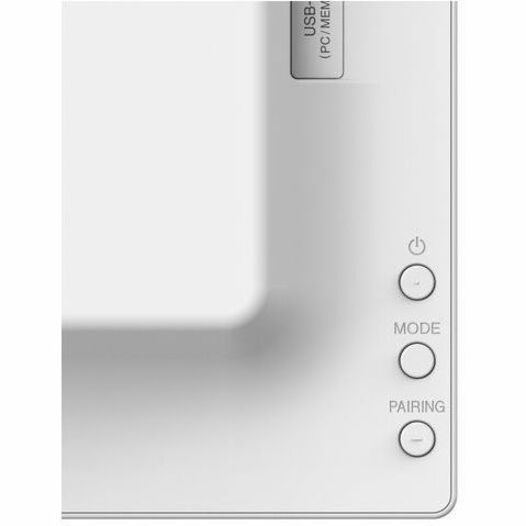

- Controls - The Mode button offers the capability to switch between Manually or Automatically switching images. The Pairing button allows for connection to mobile devices to update content to the display.
- Easy to install - The thin lightweight design allows for easy and flexible installation. It also enables installation in locations that could not be achieved with existing displays.

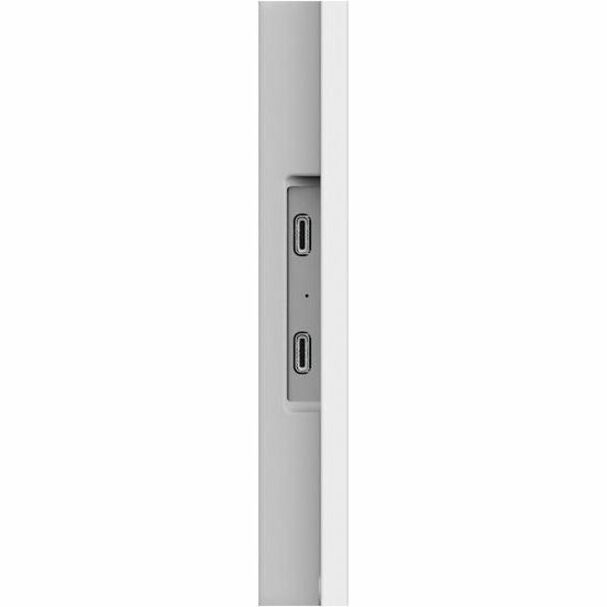

- Flexible content provisioning - PC, USB-C thumbdrive, Bluetooth, and wireless LAN connectivity allow for multiple ways to transfer content from the source to the display.
- Low Power Consumption - As low as 0W power consumption from the panel creating zero carbon emissions.
- Paper-Like - Reflective display with no backlight and 180° wide viewing angle provide paper like viewing that is easy on the eyes.
- Visiblility - The displays ensure excellent visibility in both the brightest environments, as well as semi-outdoor settings.
Product Overview

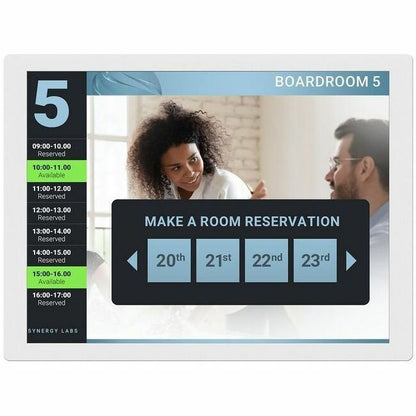

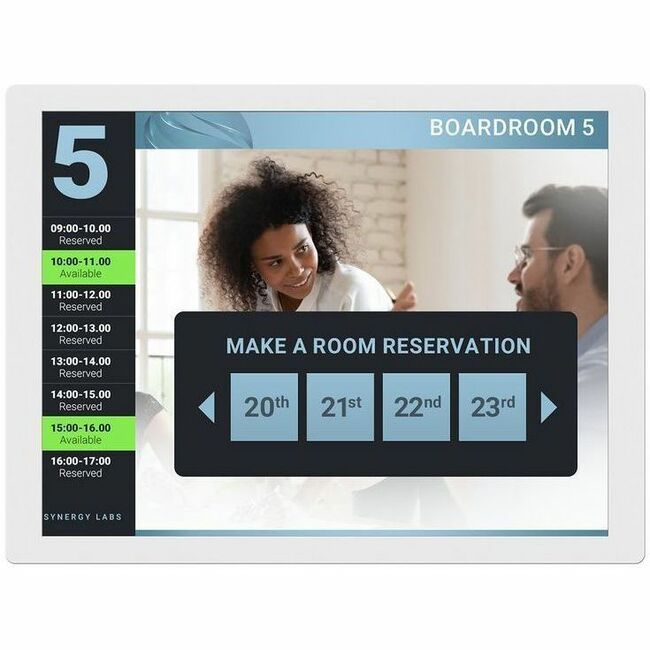

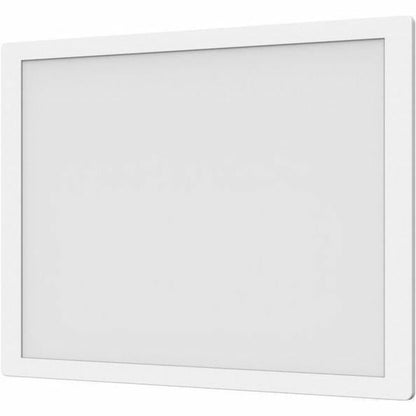

Sharp's EP-C131 ePaper is an always on 13.3" display for digital signage users. With as low as 0W power consumption, it creates remarkably brilliant images even in brightly lit environments. With a paper like view, wide viewing angle and no backlight its easy on your eyes. Updating content is easy using either the PC, USB-C thumbdrive, Wireless or Bluetooth connections.
General Information
- Manufacturer: Sharp Electronics
- Manufacturer Part Number: EPC131
- Brand Name: Sharp
- Product Model: EP-C131
- Product Name: EP-C131 Digital Signage Display
- Product Type: Digital Signage Display
Technical Information
- Bezel Width (Top): 0.53"
- Bezel Width (Bottom): 0.53"
- Bezel Width (Left): 0.70"
- Bezel Width (Right): 0.70"
- Panel Technology: ePaper
Display & Graphics
- Number of Screens: 1
- Viewable Screen Size: 13.30"
- Screen Size Class: 14"
- Display Screen Type: LCD
- Display Resolution: 8192 x 4608
- Orientation: Landscape/Portrait
- Graphics Modes: 8K
- Aspect Ratio: 4:3
Network & Communication
- Ethernet: Yes
- Wireless LAN: Yes
- Bluetooth: Yes
Interfaces/Ports
- USB: Yes
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- VESA Mount Compatible: Yes
- VESA Mount Standard: 100 x 100
- Height: 0.8"
- Width: 12.1"
- Depth: 9.1"
- Weight (Approximate): 1.54 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 122°F (50°C)
- Minimum Storage Temperature: 68°F (20°C)
- Maximum Storage Temperature: 140°F (60°C)
- Minimum Operating Humidity: 20%
- Maximum Operating Humidity: 80%
- Minimum Storage Humidity: 10%
- Maximum Storage Humidity: 90%
Miscellaneous
- Package Contents:
- EP-C131 Digital Signage Display
- Power Cord
- AC Adapter
- Clamp
- Operation Manual
- Setting Tool Manual
- Warranty Card
- Hanging Hook
- Paper Stand
- Stand Attention Instructions
- Application/Usage: Outdoor
