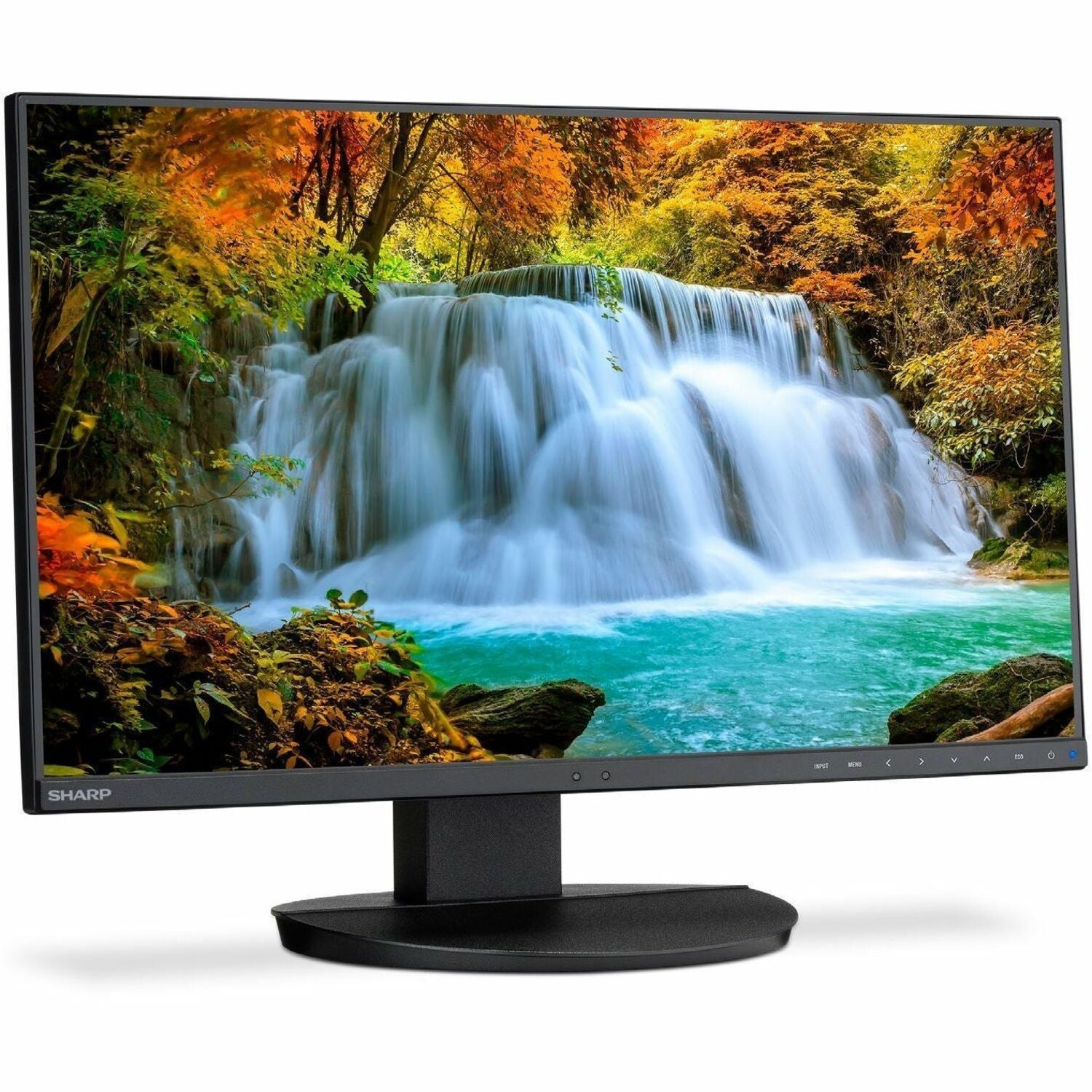

Sharp MultiSync DD-EA242F 24" Class Full HD LED Monitor - 16:9 - Black - DD-EA242F
Key Features
- 16:9 widescreen layout enhances multitasking and visual depth, making it suitable for both creative workflows and media consumption
- 1920 x 1080 maximum resolution delivers razor-sharp detail and stable image performance
- 23.8" viewable screen size delivers high-fidelity visuals with accurate brightness and color across all content types
- 75 Hz standard refresh rate enhances clarity by reducing motion artifacts, ensuring smooth and sharp display performance
- Ambient Lighting feature boosts monitor reliability and performance consistency for sustained productivity
- Furnishes captivating visuals with 250 Nit brightness levels that deliver clear, vibrant images in both bright and dim settings
- LED backlight technology enhances brightness and contrast while using less power for vivid visuals and energy-efficient performance
- LED Monitor is reliable and delivers consistent performance for extended use
- Minimize blurring and smearing during motion and gaming sequences with a 6 ms response time for sharp, fluid visuals
- The MultiSync 23.8" monitor includes Full HD 1920x1080 resolution for pixel-precise clarity and vibrant visuals
Product Overview
The 24" Class (23.8" diagonal) Sharp MultiSync® EA242F is a Full HD ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:9 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242F allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, USB-C, VGA and 3-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. With DisplayPort ouput the EA242F is ideal for multiple monitor configurations and includes ControlSync™ technology which allows users to control up to six EA242F displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor.
Features
- FHD (1920x1080) Resolution
- IPS screen technology allows for optimal viewing angle
- Brightness 250 cd/m2
- Full connectivity, including DisplayPort, HDMI, USB-C and VGA inputs
- Supports multi-monitor configurations with DisplayPort output for video passthrough
- USB-C input delivers 65W of power as well as video and USB over one cable
- USB Hub (2 Up / 3 Down)
- Integrated speakers (stereo 1W + 1W)
- Touch-sensitive OSD® controls are integrated into the bezel
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- Height-adjust stand, pivot, tilt and swivel capabilities
- ENERGY STAR 8.0 and TCO 9.0
- ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- 3 Year Warranty
General Information
- Manufacturer: Sharp Electronics
- Manufacturer Part Number: DD-EA242F
- Brand Name: Sharp
- Product Line: MultiSync
- Product Model: DD-EA242F
- Product Name: 24" FHD Advanced Business-Class Desktop Monitor, USB-C (65W)
- Product Type: LED Monitor
Technical Information
- Number of Screens: 1
- Screen Size Class: 24"
- Viewable Screen Size: 23.8"
- Screen Mode: Full HD
- Panel Technology: In-plane Switching (IPS) Technology
- Response Time: 6 ms
- Aspect Ratio: 16:9
- Pixel Pitch: 0.28000 mm x 0.28000 mm
- Horizontal Viewing Angle: 178°
- Vertical Viewing Angle: 178°
- Backlight Technology: LED
- Features:
- Ambient Lighting
- Narrow Bezel
- Wide Viewing Angle
- Ergonomic Design
- On-screen Display (OSD)
- Eco Mode
- Separate Sync
- Horizontal Frequency: 31.50 kHz to 83 kHz
- Vertical Frequency: 50 Hz to 75 Hz
- Adjustable Stand: Yes
- Stand Adjustments:
- Swivel
- Height
- Pivot
- Tilt
- Active Display Area (H x V): 20.75" x 11.67"
Video
- Maximum Resolution: 1920 x 1080
- Standard Refresh Rate: 75 Hz
- Color Supported: 16.7 Million Colors
- Native Contrast Ratio: 1,000:1
- Brightness: 250 Nit
- Color Gamut:
- 73.6% Adobe RGB
- 75.3% Adobe RGB
- 69.5% NTSC
- 72% NTSC
- 101.6% sRGB
- 95.1% sRGB
- Pixel Per Inch (PPI): 93
Audio
- Number of Speakers: 2
- Speakers: Yes
Interfaces/Ports
- HDMI: Yes
- USB: Yes
- VGA: Yes
- DisplayPort: Yes
- USB Type-C: Yes
- Number of USB 3.1 Downstream Ports: 3
- Number of USB 3.1 Ports: 3
- USB Type-B: Yes
Built-in Devices
- Built-in Devices: USB Hub
Environmental Conditions
- Operating Temperature Range: 41°F (5°C) to 95°F (35°C)
- Operating Humidity Range: 20% to 80% (Non-condensing)
- Maximum Operating Altitude: 16404 ft
- Maximum Non-operating Altitude: 40000 ft
Power Description
- Standby Power Consumption: 300 mW
- Maximum Power Consumption: 19 W
Physical Characteristics
- VESA Mount Compatible: Yes
- Color Family: Black
- Product Color: Black
- Height: 12.6"
- Width: 21.2"
- Depth: 1.8"
- Height with Stand: 19.16"
- Width with Stand: 21.17"
- Depth with Stand: 9.84"
- Weight (Approximate): 9.92 lb
- Weight with Stand (Approximate): 15.43 lb
- Compressed Height with Stand: 13.25"
- Extended Height with Stand: 19.16"
Miscellaneous
- Package Contents:
- 24" FHD Advanced Business-Class Desktop Monitor, USB-C (65W)
- Setup sheet
- User manual
- Power cord
- DisplayPort cable
- USB A-B cable
- ISB-C cable
- ControlSync cable
- Stand
- Application/Usage: Business
- Energy Star: Yes
- TCO Certified: Yes
- Environmentally Friendly: Yes
- Environmental Certification: TCO Certified 9.0
- Energy Efficiency Certification: ENERGY STAR 8.0
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
