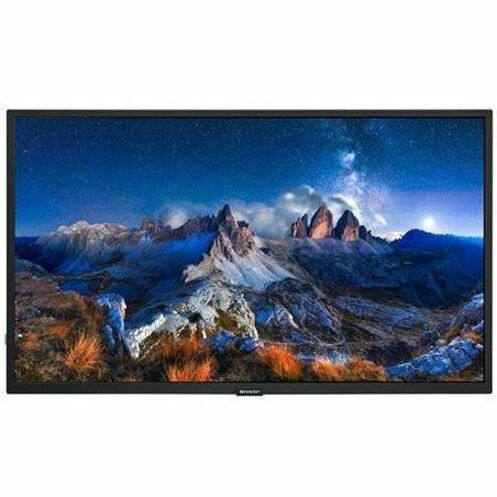

Sharp NEC Display 32" Professional Grade Display - PN-M322
Key Features
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Experience luminescent visual images with LCD display
- Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
Product Overview

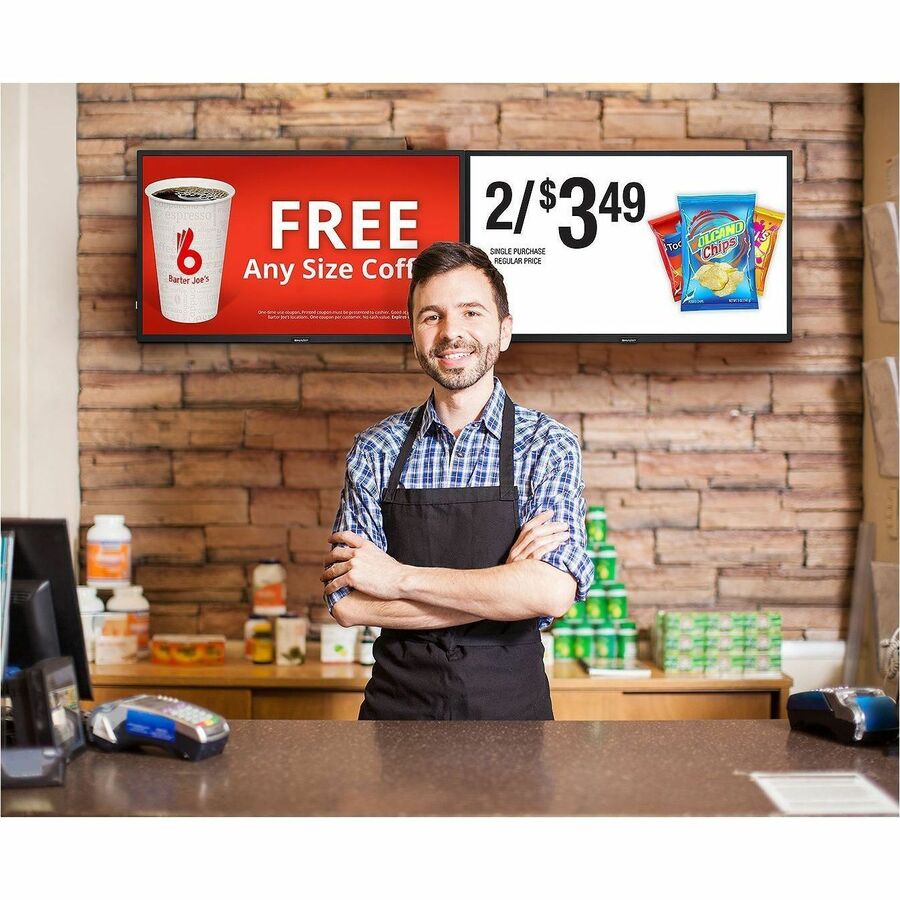

Create pixel-perfect imagery with the high-end panel quality of the fully professional Sharp PN-M322 large format display. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. This M series display can support both landscape and portrait orientations while also containing a an anti-glare panel to allow for easy readability for true commercial applications. The new product contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The Sharp PN-M322 boasts 450 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.
Features

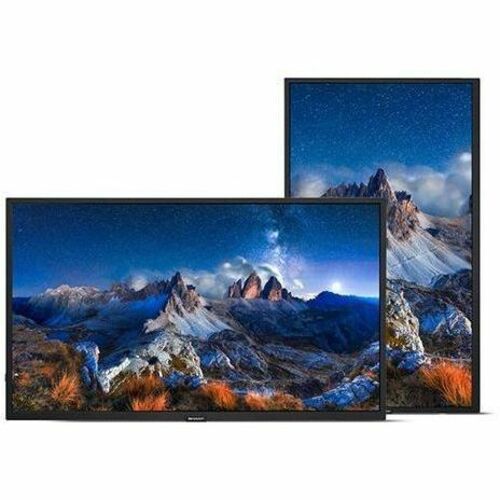

- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- 450 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- Full 3 year commercial warranty to allow for peace of mind and protection of this investment
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Integrated Media Player allows for audio, video or image playback via USB
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
General Information
- Manufacturer: Sharp
- Manufacturer Part Number: PN-M322
- Brand Name: Sharp NEC Display
- Product Series: M
- Product Model: PN-M322
- Product Name: 32" Professional Grade Display
- Product Type: Digital Signage Display
Technical Information
- Bezel Width (Top): 0.47"
- Bezel Width (Bottom): 0.68"
- Bezel Width (Left): 0.46"
- Bezel Width (Right): 0.47"
- Panel Technology: Vertical Alignment (VA)
Display & Graphics
- Number of Screens: 1
- Viewable Screen Size: 32"
- Screen Size Class: 32"
- Display Screen Type: LCD
- High Dynamic Range (HDR): Yes
- High Dynamic Range (HDR) Type:
- PQ
- HLG
- HDR10
- Response Time: 8 ms
- Display Resolution: 1920 x 1080

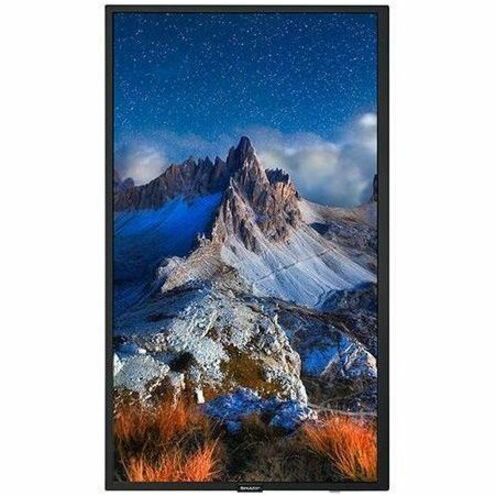

- Orientation: Landscape/Portrait
- Backlight Technology: LED
- Aspect Ratio: 16:9
Video
- Scan Format: 1080p
- Native Contrast Ratio: 4,000:1
- Brightness: 450 Nit
Network & Communication
- Ethernet: Yes

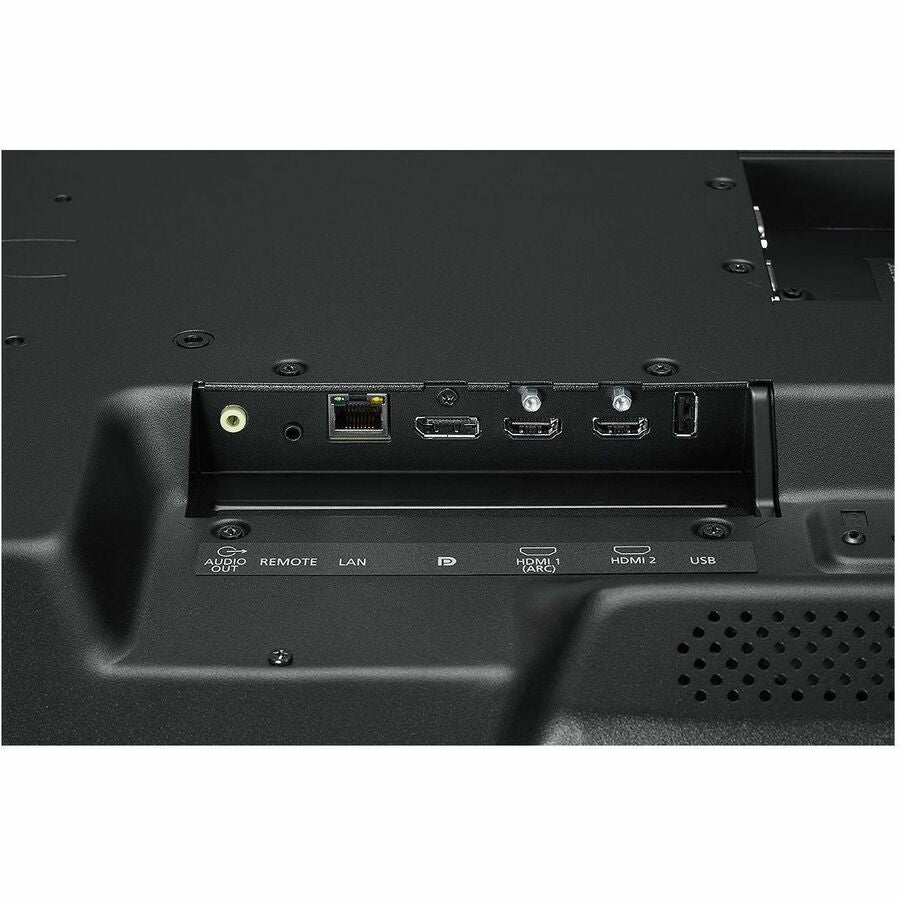

Interfaces/Ports
- HDMI: Yes
- DisplayPort: Yes
- Serial: Yes
- Number of HDMI Inputs: 2
- RS-232C Input: Yes
Physical Characteristics

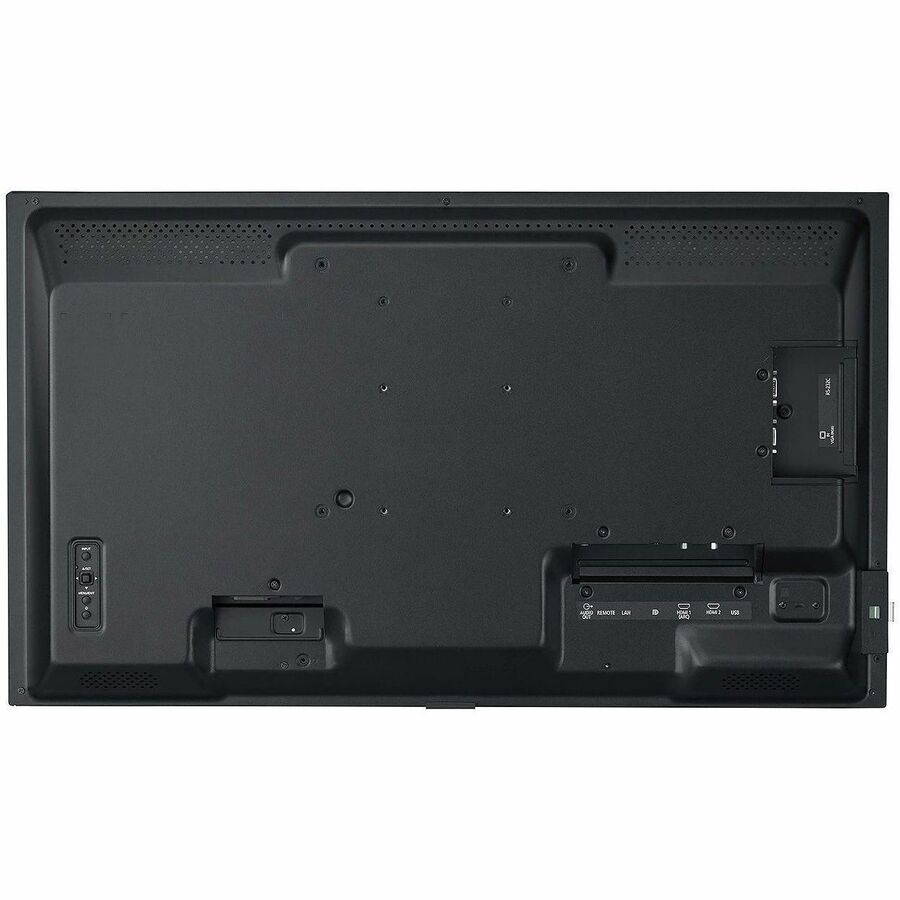

- VESA Mount Standard:
- 100 x 100
- 200 x 200
- Height: 16.7"
- Width: 28.6"
- Depth: 2.6"
- Weight (Approximate): 13.89 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Storage Temperature: -4°F (-20°C)
- Maximum Storage Temperature: 140°F (60°C)
- Minimum Operating Humidity: 20%
- Maximum Operating Humidity: 80%
- Minimum Storage Humidity: 10%
- Maximum Storage Humidity: 80%
Miscellaneous
- Package Contents:
- 32" Professional Grade Display
- 2.0m HDMI Cable
- 3.0m Power Cable
- AAA Batteries
- IR Remote Control
- Application/Usage:
- Commercial
- Corporate
- Education
- Restaurant
- Retail
- Grocery Store
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
3 years Advanced Exchange
