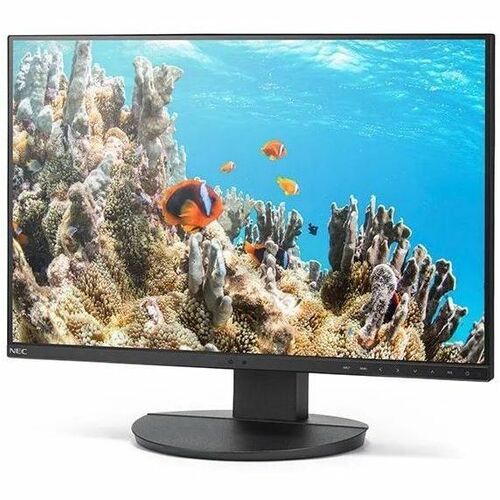

Sharp NEC Display MultiSync DD-EA242W 24" Class WUXGA LED Monitor - 16:10 - DD-EA242W
Key Features
- 1920 x 1200 maximum resolution delivers razor-sharp detail and stable image performance
- 24.1" LED with 1920x1200 resolution enables clear dual A4 page display for efficient editing and layout precision
- 24.1" viewable screen size delivers high-fidelity visuals with accurate brightness and color across all content types
- 60 Hz standard refresh rate enhances clarity by reducing motion artifacts, ensuring smooth and sharp display performance
- Furnishes captivating visuals with 300 Nit brightness levels that deliver clear, vibrant images in both bright and dim settings
- LED backlight technology enhances brightness and contrast while using less power for vivid visuals and energy-efficient performance
- LED Monitor is reliable and delivers consistent performance for extended use
- Minimize blurring and smearing during motion and gaming sequences with a 6 ms response time for sharp, fluid visuals
- Separate Sync feature boosts monitor reliability and performance consistency for sustained productivity
- The 16:10 aspect ratio pr
Product Overview
The 24" Class (24.1" diagonal) Sharp MultiSync® EA242W is a WUXGA ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:10 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242W allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, USB-C, VGA and 2-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. With DisplayPort ouput the EA242W is ideal for multiple monitor configurations and includes ControlSync™ technology which allows users to control up to six EA242W displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor.
Features
- WUXGA (1920x1200) Resolution
- IPS screen technology allows for optimal viewing angle
- Brightness 300 cd/m2
- Full connectivity, including DisplayPort, HDMI, USB-C and VGA inputs
- Supports multi-monitor configurations with DisplayPort output for video passthrough
- USB-C input delivers 65W of power as well as video and USB over one cable
- LAN port enables ethernet use for those devices connected to the display with no LAN port
- USB Hub (1 Up / 2 Down)
- Integrated speakers (stereo 1W + 1W)
- Touch-sensitive OSD® controls are integrated into the bezel
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- Height-adjust stand, pivot, tilt and swivel capabilities
- ENERGY STAR 8.0 and TCO 9.0
- ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- 3 Year Warranty
General Information
- Manufacturer: Sharp
- Manufacturer Part Number: DD-EA242W
- Brand Name: Sharp NEC Display
- Product Line: MultiSync
- Product Model: DD-EA242W
- Product Name: MultiSync DD-EA242W WIdescreen LED Monitor
- Product Type: LED Monitor
Technical Information
- Number of Screens: 1
- Screen Size Class: 24"
- Viewable Screen Size: 24.1"
- Screen Mode: WUXGA
- Panel Technology: In-plane Switching (IPS) Technology
- Response Time: 6 ms
- Aspect Ratio: 16:10
- Pixel Pitch: 0.27000 mm x 0.27000 mm
- Horizontal Viewing Angle: 178°
- Vertical Viewing Angle: 178°
- Backlight Technology: LED
- HDCP Supported: Yes
- Features:
- Separate Sync
- Eco Mode
- Ambient Light Sensor
- UltraNarrow Border
- Ambix Dual Input Technology
- XtraView
- Cable Management
- Dynamic Visual Mode
- Game Mode
- Movie Mode
- Plug & Play
- Wide Viewing Angle
- Ergonomic Design
- Smart Sensing Technology
- Kensington Lock
- Horizontal Frequency: 31.50 kHz to 77 kHz
- Vertical Frequency: 50 Hz to 60 Hz
- Adjustable Stand: Yes
- Stand Adjustments:
- Swivel
- Height
- Pivot
- Tilt
- Active Display Area (H x V): 20.41" x 12.76"
Video
- Maximum Resolution: 1920 x 1200
- Standard Refresh Rate: 60 Hz
- Color Supported: 16.7 Million Colors
- Native Contrast Ratio: 1,000:1
- Brightness: 300 Nit
- Color Gamut:
- 77% Adobe RGB
- 73.1% NTSC
- 79.3% Adobe RGB
- 75.7% NTSC
- 106.9% sRGB
- 99.8% sRGB
- Pixel Per Inch (PPI): 94
Audio
- Number of Speakers: 2
- Speakers: Yes
Interfaces/Ports
- HDMI: Yes
- USB: Yes
- VGA: Yes
- DisplayPort: Yes
- USB Type-C: Yes
- Number of USB Ports: 3
- Number of USB 3.1 Downstream Ports: 2
Built-in Devices
- Built-in Devices: USB Hub
Environmental Conditions
- Operating Temperature Range: 41°F (5°C) to 95°F (35°C)
- Operating Humidity Range: 20% to 80% (Non-condensing)
- Maximum Operating Altitude: 16404 ft
Power Description
- Standby Power Consumption: 300 mW
- Maximum Power Consumption: 19 W
Physical Characteristics
- VESA Mount Compatible: Yes
- Height: 13.7"
- Width: 20.9"
- Depth: 1.9"
- Height with Stand: 20.29"
- Width with Stand: 20.93"
- Depth with Stand: 9.84"
- Weight (Approximate): 9.26 lb
- Weight with Stand (Approximate): 14.77 lb
- Compressed Height with Stand: 14.38"
- Extended Height with Stand: 20.29"
Miscellaneous
- Package Contents:
- MultiSync DD-EA242W WIdescreen LED Monitor
- Setup sheet
- User manual
- Power cord
- DisplayPort cable
- USB-C cable
- ControlSync cable
- Stand
- Application/Usage:
- Commercial
- Business
- Professional
- Energy Star: Yes
- TCO Certified: Yes
- Environmentally Friendly: Yes
- Environmental Certification: TCO Certified 9.0
- Energy Efficiency Certification: ENERGY STAR 8.0
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
