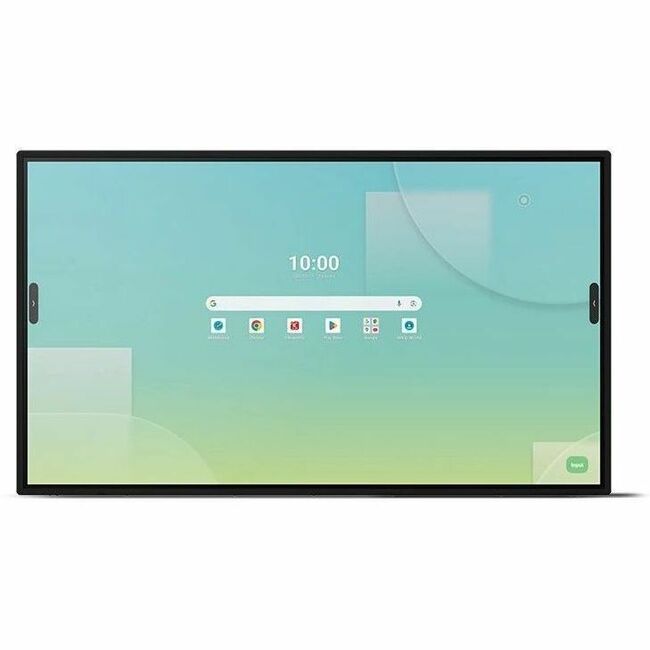

SHARP® PN-LB863 AQUOS BOARD Collaboration Display - PN-LB863
Product Overview
Next-Level Collaboration Made Simple | PN-LB863 AQUOS BOARD® Collaboration Display
Sharp PN-LB863 interactive displays are designed to elevate collaboration across corporate, education, and digital signage environments. EDLA certified for seamless access to Google services, this display features intuitive touch performance and built-in wireless casting, making it easy to share, present, and engage without cables. Whether in a classroom, boardroom, or public space, it delivers a powerful, all-in-one solution for communication and creativity.
Features
- 86" Class (85.56" diagonal) Screen Size
- Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display
- 40-Point IR Multi-touch
- EDLA Certified
- eShare Wireless Casting
- 500 cd/m2 Brightness; 1,200:1 Contrast Ratio
- Android OS 14 SoC Arm® Cortex®A73x4 2.3Ghz+Arm®
- Built-in 15W per Channel Stereo Audio System
- 5-Year Limited Warranty
Synappx Go
Whether your meeting is with Microsoft Teams, Google Meet, Zoom, or GoToConnect, users can use Synappx Go to promptly start meetings by scanning the QR code or typing in the pairing code. Once started you'll have the ability to easily share cloud documents and control them on the display from your device. For IT Admins, Synappx adds a layer of security with full-screen mode and the ability to limit users access to Windows features (taskbar, desktop icons etc.) and more!
AV Soundbar PN-ZCMS1
All-in-one unified communication soundbar incl. speaker, microphone and camera
General Information
- Manufacturer: Sharp Electronics
- Manufacturer Part Number: PN-LB863
- Brand Name: SHARP®
- Product Line: AQUOS BOARD
- Product Model: PN-LB863
- Product Name: PN-LB863 AQUOS BOARD Collaboration Display
- Product Type: Collaboration Display
Display & Graphics
- Viewable Screen Size: 86"
- Screen Size Class: 86"
- Display Screen Type: LCD
- Display Screen Technology: TFT LCD
- Backlight Technology: Direct LED
- Screen Mode: 4K UHD
- Screen Resolution: 3840 x 2160
- Scan Format: 2160p
- Aspect Ratio: 16:9
- Contrast Ratio: 1,200:1
- Brightness: 500 Nit
- Horizontal Viewing Angle: 178°
- Vertical Viewing Angle: 178°
Touchscreen Information
- Touchscreen: Yes
- Multi-touch Screen: Yes
- Number of Touch Points: 40
- Touchscreen Technology: Infrared
Processor & Chipset
- Processor Manufacturer: ARM
- Processor Type: Cortex A73
- Processor Speed: 2.30 GHz
Audio
- Speakers: Yes
- Number of Speakers: 2
- RMS Output Power: 30 W
Network & Communication
- Ethernet: Yes
Interfaces/Ports
- HDMI: Yes
- Total Number of USB Ports: 7
- USB: Yes
- Network (RJ-45): Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Serial: Yes
Software
- Operating System Platform: Android
- Operating System: Android 14
Power Description
- Power Consumption: 510 W
- Standby Power Consumption: 500 mW
Physical Characteristics
- VESA Mount Compatible: Yes
- VESA Mount Standard: 800 x 600
- Height: 44.3"
- Width: 76.9"
- Depth: 3.4"
- Weight (Approximate): 132.20 lb
Miscellaneous
- Package Contents:
- PN-LB863 AQUOS BOARD Collaboration Display
- 1 x AC power cord
- 1 x Remote control unit
- 2 x Remote control unit battery (AAA size) :
- Wireless Adapter
- Wireless Adapter anti-theft cover
- 1 x Setup manual
- 1 x Blank sticker(cover SHARP logo)
- 3 x Cable clamp
- Camera mount
- STB mount
- 1 x USB cable
- 2 x Touch pen
Warranty
- Limited Warranty: 5 Year
