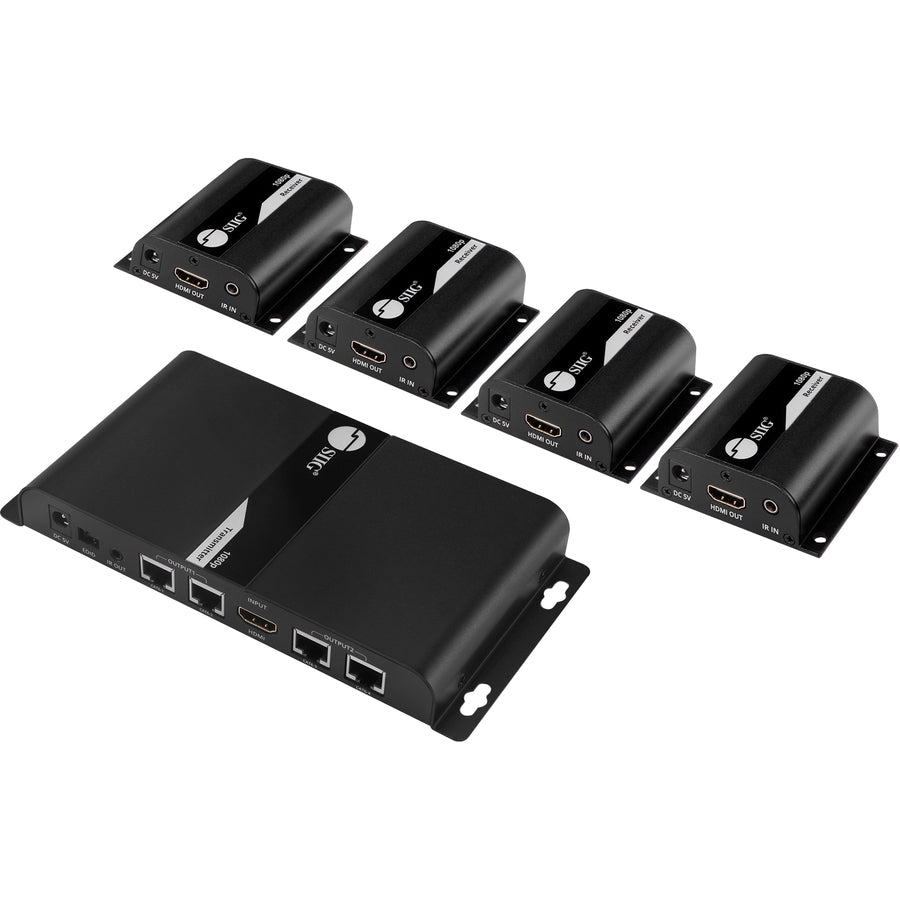

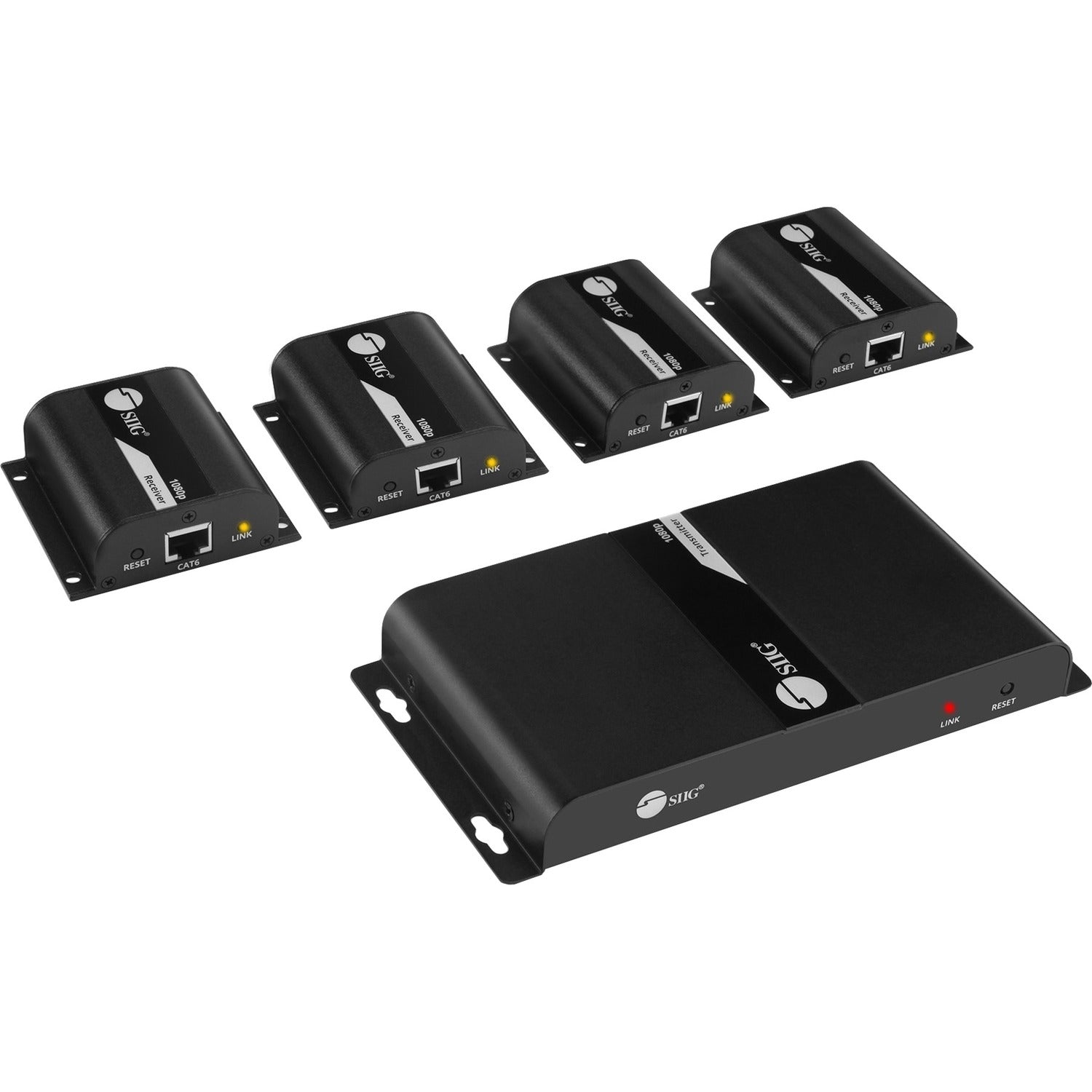

SIIG 4 Port HDMI Splitter over Cat6 Extender with IR - 40m - CE-H23U11-S1
Key Features
- 1 input devices supported for maximum productive usability
- 131.23 ft maximum operating distance to allow efficient coverage and maximum usability
- 1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
- 4 output devices supported for maximum feasibility and usage convenience
- Full HD graphics mode provides optimal video output with remarkable picture clarity
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
Product Overview

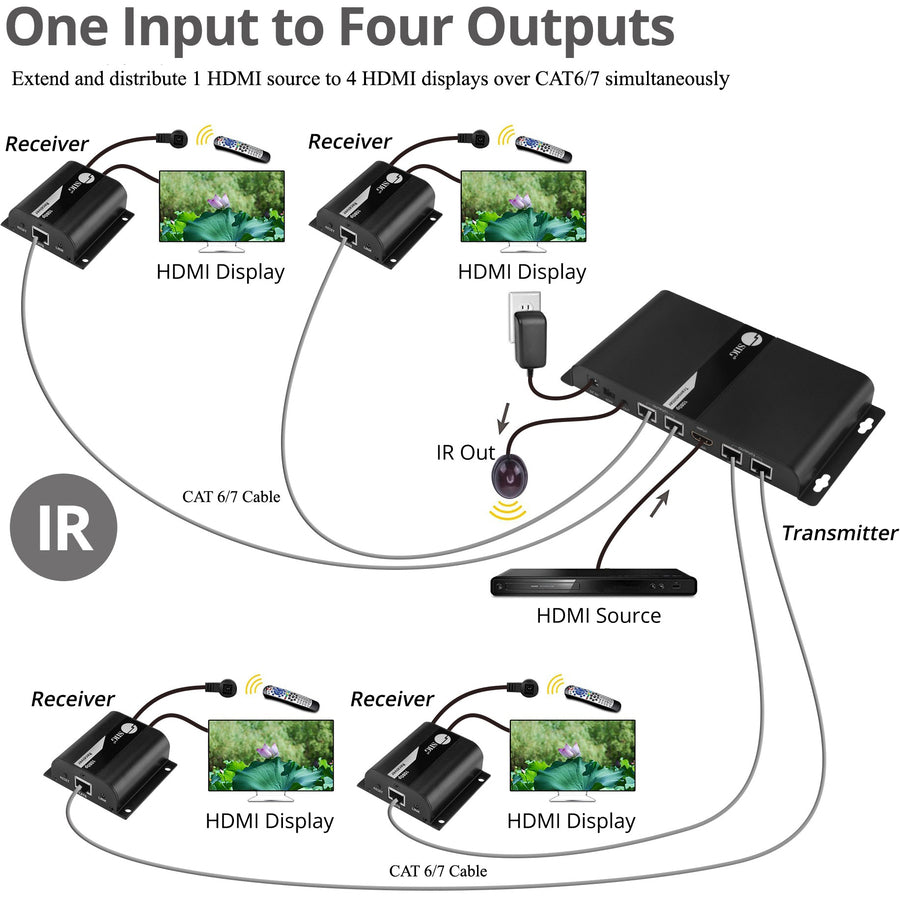

Extends HDMI signals to four HDMI displays over single Cat6 cable up to 130 feet (40 meters)
- Extends HDMI signals up to 130ft (40m) over economical Cat6 cabling to up to 4 displays
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution
- IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
- High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
- Plug-n-Play installation, no software installation required
General Information
- Manufacturer: SIIG, Inc
- Manufacturer Part Number: CE-H23U11-S1
- Brand Name: SIIG
- Product Name: 4-Port HDMI Splitter over Cat6 Extender with IR - 40m
- Product Type: Video Extender Transmitter/Receiver
Technical Information
- Connectivity Technology: Wired
- Number of Input Devices Supported: 1
- Number of Output Devices Supported: 4
- Maximum Operating Distance: 131.23 ft
Video
- Graphics Modes: Full HD
- Maximum Video Resolution: 1920 x 1080

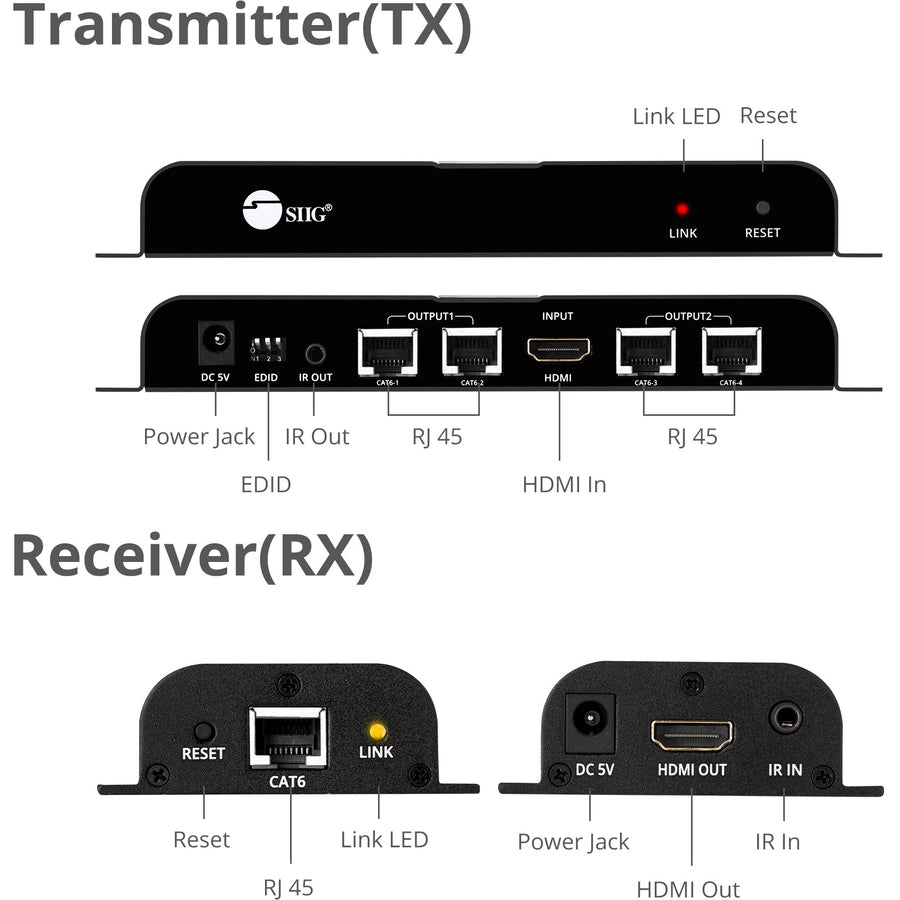

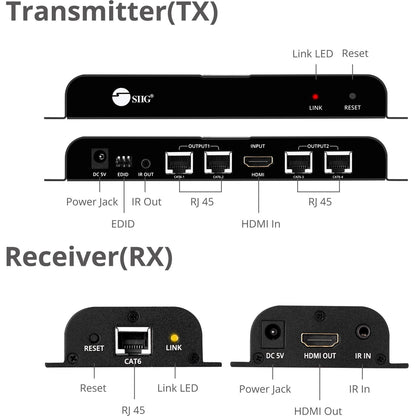

Interfaces/Ports
- Network (RJ-45): Yes
- HDMI In: Yes
- HDMI Out: Yes
- Number of Network (RJ-45) Ports: 8
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 4
Media & Performance
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 7
Miscellaneous

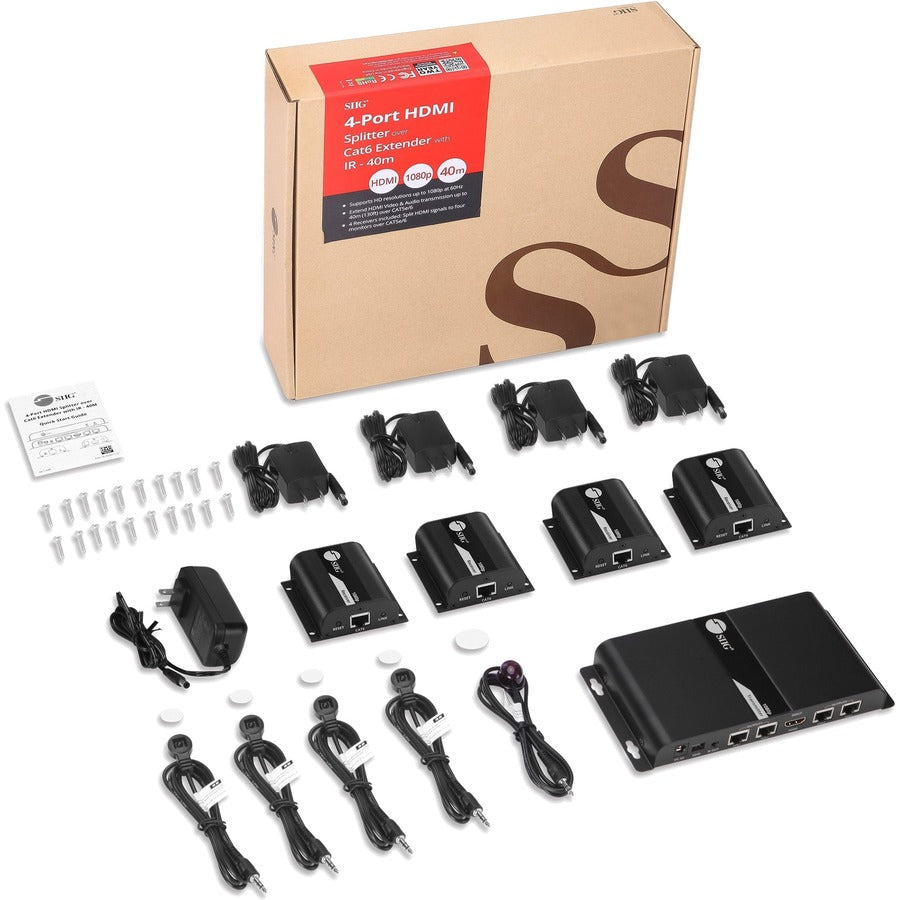

- Package Contents:
- 1 x Transmitter
- 4 x Receiver
- 5 x Power Adapter
- 1 x IR Blaster Extension Cable
- 4 x IR Receiver Extension Cable
- Screw Kit
- User Reference Guide
- Country of Origin: Switzerland
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
