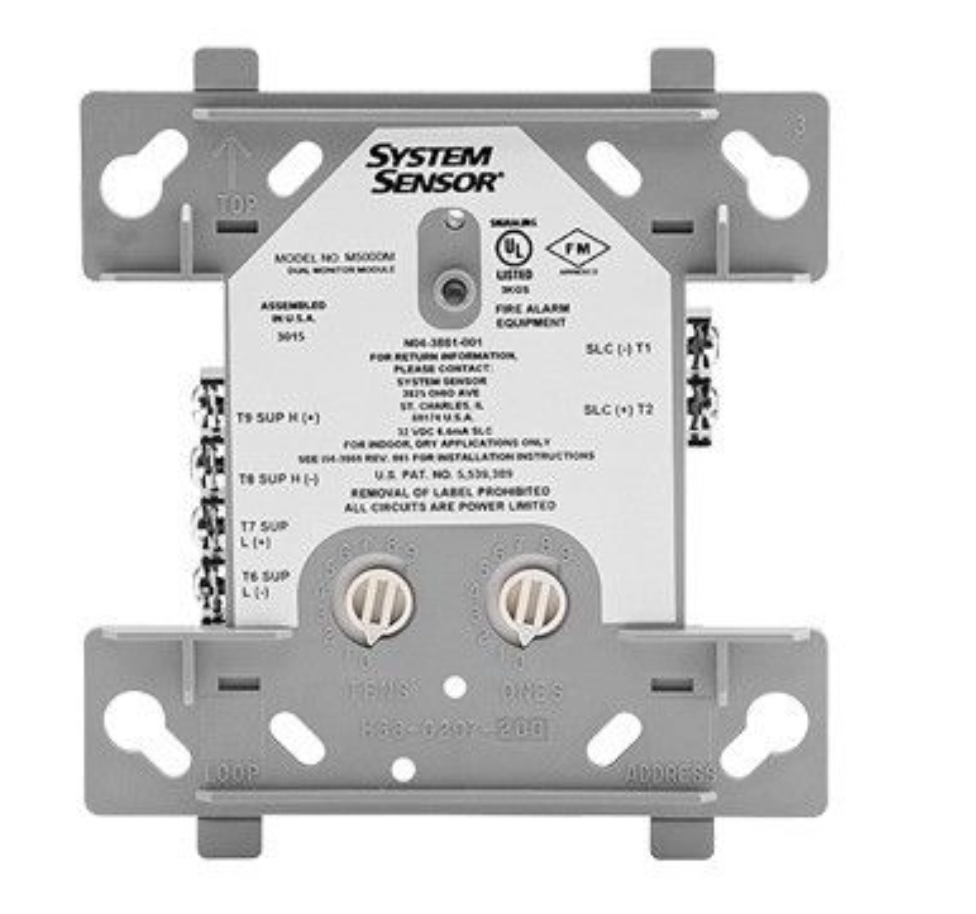

SK-MONITOR-2 Dual Monitor Module
The Honeywell Silent Knight SK-MONITOR-2 is a dual input monitor module designed to monitor two Class B circuits using separate loop addresses. This addressable module interfaces with contact devices like pull stations, waterflow switches, and 4-wire smoke detectors. Its compact design and rotary address dials allow for fast setup and reliable operation with Silent Knight fire alarm control panels (FACPs).
Each input is supervised and assigned a unique address, making this module ideal for monitoring multiple initiating devices in a single location. The SK-MONITOR-2 includes a bright white cover plate, SEMS screws for easy wiring, and supports surface or flush mounting on a standard 4" square box.
Key Features:
✔ Monitor two Class B circuits with separate addresses
✔ Rotary address switches for fast programming
✔ Interfaces with waterflow switches, pull stations, and 4-wire detectors
✔ Supports supervised Class B wiring
✔ Installs in standard 4” square box (2-1/8” depth minimum)
✔ Surface box option available (System Sensor SMB500)
✔ SEMS screws for simplified wiring
✔ UL Listed
Ideal For:
Installers and system designers needing to monitor multiple initiating devices in a compact, addressable form factor with rapid installation and clear supervision feedback.
Why Choose This:
The SK-MONITOR-2 saves space and addresses by combining two monitored input circuits into one module—ideal for tamper and waterflow switch configurations.
FAQs:
Q: What types of devices can the SK-MONITOR-2 monitor?
A: It can monitor waterflow switches, pull stations, and conventional 4-wire smoke detectors for alarm and trouble conditions.
Q: How many addresses does the module use?
A: The module uses two unique loop addresses—one for each monitored circuit.
Q: What type of wiring does it support?
A: The module supports supervised Class B wiring to the load devices.
Q: Where can it be mounted?
A: It mounts into a standard 4” square electrical box with at least 2-1/8” depth. A surface mount box is also available (System Sensor part SMB500).
Q: Is it UL Listed?
A: Yes, the SK-MONITOR-2 is UL Listed.
