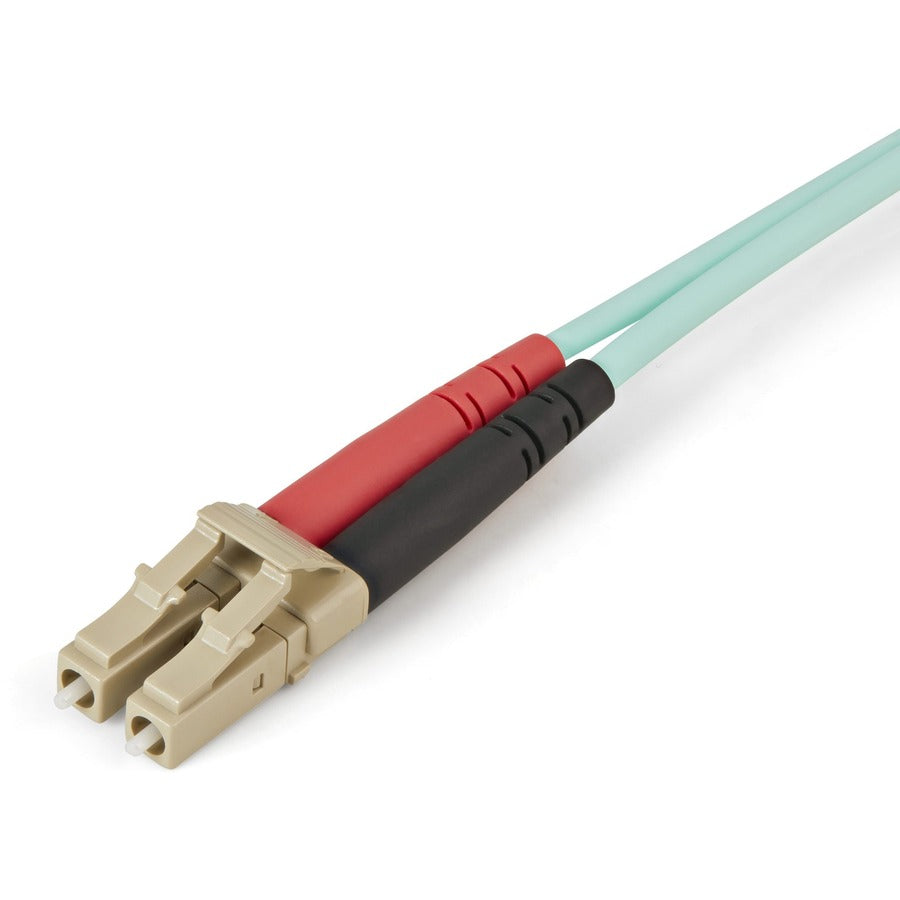

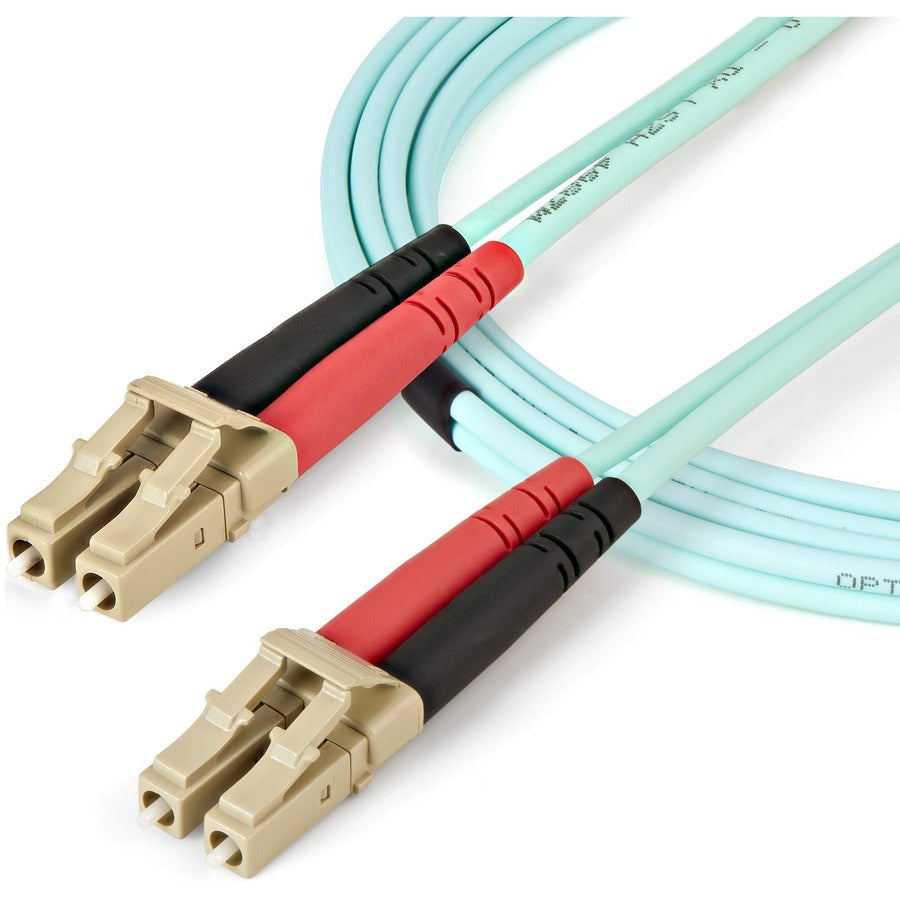

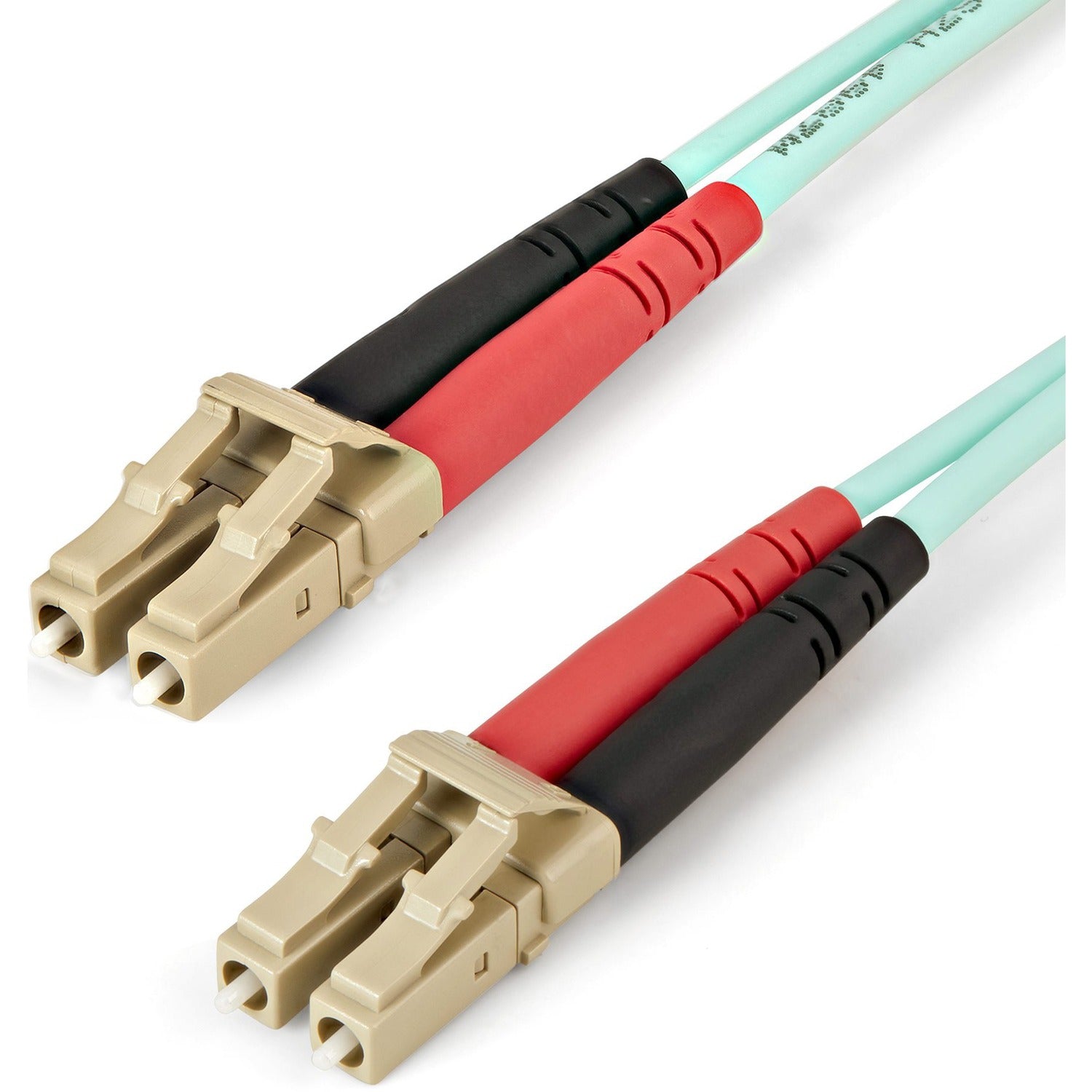

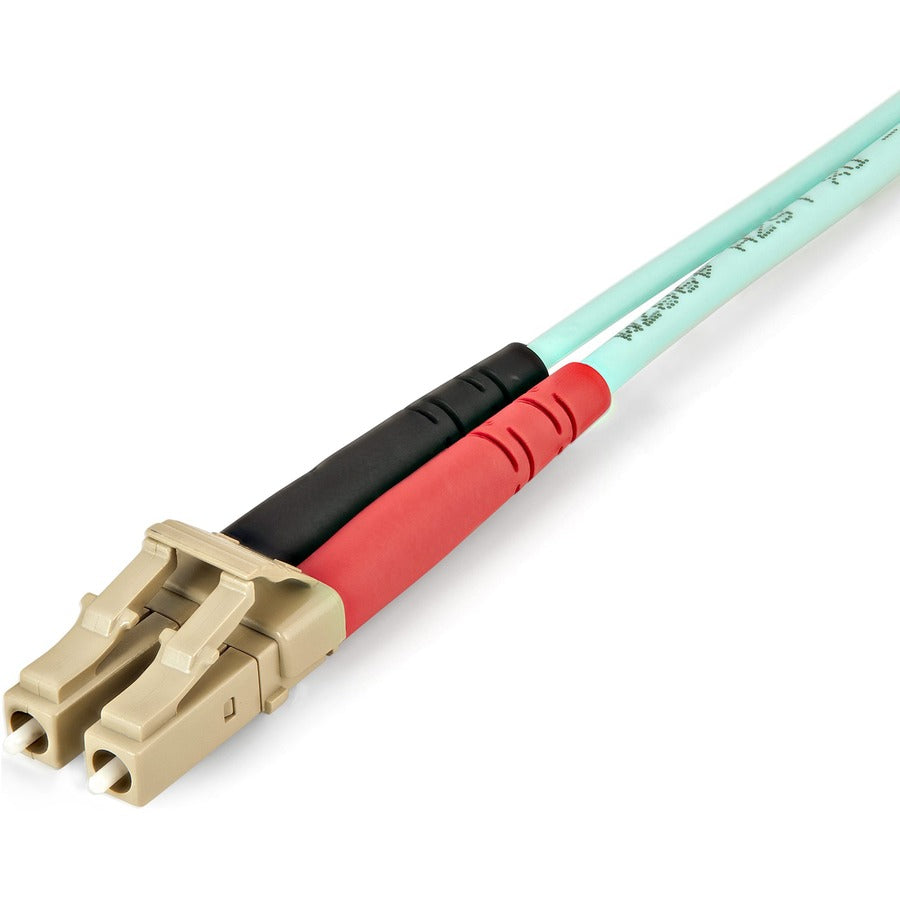

StarTech 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord - 450FBLCLC2
Key Features
- Attenuation loss meets or exceeds industry standards
- Backward compatible with your existing 50/125 equipment
- Compatible with 850nm VCSEL source
- Fiber core protects against EMI
- Housed in a LSZH, flame-retardant jacket to ensure minimal smoke, toxicity and corrosion if exposed to high sources of heat
- Ideal use in industrial settings, schools and central offices
- Laser-optimized multimode fiber (LOMMF)
- OM4 (50/125) 3500MHz multimode fiber
- Protective, crush-resistant fiber sheath to improve tensile strength
Product Overview
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: 450FBLCLC2
- Brand Name: StarTech.com
- Product Name: Fiber Optic Duplex Patch Network Cable
- Packaged Quantity: 1 Each
- Product Type: Network Cable
Technical Information
- Cable Type: Fiber Optic
- Cable Characteristic: Patch Cable
- Fiber Optic Mode: Multi-mode
- Fiber Optic Cable Core/Cladding Specification: 50/125 µm
- Cable Length: 6.56 ft
- Connector Type on First End: LC Network - Male
- Connector Gender on First End: Male
- Connector on First End Details: 2 x LC Network - Male
- Connector Type on Second End: LC Network - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 2 x LC Network - Male
- Jacket Type: LSZH
- Device Supported:
- Network Device
- Transceiver
- Data Transfer Rate: 100 Gbit/s
- Features:
- Halogen Free
- Flame Retardant
- Corrosion Resistant
Physical Characteristics
- Color Family: Green
- Product Color: Aqua
- Weight (Approximate): 0.07 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Certification: EU RoHS
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
