StarTech 3ft (91cm) Mini DisplayPort Cable, 8K 60Hz HDR10, Ultra HD 4K 120Hz Video, mDP 1.4 Cable for Monitors, Mini DisplayPort Cord - MDISPLPORT3
Key Features
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- MINI DISPLAYPORT 1.2 CABLE: This 3ft (91cm) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- SPECS: 3 feet (91 cm); Black Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord
Product Overview

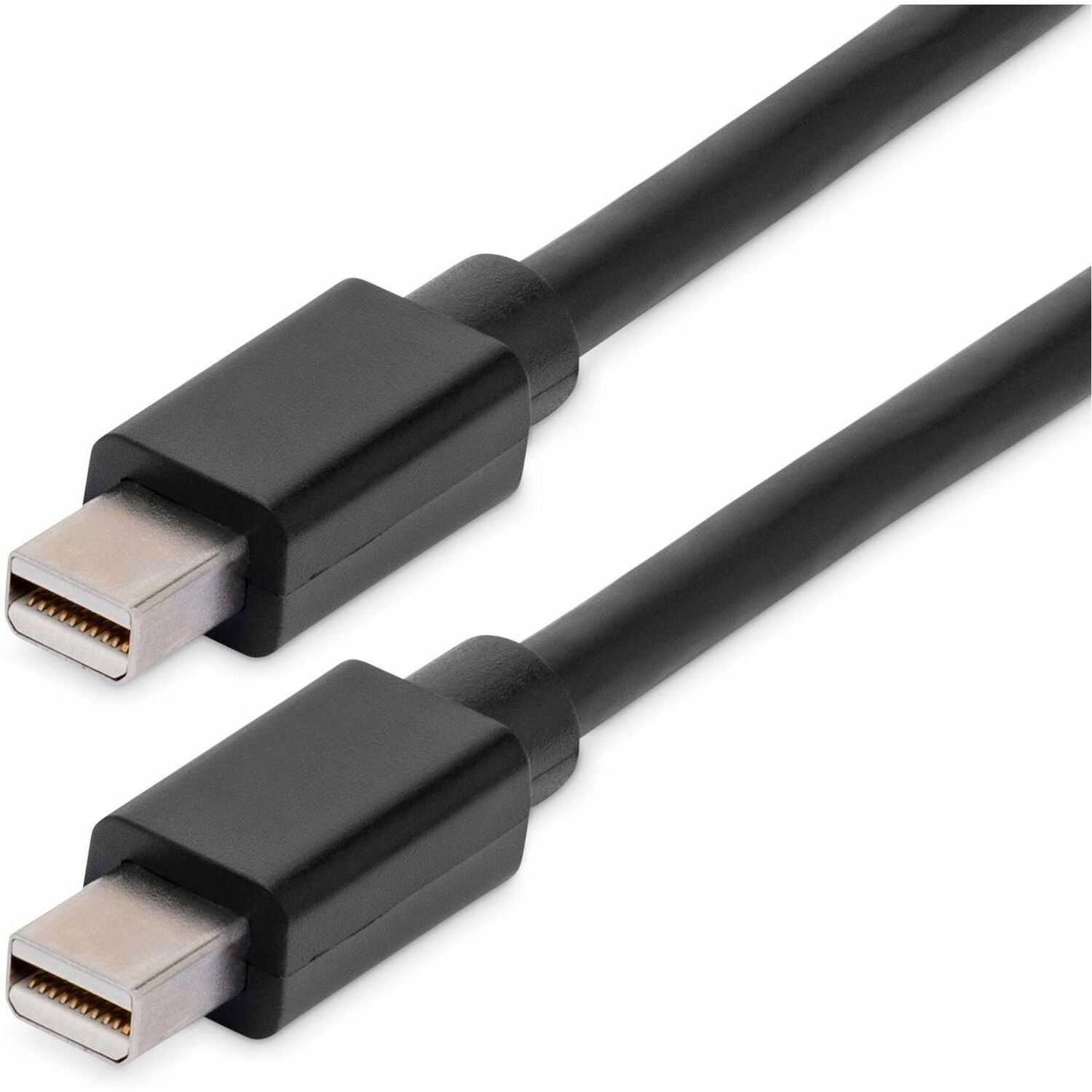

The MDISPLPORT3 3ft Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISPLPORT3 is backed by StarTech.com's Lifetime Support, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

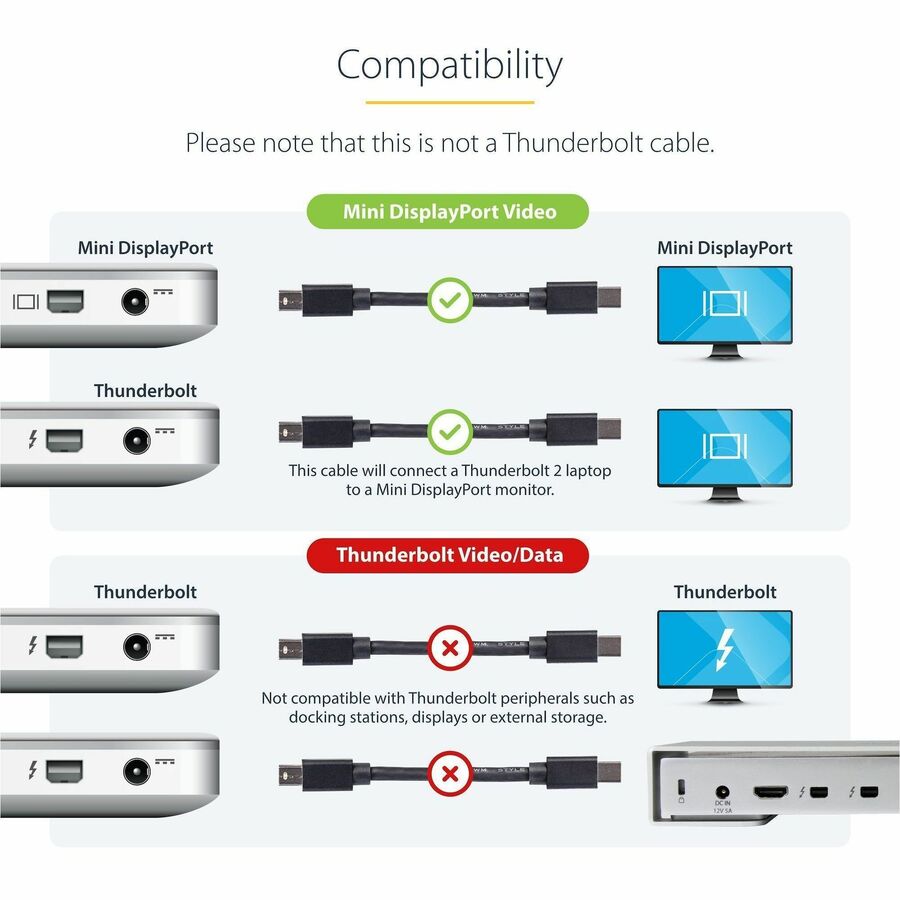

Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Please note:This is not a Thunderbolt cable, and therefore does not work for Thunderbolt peripherals (displays, docks, drive enclosures, audio interfaces, etc).
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: MDISPLPORT3
- Brand Name: StarTech.com
- Product Model: MDISPLPORT3
- Product Name: 3 ft Mini DisplayPort 1.2 Cable M/M - Mini DisplayPort 4k
- Packaged Quantity: 1 Each
- Product Type: Video Cable
Technical Information
- Cable Type: DisplayPort
- Cable Length: 3 ft
- Connector Type on First End: Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End: Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector Plating:
- Nickel
- Gold
- Jacket Type: CMG
- Device Supported:
- MacBook
- MacBook Pro
- MacBook Air
- Audio/Video Device
- Notebook
- Monitor
- American Wire Gauge: 30 AWG
- Data Transfer Rate: 21.6 Gbit/s
- Supported Resolution: 3840 x 2400
- Features:
- Multi-Stream Transport (MST) Support
- Flexible
- Strain Relief
- Fray Resistant
- Damage Resistant
- EMI Protection
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.07 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
