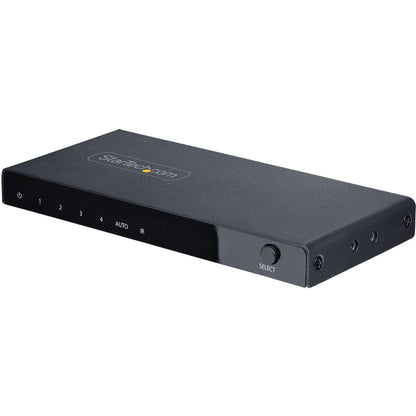

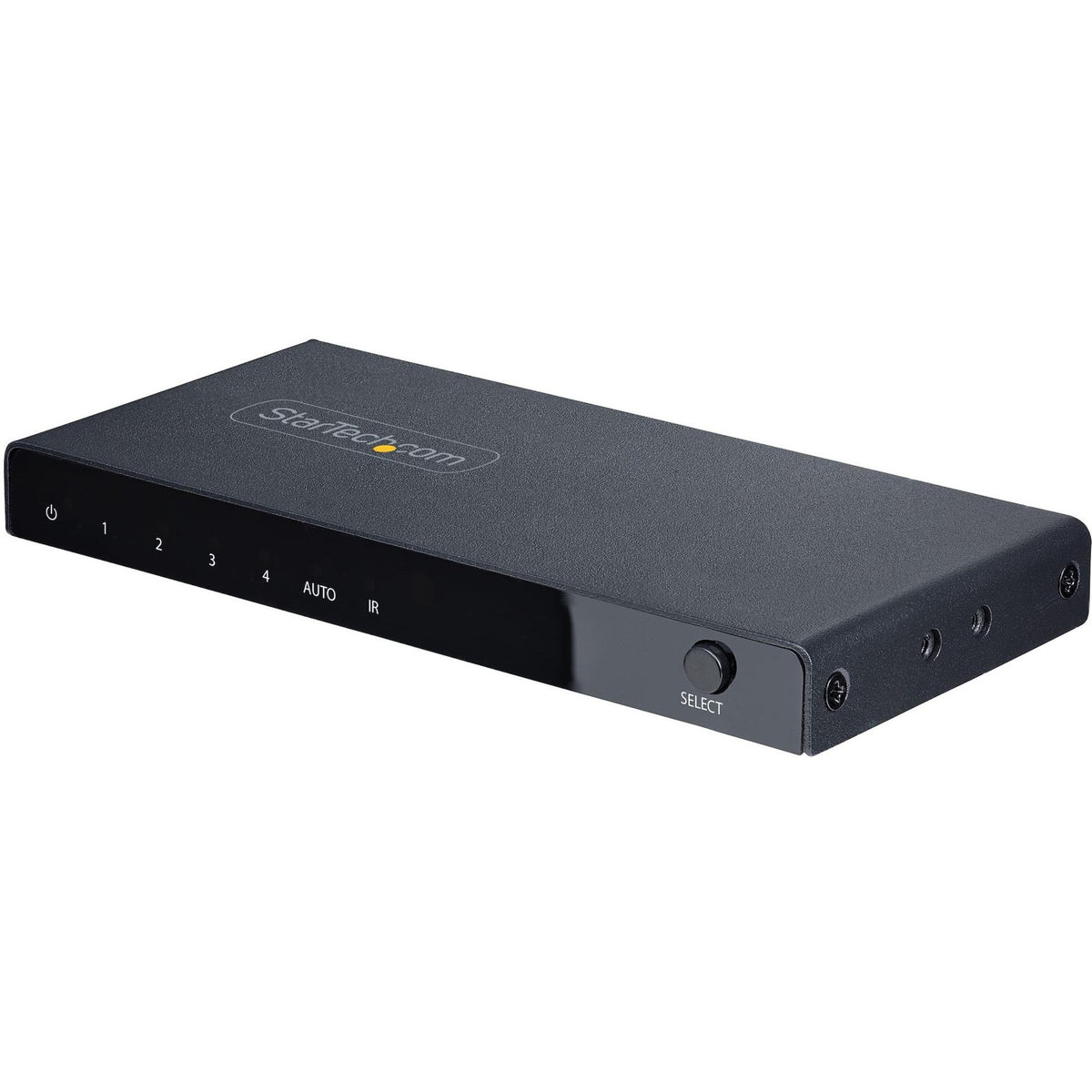

StarTech 4-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K 120Hz HDR10+, 8K 60Hz UHD, HDMI Switch 4 In 1 Out, Auto/Manual Source Switching - 4PORT-8K-HDMI-SWITCH
Key Features
- 4-PORT 8K HDMI SWITCH: Connect four HDMI sources to a single HDMI display with support up to 8K 60Hz or 4K 144Hz/120Hz; HDR10+; Supports Dolby TrueHD/Atmos, DTS-HD Master Audio/DTS:X for high quality audio
- FLEXIBLE POWER OPTIONS: 4-in 1-out HDMI Switch is USB powered with an available 5V 1A USB port; If a USB port is unavailable, the 8K switch can also be powered with the included USB wall charger and 2.5ft (78cm) USB Micro-B power cable
- HDMI 2.1 COMPATIBLE: 8K Video Switch supports HDMI variable refresh rate, auto low-latency mode, CEC, 7.1-channel audio, and HDCP 2.3/2.2/1.4; Automatic Video Switch is backwards compatible with HDMI 2.0 devices and lower resolutions; 48Gbps Bandwidth
- SWITCHING MODES: 8K HDMI Switcher supports automatic and manual switching; Auto mode automatically switches to the latest active source connection; Manually switch using the push button or the included remote control (batteries not incl.)
- THOUGHTFUL DESIGN: Durable metal housing, included wall mount brackets, and rubber feet mak
Product Overview

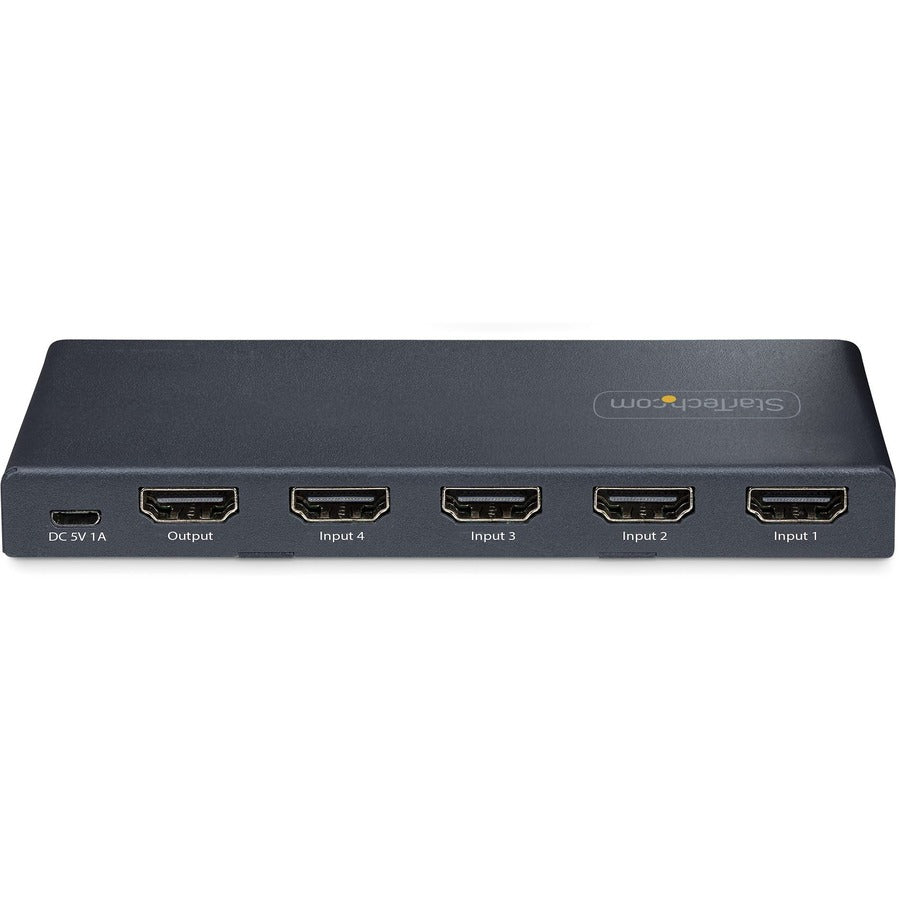

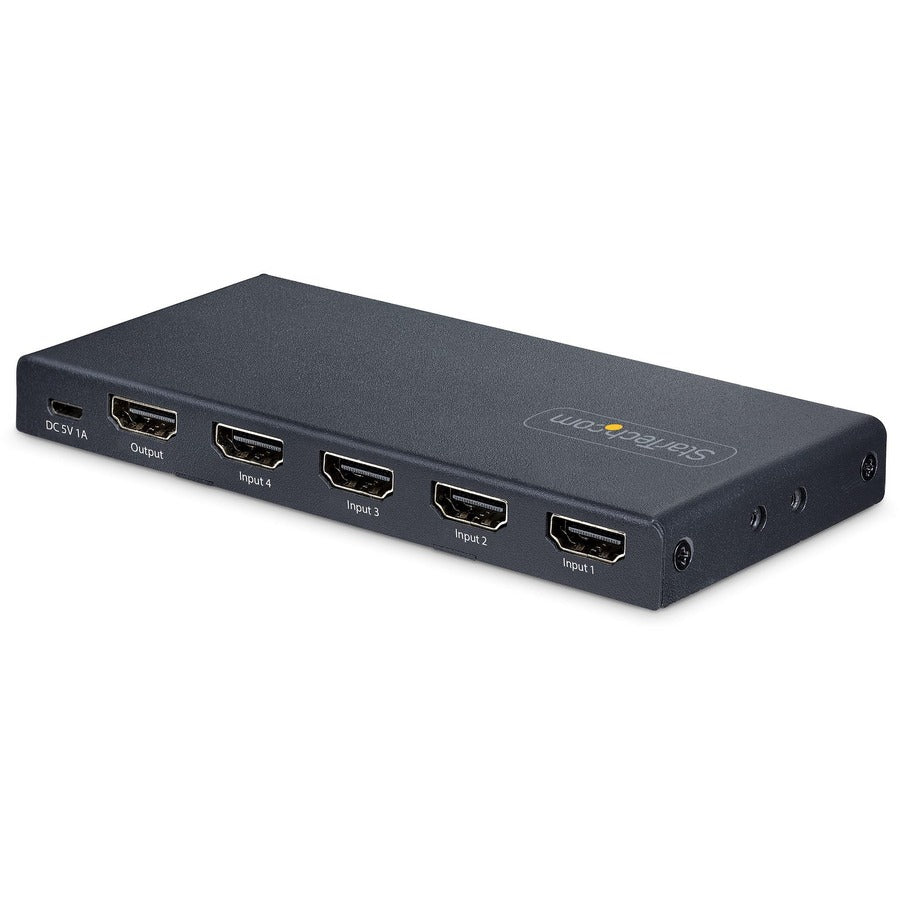

This 4-Port HDMI Video Switch enables four HDMI sources to connect to a single HDMI input on a display.
8K 60Hz Resolution
The HDMI Switcher supports resolutions of up to 8K 60Hz. In addition, it supports lower resolutions at higher refresh rates, such as 4K 144Hz, 4K 120Hz, and 1080p 240Hz.
This Video Switch is HDMI 2.1 complaint and supports features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Consumer Electronics Control (CEC). It is backwards compatible with HDMI 2.0 (and lower) devices.

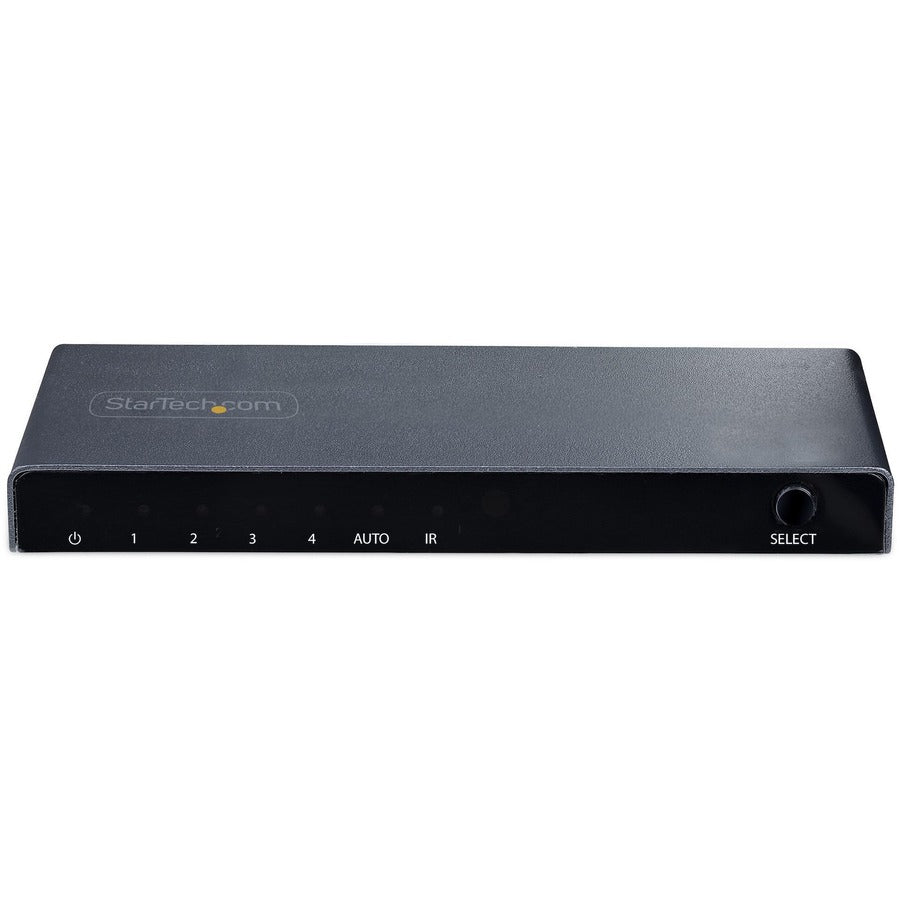

Automatic or Manual Operation
The 8K Video Switch features three options for selecting the source device. Automatic mode detects and selects the most recently activated source device or it will revert to the last active source device. Manual mode selects the desired port, using the push buttons, or with the included remote control (batteries not included). The remote control can enable or disable the automatic switching mode and it can disable the IR functionality.

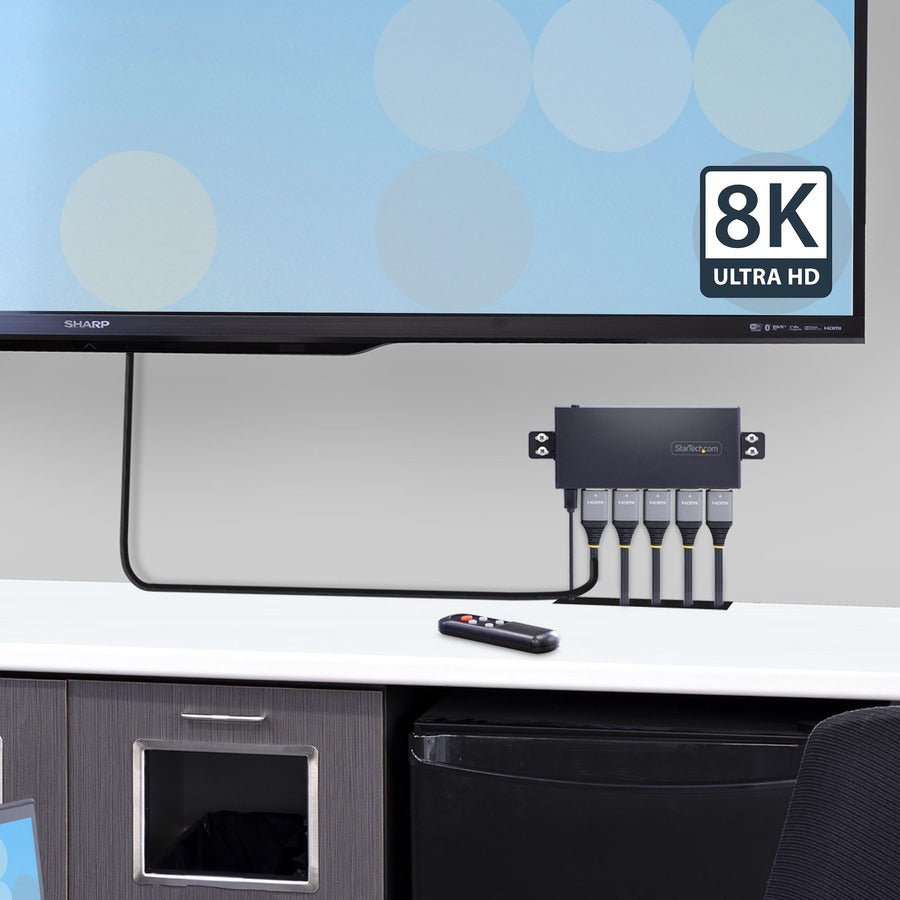

Flexible Installation Options
Use the included USB wall charger and 2.5ft (78cm) USB Micro-B cable to power the unit. If a wall outlet is unavailable, the 8K Switch can be powered through a 5V 1A USB port as well.
The included mounting kit and rubber feet enable versatile installation options. The metal housing enhances durability, making it suitable for installation and use in a variety of environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: 4PORT-8K-HDMI-SWITCH
- Brand Name: StarTech.com
- Product Name: HDMI Video Switch
- Packaged Quantity: 1
- Product Type: Video Switchbox
Technical Information
- Connectivity Technology: Cable
- Number of Input Devices Supported: 4
- Device Supported: Display
- Number of Displays Supported: 1
Video
- Graphics Modes: 8K
- Maximum Video Resolution: 7680 x 4320
- Scan Format: 1080p
Interfaces/Ports
- HDMI In: Yes
- HDMI Out: Yes
- USB: Yes
- Number of USB Ports: 1
- Number of HDMI Inputs: 4
- Number of HDMI Outputs: 1
Media & Performance
- Maximum Operating Distance: 16.40 ft
Physical Characteristics
- Form Factor: Wall Mountable
- Height: 0.6"
- Width: 2.4"
- Depth: 5.4"
- Weight (Approximate): 5.29 oz
Miscellaneous
- Package Contents:
- HDMI Video Switch
- 1 x Remote Control (Batteries Not Included)
- 1 x Mounting Kit
- 1 x USB Wall Charger
- 1 x USB Micro-B Power Cable
- 4 x Rubber Feet
- 1 x Quick-Start Guide
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
- Additional Warranty Information:
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
