StarTech Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m, 1000 Mbps, TAA - ET91000SC2
Key Features
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Cost-effective way to extend/bridge networks using fiber cabling
- Quick and simple installation, easy to use
- Supports a maximum fiber cable length of 550m
- Supports full or half-duplex operation
Product Overview

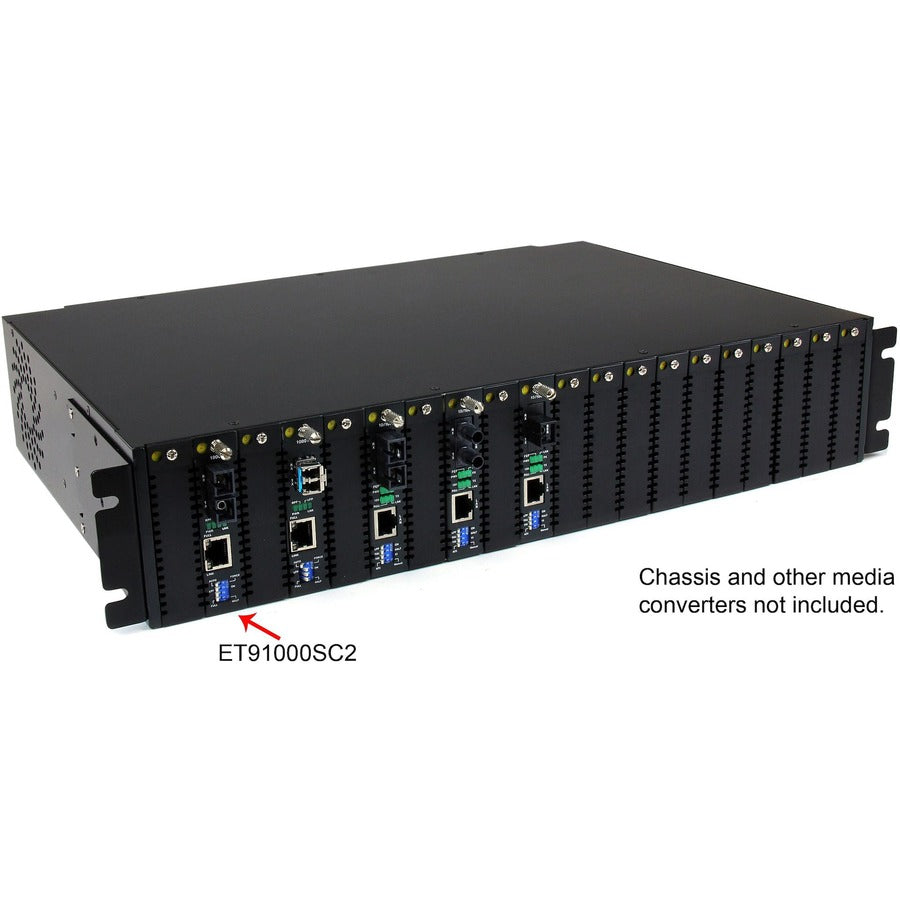

The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft). A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the ManufacturerGeneral Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: ET91000SC2
- Brand Name: StarTech.com
- Product Name: Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps
- Packaged Quantity: 1 Each
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 2
- Network (RJ-45): Yes
- DVI: No
- USB: No
- Management Port: No
- Number of Network (RJ-45) Ports: 1
- Number of SC Ports: 1
- SC Port Type: Duplex
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported: Multi-mode
- Fiber Optic Cable Wavelength: 850 nm
- Maximum Distance Supported: 0.55 km
Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 1000Base-SX/LX
Power Description
- Power Source: AC Adapter
- Power Consumption: 4 W
- Plug/Connector Type: Type M
Physical Characteristics
- Form Factor:
- Rack-mountable
- Desktop
- Height: 1"
- Width: 3.5"
- Depth: 5.9"
- Weight (Approximate): 13.90 oz
Miscellaneous
- Package Contents:
- Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps
- 1 x Grounding Screw
- 1 x Universal Power Adapter
- 1 x Instruction Manual
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
