StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - SV231DDVDUA
Key Features
- Direct channel selection and operation using front panel push-button or keyboard hotkeys
- Full support for plug-n-play peripherals
- Independent or simultaneous audio switching
- OS independent (no drivers or software required)
- Rear function key to adjust video strength
- Selectable time intervals for auto scan
- Status LED display for easy port status monitoring
- Supports a maximum resolution of 1920 x 1200
- Tone indicator for computer switching
- USB style keyboard and mouse, plus two other USB peripherals can be shared between up to two computers
Product Overview
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.

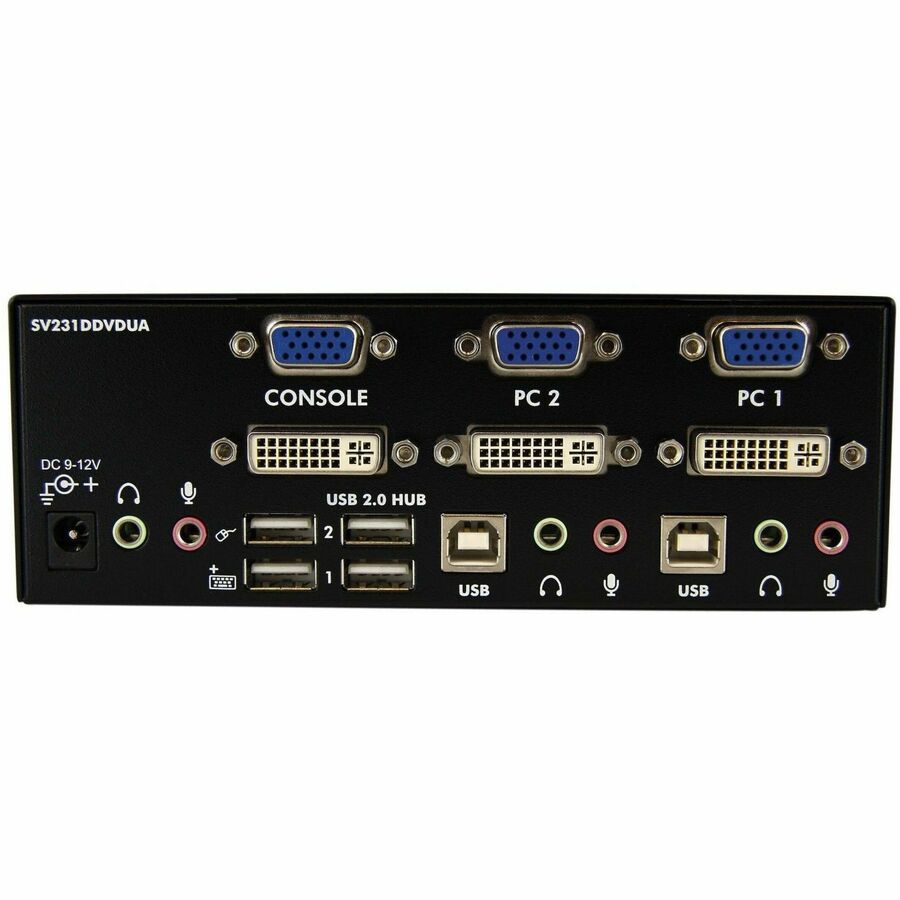

With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: SV231DDVDUA
- Brand Name: StarTech.com
- Product Name: 2 Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub
- Packaged Quantity: 1 Each
- Product Type: KVM Switchbox
Technical Information
- Number of Computers Supported: 2
Video
- Graphic Mode: WUXGA
- Maximum Video Resolution: 1920 x 1440
Interfaces/Ports
- USB: Yes
- DVI: Yes
- VGA: Yes
- Number of USB Ports: 6
- Number of DVI Ports: 3
- Number of VGA Ports: 3
Power Description
- Input Voltage Range: 110V AC to 240V AC
Physical Characteristics
- Form Factor: Desktop
- Height: 2.2"
- Width: 6.3"
- Depth: 3.9"
- Weight (Approximate): 1.72 lb
Miscellaneous

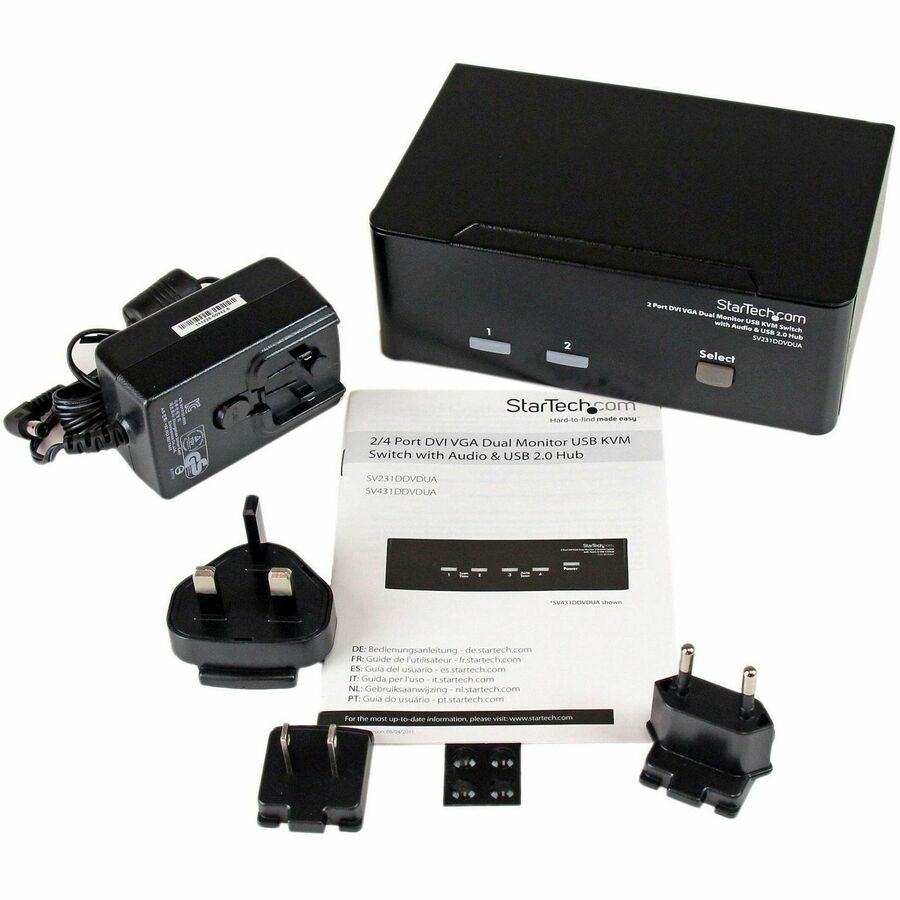

- Package Contents:
- 2 Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub
- 4 x Foot Pads
- 1 x Universal power adapter (NA/EU/UK/AU)
- 1 x Instruction manual
- Environmentally Friendly: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 3 Year
