StarTech 2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1x2 HDMI Display/Output Splitter, HDR/HDCP - HDMI-SPLITTER-4K60UP
Key Features
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
- To fulfill your signal requirement this signal splitter is a perfect choice
- Up to 3480 x 2160 video resolution.
Product Overview
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered
The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: HDMI-SPLITTER-4K60UP
- Brand Name: StarTech
- Product Name: 2-Port HDMI Splitter
- Packaged Quantity: 1
- Product Type: Signal Splitter
Technical Information
- Splitter Type: 2-way
Video
- Maximum Video Resolution: 3480 x 2160
Interfaces/Ports
- HDMI In: Yes
- HDMI Out: Yes
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 2
Media & Performance
- Maximum Operating Distance: 16.40 ft
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- Product Material: Acrylonitrile Butadiene Styrene (ABS)
- Height: 0.7"
- Width: 2.2"
- Length: 2.6"
- Weight (Approximate): 3.25 oz
Miscellaneous

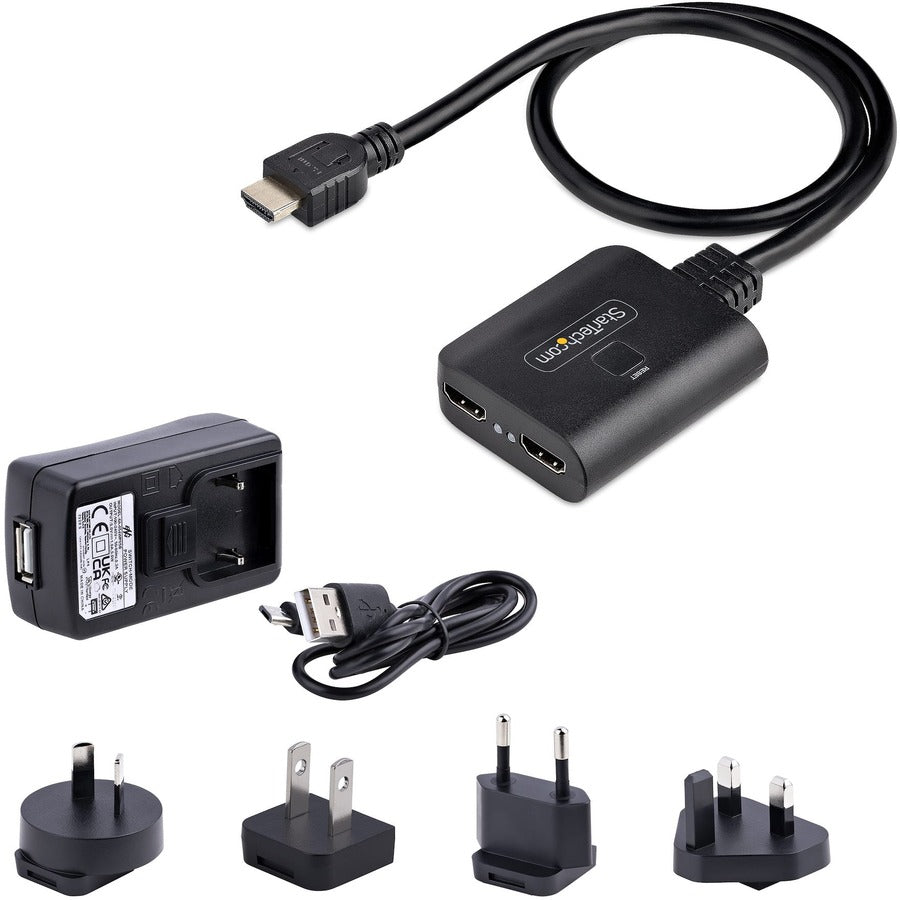

- Package Contents:
- 2-Port HDMI Splitter
- 1 x USB Micro-B Cable
- 1 x USB Wall Charger
- 1 x Quick-Start Guide
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 2 Year
