StarTech.com 3 Port 2b 1a LP 1394 PCI Express FireWire Card - PEX1394B3LP
Key Features
- Built with a native PCI Express chipset, no bridge chip
- Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
- Includes full/standard profile installation bracket
- Internal power connector for high-powered FireWire devices
- One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
- Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
Product Overview

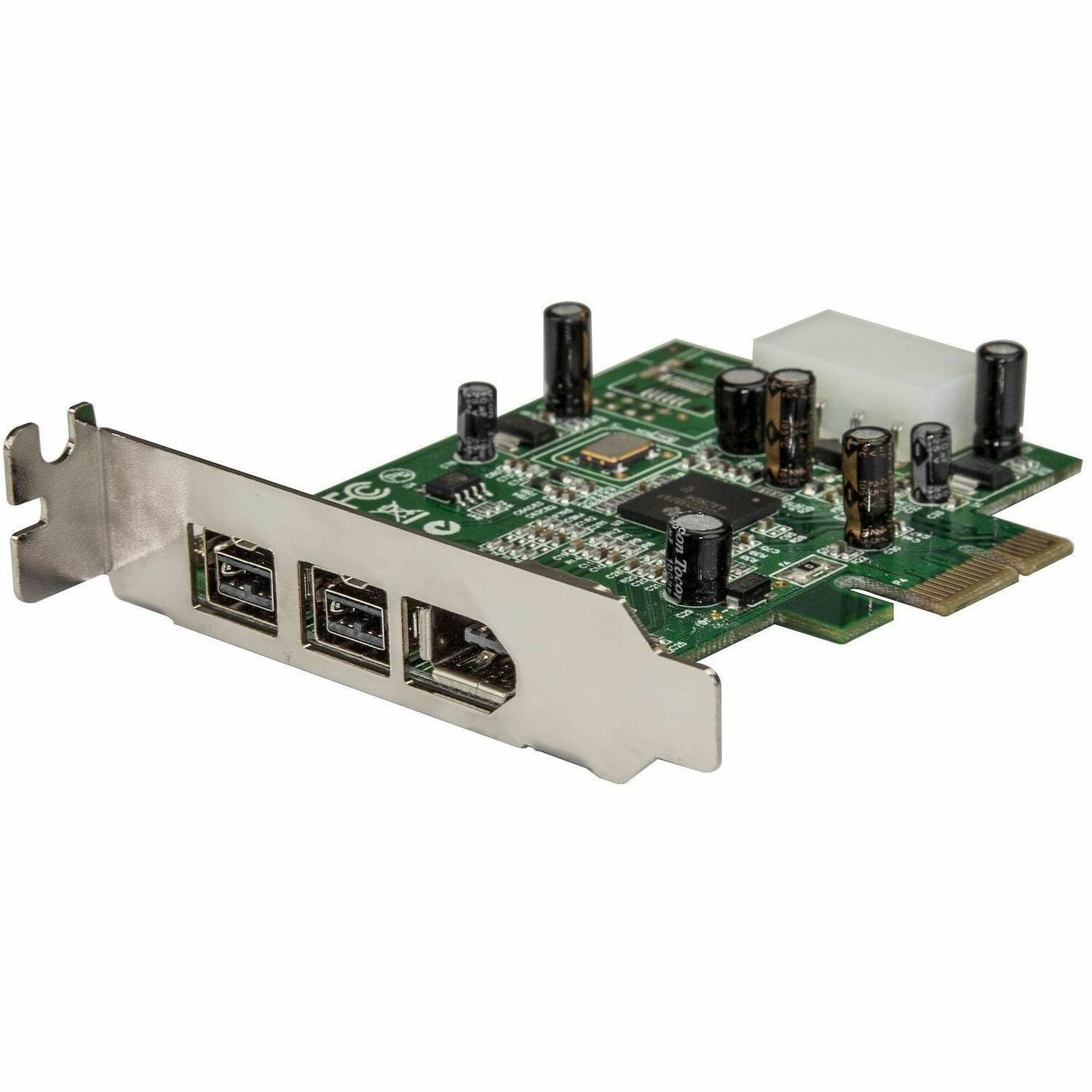

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: PEX1394B3LP
- Brand Name: StarTech.com
- Product Name: 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
- Packaged Quantity: 1 Each
- Product Type: FireWire Adapter
Technical Information
- Host Interface: PCI
Media & Performance
- Data Transfer Rate: 800 MB/s
Interfaces/Ports
- Total Number of FireWire/i.LINK Ports: 3
- Number of FireWire/i.LINK 400 Ports: 1
- Number of FireWire/i.LINK 800 Ports: 2
Software
- Operating System Supported:
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2003
- Windows Server 2008 R2
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.8 Mountain Lion
- Mac OS X 10.10 Yosemite
- Mac OS X 10.11 El Capitan
- Mac OS X 10.12 Sierra
- Mac OS X 10.13 High Sierra
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 11.0 Big Sur
- Mac OS X 12.0 Monterey
- Mac OS X 13.0 Ventura
- Linux 3.5.x
Physical Characteristics
- Form Factor: Plug-in Card
- Height: 0.8"
- Width: 2.3"
- Length: 3.3"
- Weight (Approximate): 1.50 oz
Miscellaneous

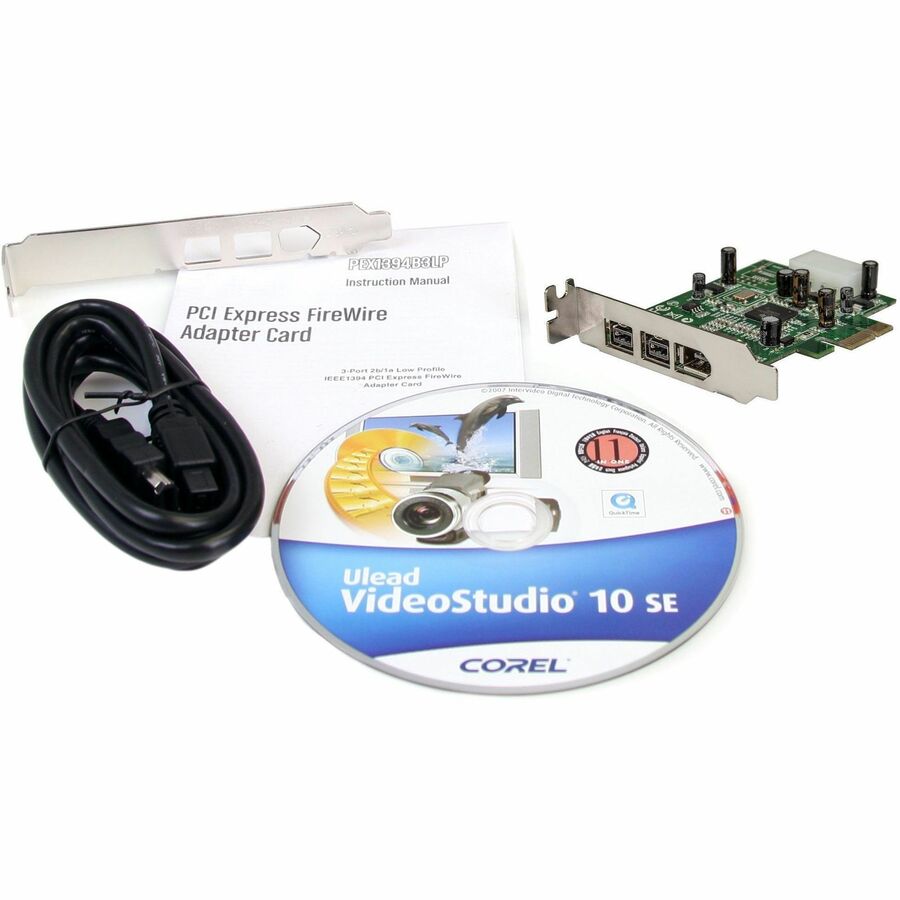

- Package Contents:
- 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
- 1 x FireWire Cable
- 1 x Full Profile Bracket
- 1 x Software CD
- 1 x Instruction Manual
- Platform Supported:
- PC
- Mac
- Linux
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: Lifetime
