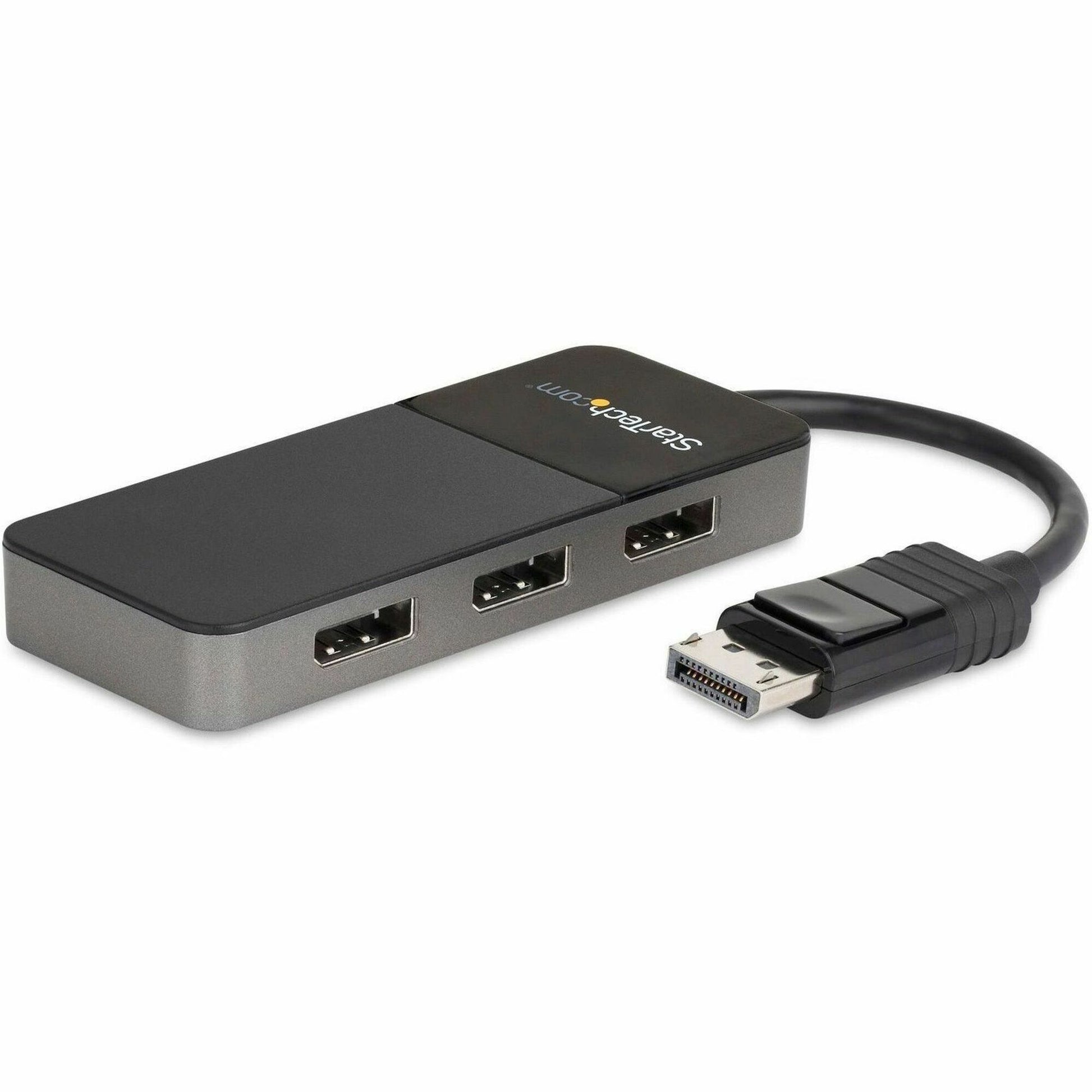

StarTech 3-Port DisplayPort 1.4 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Triple 4K Computer MST Hub, Windows Only - MST14DP123DP
Key Features
- 7680 x 4320 resolution for high-quality video delivery
- To fulfill your signal requirement this signal splitter is a perfect choice
- Unhindered connections with USB devices are ensured by the built-in USB port
- Works on 60 Hz maximum frequency for efficient performance
Product Overview
This3-port DisplayPort MST hublets youcreate ahigh-performanceworkstation byconnectingthreeDisplayPort monitorsto yourDisplayPortdevice,helpingtoincrease and maximize your productivity.Themulti-monitor splittersupports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Incredible Picture Quality
Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680Ã-4320 at 30Hz on a single monitor and supportsmulti-monitorapplications at lower resolutions and refresh rates, enabling a dynamic work environmentwhether you're in the office, at home or traveling.

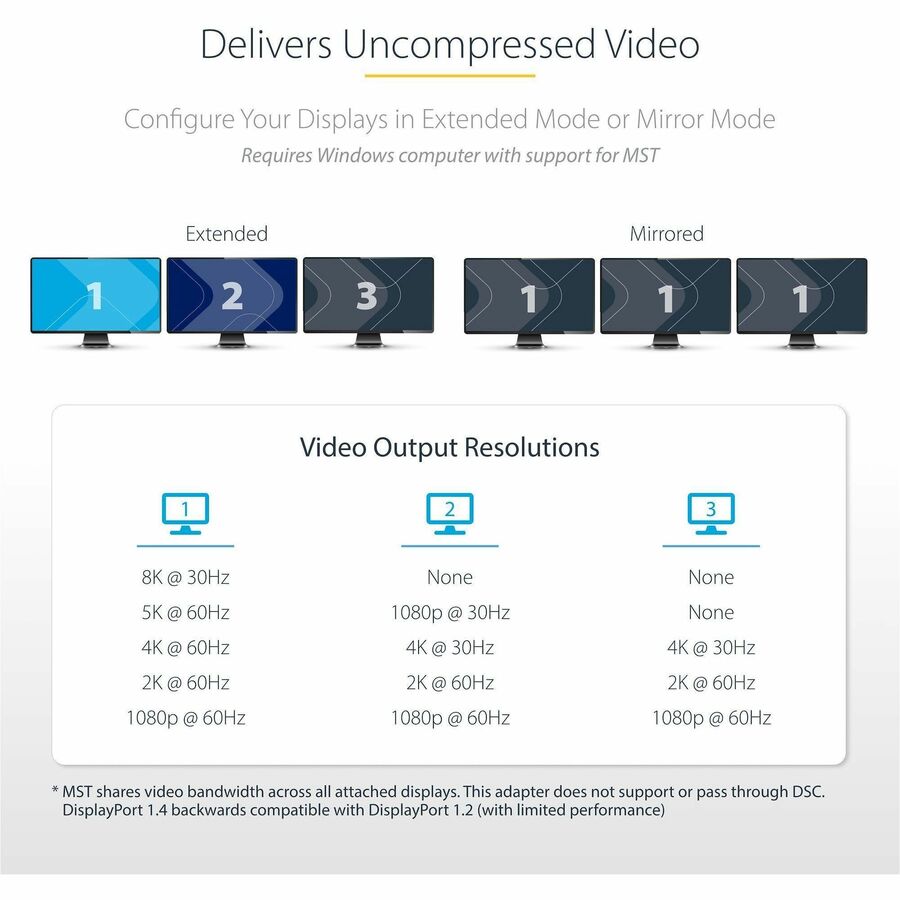

Display 1 Display 2 Display 3 8K (7680x4320) @ 30Hz X X 5K (5120x2880) @ 60Hz 1080p (1920x1080) @ 30Hz X 4K (3840x2160) @ 60Hz 4K (3840x2160) @ 30Hz 4K (3840x2160) @ 30Hz 2K (2560x1600) @ 60Hz 2K (2560x1600) @ 60Hz 2K (2560x1600) @ 60Hz 1080p (1920x1080) @ 60Hz 1080p (1920x1080) @ 60Hz 1080p (1920x1080) @ 60HzBoth your source and destination mustsupportDisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz). Lower resolutions and refresh rates may also be supported.
Multi-Tasking Made Easy

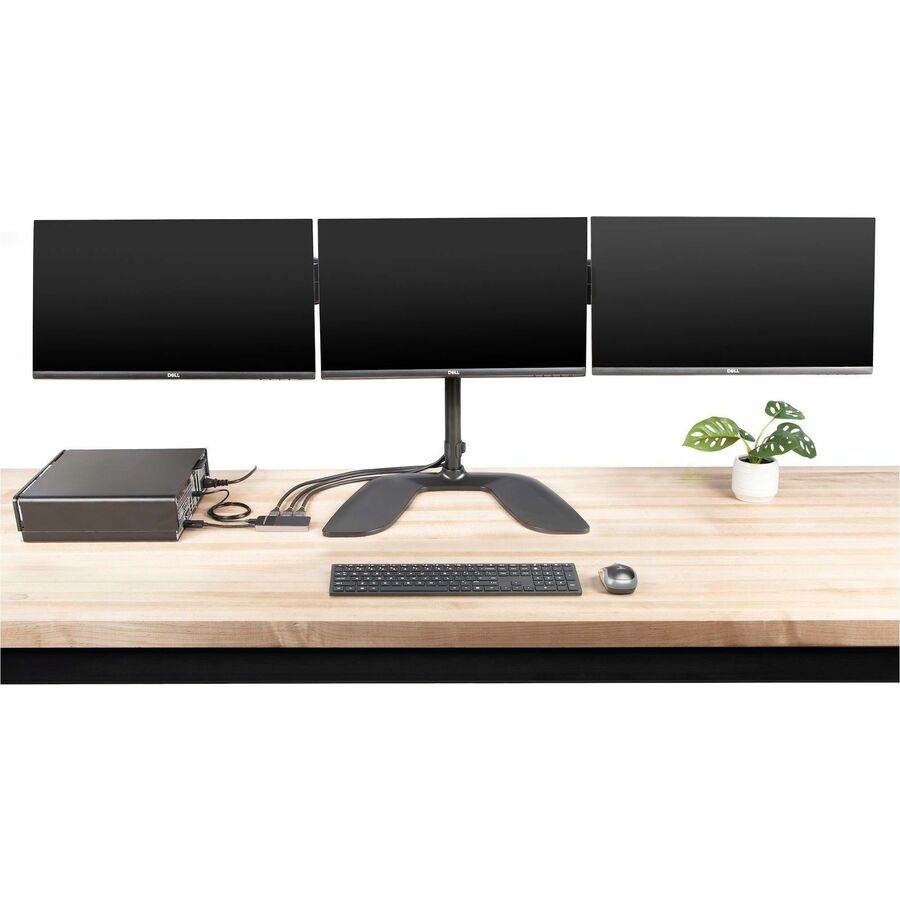

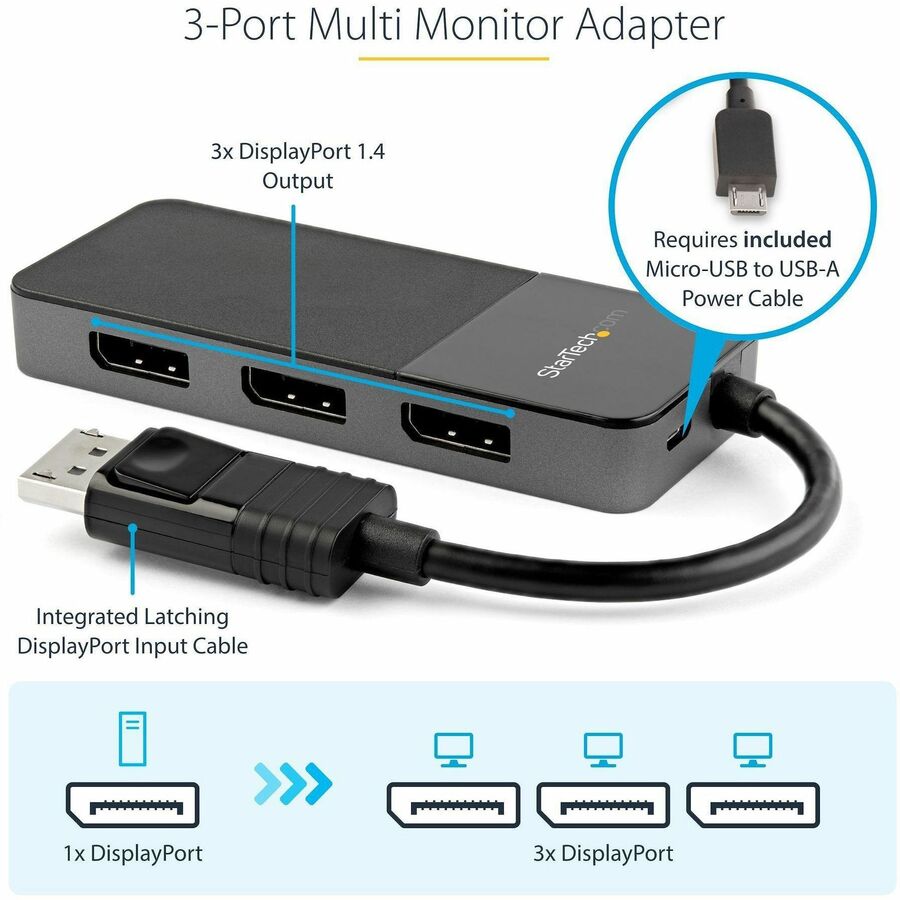

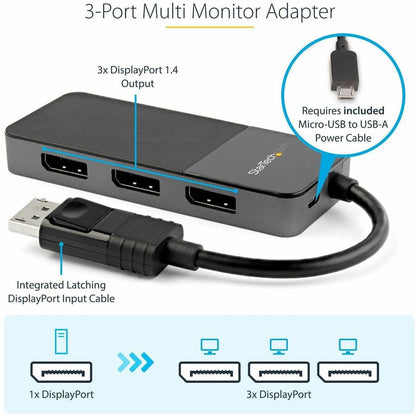

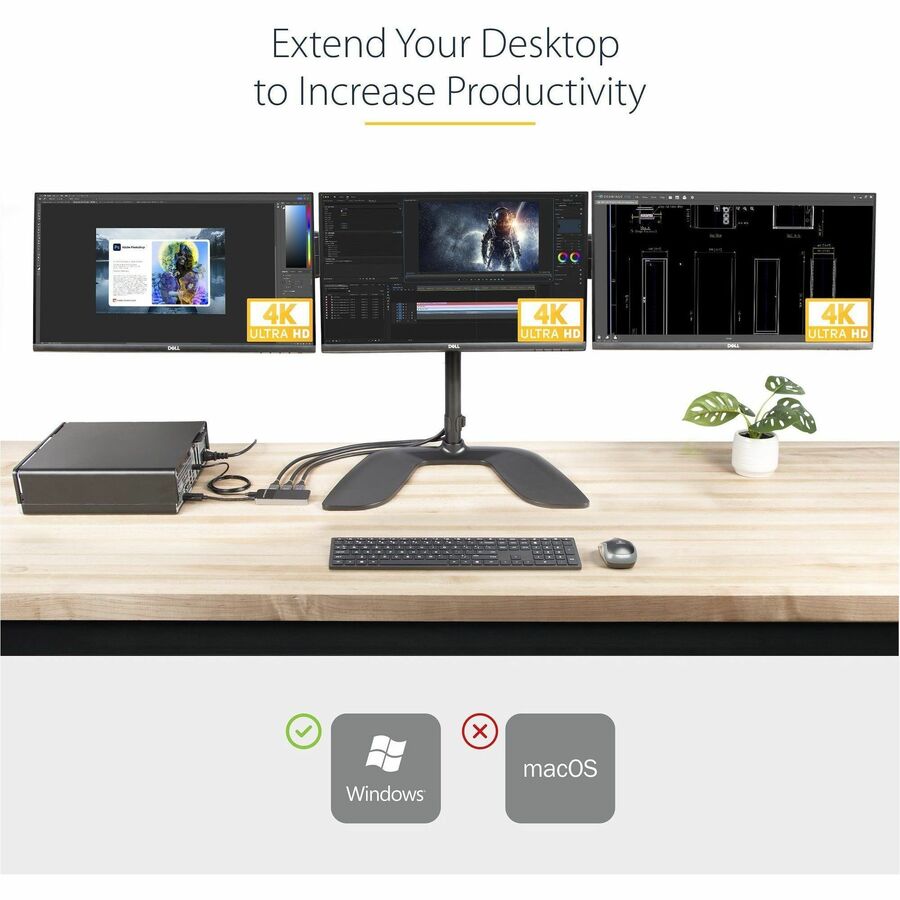

ThisDisplayPort to 3x DisplayPort MST hubenables you to connect three displays to yourDPcomputer, making multi-tasking much easier. Using thismulti-monitor video splitter, you can mirror your display onto multiple monitors,stream independent content to each displayor extendyour screen to create a video wall effect.
Hassle-Free Setup

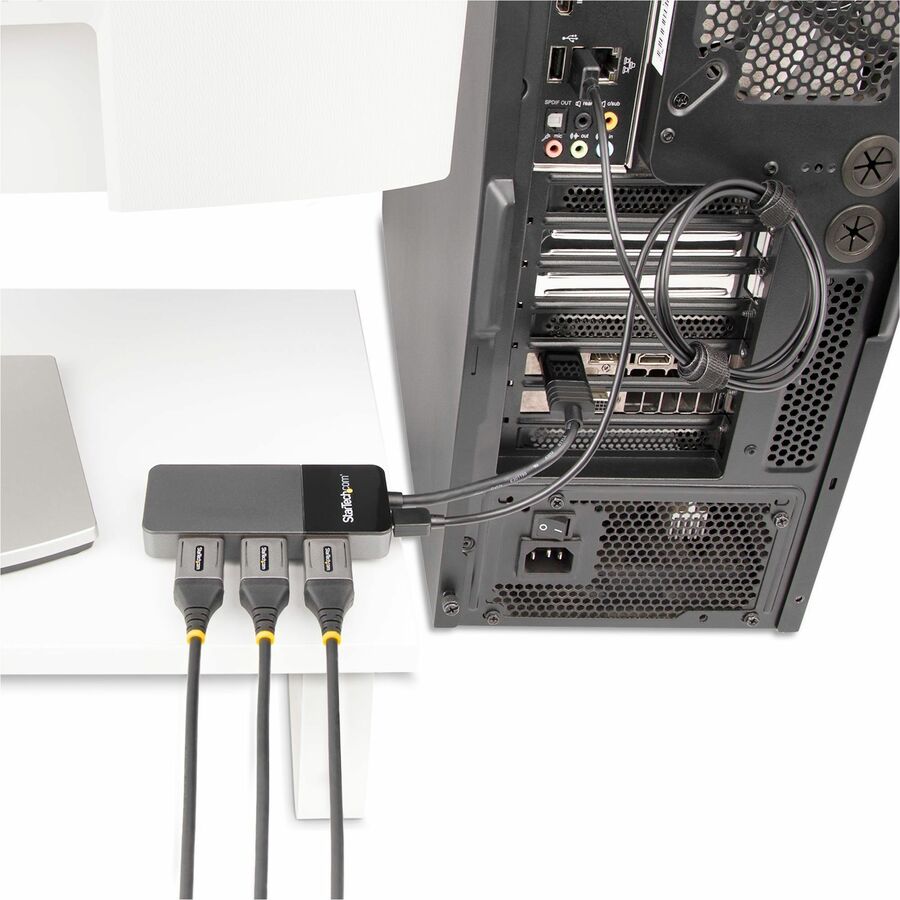

Multi-stream transportoffers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, theDisplayPort MST hubis bus-powered(with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.
MST14DP123DPis backed by a StarTech 3-year warranty, and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: MST14DP123DP
- Brand Name: StarTech
- Product Name: 3-Port DisplayPort MST Hub - DP 1.4
- Packaged Quantity: 1 Each
- Product Type: Signal Splitter
Technical Information
- Minimum Frequency: 30 Hz
- Maximum Frequency: 60 Hz
Video
- Maximum Video Resolution: 7680 x 4320
Interfaces/Ports
- DisplayPort: Yes
- USB: Yes
- Number of DisplayPort Inputs: 1
- Number of DisplayPort Outputs: 3
Media & Performance
- Maximum Operating Distance: 78.74"
Physical Characteristics
- Product Color: Black
- Product Material: Plastic
- Height: 0.6"
- Width: 4.1"
- Length: 1.7"
- Weight (Approximate): 1.94 oz
Miscellaneous

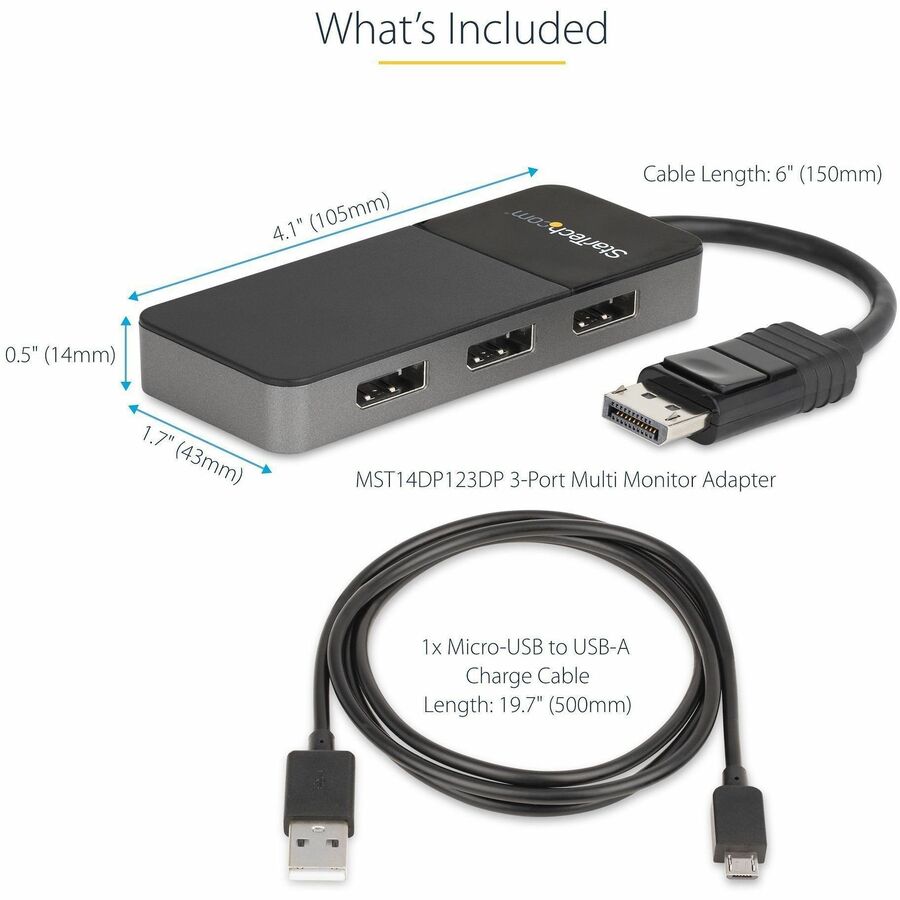

- Package Contents:
- 3-Port DisplayPort MST Hub - DP 1.4
- 1 x Micro-USB Power Cable
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 3 Year
