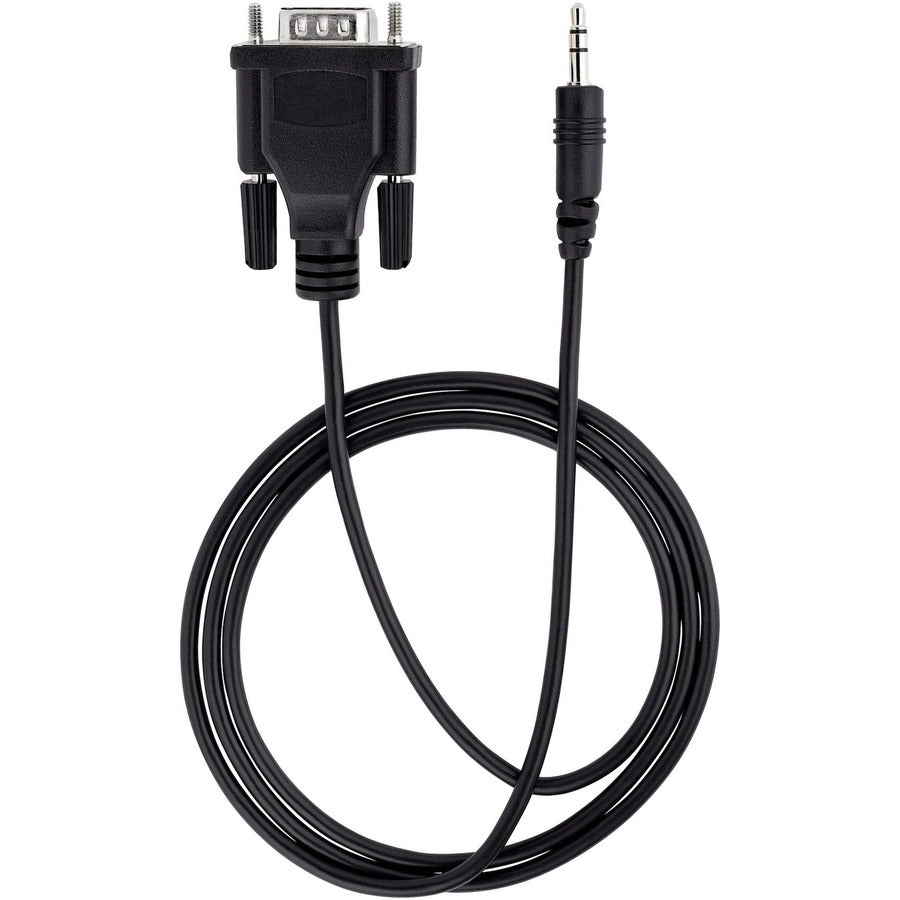

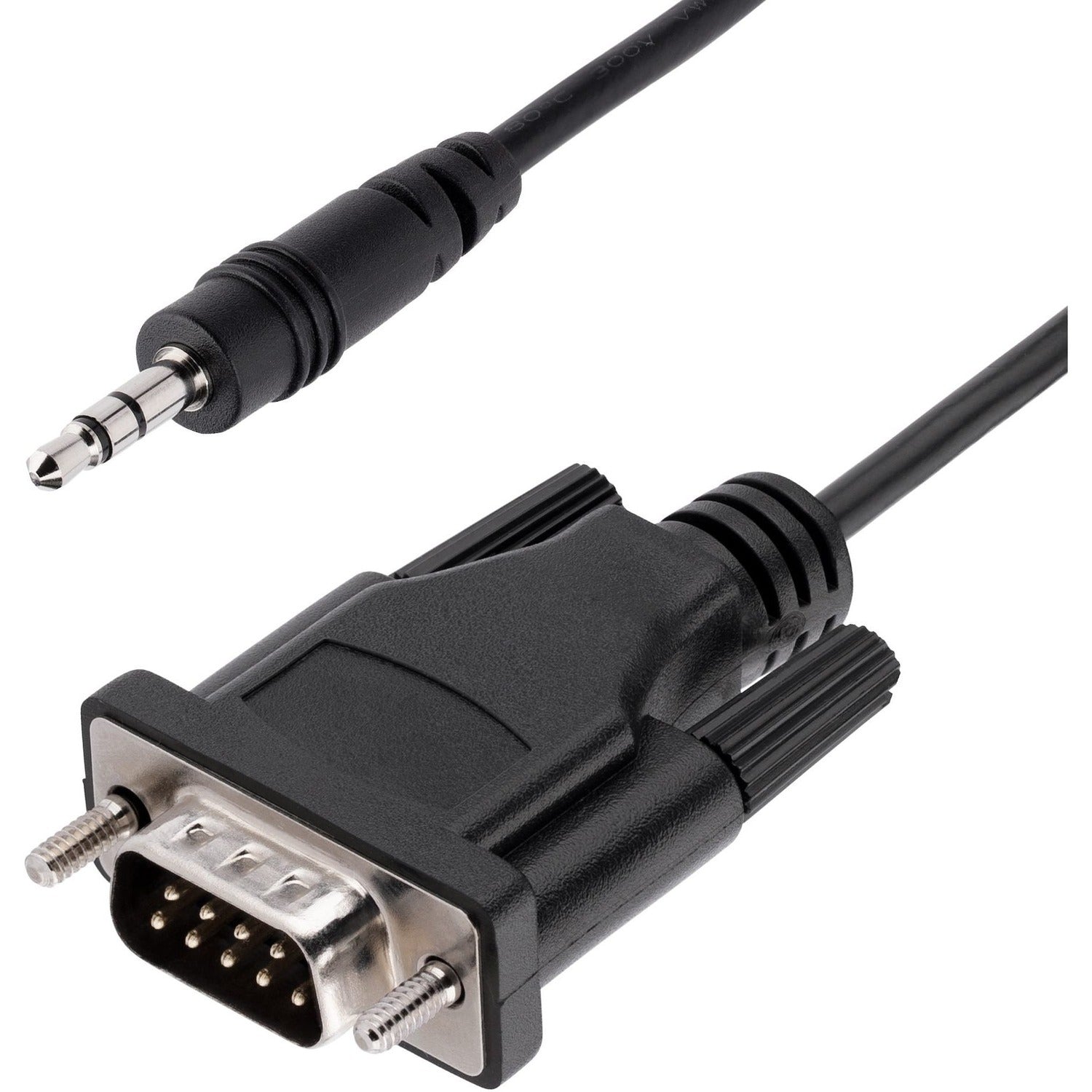

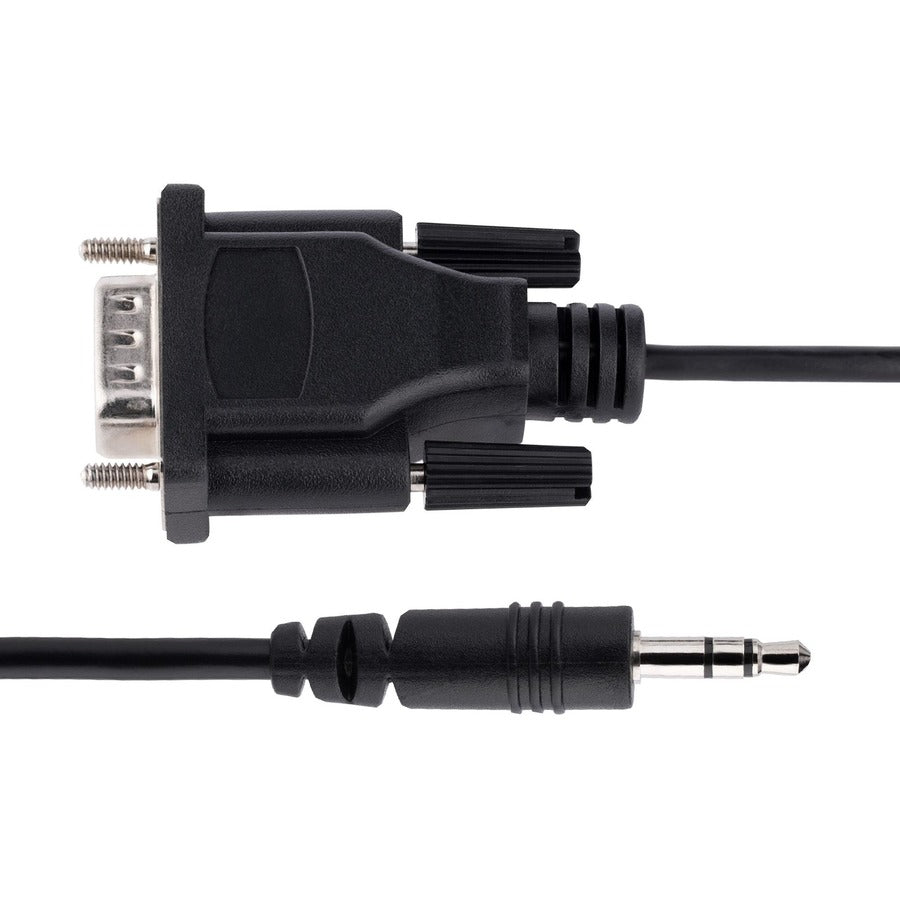

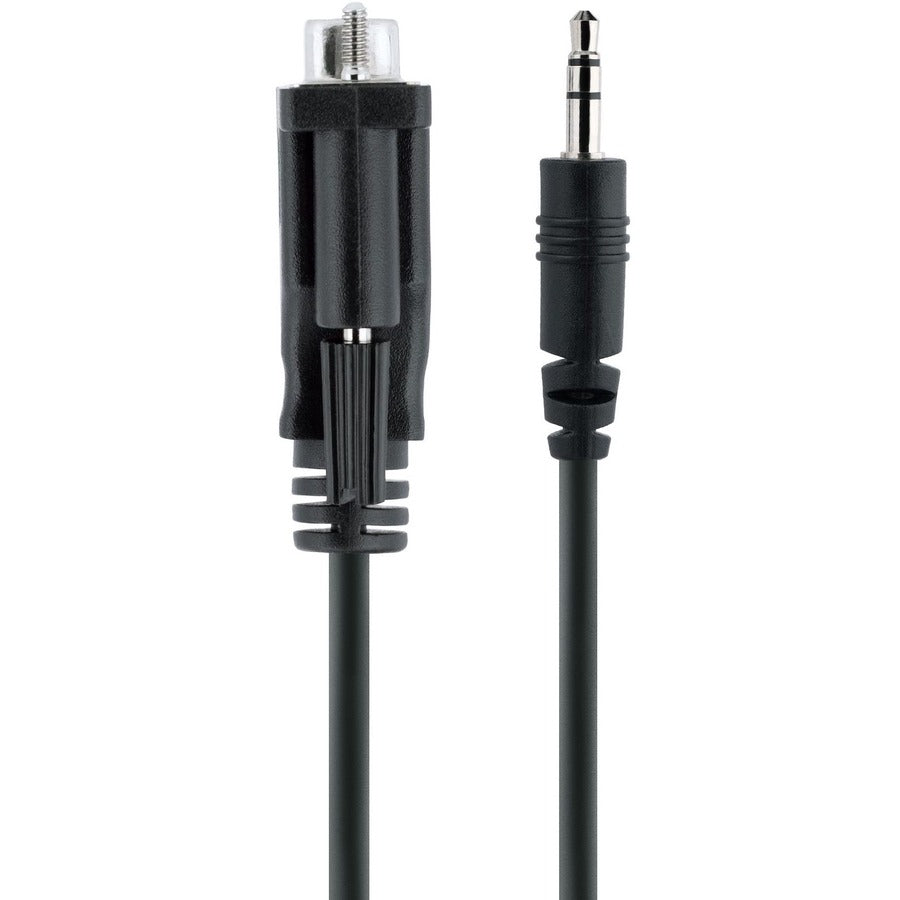

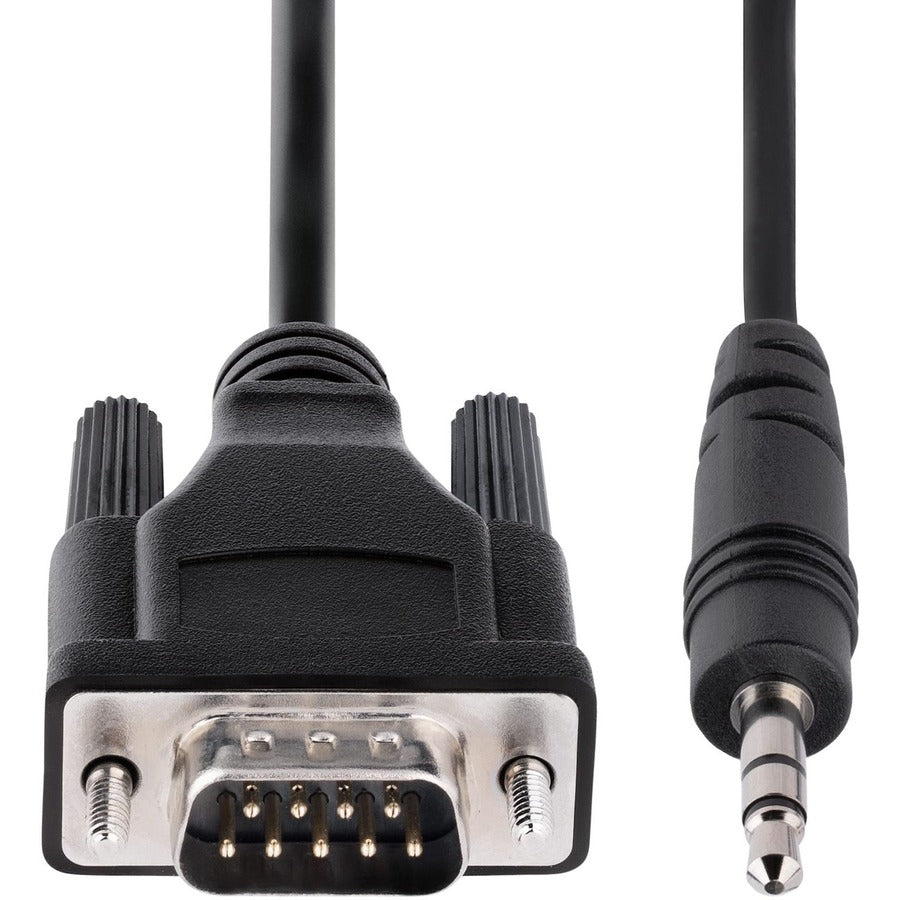

StarTech 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack - 9M351M-RS232-CABLE
Key Features
- Allows easy connection between devices and helps transfer data quickly with accuracy
- EMI Protection feature for better usability and increased efficiency
- Projector device supported for better reliance and optimal performance
Product Overview
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: 9M351MRS232CABLE
- Brand Name: StarTech
- Product Name: DB9 to 3.5mm RS232 Serial Cable
- Packaged Quantity: 1
- Product Type: Data Transfer Cable
Technical Information
- Cable Length: 3.28 ft
- Connector Type on First End: Mini-phone Stereo Audio - Male
- Connector on First End Details: 1 x Mini-phone Stereo Audio - Male
- Connector Type on Second End: DB-9 RS-232 Serial - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x 9-pin DB-9 RS-232 Serial - Male
- Connector Plating: Nickel
- Shielding: Yes
- Device Supported:
- Projector
- Digital Signage
- TV
- Audio Device
- Computer
- American Wire Gauge: 28 AWG
- Features:
- EMI Protection
- Molded
- Strain Relief
- Damage Resistant
- Strain Resistant
- Abrasion Resistant
- Screw Lock
- Bendable
Physical Characteristics
- Product Color: Black
- Product Material: Metal
- Connector Material: Polyvinyl Chloride (PVC)
- Shielding Material: Aluminum Mylar
- Jacket Material: Polyvinyl Chloride (PVC)
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
