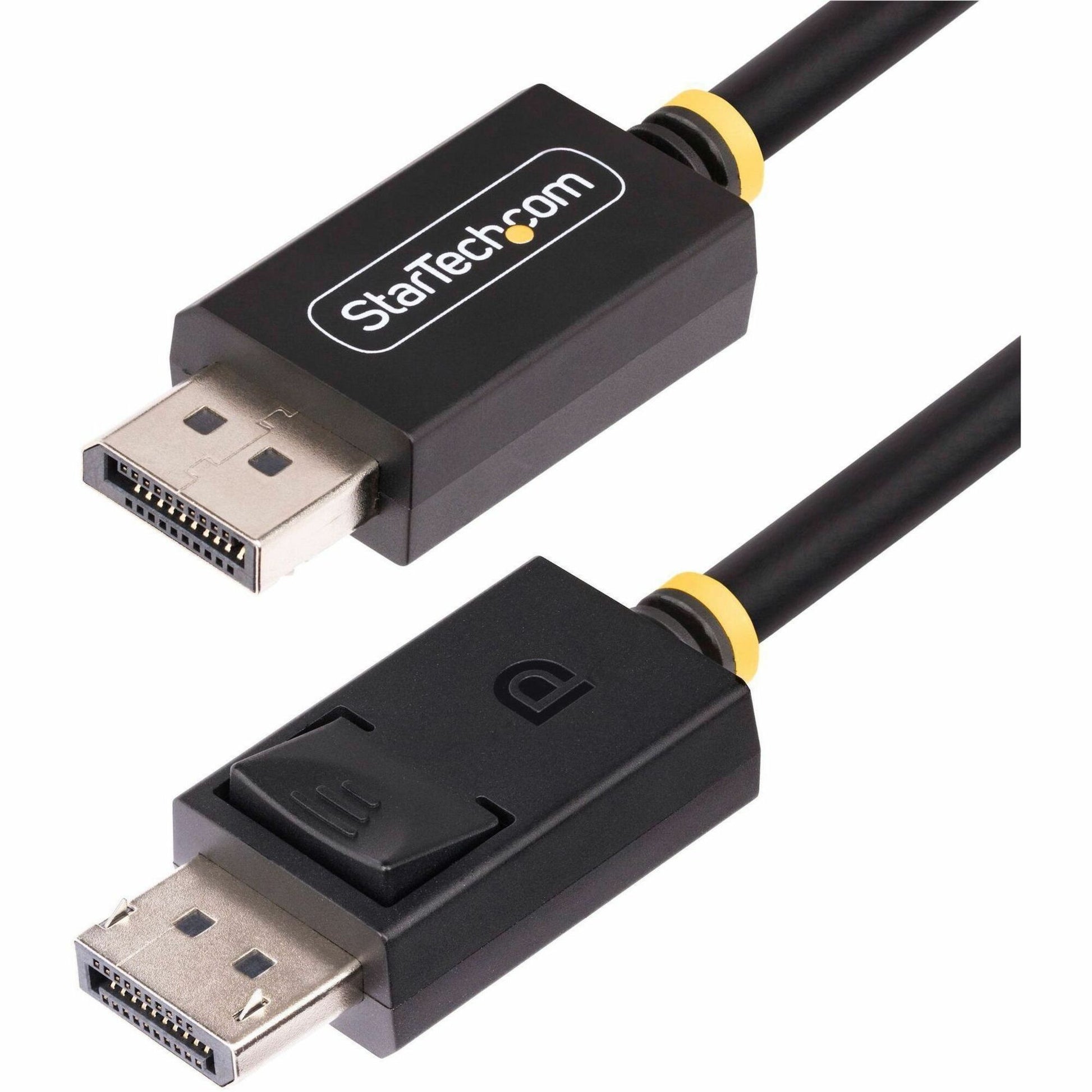

StarTech.com 3ft DisplayPort 2.1 Cable, VESA Certified DP40 DisplayPort Cable w/UHBR10/HDR/DSC 1.2a/HDCP 2.2, 8K 60Hz, DP 2.1 Cord - DP21-3F-DP40-CABLE
Key Features
- Features DisplayPort cable type for your convenience and desired usability
- Fully compatible with docking stations
- Passive feature for better usability and increased efficiency
- This a/v cable provides splendid performance and clear connectivity
Product Overview
Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.

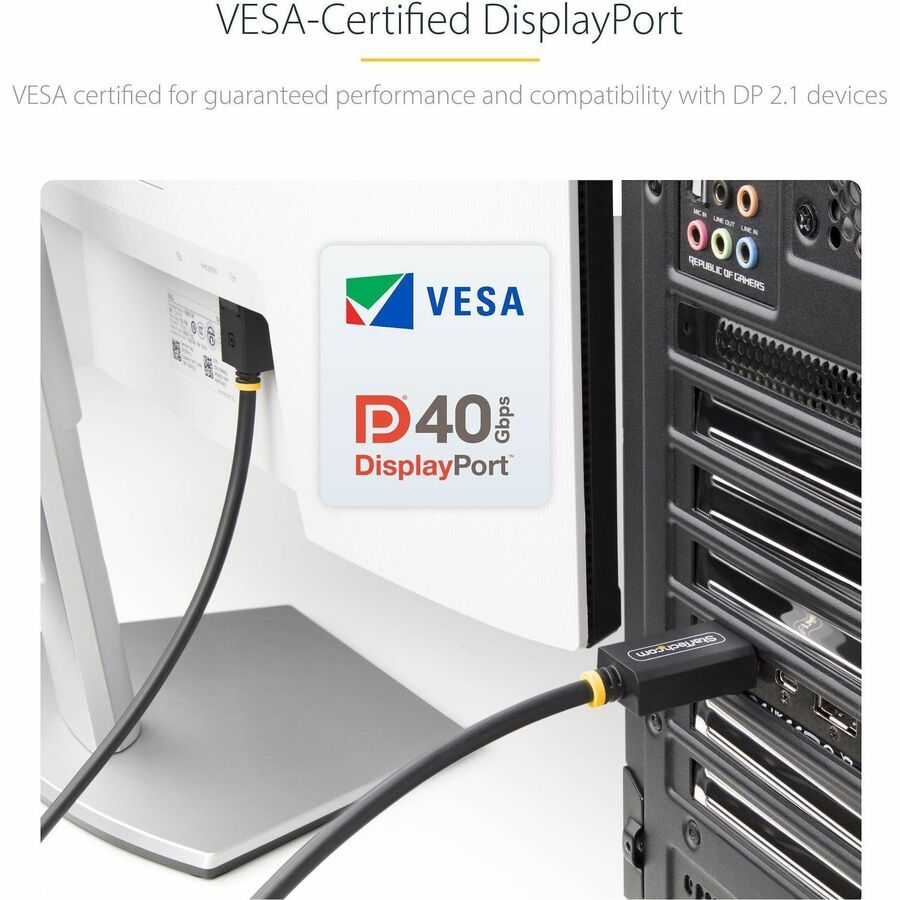

Seamless CompatibilityFor seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.

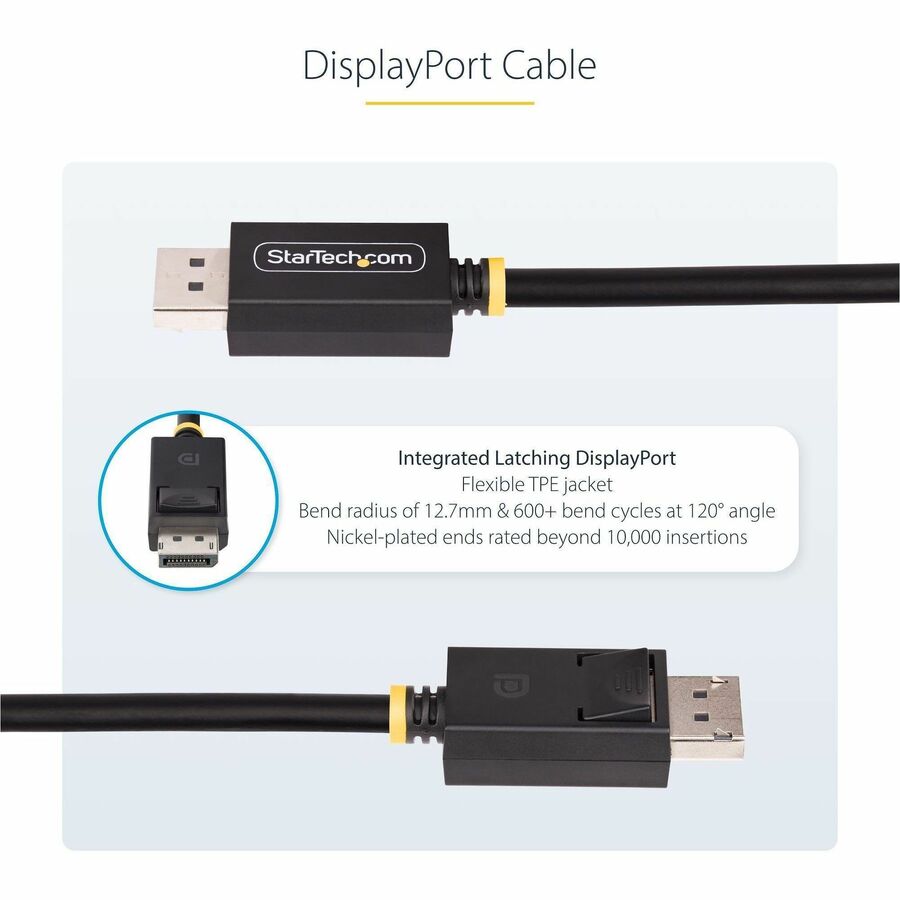

Durable DesignThis DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:

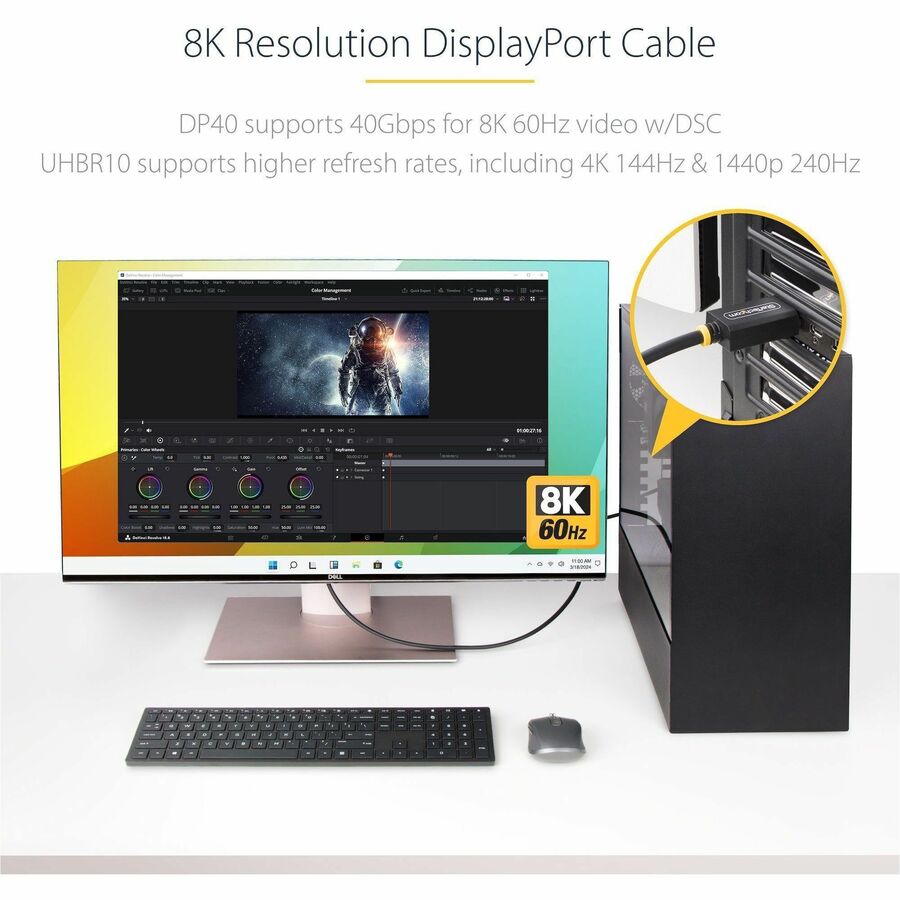

- Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
- UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
- High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
- High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
- Display Stream Compression (DSC) 1.2a for maximum resolution output
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- 32 Uncompressed Digital Audio Channels
- Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: DP21-3F-DP40-CABLE
- Brand Name: StarTech.com
- Product Name: DisplayPort Audio/Video Cable
- Packaged Quantity: 1
- Product Type: A/V Cable
Technical Information
- Cable Type: DisplayPort
- Cable Length: 3 ft
- Connector Type on First End: DisplayPort 2.1 Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x DisplayPort 2.1 Digital Audio/Video - Male
- Connector Type on Second End: DisplayPort 2.1 Digital Audio/Video - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x DisplayPort 2.1 Digital Audio/Video - Male
- Connector Plating: Nickel
- Shielding: Yes
- Jacket Type: VW-1
- Device Supported:
- Monitor
- Computer
- Workstation
- Audio/Video Device
- External GPU
- Display
- Docking Station
- Hub
- American Wire Gauge: 30 AWG
- Data Transfer Rate: 40 Gbit/s
- Supported Resolution: 7680 x 4320
- Features:
- Passive
- Braided
- HDR Support
- HDCP 2.2
- Multi-Stream Transport (MST) Support
- Variable Refresh Rate (VRR)
- Flexible
- Strain Relief
- Display Stream Compression (DSC) 1.2a
- HDR10 Support
- EMI Protection
- Latching Connector
- Durable
- Halogen Free
- Display Stream Compression (DSC)
- Display Stream Compression (DSC) 1.2
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Copper
- Shielding Material: Aluminum Mylar Foil
- Jacket Material: Thermoplastic Elastomer (TPE)
Miscellaneous
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
