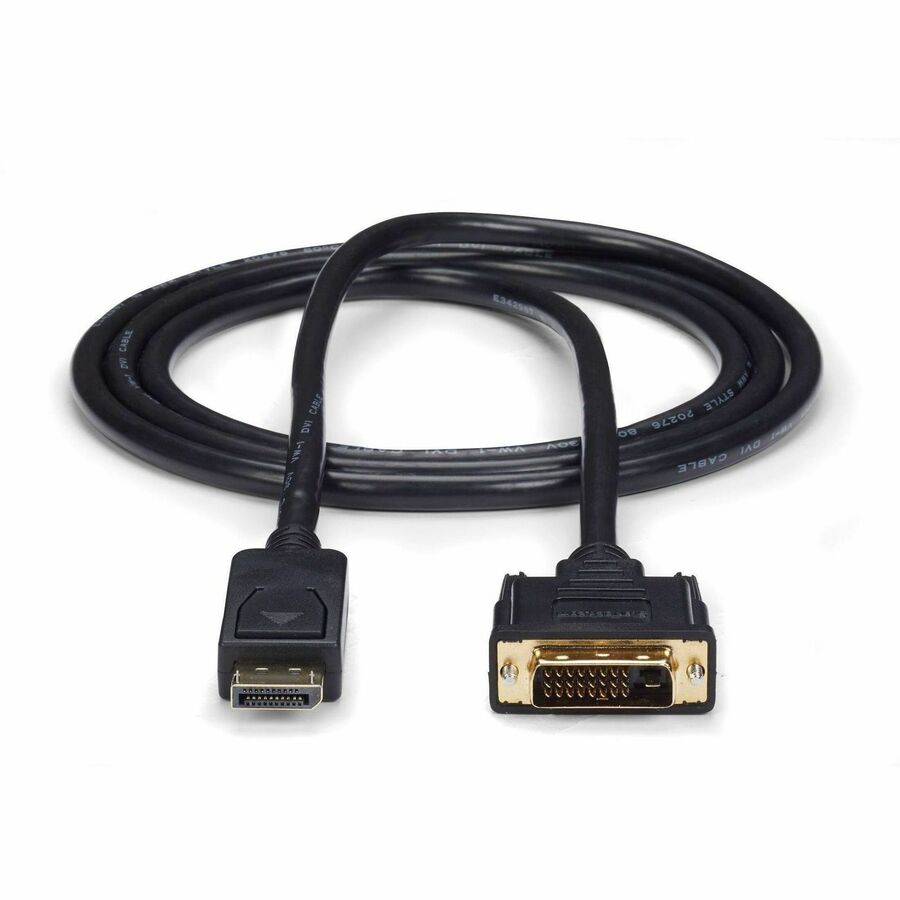

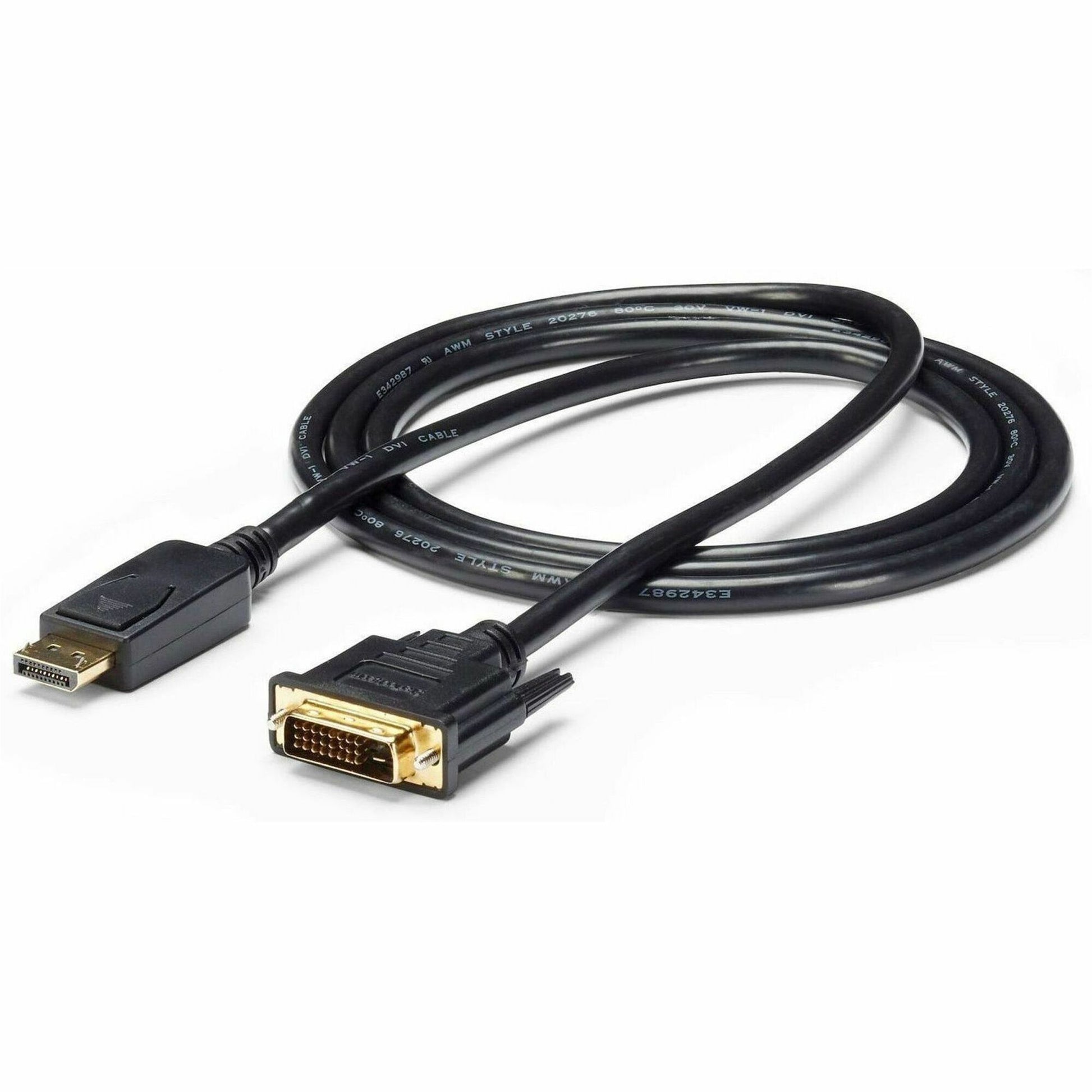

StarTech.com 6ft (1.8m) DisplayPort to DVI Cable, DisplayPort to DVI Adapter Cable, DP to DVI-D Converter, Replacement for DP2DVIMM6 - DP2DVI2MM6
Key Features
- COMPATIBILITY: Passive video converter supports DP++ sources including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- DISPLAYPORT TO DVI CABLE: 6ft (1.8m) DisplayPort 1.2 (HBR2) to DVI-D single-link cable connects a DVI display, monitor or projector
- 1920x1200/1080p 60Hz or 4K 30Hz (HDMI clock rate); HDCP 1.4
- EDID ensures compatibility between source & display
- EASY TO USE: With no software or drivers required, the DP to DVI cable/cord works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI male cable
- INTEGRATED DISPLAY CABLE: DisplayPort to DVI adapter cable has slim & flexible design w/ adapter chip built into DVI connector reducing clutter & providing a tidy install in the office, boardroom or home office
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector & gold plated DVI connector ensure solid connection; Chip built into DVI connector minimizes signal loss
- Supports DVI screw locking cable to prevent cable accidental disconnection
Product Overview

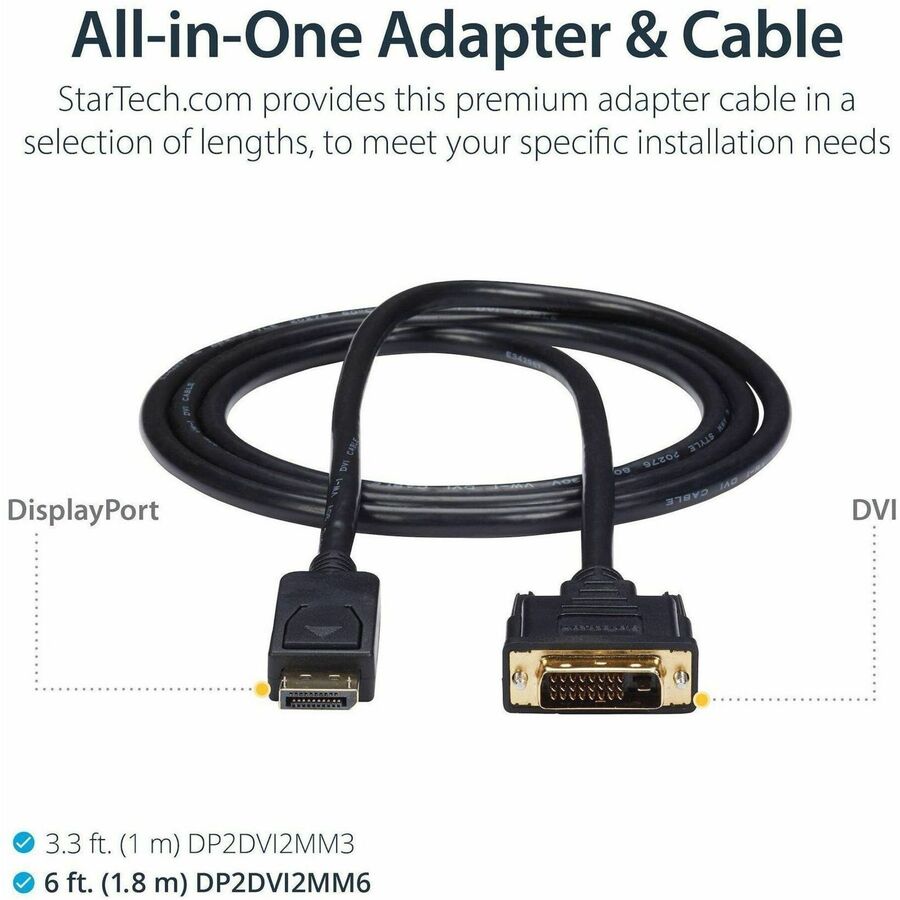

The DP2DVI2MM6 6 ft DisplayPort® to DVI Adapter Cable lets you connect a DVI Display or Projector to a DisplayPort video card/source. Providing a connection distance of 6ft, the cable features male DVI and DisplayPort connectors, allowing you to make a direct video card-to-display connection, as opposed to having to use an adapter with a separate cable.The DP to DVI cable is a convenient, cost-effective solution for taking full advantage of your DVI display, without the expense of upgrading to a DisplayPort monitor. The cable offers high quality construction and supports high bandwidth video resolutions up to 1920x1200 or HDTV resolutions up to 1080p.
DP2DVI2MM6 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port. Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: DP2DVI2MM6
- Brand Name: StarTech.com
- Product Name: 6 ft DisplayPort to DVI Cable - M/M
- Packaged Quantity: 1 Each
- Product Type: Video Cable Adapter
Technical Information
- Cable Type: DisplayPort/DVI
- Cable Length: 6 ft
- Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End: DVI-D Digital Video - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x 25-pin DVI-D Digital Video - Male
- Connector Plating: Gold
- Device Supported:
- Video Device
- Projector
- HDTV
- Monitor
- Workstation
- Desktop Computer
- Notebook
- Docking Station
- Supported Resolution: 1920 x 1200
- Features:
- HDCP 1.4
- Extended Display Identification Data (EDID)
- Flexible
- Latching Connector
- Screw Lock
- Passive
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.32 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: Vietnam
Warranty
- Limited Warranty: 3 Year
