StarTech HDMI Signal Booster - HDMI Video Signal Amplifier - 115 ft - 1080p - HDBOOST
Key Features
- Discreet installation with a small form factor and no external power adapter
- Maintain high-definition resolutions up to 1080p
- Mounting hardware included
- Supports 7.1 surround sound audio
- Works at varying distances up to 115 ft. with a built-in equalization switch
Product Overview
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m)away, using standard HDMI cables. You can place the booster inline betweentwo HDMI cables,up to 82ft. in length at the video input, and up to 33ft. in lengthat the video output.
Discreet installation
With its small formfactor,the HDMI booster is easy to hide, for a discreet installation. You don't need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative tomore expensiveHDMI extension systems that require theinstallation ofCAT5 or CAT6 cabling infrastructure.
Compatible with varying distances

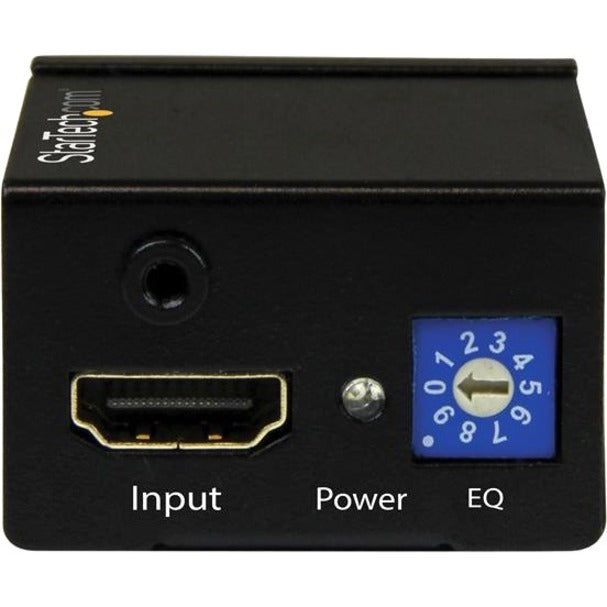

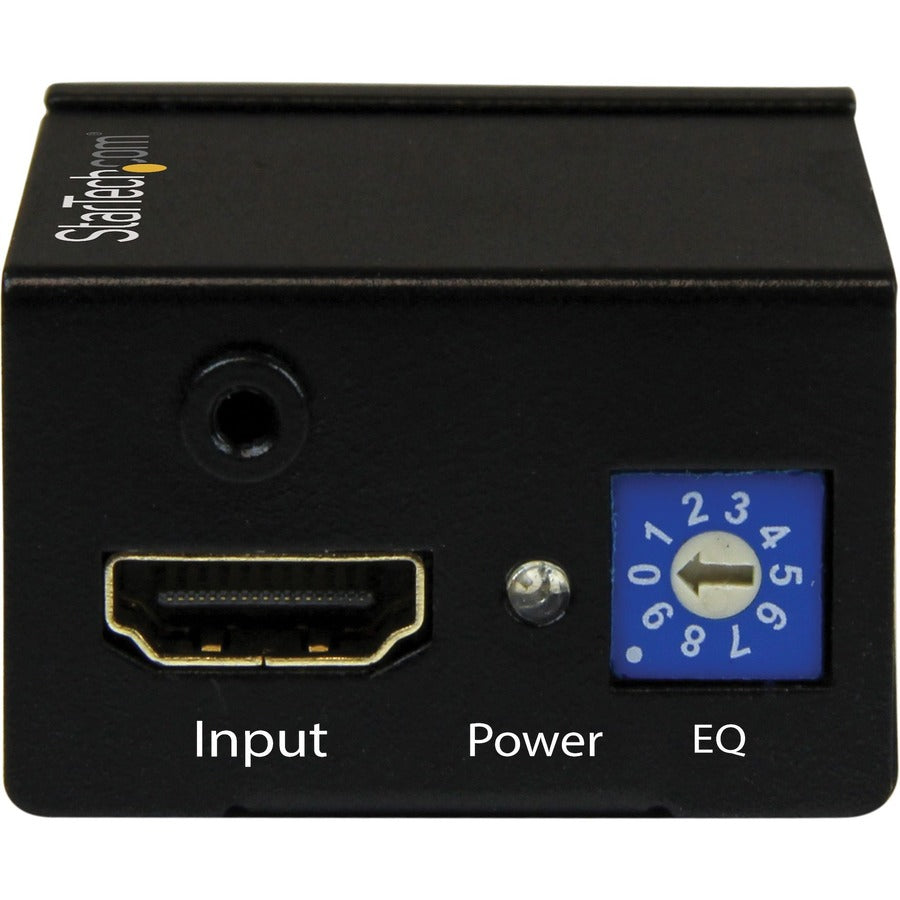

The HDMI booster featuresan equalizationswitch with ten different levels. The equalization switch lets you adjust the amplification of your HDMIsignal based on the distance of your cables, so that you can ensure your HDMI signal will be perfecteven at distances up to 115ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Usingthe HDMI signal booster ensures that you'll still be able to depend on high-definitionresolutions up to 1080p at 60Hz.
The HDBOOST is backed by a 2-year StarTech warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: HDBOOST
- Brand Name: StarTech
- Product Name: HDMI Signal Booster - HDMI Video Signal Amplifier - 115 ft - 1080p
- Packaged Quantity: 1 Each
- Product Type: Signal Amplifier
Video
- Maximum Video Resolution: 1920 x 1080
Interfaces/Ports
- HDMI In: Yes
- HDMI Out: Yes
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 1
Media & Performance
- Maximum Operating Distance: 115 ft
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- Height: 1"
- Width: 1.7"
- Length: 2.1"
- Weight (Approximate): 2.60 oz
Miscellaneous
- Package Contents:
- HDMI Signal Booster - HDMI Video Signal Amplifier - 115 ft - 1080p
- 2 x Mounting Brackets
- 4 x Mounting Screws
- 1 x Screwdriver
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 2 Year
