StarTech PCI to PCI Express Adapter Card - PCI1PEX1
Key Features
- Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
- Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
- No driver or software installation
- PCI revision 2.3 compliant with up to 133MBps of available bandwidth
- Works with Universal Voltage PCI Slots (5V and 3.3V & 5V)
Product Overview

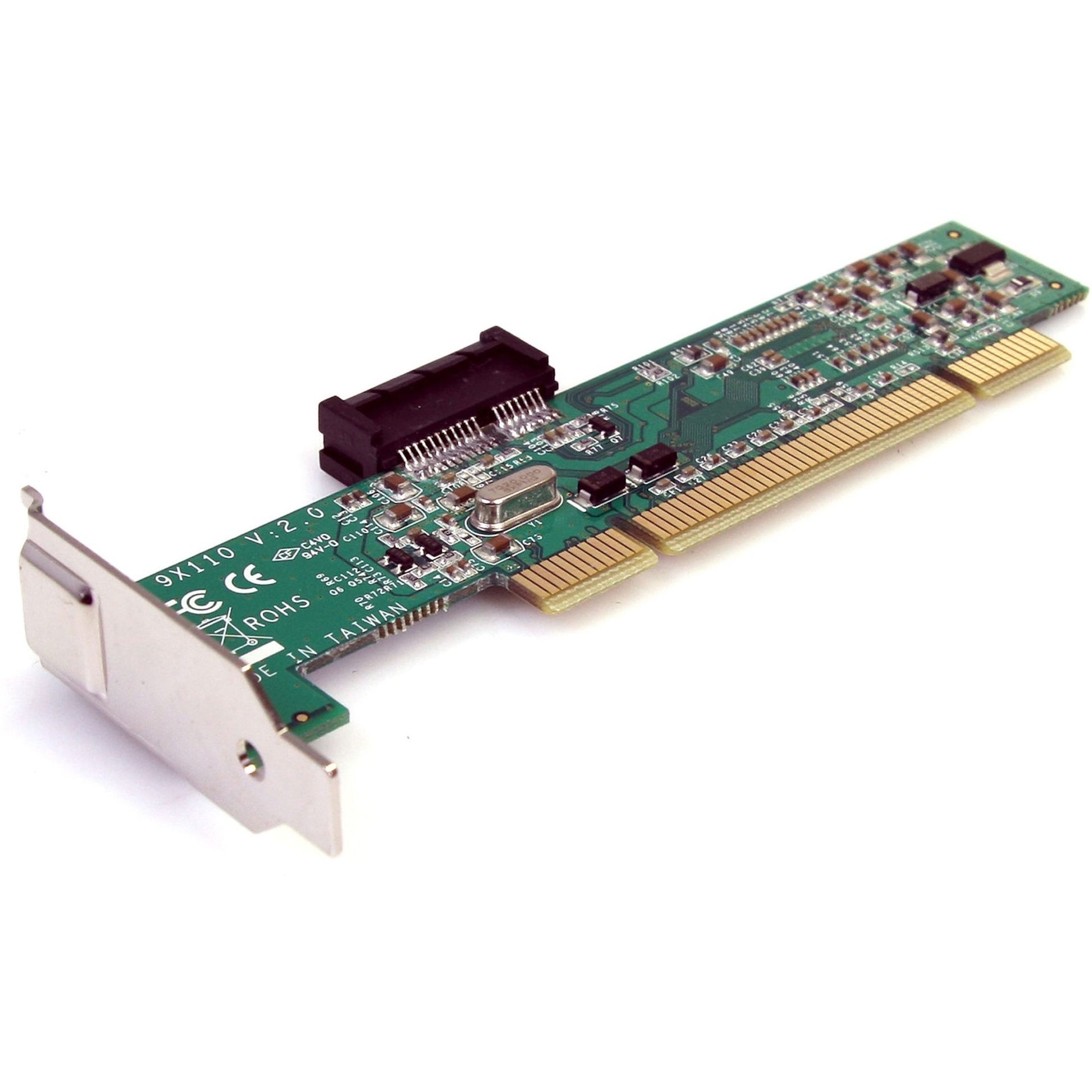

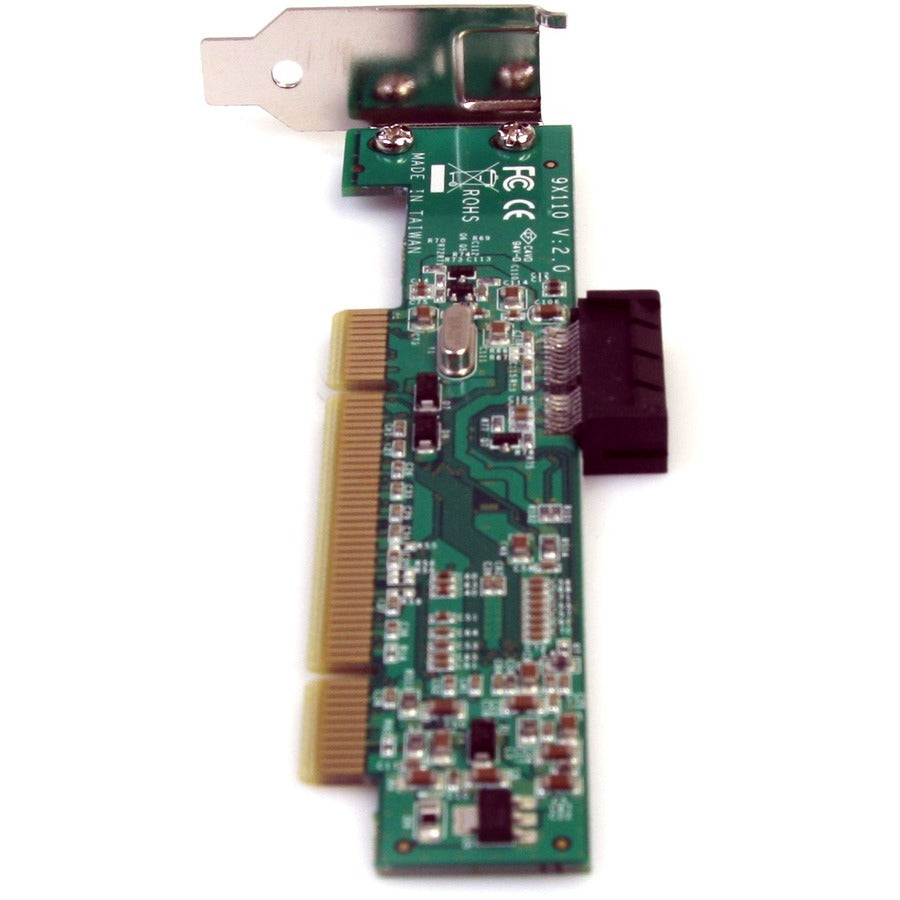

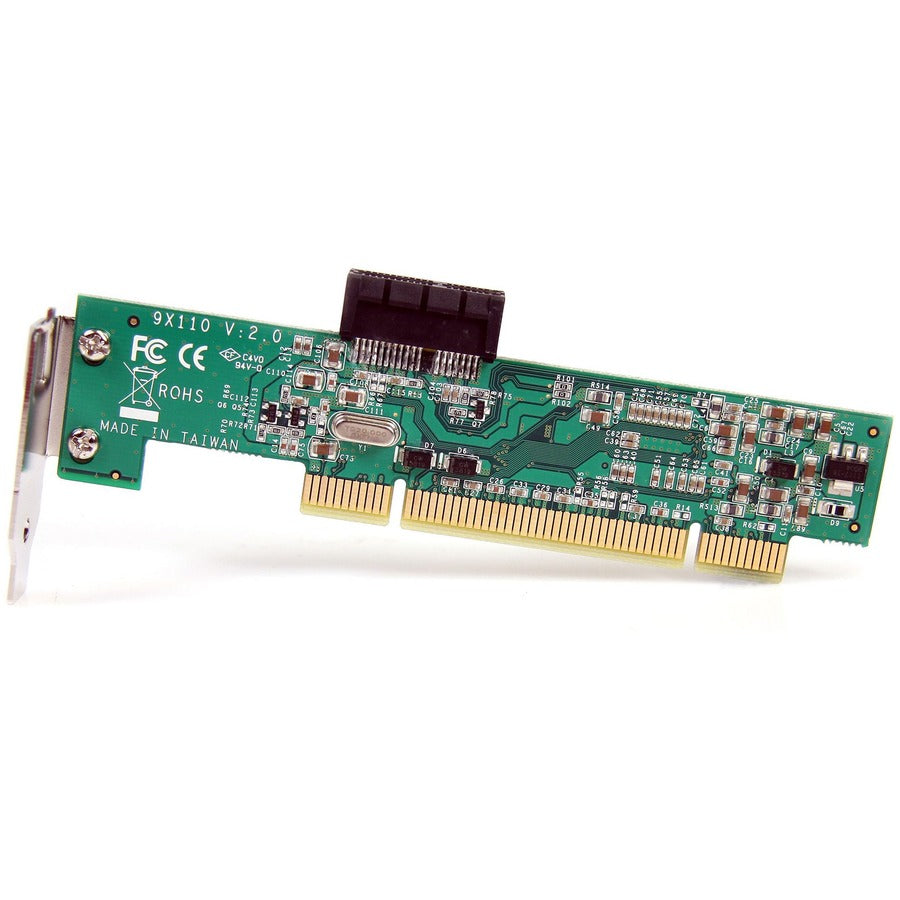

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

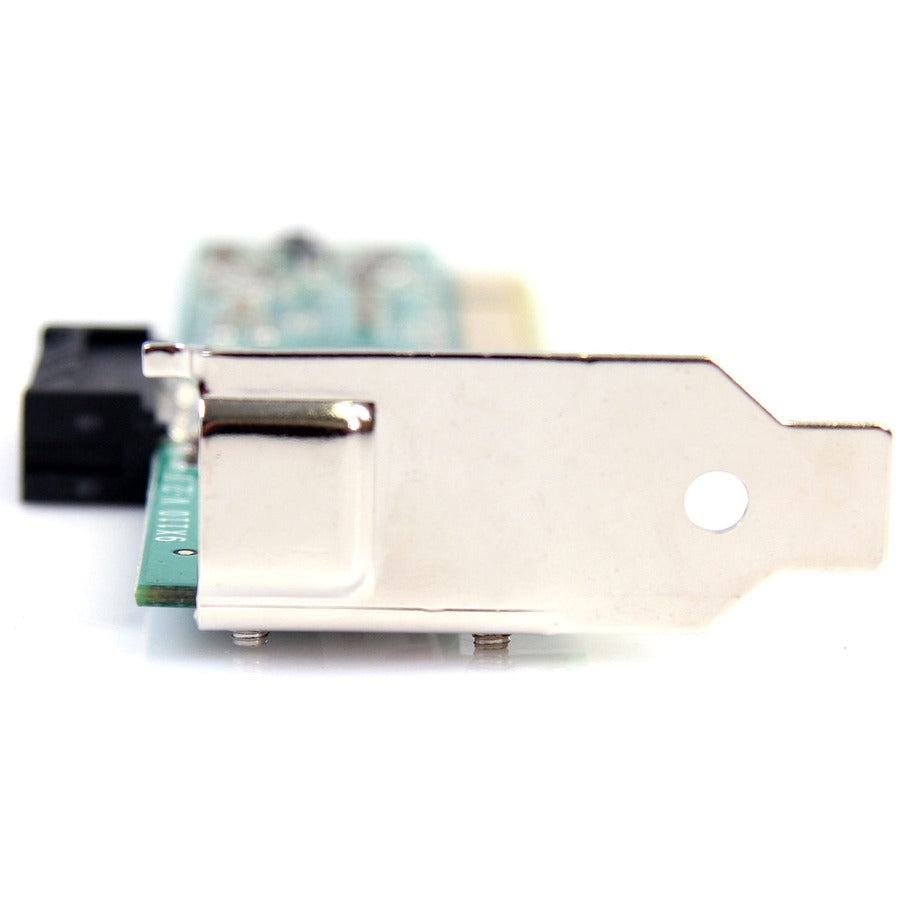

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: PCI1PEX1
- Brand Name: StarTech
- Product Model: PCI1PEX1
- Product Name: PCI to PCI Express Adapter Card
- Product Type: Riser Card
Technical Information
- Host Interface: PCI
I/O Expansions
- Total Number of Expansion Slots: 1
- Expansion Slot Type: PCI Express (Low-profile)
Physical Characteristics
- Height: 0.8"
- Width: 2.4"
- Depth: 5.3"
- Thickness: 790 mil
- Weight (Approximate): 1.13 oz
Miscellaneous
- Package Contents:
- PCI to PCI Express Adapter Card
- 1 x Spare Full Profile Bracket
- 1 x Instruction Manual
- Country of Origin: Taiwan
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 2 Year
