StarTech VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender - ST121UTPEP
Key Features
- Extends video signal by up to 250 ft. (80m)
- Kit consists of 1 Base unit and 1 Remote unit
- Mounting bracket included
- Pure hardware design - no software or drivers required
- Single power adapter can be connected at local or remote end of the extension
- Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
- Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
- Uses standard Cat 5 or better cabling
Product Overview

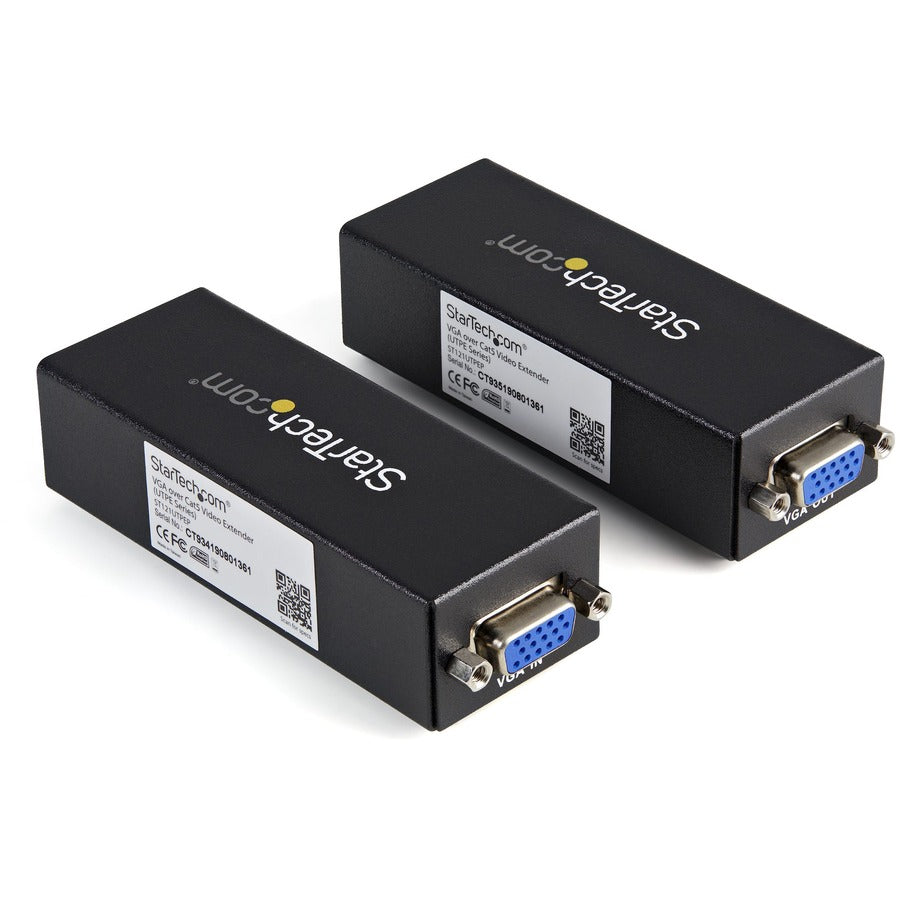

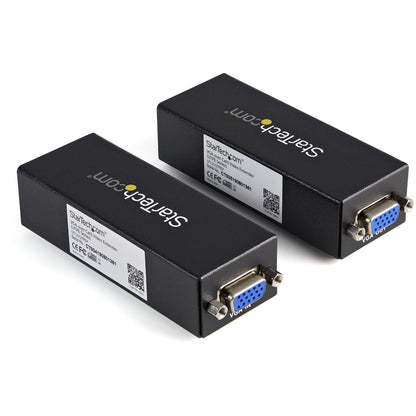

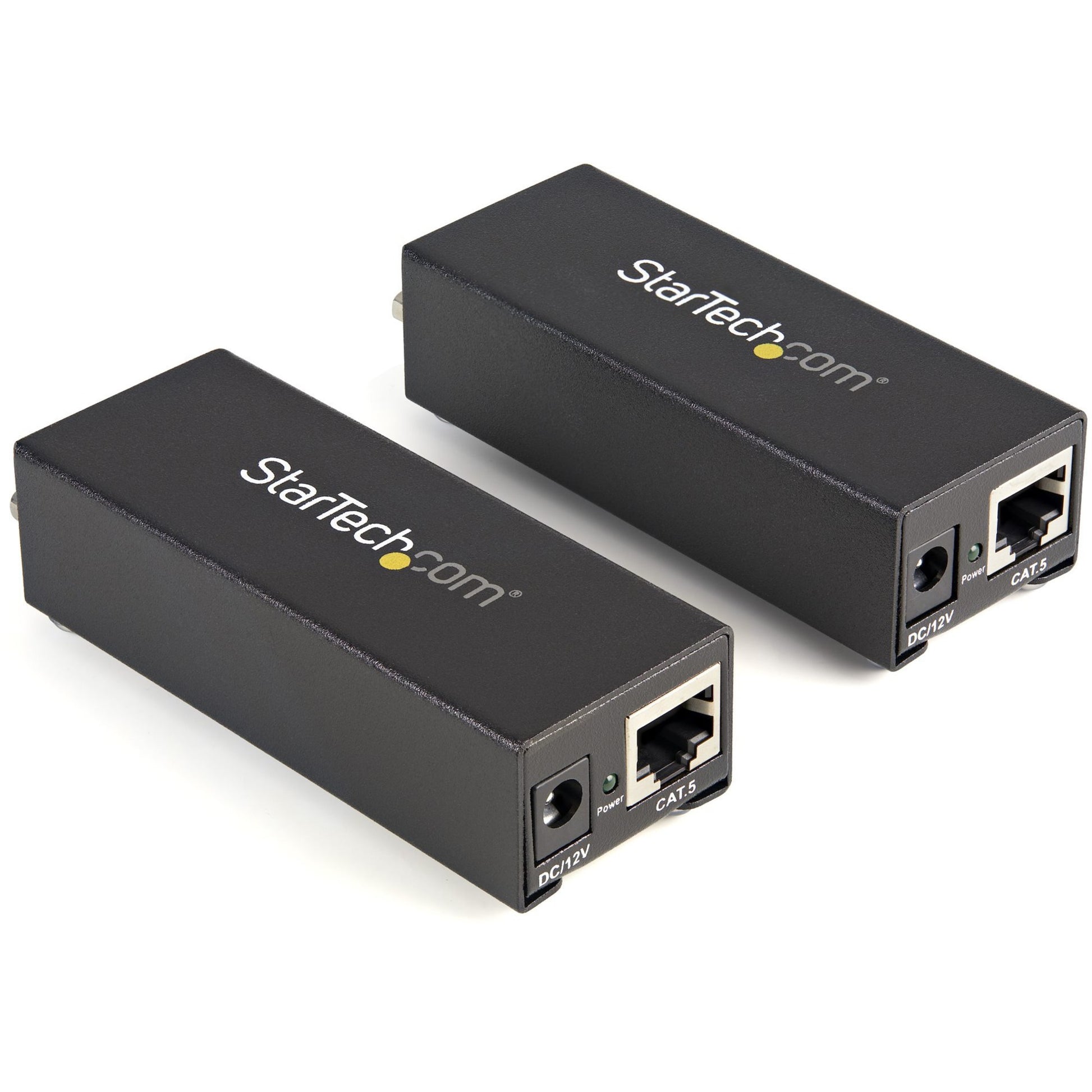

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ST121UTPEP
- Brand Name: StarTech
- Product Name: VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
- Packaged Quantity: 1 Kit
- Product Type: Video Extender Transmitter/Receiver
Technical Information
- Connectivity Technology: Wired
- Number of Input Devices Supported: 1
- Number of Output Devices Supported: 1
- Maximum Operating Distance: 262.47 ft
Video
- Graphics Modes: WUXGA
- Maximum Video Resolution: 1920 x 1200
Interfaces/Ports

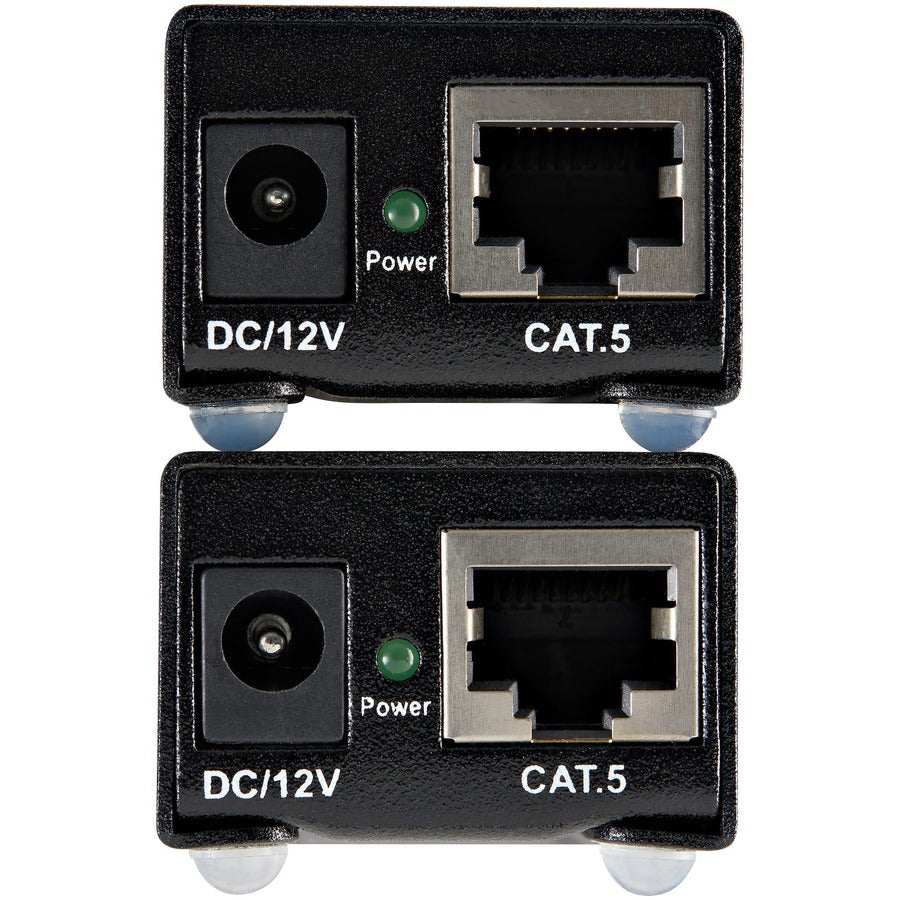

- Network (RJ-45): Yes

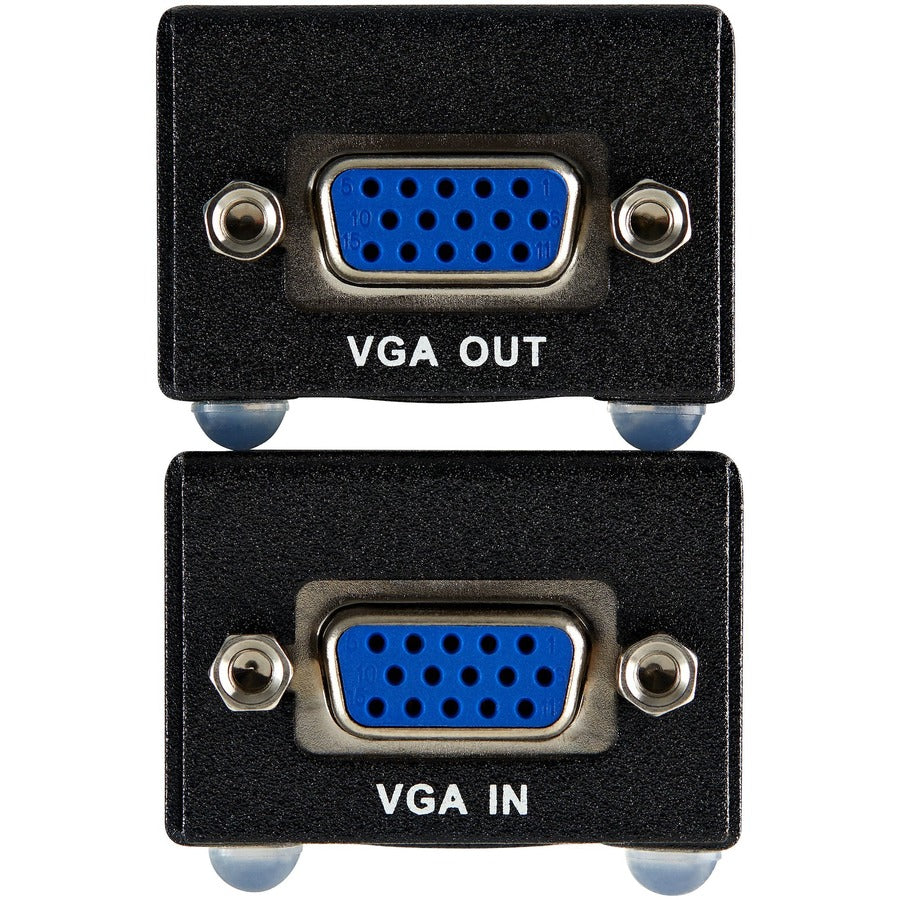

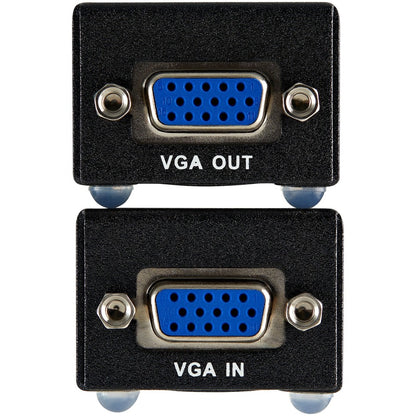

- VGA In: Yes
- VGA Out: Yes
- Number of Network (RJ-45) Ports: 2
- Number of VGA Inputs: 1
- Number of VGA Outputs: 1
Media & Performance
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 5e
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Transmitter Height: 1"
- Transmitter Width: 5.40"
- Transmitter Depth: 3.90"
- Receiver Height: 1"
- Receiver Width: 5.40"
- Receiver Depth: 3.90"
- Transmitter Weight (Approximate): 9.28 oz
- Receiver Weight (Approximate): 9.28 oz
Miscellaneous

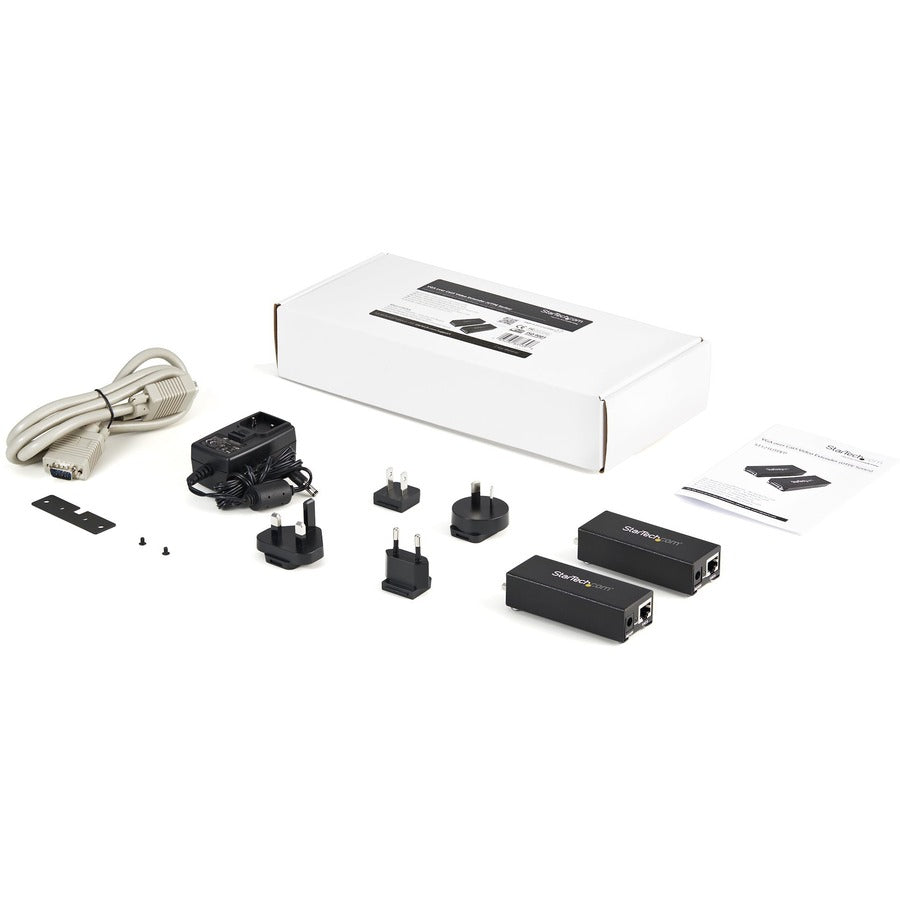

- Package Contents:
- 1 x VGA over Cat5 Transmitter
- 1 x VGA over Cat5 Receiver
- 1 x Installation Bracket (w/ screws)
- 1 x VGA Cable
- 1 x Universal Power Adapter (NA/UK/EU/AUS)
- 1 x Instruction Manual
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: 2 Year
