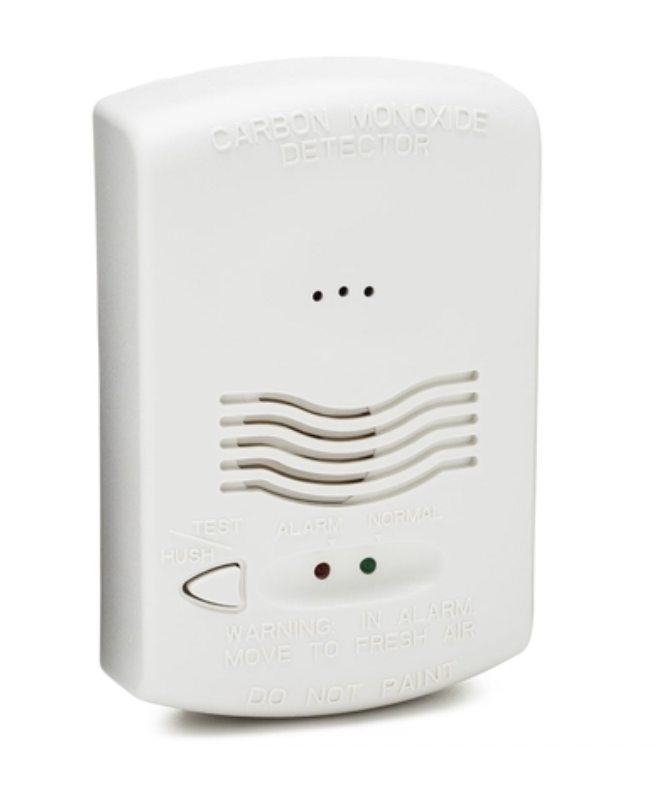

System Sensor CO1224T Carbon Monoxide Detector

System Sensor CO1224T Carbon Monoxide Detector

SKU: CO1224T

Regular price $114.99 USD
Regular price $139.99 USD Sale price $114.99 USD
Sale Sold out

 46 in stock

View full details

System Sensor CO1224T Carbon Monoxide Detector

The System Sensor CO1224T is a carbon monoxide detector equipped with RealTest® technology, allowing for functional testing using canned CO gas. Featuring a highly accurate electrochemical sensing cell, the CO1224T provides early warning of dangerous carbon monoxide levels while offering full compliance with code-required safety features.

Key Features:
• RealTest® allows functional testing with CO gas
• Code-required trouble relay for sensor failure or end-of-life
• SEMS terminals with Philips-head screws for wiring supervision
• Compatible with 12/24 VDC systems
• Low current draw for efficient system integration
• Mounts easily to wall or ceiling
• Reliable electrochemical CO sensing
• Integrated 10-year end-of-life timer

Ideal For:
Security and fire alarm systems requiring code-compliant carbon monoxide detection, particularly in residential or light commercial environments with 24/7 central station monitoring.

Why You Should Use This:
The CO1224T delivers dependable life safety protection with minimal current draw, intuitive wiring, and the added assurance of RealTest® functionality to verify sensor performance on-site.

Key Highlights:
• Functional CO testing using RealTest® mode
• Low-profile design with flexible installation
• Works with most industry-standard fire/security control panels

Frequently Asked Questions:
Q: How do I test the detector?
A: Enter RealTest® mode and apply a CO test agent. The alarm will sound within seconds.

Q: What is the detector's lifespan?
A: It includes a built-in 10-year end-of-life timer.

Q: Is it compatible with fire and security panels?
A: Yes, it works with most 12/24VDC control panels on the market.

Technical Specifications:

Audible Signal: 85dB in alarm

Standby Current: 20mA

Alarm Current: 40mA

Alarm Contact Ratings: 0.5A @ 30VDC

Trouble Contact Ratings: 0.5A @ 30VDC

Operating Temperature Range: 32°F to 104°F

Operating Humidity Range: 22 to 90% RH

Input Terminals: 14 to 22 AWG

Dimensions: 3.3" W × 1.3" H × 5.1" L

Weight: 7 oz
