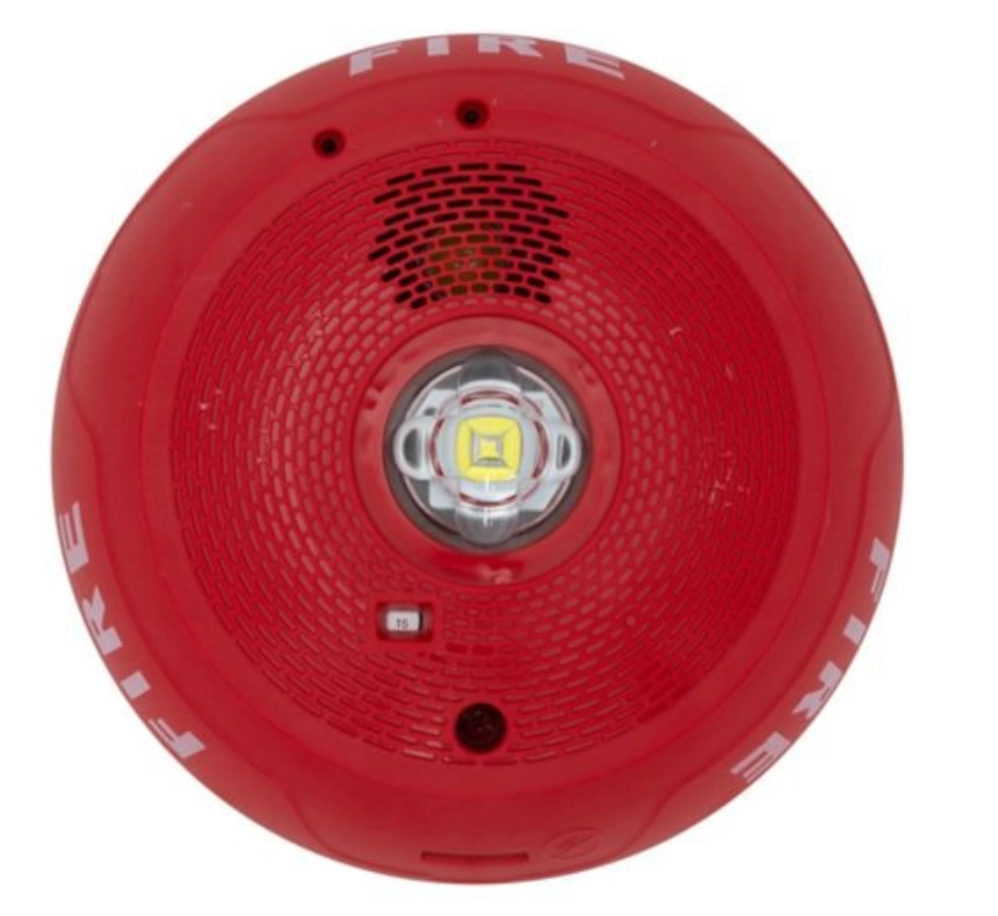

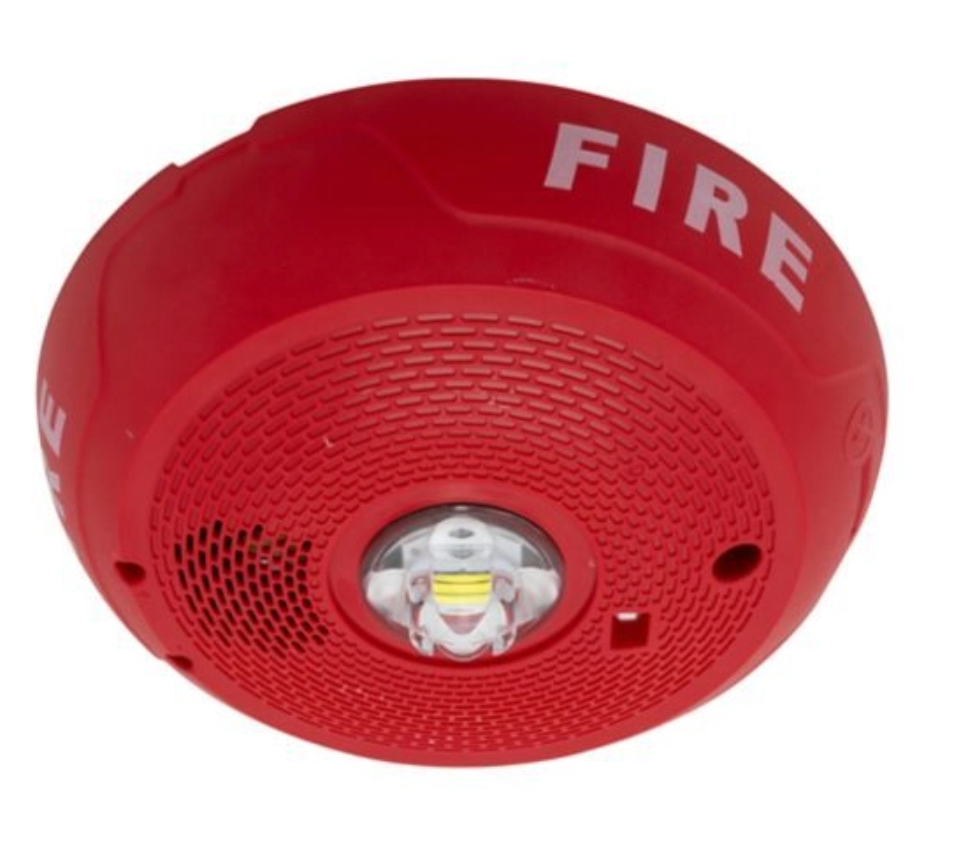

The System Sensor PC2RLED is a ceiling-mount, 2-wire horn strobe featuring energy-efficient LED technology and modern aesthetics. Designed for 24VDC operation only, it is fully compatible with legacy SpectrAlert, SpectrAlert Advance, and L-Series notification appliances. Engineered for simplified installation and reduced power consumption, the PC2RLED is ideal for commercial fire alarm systems requiring effective audio/visual notification with low current draw.
Why You Should Use This:
Reduce power supply costs and improve design flexibility with LED technology that draws less current than traditional Xenon-based units. Enjoy faster installation with plug-in design, universal mounting plate, and built-in shorting spring for pre-install wiring continuity checks.
Ideal For:
Commercial fire alarm installations, building retrofits, and code-compliant audio/visual notification applications where compatibility with SpectrAlert systems is required.
Key Features:
• 2-wire LED horn strobe for ceiling mounting
• Lower current draw vs. Xenon devices
• Compatible with SpectrAlert, SpectrAlert Advance, and L-Series devices
• 24VDC operation only
• Plug-in mounting with onboard shorting spring
• Rotary switch for tone and volume settings
• Horn rated at 88+ dBA at 16V
• Tamper-resistant design
• Compact, uniform aesthetics across L-Series
• Field-selectable candela settings
What's Included:
• System Sensor PC2RLED Horn Strobe
• Universal Mounting Plate
Note: This device requires a 24VDC power source and is not compatible with 12V systems.
Highlights:
• LED = Lower power usage and cost
• Streamlined plug-in install design
• Trusted compatibility with SpectrAlert platforms
FAQs:
Q: Is this compatible with SpectrAlert Advance devices?
A: Yes, it's electrically compatible with SpectrAlert, SpectrAlert Advance, and L-Series models.
Q: What power source is required?
A: This device operates at 24VDC only and is not compatible with 12V systems.
Q: Can I test wiring before mounting?
A: Yes, it includes shorting springs for pre-install continuity testing.
