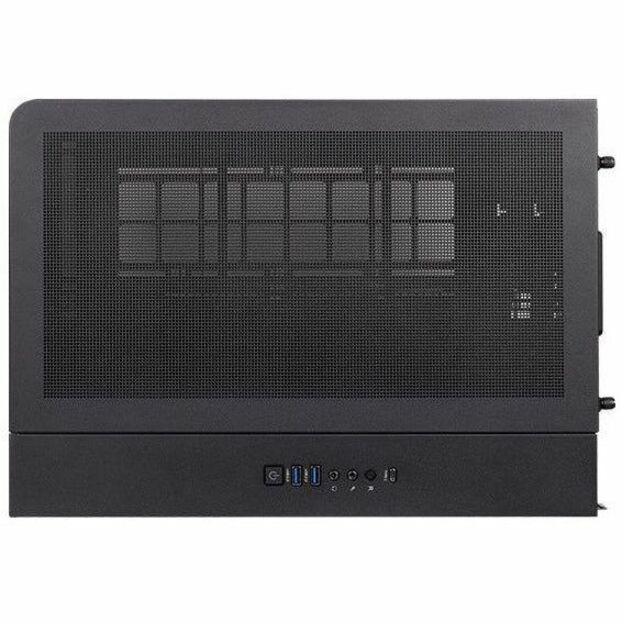

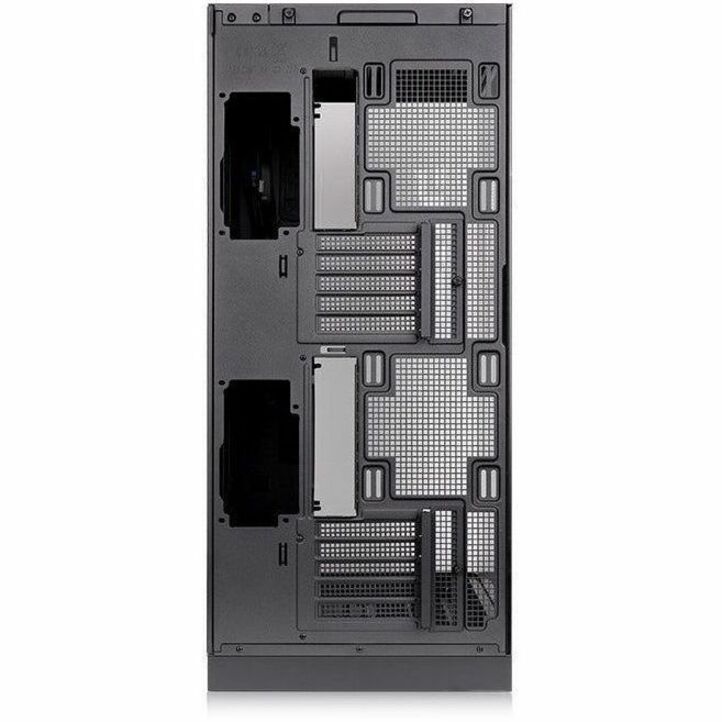

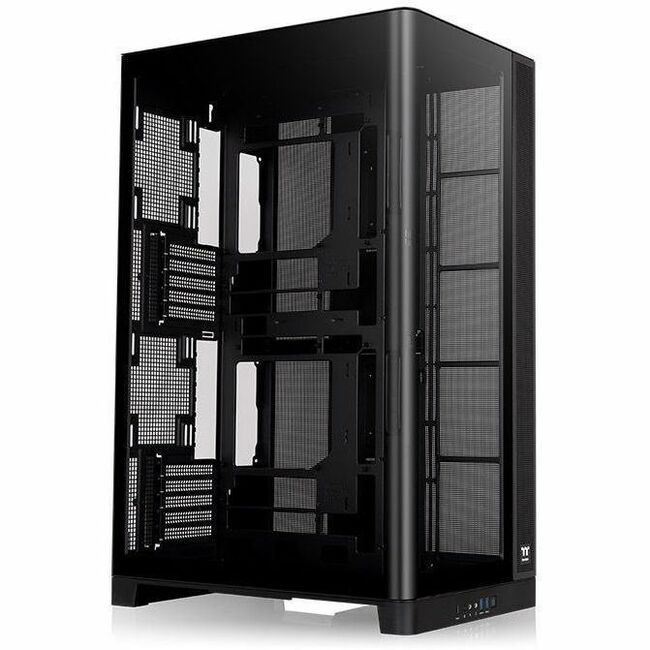

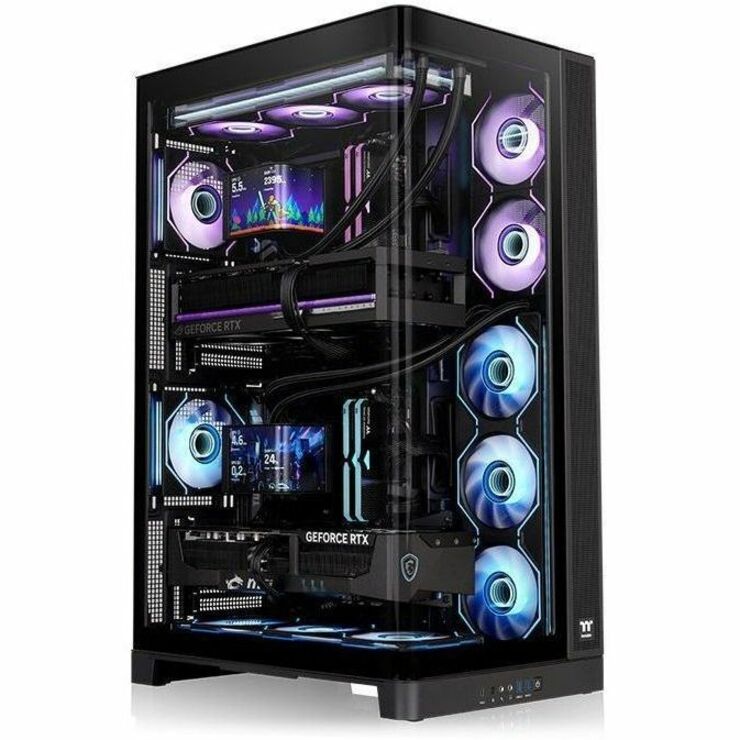

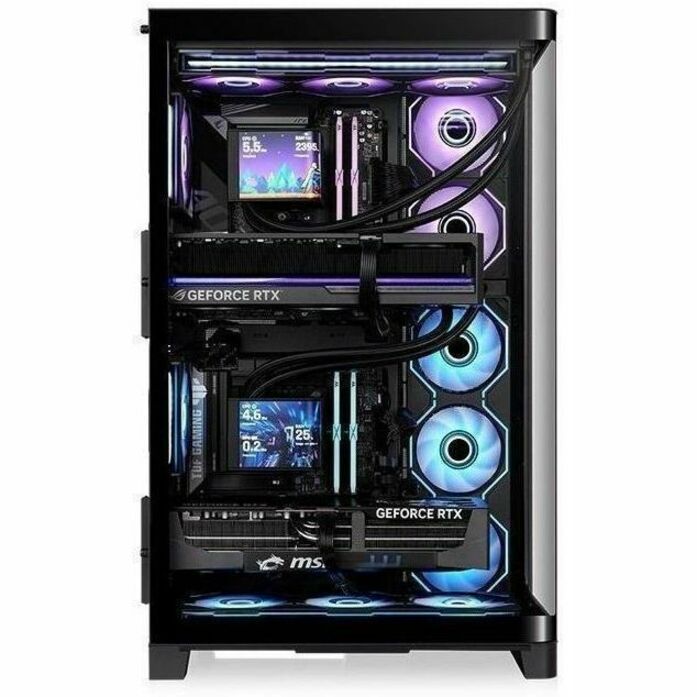

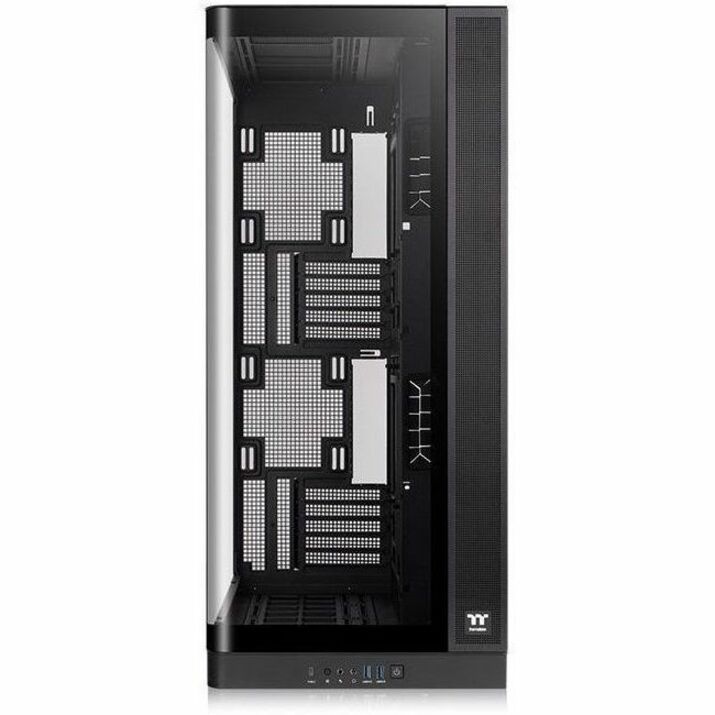

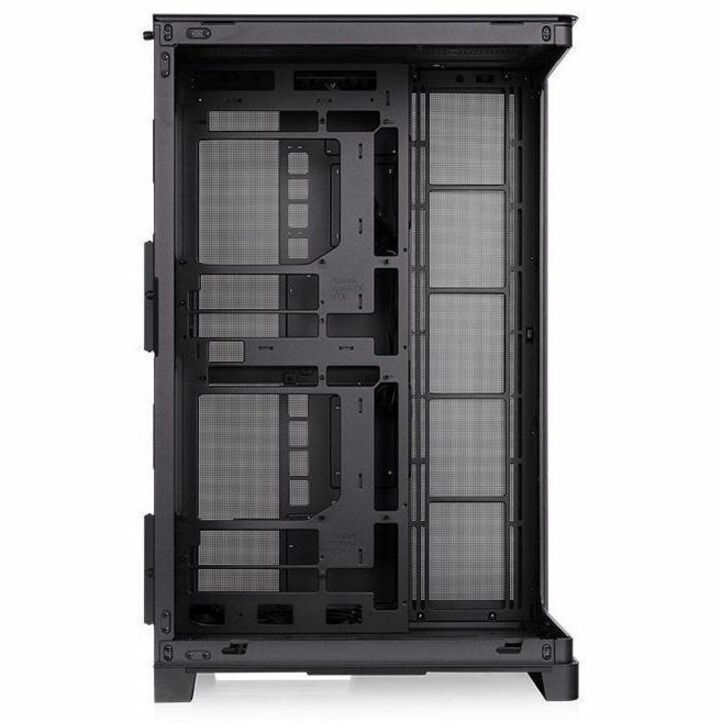

Thermaltake Capo X Dual System Black Chassis with Detachable GPU Brace - CA-12D-00S1WN-00
Key Features
- Configurable Cooling: Two systems means plenty of space for cooling and the CAPO X can support up to thirteen 120mm fans, up to 420mm/360mm radiators, and air coolers up to 180mm in height.
- Cross-plaform Architecture for Parallel Operation: Delivering the ability for parallel operation from a single chassis the CAPO X can house two independent mATX systems simultaneously while minimally impacting the footprint left and opening extra desk space for the tools you need to get the job done.
- Hidden Connector Support: Extra cutouts allow support for mATX hidden connector motherboards such ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH to hide cables for a cleaner build.
- Individual I/O: Each system features is own I/O consisting of a power, reset, HD Audio, 2x USB 3.0 Type-A, and a USB 3.2 Gen2 Type-C port. I/O for the top system is located at the top of the chassis with the bottom system I/O located at the bottom front foot.
- Stable Support: Featuring two detachable clamp GPU braces that mount directly to
General Information
- Manufacturer: Thermaltake Technology Co., Ltd
- Manufacturer Part Number: CA-12D-00S1WN-00
- Brand Name: Thermaltake
- Product Model: CA-12D-00S1WN-00
- Product Name: Capo X Dual System Black Chassis with Detachable GPU Brace
- Packaged Quantity: 1
- Product Type: Gaming Computer Case
Technical Information
- Motherboard Supported:
- Micro ATX
- Mini ITX
- Number of Fans Supported: 13
- Fan Size Supported:
- 4.72"
- 5.51"
- Features:
- On/Off Button
- Reset Button
- Cable Management
Bays
- Number of Internal 3.5" Bays: 2
- Number of Internal 2.5" Bays: 5
I/O Expansions
- Total Number of Expansion Slots: 10
Interfaces/Ports
- USB Port Details:
- 4 x USB 3.0 Type-A
- 2 x USB 3.2 Gen 2 Type C
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Tempered Glass
- Cooler Type: Fan/Liquid Cooler
- Form Factor: Tower
- Maximum CPU Cooler Height: 7.09"
- Maximum PSU Length: 9.84"
- Maximum GPU Length: 16.54"
- Height: 27.2"
- Width: 12"
- Depth: 17.7"
- Weight (Approximate): 29 lb
Miscellaneous
- Package Contents:
- Capo X Dual System Black Chassis
- 2 x Detachable Clamp GPU Braces
Warranty
- Limited Warranty: 3 Year
